ROCCAT Magma Mini - 60% RGB Gaming Keyboard User Manual

ആമുഖം

The ROCCAT Magma Mini is a compact 60% RGB gaming keyboard designed for performance and durability. Its space-saving form factor and vibrant AIMO lighting make it an ideal choice for gamers seeking both functionality and aesthetic appeal.

This manual provides essential information for setting up, operating, maintaining, and troubleshooting your ROCCAT Magma Mini keyboard.

Figure 1: The ROCCAT Magma Mini 60% RGB Gaming Keyboard, showcasing അതിന്റെ ഒതുക്കമുള്ള രൂപകൽപ്പനയും ഊർജ്ജസ്വലമായ RGB ലൈറ്റിംഗും.

പ്രധാന സവിശേഷതകൾ

• 60% Form Factor: Compact design frees up desktop space for wider mouse movements.
• 5-Zone AIMO RGB Lighting: Translucent top plate illuminates 5 vivid RGB zones, customizable with 16.8 million colors.
• Spill Resistant (IP33): Durable IP33 rating provides protection against accidental water and dust spills.
• Membrane Keys: Fast, midway actuation point for satisfying, quiet, and responsive keystrokes.
• Easy-Shift[+]™ Technology: Unlocks a second function layer for programmable key capabilities, accessible via a dedicated button (Caps Lock by default).
• Advanced Anti-Ghosting: Supports simultaneous pressing of up to 20 keys for accurate input.
• Side-Mounted Cable: Flexible cable positioned on the left side to prevent interference with mouse movement.

Figure 2: Illustrates the compact 60% form factor of the Magma Mini, designed to maximize desk space.

സജ്ജമാക്കുക

1. അൺബോക്സിംഗ്: Carefully remove the ROCCAT Magma Mini keyboard and the included USB cable from its packaging.
2. കണക്ഷൻ: Connect the USB cable to the port on the left side of the keyboard.
3. സിസ്റ്റം കണക്ഷൻ: Plug the other end of the USB cable into an available USB port on your PC or compatible gaming console.
4. ഡ്രൈവർ ഇൻസ്റ്റാളേഷൻ: Your operating system should automatically detect and install the necessary drivers. For advanced customization and firmware updates, download the ROCCAT Swarm software from the official ROCCAT webസൈറ്റ്.

Ensure a stable connection for optimal performance. The keyboard is plug-and-play for basic functionality, but the Swarm software unlocks its full potential.

പ്രവർത്തന നിർദ്ദേശങ്ങൾ

AIMO RGB Lighting

The Magma Mini features 5-zone AIMO RGB lighting. This intelligent lighting system reacts to your gameplay and can be synchronized with other AIMO-enabled ROCCAT devices. Customize lighting effects and colors through the ROCCAT Swarm software.

Figure 3: The keyboard illuminated with its 5-zone AIMO RGB backlighting, highlighting the translucent top plate.

Easy-Shift[+]™ Functionality

Easy-Shift[+]™ technology allows you to assign a secondary function to many keys on the keyboard. By default, holding down the Caps Lock key activates the Easy-Shift[+]™ layer. This effectively doubles the number of programmable functions available to you.

• To program Easy-Shift[+]™ functions, open the ROCCAT Swarm software.
• Select the key you wish to program and assign its primary and secondary (Easy-Shift[+]™) functions.
• Save your profile മാറ്റങ്ങൾ പ്രയോഗിക്കാൻ.

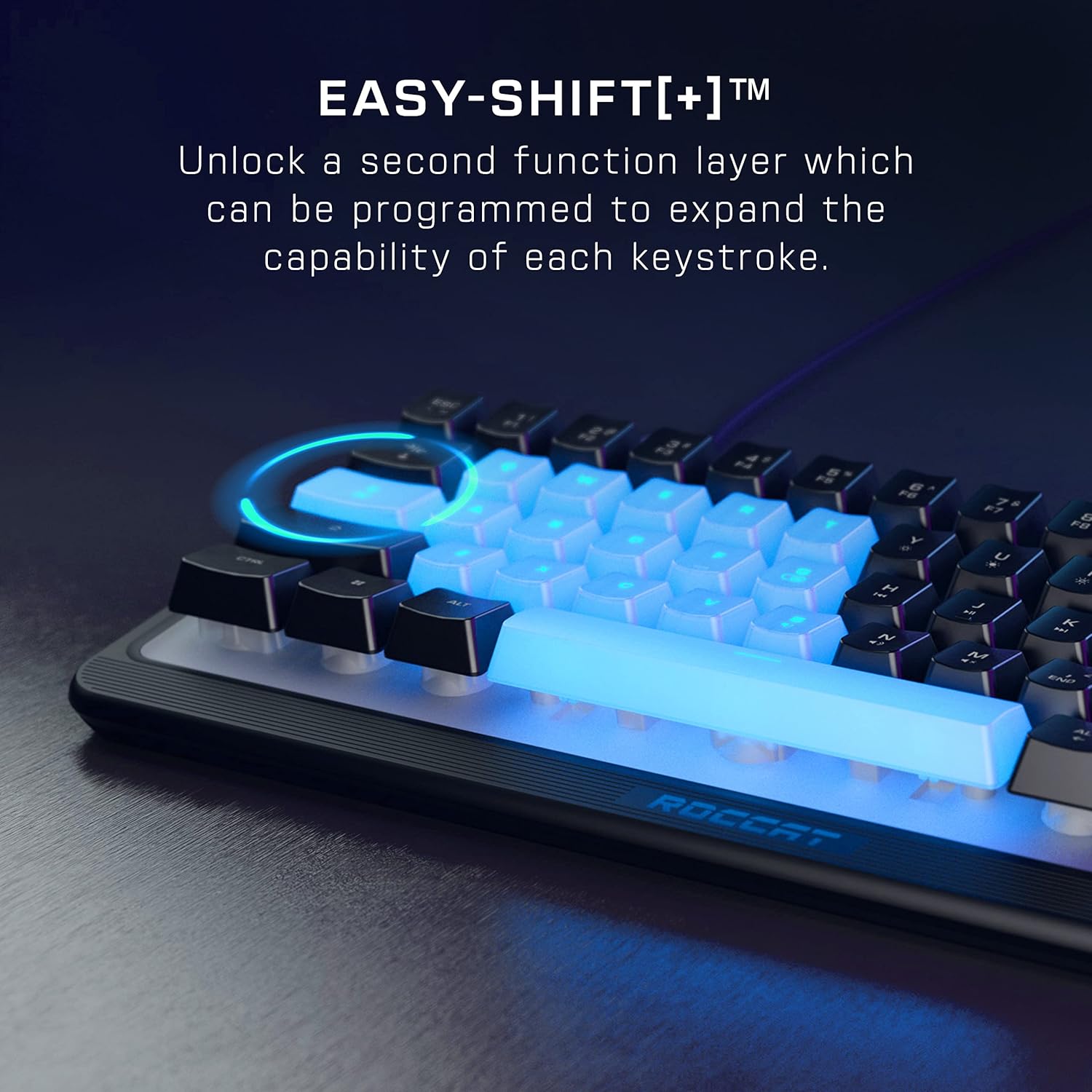

Figure 4: Demonstrates the Easy-Shift[+]™ feature, allowing for a second layer of programmable functions on the keyboard.

ആൻ്റി-ഗോസ്റ്റിംഗ്

The ROCCAT Magma Mini features advanced anti-ghosting with 20-key rollover (20KRO). This ensures that up to 20 keys pressed simultaneously will register accurately, preventing missed inputs during intense gaming sessions.

മെയിൻ്റനൻസ്

വൃത്തിയാക്കൽ

To clean your keyboard, disconnect it from your computer. Use a soft, dry cloth to wipe down the surface. For stubborn dirt, a slightly damp cloth can be used, ensuring no liquid enters the key switches or internal components. Avoid harsh chemicals or abrasive materials.

ചോർച്ച പ്രതിരോധം

The Magma Mini boasts an IP33 rating for water and dust resistance. While it offers protection against accidental spills, it is not fully waterproof. In case of a spill, immediately disconnect the keyboard from your computer, wipe away any liquid, and allow it to air dry completely before reconnecting.

ചിത്രം 5: ക്ലോസപ്പ് view of the keyboard keys with water droplets, illustrating its IP33 spill resistance.

ട്രബിൾഷൂട്ടിംഗ്

• കീബോർഡ് പ്രതികരിക്കുന്നില്ല:
  • USB കേബിൾ കീബോർഡിലേക്കും കമ്പ്യൂട്ടറിലേക്കും സുരക്ഷിതമായി ബന്ധിപ്പിച്ചിട്ടുണ്ടെന്ന് ഉറപ്പാക്കുക.
  • കീബോർഡ് മറ്റൊരു USB പോർട്ടിലേക്ക് പ്ലഗ് ചെയ്യാൻ ശ്രമിക്കുക.
  • നിങ്ങളുടെ കമ്പ്യൂട്ടർ പുനരാരംഭിക്കുക.
• RGB ലൈറ്റിംഗ് പ്രവർത്തിക്കുന്നില്ല/തെറ്റാണ്:
  • Verify that the ROCCAT Swarm software is installed and up to date.
  • Check lighting settings within the Swarm software.
  • Ensure no conflicting software is running that might interfere with RGB control.
• രജിസ്റ്റർ ചെയ്യാത്ത കീകൾ:
  • Clean the affected keys to remove any debris.
  • If the issue persists, contact ROCCAT support.

സ്പെസിഫിക്കേഷനുകൾ

വാറൻ്റിയും പിന്തുണയും

For warranty information, technical support, or to download the latest ROCCAT Swarm software, please visit the official ROCCAT webസൈറ്റ്:

www.roccat.com/support

You can also find additional resources and FAQs on the product's Amazon page or by contacting Amazon customer service.
