1. ആമുഖം
This manual provides essential instructions for the safe and effective installation, operation, and maintenance of the ALLIANCE LAUNDRY SYSTEMS Fabric Selector Switch, model 61512. This component is designed for use in various laundry equipment, including IPSO, Huebsch, Speed Queen, Unimac, Primus, and other Alliance Laundry Systems dryers. Please read this manual thoroughly before proceeding with any installation or operation.
2 സുരക്ഷാ വിവരങ്ങൾ
മുന്നറിയിപ്പ്: Electrical shock hazard. Disconnect power to the appliance before installing or servicing this component. Only qualified personnel should perform installation and repairs.
- ഇൻസ്റ്റാളേഷനും അറ്റകുറ്റപ്പണിയും നടത്തുമ്പോൾ എല്ലായ്പ്പോഴും ഉചിതമായ വ്യക്തിഗത സംരക്ഷണ ഉപകരണങ്ങൾ (പിപിഇ) ധരിക്കുക.
- Ensure all electrical connections are secure and comply with local codes.
- Do not operate the appliance if the switch is damaged or improperly installed.
3. സജ്ജീകരണവും ഇൻസ്റ്റാളേഷനും
The Fabric Selector Switch (61512) is a replacement part. Installation typically involves replacing an existing switch. Refer to your specific appliance's service manual for detailed disassembly and reassembly procedures.
3.1 ഇൻസ്റ്റലേഷൻ ഘട്ടങ്ങൾ:
- പവർ വിച്ഛേദിക്കുക: Ensure the laundry appliance is completely disconnected from its power source.
- ആക്സസ് സ്വിച്ച്: Carefully open the appliance panel to gain access to the existing fabric selector switch.
- പ്രമാണ കണക്ഷനുകൾ: Before disconnecting, take a photograph or make a diagram of the wiring connections to the old switch. This is crucial for correct reinstallation.
- പഴയ സ്വിച്ച് നീക്കം ചെയ്യുക: Disconnect all wires and fasteners securing the old switch.
- പുതിയ സ്വിച്ച് ഇൻസ്റ്റാൾ ചെയ്യുക: Position the new ALLIANCE LAUNDRY SYSTEMS 61512 switch in place. Secure it with appropriate fasteners.
- വയറിംഗ് ബന്ധിപ്പിക്കുക: Reconnect the wires to the new switch according to your documented connections. Ensure all terminals are clean and connections are firm.
- ഇൻസ്റ്റാളേഷൻ പരിശോധിക്കുക: Double-check all connections and ensure the switch is securely mounted.
- പവർ പുന ore സ്ഥാപിക്കുക: Close the appliance panel and reconnect power.

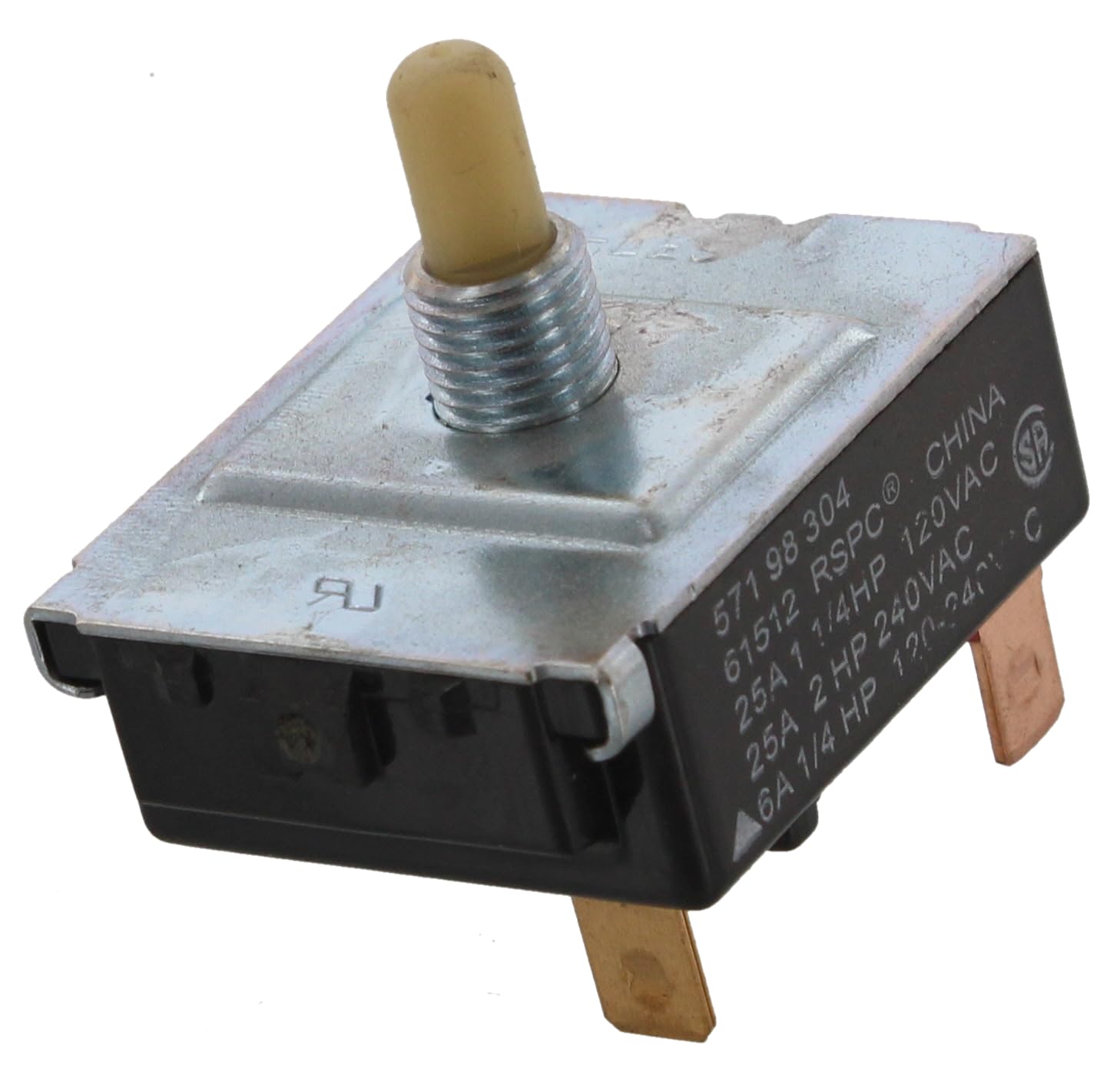

ചിത്രം 1: ALLIANCE LAUNDRY SYSTEMS Fabric Selector Switch (Model 61512). This image shows the compact design of the 4-position fabric selector switch, highlighting its terminals and mounting points for installation into compatible laundry equipment.
4. പ്രവർത്തന നിർദ്ദേശങ്ങൾ
The Fabric Selector Switch (61512) is a 4-position rotary switch designed to allow users to select different fabric settings or cycles on a laundry appliance. The specific functions of each position are determined by the appliance's control system.
4.1 അടിസ്ഥാന പ്രവർത്തനം:
- Turn the knob or actuator connected to the switch to rotate it to the desired position.
- Each position corresponds to a specific fabric type or program setting (e.g., Cottons, Delicates, Permanent Press, Heavy Duty).
- Ensure the switch clicks firmly into each position to ensure proper electrical contact and selection.
Refer to your laundry appliance's user manual for specific details on what each of the 4 positions controls.
5. പരിപാലനം
The Fabric Selector Switch (61512) is designed for durability and typically requires minimal maintenance. However, periodic inspection can help ensure its longevity and proper function.
5.1 Recommended Maintenance:
- വിഷ്വൽ പരിശോധന: Periodically inspect the switch for any signs of physical damage, such as cracks, discoloration, or loose components.
- കണക്ഷൻ പരിശോധന: With power disconnected, ensure all wiring connections to the switch are tight and free from corrosion.
- വൃത്തിയാക്കൽ: If accessible, gently clean any dust or debris from around the switch using a soft, dry cloth. Avoid using liquid cleaners directly on electrical components.
If any damage or malfunction is observed, replace the switch immediately to prevent further issues with the appliance.
6. പ്രശ്നപരിഹാരം
If your laundry appliance is not responding correctly to fabric selections, the selector switch may be a contributing factor. Here are some common issues and troubleshooting steps:
| പ്രശ്നം | സാധ്യമായ കാരണം | പരിഹാരം |
|---|---|---|
| Appliance does not respond to fabric selection. | അയഞ്ഞ വയറിംഗ് കണക്ഷൻ. Faulty switch contacts. | Disconnect power and check all wiring connections to the switch. Ensure they are secure. If connections are good, the switch may need replacement. |
| Switch knob feels loose or does not click into position. | Worn internal mechanism. Damaged switch housing. | The switch is likely worn out or damaged internally. Replacement is recommended. |
| Incorrect fabric setting is activated. | Miswired switch. ആന്തരിക സ്വിച്ച് പരാജയം. | Disconnect power and verify wiring against your documentation. If wiring is correct, the switch may be faulty and require replacement. |
If troubleshooting steps do not resolve the issue, it is recommended to consult a qualified appliance technician.
7 സ്പെസിഫിക്കേഷനുകൾ
- ഭാഗം നമ്പർ: 61512
- നിർമ്മാതാവ്: അലയൻസ് ലോൺട്രി സിസ്റ്റംസ്
- ഇനത്തിൻ്റെ ഭാരം: 2.4 ഔൺസ്
- പാക്കേജ് അളവുകൾ: 1.75 x 1.5 x 1.4 ഇഞ്ച്
- മെറ്റീരിയൽ: Fabric (Note: This refers to the function of fabric selection, not the physical material of the switch itself.)
- ഇനത്തിൻ്റെ പാക്കേജ് അളവ്: 1
- അനുയോജ്യത: Fits Ipso, Huebsch, Speed Queen, Unimac, Primus, Alliance Laundry Systems Dryers.
8. വാറൻ്റി വിവരങ്ങൾ
This ALLIANCE LAUNDRY SYSTEMS component is typically covered by a limited manufacturer's warranty against defects in materials and workmanship. Specific warranty terms and duration may vary. Please retain your proof of purchase. For detailed warranty information, refer to the documentation provided with your original appliance or contact ALLIANCE LAUNDRY SYSTEMS directly.
9. പിന്തുണയും സമ്പർക്കവും
For technical assistance, replacement parts, or further inquiries regarding the ALLIANCE LAUNDRY SYSTEMS Fabric Selector Switch (61512), please contact your appliance manufacturer or an authorized service provider.
- നിർമ്മാതാവ്: ALLIANCE LAUNDRY SYSTEMS
- Webസൈറ്റ്: www.alliancelaundry.com (Note: This is a general link to the manufacturer's webപിന്തുണയ്ക്കുള്ള സൈറ്റ്.)
