HUUM Cliff 10.5 kW Sauna Heater with UKU Control (White) Instruction Manual

ആമുഖം

This manual provides essential information for the safe and efficient installation, operation, and maintenance of your HUUM Cliff 10.5 kW Sauna Heater with UKU Control. Please read all instructions carefully before proceeding with installation or use. Retain this manual for future reference.

The HUUM Cliff 10.5 kW sauna heater is designed for sauna rooms up to 600 cubic feet. This package includes the CLIFF 10.5kW sauna heater, UKU White Sauna Control, an Extension Box, and 165 lbs of 1" to 2" (3-5 cm) round Olivine sauna stones.

സജ്ജീകരണവും ഇൻസ്റ്റാളേഷനും

പ്രധാനപ്പെട്ടത്: Installation of the HUUM Cliff sauna heater and its electrical components must be performed by a qualified electrician in accordance with all local and national electrical codes and regulations. Incorrect installation can lead to electric shock, fire, or other hazards.

1. Heater Placement

Position the HUUM Cliff heater in your sauna room according to the manufacturer's specifications for clearances from walls and benches. Ensure adequate air circulation around the heater.

Image: The HUUM Cliff 10.5 kW Sauna Heater, a tall, narrow, stone-filled unit, positioned in a sauna room next to a wooden bench and dark wooden wall paneling.

2. Loading Sauna Stones

Carefully place the provided 165 lbs of 1" to 2" (3-5 cm) round Olivine sauna stones into the heater's stone basket. Ensure the stones are packed densely but allow for air circulation between them. Avoid forcing stones, as this can damage the heating elements. The stones should cover the heating elements completely but not extend significantly above the top edge of the heater.

Image: A pile of smooth, rounded Olivine sauna stones, typically used in sauna heaters for heat retention and steam generation.

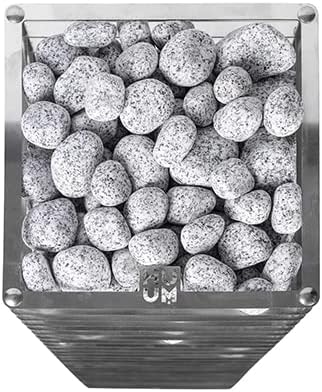

ചിത്രം: മുകളിൽ നിന്ന് താഴേക്ക് view of the HUUM Cliff sauna heater's stone basket, filled with numerous rounded sauna stones, showing the even distribution.

3. UKU Control and Extension Box Connection

Connect the UKU White Sauna Control and Extension Box according to the wiring diagrams provided in the separate UKU control manual. The extension box facilitates the connection between the control unit and the heater. Ensure all connections are secure and properly insulated.

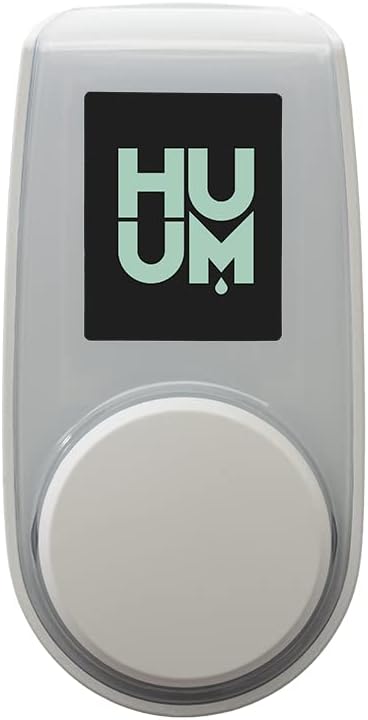

Image: The HUUM UKU White Sauna Control panel, a sleek, rectangular device with a digital display showing the HUUM logo and a large white rotary knob at the bottom.

പ്രവർത്തന നിർദ്ദേശങ്ങൾ

1. പ്രാരംഭ പവർ-അപ്പ്

After professional installation, turn on the main power supply to the sauna heater. The UKU control unit will power on. Refer to the UKU control manual for initial setup and pairing instructions, especially if using the optional WiFi features.

2. Setting Temperature and Time

Use the UKU control panel to set your desired sauna temperature and heating duration. The control allows for precise temperature adjustments and scheduling. Follow the specific instructions in the UKU control manual for navigating menus and setting parameters.

3. Using Water on Stones

Once the heater has reached the desired temperature, you may gently pour small amounts of water onto the hot sauna stones to create steam (löyly). Use only clean tap water. Avoid pouring excessive amounts of water at once, as this can cool the elements too rapidly or cause water to spill outside the heater. Never pour water on the heater elements directly.

മെയിൻ്റനൻസ്

1. പതിവായി വൃത്തിയാക്കൽ

Ensure the heater is completely cool and disconnected from power before cleaning. Wipe the exterior of the heater with a damp cloth. Do not use abrasive cleaners or solvents. Keep the air vents clear of dust and debris.

2. Stone Inspection

Periodically inspect the sauna stones (at least once a year, or more frequently with heavy use). Remove any broken or crumbling stones and replace them with new, appropriate sauna stones. Rearrange the stones to ensure good air circulation and even heat distribution. Over time, stones can lose their heat retention properties or become brittle.

3. ഇലക്ട്രിക്കൽ കണക്ഷനുകൾ

Have a qualified electrician periodically check all electrical connections to the heater and control unit to ensure they remain secure and free from corrosion.

ട്രബിൾഷൂട്ടിംഗ്

If you encounter issues with your HUUM Cliff sauna heater, please refer to the following common troubleshooting steps before contacting support.

• ഹീറ്റർ ചൂടാക്കുന്നില്ല: Check the circuit breaker for the sauna heater. Ensure the UKU control unit is powered on and set to a temperature above the current sauna room temperature. Verify all electrical connections are secure (this should be done by a qualified electrician).
• നിയന്ത്രണ യൂണിറ്റ് പ്രതികരിക്കുന്നില്ല: Check the power supply to the UKU control. If the unit has a display, check for error codes and consult the UKU control manual. Try restarting the control unit by cycling its power.
• അപര്യാപ്തമായ ചൂട്: Ensure the sauna room door is properly closed and sealed. Verify that the sauna stones are correctly loaded and not too tightly packed, which can restrict airflow. Check the sauna room size against the heater's capacity (up to 600 cu ft for this model).
• Excessive Steam/Water Spillage: Ensure you are pouring small amounts of water onto the stones. Avoid pouring water directly onto the heating elements.

For persistent issues or complex electrical problems, contact a qualified electrician or HUUM customer support.

സ്പെസിഫിക്കേഷനുകൾ

വാറൻ്റി വിവരങ്ങൾ

The HUUM Cliff 10.5 kW Sauna Heater comes with a 5 വർഷത്തെ പരിമിത വാറൻ്റി, excluding heating elements. This warranty covers manufacturing defects under normal use and service. For full details regarding warranty terms, conditions, and claims procedures, please refer to the official warranty documentation provided with your product or contact HUUM customer support.

ഉപഭോക്തൃ പിന്തുണ

For technical assistance, spare parts, or any questions regarding your HUUM Cliff sauna heater, please contact HUUM customer support. You can find contact information on the official HUUM webസൈറ്റ് അല്ലെങ്കിൽ നിങ്ങൾ ഉൽപ്പന്നം വാങ്ങിയ റീട്ടെയിലർ വഴി.

നിങ്ങൾക്ക് സന്ദർശിക്കാവുന്നതും HUUM Store on Amazon കൂടുതൽ ഉൽപ്പന്ന വിവരങ്ങൾക്കും ഉറവിടങ്ങൾക്കും.
