AVer A30 All-in-One Camera User Manual

1. ആമുഖം

The AVer A30 All-in-One Camera is a versatile device designed for various communication and presentation needs. It integrates a 4K Ultra HD camera, a high-fidelity microphone, and a speaker system into a single unit. This manual provides detailed instructions for setting up, operating, and maintaining your AVer A30 camera.

2. ഉൽപ്പന്നം കഴിഞ്ഞുview

2.1 പ്രധാന സവിശേഷതകൾ

• 4K അൾട്രാ HD ക്യാമറ: Supports high-resolution video capture and streaming.
• ഇന്റഗ്രേറ്റഡ് ഓഡിയോ സിസ്റ്റം: Premium onboard microphone and speaker for clear communication, with echo cancellation and background noise reduction.
• ഫ്ലെക്സിബിൾ ഡിസൈൻ: Adjustable camera arm for document capture or face-to-face interaction.
• 23x ഡിജിറ്റൽ സൂം: വിശദമായി അനുവദിക്കുന്നു viewവസ്തുക്കളുടെ ing.
• വിശാലമായ അനുയോജ്യത: Works with major conferencing platforms (Zoom, Google Hangouts, Microsoft Teams, Skype, OBS, SeeSaw) and operating systems (PC, Mac, Chromebooks).
• USB/HDMI Connectivity: ലളിതമായ പ്ലഗ്-ആൻഡ്-പ്ലേ സജ്ജീകരണം.
• ഓട്ടോമാറ്റിക് ഇമേജ് റൊട്ടേഷൻ: Ensures correct orientation regardless of camera angle.

2.2 ഘടകങ്ങൾ

Familiarize yourself with the main components of your AVer A30 camera:

• ക്യാമറ ഹെഡ്: Contains the 4K lens.
• ക്രമീകരിക്കാവുന്ന ഭുജം: Allows positioning of the camera head.
• Main Unit (Base): Houses the speaker, microphone, and control buttons.
• നിയന്ത്രണ ബട്ടണുകൾ: Located on the side of the main unit for various functions.
• കണക്റ്റിവിറ്റി പോർട്ടുകൾ: USB and HDMI ports on the rear of the main unit.

ചിത്രം 2.2.1: മുൻഭാഗം view of the AVer A30 camera with the camera head extended upwards.

ചിത്രം 2.2.2: വശം view of the AVer A30 camera, highlighting the control buttons on the right side of the speaker grille.

ചിത്രം 2.2.3: പിൻഭാഗം view of the AVer A30 camera, displaying the USB and HDMI connectivity ports.

3. സജ്ജീകരണം

3.1 അൺപാക്കിംഗും പ്ലേസ്മെന്റും

1. Carefully remove the AVer A30 camera from its packaging.
2. Place the camera on a stable, flat surface. Ensure there is adequate space for the adjustable arm to extend and rotate.

3.2 ക്യാമറ കണക്ട് ചെയ്യുന്നു

The AVer A30 offers both USB and HDMI connectivity options.

3.2.1 USB Connection (for PC/Mac/Chromebook and Video Conferencing)

1. Connect one end of the provided USB cable to the USB port on the rear of the AVer A30.
2. നിങ്ങളുടെ കമ്പ്യൂട്ടറിൽ ലഭ്യമായ USB പോർട്ടിലേക്ക് USB കേബിളിൻ്റെ മറ്റേ അറ്റം ബന്ധിപ്പിക്കുക.
3. The camera will be automatically detected by your operating system. No additional drivers are typically required.
4. Open your preferred video conferencing software (e.g., Zoom, Microsoft Teams) or document camera application and select the AVer A30 as your camera, microphone, and speaker device.

3.2.2 HDMI Connection (for Display Output)

1. Connect one end of an HDMI cable (not included) to the HDMI OUT port on the rear of the AVer A30.
2. Connect the other end of the HDMI cable to an HDMI input port on your display device (monitor, projector, TV).
3. The camera's output will be displayed directly on the connected screen. This mode is ideal for live presentations without a computer.

Figure 3.2.1: Illustration of connecting the AVer A30 via USB and HDMI ports to a computer and display.

4. പ്രവർത്തന നിർദ്ദേശങ്ങൾ

4.1 Adjusting the Camera Arm

The AVer A30 features a multi-jointed arm that allows for flexible positioning of the camera head. You can twist and bend the arm to achieve various angles for different applications:

• Document Camera Mode: Position the camera head directly above a document or object on your desk.
• Webക്യാമറ മോഡ്: Angle the camera head towards yourself for video conferencing.

Figure 4.1.1: The AVer A30 with its arm extended horizontally, suitable for capturing documents.

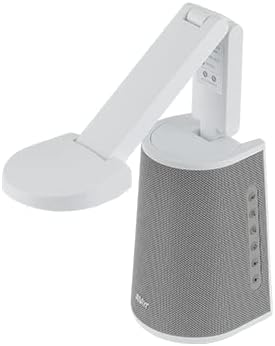

Figure 4.1.2: The AVer A30 with its arm angled, demonstrating flexibility for various uses.

4.2 Using as a Document Camera

1. Position the camera arm so the camera head is directly above the document or object you wish to display.
2. Ensure adequate lighting for clear image capture.
3. If connected via USB, open your document camera software or video conferencing application and select the AVer A30.
4. If connected via HDMI, the image will appear directly on your display.
5. Use the digital zoom function (if available via software or physical controls) to magnify specific areas.

4.3 ആയി ഉപയോഗിക്കുന്നത് a Webവീഡിയോ കോൺഫറൻസിങ്ങിനുള്ള ക്യാമറ

1. Adjust the camera arm to point the camera head towards yourself.
2. Open your video conferencing application (e.g., Zoom, Microsoft Teams).
3. In the application's settings, select the AVer A30 as your primary camera, microphone, and speaker.
4. The integrated microphone and speaker system will provide clear audio for your calls.

Figure 4.3.1: A user engaged in a video conference using the AVer A30 camera.

Figure 4.3.2: A user demonstrating remote work setup with the AVer A30 camera and an external monitor.

4.4 ഓഡിയോ സവിശേഷതകൾ

The AVer A30 features a high-fidelity microphone and speaker system:

• മൈക്രോഫോൺ: Designed to capture voices clearly while digitally removing echo and background noise.
• സ്പീക്കർ: Provides clear audio output, effective up to 20 feet away.

Ensure the AVer A30 is selected as the audio input and output device in your computer's sound settings or conferencing application for optimal performance.

Figure 4.4.1: Visual representation of the AVer A30's microphone and speaker system for clear audio.

4.5 Automatic Image Rotation

The AVer A30 automatically adjusts the image orientation. This feature ensures that the displayed image is always right-side up, whether you are using it as a document camera or a webക്യാം

5. പരിപാലനം

5.1 വൃത്തിയാക്കൽ

• ക്യാമറ ലെൻസ്: Gently wipe the camera lens with a soft, lint-free cloth. For stubborn smudges, use a lens cleaning solution specifically designed for optical surfaces.
• ഉപകരണ ബോഡി: Use a soft, dry cloth to wipe the exterior of the camera. Avoid using harsh chemicals or abrasive cleaners.

5.2 സംഭരണം

When not in use, store the AVer A30 in a cool, dry place, away from direct sunlight and extreme temperatures. Ensure the adjustable arm is folded into a compact position to prevent damage.

6. പ്രശ്‌നപരിഹാരം

7 സ്പെസിഫിക്കേഷനുകൾ

8. വാറണ്ടിയും പിന്തുണയും

8.1 വാറൻ്റി വിവരങ്ങൾ

For detailed warranty information, please refer to the warranty card included with your product or visit the official AVer webസൈറ്റ്. വാറന്റി ക്ലെയിമുകൾക്കായി നിങ്ങളുടെ വാങ്ങലിന്റെ തെളിവ് സൂക്ഷിക്കുക.

8.2 സാങ്കേതിക പിന്തുണ

If you encounter any issues not covered in this manual or require further assistance, please contact AVer technical support. Support contact information can typically be found on the AVer webസൈറ്റ് അല്ലെങ്കിൽ നിങ്ങളുടെ ഉൽപ്പന്ന ഡോക്യുമെന്റേഷനിൽ.

ഓൺലൈൻ ഉറവിടങ്ങൾ: For additional resources, FAQs, and software updates, please visit the official AVer support page: AVer പിന്തുണ
