ENEGON സ്മാർട്ട് മൾട്ടി-ഫംഗ്ഷൻ ഫാസ്റ്റ് ബാറ്ററി ചാർജർ ഉപയോക്തൃ മാനുവൽ

1. ഉൽപ്പന്നം കഴിഞ്ഞുview

The ENEGON Smart Multi-Function Fast Battery Charger is a versatile and efficient charging solution for various rechargeable battery types. It features independent charging slots, allowing you to charge different battery sizes simultaneously. The intelligent design includes an LCD display for monitoring charging status and multiple safety protections to ensure reliable operation.

Image: ENEGON Smart Multi-Function Battery Charger with various battery types.

2. പാക്കേജ് ഉള്ളടക്കം

• 1 x ENEGON Smart Battery Charger
• 1 x യുഎസ്ബി-സി ചാർജിംഗ് കേബിൾ
• 1 x ഉപയോക്തൃ മാനുവൽ (ഈ പ്രമാണം)

Image: Charger, USB-C cable, and packaging.

3. സജ്ജീകരണ ഗൈഡ്

Follow these steps to set up your ENEGON Smart Multi-Function Fast Battery Charger:

1. പവർ ബന്ധിപ്പിക്കുക: Connect the provided USB-C charging cable to the charger's input port. Connect the other end of the cable to a 5V DC power source, such as a USB charger, car charger, PC, or portable charger. The charger's LCD display will illuminate.
2. ബാറ്ററികൾ ചേർക്കുക: Open the transparent cover of the charger. Insert your rechargeable Ni-MH or Ni-CD batteries (AA, AAA, C, D, or 9V) into the appropriate slots, ensuring correct polarity (+ and -). The charger features independent slots, allowing you to charge any number of batteries at a time.

Image: ENEGON Smart Multi-Function Battery Charger with its lid open, showing the battery slots and the included USB cables.

Image: Diagram illustrating various power sources for the charger, including laptop, power bank, car charger, and wall charger, highlighting Micro-USB and USB-C input options.

4. പ്രവർത്തന നിർദ്ദേശങ്ങൾ

4.1. ചാർജിംഗ് ബാറ്ററികൾ

The charger supports 1 to 4 AA/AAA/C/D Ni-MH Ni-CD batteries, or 1 to 2 9V Ni-MH Ni-CD batteries. Each slot operates independently.

• AA/AAA/C/D Batteries: Insert these batteries into the larger slots. Ensure the positive (+) and negative (-) terminals align with the markings in the charger.
• 9V ബാറ്ററികൾ: Insert 9V batteries into the dedicated smaller slots.

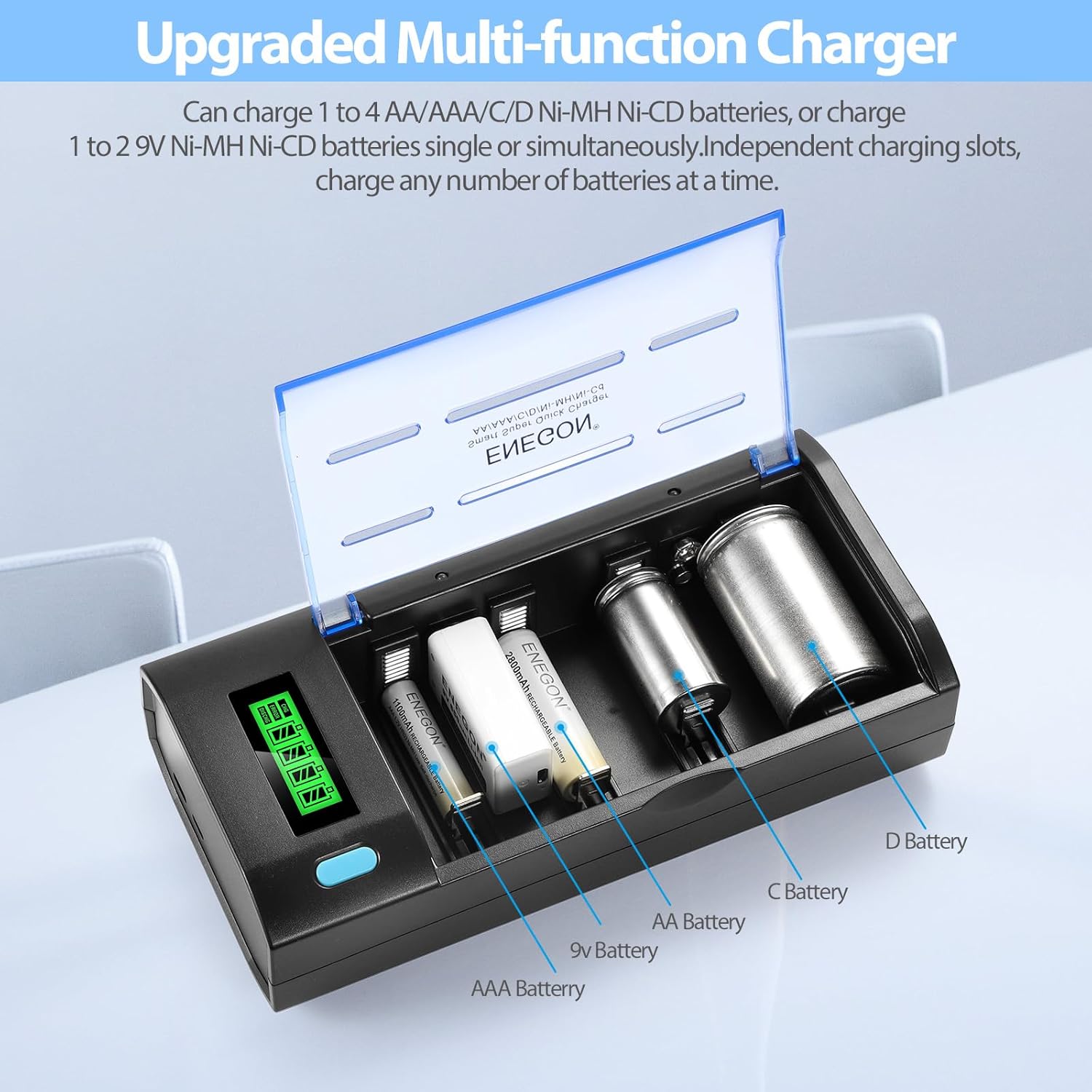

Image: The charger with various battery types (AAA, 9V, AA, C, D) inserted into their respective slots, demonstrating its multi-functionality.

4.2. ഡിസ്പ്ലേ മനസ്സിലാക്കൽ

The charger provides real-time status updates:

• LCD Display (for AA/AAA/C/D Batteries): Shows the charging status of each individual battery with a battery icon and progress bar.
• LED Indicator (for 9V Batteries): A red light indicates charging, and a green light indicates fully charged.

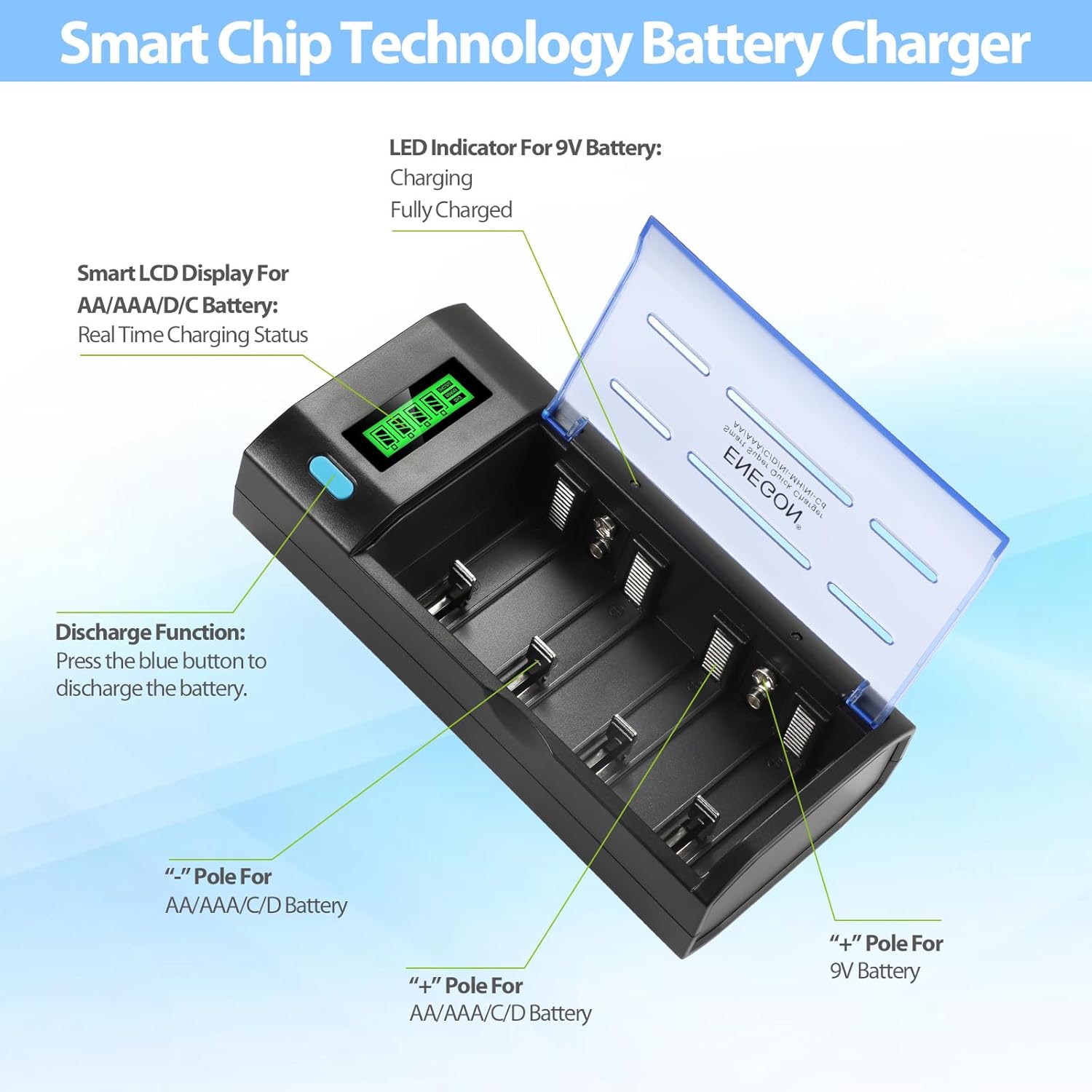

Image: Close-up of the charger's LCD display showing charging status, along with markings for positive and negative poles for different battery types.

ചിത്രം: വിശദമായത് view of the LCD display indicating battery charge levels from 0-25% to 75-100%.

4.3. ഡിസ്ചാർജ് ഫംഗ്ഷൻ

For AA/AAA/C/D batteries, press the blue button on the charger to initiate the discharge function. This can be useful for Ni-CD batteries to prevent memory effect. The display will indicate the discharge process.

4.4. ഫാസ്റ്റ് ചാർജിംഗ്

The charger is designed for fast charging with an output current of up to 1000 mA for AA/AAA/C/D batteries.

Note: Charging times may vary based on battery capacity and remaining charge. This charger is only for 1.2V Ni-MH/Ni-CD AA/AAA/C/D and 9V batteries.

Image: Visual representation of fast charging times and output currents for different battery types.

5. സുരക്ഷയും സംരക്ഷണവും

The ENEGON Smart Charger incorporates multiple safety features to protect your batteries and the charger itself:

• ഓവർ-വോളിയംtagഇ സംരക്ഷണം: അമിത വോള്യത്തിൽ നിന്നുള്ള കേടുപാടുകൾ തടയുന്നുtage.
• ഓവർ-കറൻ്റ് പരിരക്ഷ: Safeguards against high current flow.
• ഷോർട്ട് സർക്യൂട്ട് സംരക്ഷണം: ഷോർട്ട് സർക്യൂട്ട് ഉണ്ടായാൽ യാന്ത്രികമായി വൈദ്യുതി വിച്ഛേദിക്കുന്നു.
• High-temperature Protection: Operates safely between 0℃ and 35℃, with mechanisms to prevent overheating.
• അമിത ചാർജ് സംരക്ഷണം: Prevents batteries from being overcharged, extending their lifespan.

The constant current and voltage charging mode further enhances safety and battery longevity.

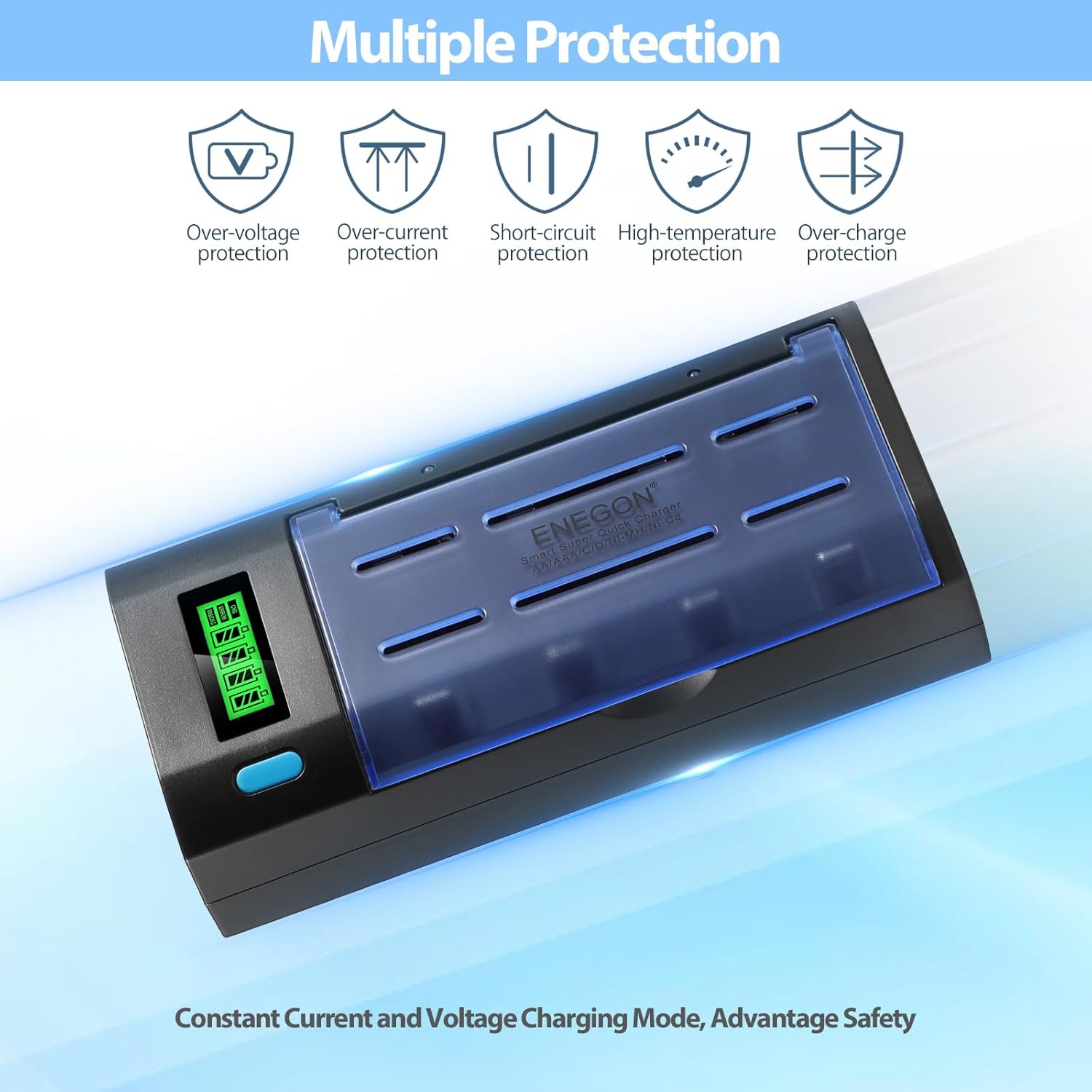

Image: Icons representing the various safety protections: Over-voltage, Over-current, Short-circuit, High-temperature, and Over-charge protection.

6. പരിപാലനം

• വൃത്തിയാക്കൽ: Disconnect the charger from power before cleaning. Use a soft, dry cloth to wipe the surface. Do not use abrasive cleaners or immerse the charger in water.
• സംഭരണം: ഉപയോഗിക്കാത്തപ്പോൾ നേരിട്ടുള്ള സൂര്യപ്രകാശത്തിൽ നിന്നും കടുത്ത താപനിലയിൽ നിന്നും മാറി തണുത്തതും വരണ്ടതുമായ സ്ഥലത്ത് ചാർജർ സൂക്ഷിക്കുക.
• കൈകാര്യം ചെയ്യൽ: ചാർജർ താഴെയിടുകയോ ശക്തമായ ആഘാതങ്ങൾക്ക് വിധേയമാക്കുകയോ ചെയ്യുന്നത് ഒഴിവാക്കുക.

Image: The ENEGON charger on a table with various rechargeable batteries, emphasizing safe and confident usage.

7. പ്രശ്‌നപരിഹാരം

• ചാർജർ ഓണാകുന്നില്ല:
  • Ensure the USB cable is securely connected to both the charger and the power source.
  • Verify that the power source (USB adapter, PC port) is functional.
• Battery not charging/LCD not showing status:
  • Check battery polarity. Ensure the battery is inserted correctly according to the +/- markings.
  • Ensure the battery is a rechargeable Ni-MH or Ni-CD type. This charger is not compatible with alkaline or lithium batteries.
  • Clean battery terminals and charger contacts with a dry cloth to remove any dirt or corrosion.
  • Try charging a different battery to determine if the issue is with the battery or the charger slot.
• വേഗത കുറഞ്ഞ ചാർജിംഗ്:
  • Ensure your power source provides sufficient current (e.g., a 5V/2A USB adapter is recommended for optimal speed).
  • High-capacity batteries naturally take longer to charge. Refer to the 'Fast Charging' section for approximate times.

8 സ്പെസിഫിക്കേഷനുകൾ

9. വാറൻ്റിയും പിന്തുണയും

ENEGON provides excellent service assurance. If you encounter any issues or have questions regarding your Smart Multi-Function Fast Battery Charger, please contact our customer support team. We offer 24-hour friendly customer support to ensure your satisfaction.

For support, please refer to the contact information provided with your purchase or visit the official ENEGON webസൈറ്റ്.
