Uten Digital Body Fat Bathroom Scale User Manual

ആമുഖം

The Uten Digital Body Fat Bathroom Scale is designed to provide high-precision weight measurements and Body Mass Index (BMI) readings. Featuring a large LCD display with 5 color backlights, step-on technology, and a durable 6mm tempered glass platform, this smart scale offers a comprehensive overview of your body metrics. It is equipped with four high-accuracy sensors to ensure reliable results.

Figure 1: Uten Digital Body Fat Bathroom Scale, Gray model.

ബോക്സിൽ എന്താണുള്ളത്

Upon unboxing your Uten Digital Body Fat Bathroom Scale, you will find the following items:

• Transparent Scale (batteries included)
• ഉപയോക്തൃ നിർദ്ദേശ മാനുവൽ
• വാറൻ്റി കാർഡ്

Figure 2: Packaging and included items for the Uten Digital Body Fat Bathroom Scale.

സജ്ജമാക്കുക

1. ബാറ്ററി ഇൻസ്റ്റാളേഷൻ

The scale comes with batteries pre-installed. If you need to replace them in the future, locate the battery compartment on the underside of the scale. Insert 2 x AAA batteries, ensuring correct polarity.

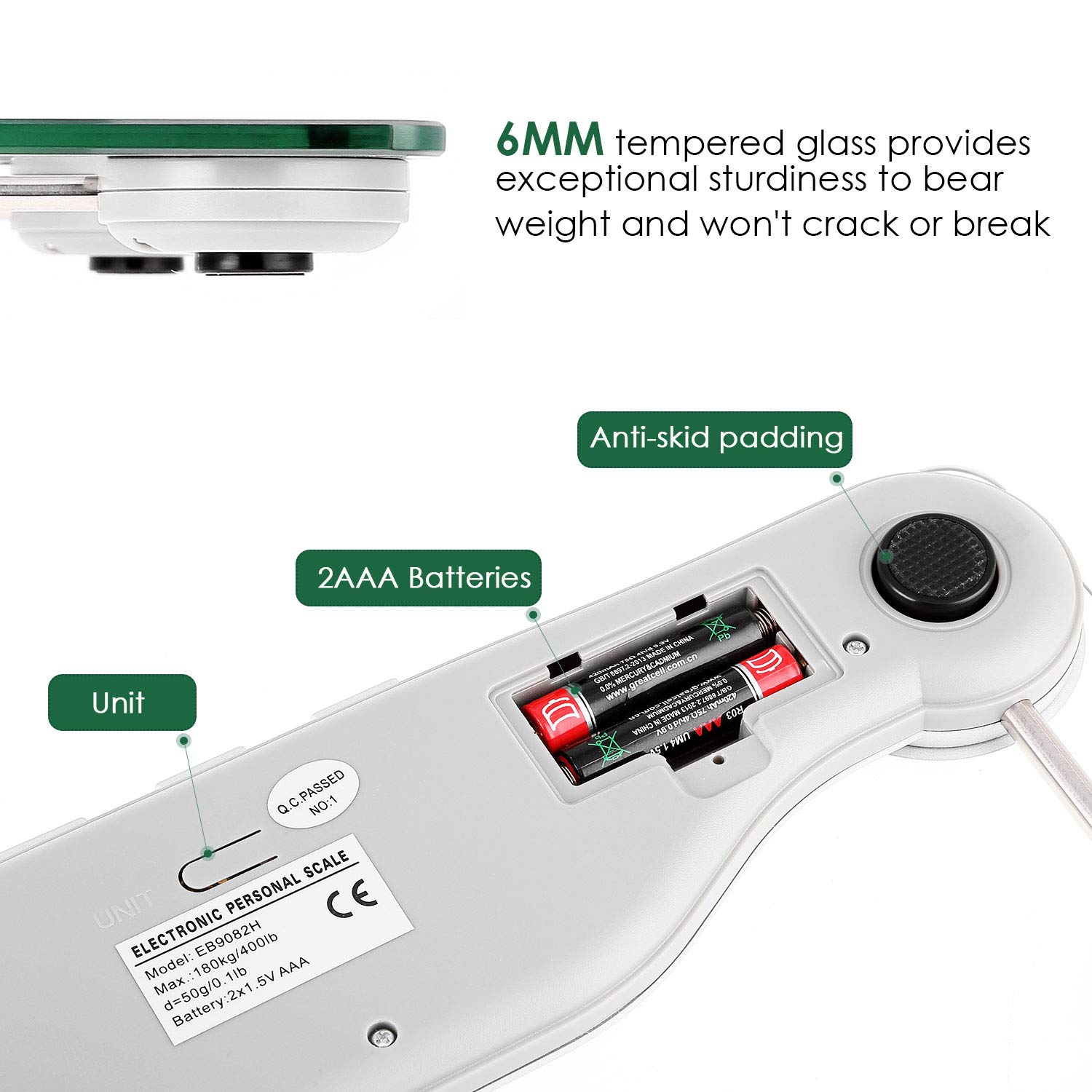

ചിത്രം 3: View of the scale's underside, highlighting the battery compartment and unit switch.

2. Unit Conversion (Kg/Lb)

To switch between kilograms (kg) and pounds (lb), locate the "UNIT" switch button on the back of the scale, near the battery compartment. Press this button to toggle between the desired units.

പ്രവർത്തന നിർദ്ദേശങ്ങൾ

1. Setting Height for BMI Function

For accurate BMI readings, it is essential to set your height. For first-time use or after resetting the scale, press the "SET" button located on the top of the scale, between the up and down arrow buttons. Use the arrow buttons to adjust the height value to your personal height. This step ensures the scale can correctly calculate your BMI.

Figure 4: Close-up of the LCD display, showing the "SET" button and BMI color indicators.

2. ഒരു അളവ് എടുക്കൽ

Place the scale on a hard, flat surface. Avoid carpets or soft surfaces, as this can affect accuracy. Step onto the scale with bare feet. The scale features step-on technology and will automatically turn on and display your weight. After a few seconds, it will then display your BMI value.

Figure 5: Demonstrates the step-on technology for immediate weight readings.

3. Understanding BMI Color Display

The LCD display features 5 colors to indicate your BMI category:

• മഞ്ഞ: Indicates "Thin"
• പച്ച: Indicates "Normal"
• ഓറഞ്ച്: Indicates "Heavy"
• ചുവപ്പ്: Indicates "Overweight"

Figure 6: Visual representation of the 5-color LCD display for BMI interpretation.

മെയിൻ്റനൻസ്

വൃത്തിയാക്കൽ

പരസ്യം ഉപയോഗിച്ച് സ്കെയിൽ വൃത്തിയാക്കുകamp cloth. Avoid water getting inside the scale. Do not use abrasive cleaners.

റീകാലിബ്രേഷൻ

To avoid inaccurate weight results, recalibrate the scale after physically moving or shifting it, or when replacing the batteries. To calibrate, apply weight on the scale, then step off and wait 10-15 seconds for the LCD screen to display "0.0". Then, step back on the scale to weigh.

ട്രബിൾഷൂട്ടിംഗ്

• സ്കെയിൽ ഓണാക്കുന്നില്ല: Check if the batteries are installed correctly or if battery power is low. Insert or replace with new batteries (2 x AAA).
• കൃത്യമല്ലാത്ത വായനകൾ: Ensure the scale is placed on a hard, flat surface. Avoid carpets or soft flooring. Recalibrate the scale as described in the Maintenance section.
• ഡിസ്പ്ലേ "ലോ" കാണിക്കുന്നു: ഇത് ബാറ്ററി കുറവാണെന്ന് സൂചിപ്പിക്കുന്നു. ബാറ്ററികൾ മാറ്റിസ്ഥാപിക്കുക.
• ഡിസ്പ്ലേ "പിശക്" കാണിക്കുന്നു: This indicates an overload. The maximum weight capacity is 400 lb / 180 kg.
• BMI function not working: Ensure you have set your height value using the "SET" button. This is crucial for BMI calculation.

സ്പെസിഫിക്കേഷനുകൾ

വാറൻ്റിയും പിന്തുണയും

For warranty information or technical support, please refer to the warranty card included in your product packaging or visit the official Uten Store on Amazon:

Visit the Uten Store

For further assistance, you may also contact Uten customer service directly through the contact information provided on the warranty card or their official webസൈറ്റ്.
