യാഡിയ R6 സ്റ്റീം കാർപെറ്റ് ക്ലീനർ ഉപയോക്തൃ മാനുവൽ

1. ആമുഖം

The Yadea R6 Steam Carpet Cleaner, also known as a rinse cleaner, is a washing machine designed to effectively clean stains from various fabric products such as carpets, sofas, and car seats. Its operation is straightforward: simply spray water onto the soiled area and then suction the dirt along with the water. This allows for easy cleaning of fabric items that are difficult to machine wash, making it an ideal solution for common household messes like food spills or pet accidents. The Yadea R6 Steam is a top-tier model that significantly surpasses conventional designs, offering versatile cleaning with steam, hot water, and room temperature water modes, all easily switchable with a single button.

2 സുരക്ഷാ വിവരങ്ങൾ

ഉപകരണം ഉപയോഗിക്കുന്നതിന് മുമ്പ് എല്ലാ സുരക്ഷാ നിർദ്ദേശങ്ങളും ശ്രദ്ധാപൂർവ്വം വായിക്കുക. ഈ നിർദ്ദേശങ്ങൾ പാലിക്കുന്നതിൽ പരാജയപ്പെടുന്നത് വൈദ്യുതാഘാതം, തീപിടുത്തം അല്ലെങ്കിൽ ഗുരുതരമായ പരിക്കിന് കാരണമായേക്കാം.

• Always ensure the power cord and plug are in good condition. Do not use if damaged.
• ഉപകരണം വെള്ളത്തിലോ മറ്റ് ദ്രാവകങ്ങളിലോ മുക്കരുത്.
• Use only clean water in the clean water tank. Do not add flammable or corrosive liquids.
• Exercise caution when using steam or hot water modes to avoid burns. Keep hands and face away from the nozzle during operation.
• Unplug the appliance from the power outlet before cleaning, performing maintenance, or when not in use.
• കുട്ടികൾക്കും വളർത്തുമൃഗങ്ങൾക്കും ലഭ്യമല്ലാത്തവിധം ഉപകരണം സൂക്ഷിക്കുക.
• Do not operate the appliance without water in the clean water tank.
• This product is designed for household use only. Do not use for commercial or industrial purposes.

3. ഉൽപ്പന്നം കഴിഞ്ഞുview

3.1 ഘടകങ്ങൾ

The Yadea R6 Steam Carpet Cleaner consists of the main unit, a clean water tank, a dirty water tank, a spray/suction nozzle, and a flexible hose.

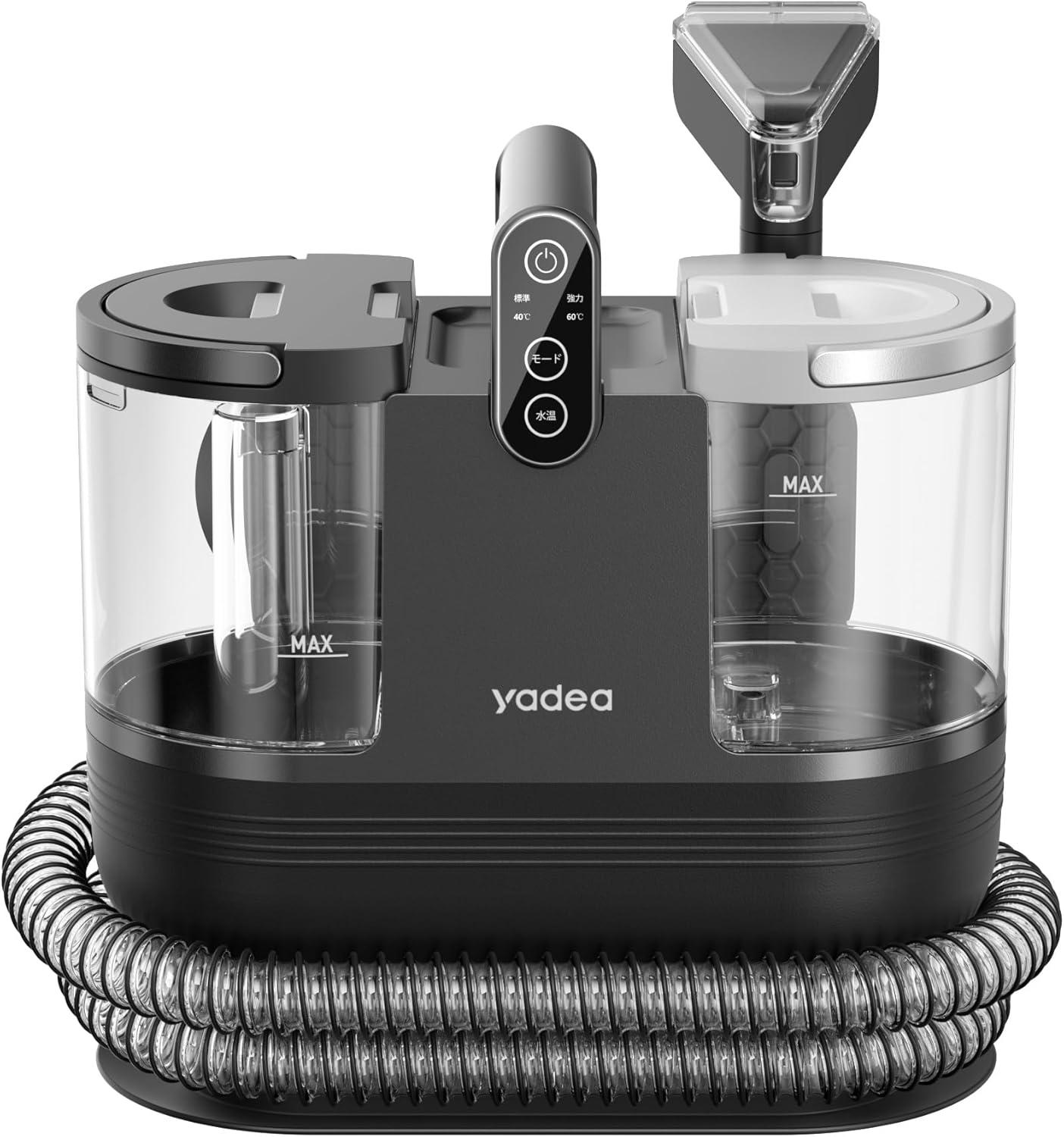

Figure 1: Yadea R6 Steam Carpet Cleaner. This image displays the main unit of the cleaner, featuring the transparent clean water tank on the left and the dirty water tank on the right. The central control panel with power, mode, and water temperature buttons is clearly visible. The flexible hose is coiled at the base, and the spray/suction nozzle is attached to the dirty water tank.

3.2 പ്രധാന സവിശേഷതകൾ

• Advanced Heating System: Equipped with Yadea HotGlow 3.0, generating 100℃ high-temperature steam in just 25 seconds.
• ശക്തമായ സക്ഷൻ: Achieves an astonishing 18000Pa suction power (14000Pa in standard mode) to extract deep-seated dirt.
• Versatile Water Temperature Modes: Offers room temperature water, hot water (generated in 15-20 seconds), and steam modes, easily switchable.
• Large Capacity Tanks: Features an 1800ML clean water tank and a 950ML dirty water tank for extended cleaning sessions.
• വിശാലമായ പ്രവർത്തന ശ്രേണി: Includes a 5-meter power cord and a 1.7-meter hose for extensive reach.
• Compact and Storable Design: The power cord and hose can be fully stored within the main unit for convenient storage.
• Intuitive Touch Panel: Easy control through a responsive touch panel.
• വെള്ളത്തെ പ്രതിരോധിക്കുന്ന: IPX4 waterproof performance ensures durability and safety against splashes.

4. സജ്ജീകരണം

1. ഉപകരണം അൺപാക്ക് ചെയ്യുക: പാക്കേജിംഗിൽ നിന്ന് എല്ലാ ഘടകങ്ങളും ശ്രദ്ധാപൂർവ്വം നീക്കം ചെയ്യുക. ഭാവിയിലെ സംഭരണത്തിനോ ഗതാഗതത്തിനോ വേണ്ടി പാക്കേജിംഗ് സൂക്ഷിക്കുക.
2. ഘടകങ്ങൾ കൂട്ടിച്ചേർക്കുക: Ensure the clean water tank, dirty water tank, and spray/suction nozzle are securely attached to the main unit. The hose should be connected to the appropriate port.
3. ശുദ്ധമായ വാട്ടർ ടാങ്ക് നിറയ്ക്കുക: Open the cap of the clean water tank (left side). Fill it with clean tap water. For hot water or steam modes, the appliance will heat the water internally. Do not exceed the 'MAX' fill line.
4. Position the Dirty Water Tank: Ensure the dirty water tank (right side) is empty and correctly seated in its compartment.
5. പവർ ബന്ധിപ്പിക്കുക: Plug the power cord into a suitable 100V AC power outlet.

5. പ്രവർത്തന നിർദ്ദേശങ്ങൾ

1. പവർ ഓൺ: ഉപകരണം ഓണാക്കാൻ നിയന്ത്രണ പാനലിലെ പവർ ബട്ടൺ അമർത്തുക.
2. Select Water Temperature Mode: Use the 'Mode' button on the control panel to cycle through the water temperature options: Room Temperature Water, Hot Water, or Steam. An indicator light will show the selected mode. Allow 15-20 seconds for hot water generation and approximately 25 seconds for steam generation.
3. Pre-test (Optional but Recommended): Before cleaning a large area, test the cleaner on an inconspicuous spot of the fabric to ensure colorfastness and prevent damage.
4. സ്പ്രേ ലായനി: Hold the spray/suction nozzle over the soiled area. Press the spray trigger on the nozzle to release water or steam onto the fabric. Move the nozzle slowly over the area.
5. Suction Dirt: Release the spray trigger and press the suction button on the nozzle. Slowly pull the nozzle across the sprayed area to suction up the dirty water. Repeat spraying and suctioning as needed until the stain is removed and the water being suctioned is clear.
6. ശൂന്യമായ വൃത്തികെട്ട വാട്ടർ ടാങ്ക്: When the dirty water tank reaches the 'MAX' line, or after each cleaning session, turn off and unplug the appliance. Remove the dirty water tank and empty its contents into a drain. Rinse the tank with clean water.
7. ശുദ്ധജല ടാങ്ക് വീണ്ടും നിറയ്ക്കുക: If needed, refill the clean water tank as described in the Setup section.
8. പവർ ഓഫ്: After cleaning, press the power button to turn off the appliance and unplug it from the power outlet.

5.1 Applicable Surfaces and Stain Types

This household cleaning machine is capable of washing most fabric products that cannot be fully immersed in water.

• ബാധകമായ ശ്രേണി: Futons, fabric sofas, fabric chairs, rugs, carpets, floor mats, curtains, car seats, fabric mattresses, stuffed animals, pet sheets, etc.
• Types of Dirt that can be handled: Dust/sweat stains accumulated over years on sofas and carpets, coffee/soy sauce/oil stains, children's food spills, pet vomit/accidents/paw prints, etc.

6. പരിപാലനം

Regular maintenance ensures optimal performance and extends the lifespan of your Yadea R6 Steam Carpet Cleaner.

• Empty and Clean Tanks: After each use, empty both the clean and dirty water tanks. Rinse them thoroughly with cold water to prevent residue buildup and odors.
• Clean Nozzle and Hose: Detach the spray/suction nozzle and rinse it under cold water. Check the hose for any blockages and clear them if necessary.
• പുറംഭാഗം തുടയ്ക്കുക: ഒരു സോഫ്റ്റ് ഉപയോഗിക്കുക, ഡിamp cloth to wipe the exterior of the main unit. Do not use abrasive cleaners or solvents.
• സംഭരണം: Ensure all tanks are empty and dry before storing the appliance. The power cord and hose can be fully stored within the main unit. Store in a cool, dry place away from direct sunlight.

7. പ്രശ്‌നപരിഹാരം

If you encounter issues with your Yadea R6 Steam Carpet Cleaner, refer to the following common problems and solutions:

ഈ പരിഹാരങ്ങൾ പരീക്ഷിച്ചതിന് ശേഷവും പ്രശ്നം നിലനിൽക്കുകയാണെങ്കിൽ, ദയവായി ഉപഭോക്തൃ പിന്തുണയുമായി ബന്ധപ്പെടുക.

8 സ്പെസിഫിക്കേഷനുകൾ

9. വാറൻ്റിയും പിന്തുണയും

9.1 നിർമ്മാതാവിന്റെ വാറന്റി

The warranty period for the Yadea R6 Steam Carpet Cleaner is 12 months from the date of arrival. If this product malfunctions under normal use within the warranty period, it will be repaired or replaced free of charge. Please note that this product has already obtained PSE certification, ensuring safe and secure use.

9.2 ഉപഭോക്തൃ പിന്തുണ

For any questions, technical assistance, or warranty claims, please contact Yadea customer support through the retailer where you purchased the product or visit the official Yadea webബന്ധപ്പെടാനുള്ള വിവരങ്ങൾക്കുള്ള സൈറ്റ്.
