1. ആമുഖം
This user manual provides essential information for the proper installation, operation, maintenance, and troubleshooting of the Ferroli DOMINA C24 E Electronic Board. This product is a refurbished replacement part designed for use in compatible Ferroli boiler systems. Please read this manual thoroughly before attempting any procedures to ensure safety and optimal performance.
2 സുരക്ഷാ വിവരങ്ങൾ
മുന്നറിയിപ്പ്: വൈദ്യുതാഘാതത്തിനും പരിക്കിനും സാധ്യത!
- Installation and servicing must be performed by qualified and authorized personnel only.
- Always disconnect the main power supply to the boiler before attempting any installation, maintenance, or inspection procedures.
- Ensure proper grounding of the boiler system.
- Do not operate the boiler if the electronic board or any other component is visibly damaged.
- Keep the electronic board dry and away from moisture.
3. ഉൽപ്പന്നം കഴിഞ്ഞുview
The Ferroli DOMINA C24 E Electronic Board serves as the central control unit for compatible Ferroli boilers, managing various functions such as ignition, flame supervision, temperature regulation, and safety protocols. This refurbished board has undergone rigorous testing to ensure its reliability and performance.

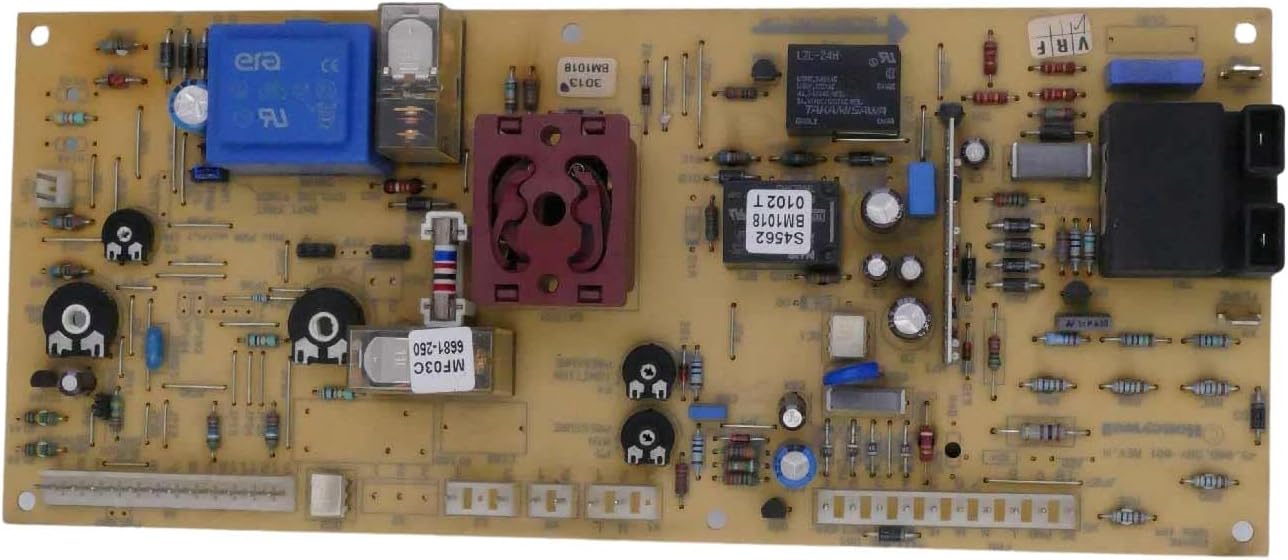

ചിത്രം 3.1: Ferroli DOMINA C24 E Electronic Board. A top-down view of the Ferroli DOMINA C24 E electronic control board. The board is beige with various electronic components, including blue and black relays, resistors, capacitors, and integrated circuits. Key components visible include an 'ERA' relay, a 'TAKAMISAWA' relay, and a large black transformer. Several connection points and adjustment potentiometers are also present.
4. സജ്ജീകരണവും ഇൻസ്റ്റാളേഷനും
Installation of the electronic board requires technical expertise and should only be performed by a qualified technician. Incorrect installation can lead to damage to the boiler, the board, or pose safety risks.
4.1 പ്രീ-ഇൻസ്റ്റലേഷൻ പരിശോധനകൾ
- Verify that the new electronic board is the correct model (DOMINA C24 E) for your specific Ferroli boiler.
- Ensure the boiler's main power supply is disconnected and locked out.
- Inspect the new board for any visible damage from shipping.
4.2 ഇൻസ്റ്റലേഷൻ ഘട്ടങ്ങൾ (പൊതുവായത്)
- പവർ വിച്ഛേദിക്കുക: Turn off the main power supply to the boiler at the circuit breaker. Confirm power is off using a voltagഇ ടെസ്റ്റർ.
- Access Board: ബോയിലർ ശ്രദ്ധാപൂർവ്വം തുറക്കുക casing to access the existing electronic board. Refer to your boiler's specific service manual for exact access procedures.
- വയറിംഗ് വിച്ഛേദിക്കുക: Systematically disconnect all wiring harnesses and connectors from the old board. It is highly recommended to take photos or label each connection to ensure correct re-connection.
- പഴയ ബോർഡ് നീക്കം ചെയ്യുക: Unmount the old electronic board from its housing.
- പുതിയ ബോർഡ് ഇൻസ്റ്റാൾ ചെയ്യുക: Carefully position the new Ferroli DOMINA C24 E board into the housing and secure it.
- വയറിംഗ് വീണ്ടും ബന്ധിപ്പിക്കുക: Reconnect all wiring harnesses and connectors to their corresponding terminals on the new board, ensuring a secure and correct fit for each.
- അടയ്ക്കുക സിasing: Securely close the boiler casing.
- പവർ പുന ore സ്ഥാപിക്കുക: ബോയിലറിലേക്ക് വൈദ്യുതി പുനഃസ്ഥാപിക്കുക.
- ടെസ്റ്റ് ഓപ്പറേഷൻ: Initiate the boiler's normal operation sequence and observe for proper function and any error codes.
5. ഓപ്പറേഷൻ
The Ferroli DOMINA C24 E Electronic Board operates automatically as part of the boiler's control system. Once correctly installed, its function is integrated with the boiler's overall operation. There are no direct user controls on the board itself.
For detailed instructions on operating your Ferroli boiler, including setting temperatures, modes, and understanding display indicators, please refer to the specific user manual provided with your boiler unit.
6. പരിപാലനം
The electronic board itself requires minimal maintenance. However, regular inspection of the boiler system is recommended to ensure the longevity of all components, including the control board.
- വിഷ്വൽ പരിശോധന: Periodically, a qualified technician should visually inspect the board for any signs of overheating, corrosion, loose connections, or physical damage. This should only be done with the power disconnected.
- വൃത്തിയാക്കൽ: If necessary, gently clean the surface of the board with a soft, dry brush or compressed air to remove dust accumulation. Ensure the power is off and the board is completely dry before restoring power. Do not use liquids or abrasive cleaners.
- ഉപയോക്തൃ-സേവനയോഗ്യമായ ഭാഗങ്ങൾ ഇല്ല: The electronic board contains no user-serviceable parts. Do not attempt to repair or modify the board.
7. പ്രശ്നപരിഹാരം
If your boiler is experiencing issues, the electronic board may be a contributing factor. However, many boiler problems can stem from other components. Always consult a qualified technician for diagnosis and repair.
7.1 Common Indicators of Board Issues
- Boiler fails to ignite or cycles erratically.
- Inconsistent temperature control.
- Displaying specific error codes related to control system failures (refer to your boiler's manual for error code definitions).
- No power to the boiler despite power supply being active.
7.2 Basic Checks (Performed by Qualified Personnel Only)
- വൈദ്യുതി വിതരണം: Verify that the boiler is receiving adequate power.
- കണക്ഷനുകൾ: Ensure all wiring harnesses and connectors to the electronic board are securely seated.
- ഫ്യൂസുകൾ: Check any accessible fuses on the board or within the boiler's electrical system.
If these basic checks do not resolve the issue, or if you are unsure, contact a professional boiler technician for further diagnosis and repair.
8 സ്പെസിഫിക്കേഷനുകൾ
| ആട്രിബ്യൂട്ട് | വിശദാംശങ്ങൾ |
|---|---|
| ഉൽപ്പന്ന തരം | ഇലക്ട്രോണിക് കൺട്രോൾ ബോർഡ് |
| ബ്രാൻഡ് | ഫെറോലി |
| മോഡൽ | DOMINA C24 E |
| അവസ്ഥ | Refurbished Replacement Part |
| നിർമ്മാതാവ് | ഫെറോലി |
| ASIN | B0BV3TQN85 |
| ബാറ്ററികൾ ഉൾപ്പെടുത്തിയിട്ടുണ്ട് | ഇല്ല |
| ബാറ്ററികൾ ആവശ്യമാണ് | ഇല്ല |
| ആദ്യ തീയതി ലഭ്യമാണ് | 6 ജനുവരി 2023 |
9. വാറൻ്റിയും പിന്തുണയും
9.1 വാറൻ്റി വിവരങ്ങൾ
This refurbished Ferroli DOMINA C24 E Electronic Board is covered by a 1 വർഷത്തെ വാറൻ്റി വാങ്ങിയ തീയതി മുതൽ. സാധാരണ ഉപയോഗത്തിലുള്ള മെറ്റീരിയലുകളിലെയും ജോലികളിലെയും വൈകല്യങ്ങൾ ഈ വാറന്റി ഉൾക്കൊള്ളുന്നു. വാറന്റി ക്ലെയിമുകൾക്കായി നിങ്ങളുടെ വാങ്ങിയതിന്റെ തെളിവ് സൂക്ഷിക്കുക.
9.2 സാങ്കേതിക പിന്തുണ
For technical assistance, installation guidance, or troubleshooting beyond the scope of this manual, please contact the seller or a qualified boiler technician. Providing your product's model number (DOMINA C24 E) and ASIN (B0BV3TQN85) will help expedite support.
