Rugged Ridge Black Denim Soft Top Instruction Manual

1. ഉൽപ്പന്നം കഴിഞ്ഞുview

The Rugged Ridge Complete Soft Top with Frame is designed to provide a full replacement solution for the soft top system on 1976-1986 Jeep CJ7 and 1987-1995 Jeep Wrangler YJ models equipped with factory half doors. This assembly includes all necessary components to restore the appearance and functionality of your vehicle's soft top.

പ്രധാന സവിശേഷതകൾ:

• Complete replacement solution for aging soft tops.
• Constructed from factory-quality Black Denim fabric with heat-sealed seams.
• Features marine-grade self-correcting zippers for durability.
• Includes replaceable side and rear vinyl windows with DOT-compliant 35% tint.
• Integrated zippered front storage compartments for small items.

Image 1.1: All components of the Rugged Ridge Black Denim Soft Top and frame laid out, including the main fabric, windows, upper door skins, and various frame pieces and hardware.

2. പാക്കേജ് ഉള്ളടക്കം

Upon unpacking, verify that all components listed below are present. If any parts are missing or damaged, contact Rugged Ridge customer support immediately.

• New soft top fabric (Black Denim)
• Upper door skins with frames (for factory half doors)
• Replaceable side tinted windows
• Replaceable rear tinted window
• Complete top bow assembly
• Upgraded adjustable spreader bars
• Windshield channel
• Tailgate bar
• Tub belt rails
• Hardware kit (bolts, nuts, washers, etc.)

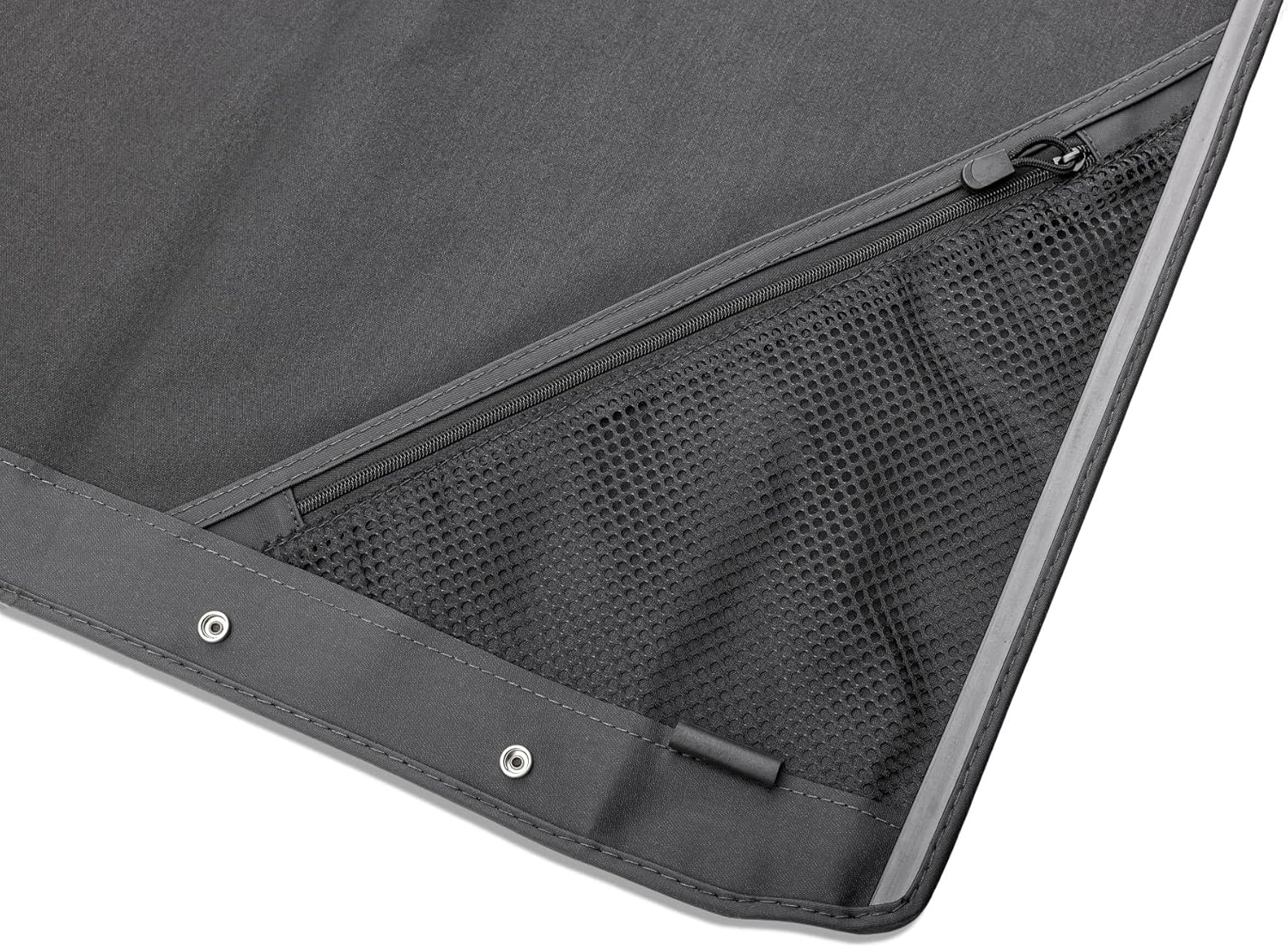

ചിത്രം 2.1: വിശദാംശം view of a zippered storage compartment integrated into the soft top fabric, ideal for small personal items.

Image 2.2: Close-up showing the snap fasteners on the soft top fabric, used for securing various sections of the top.

3. ഇൻസ്റ്റാളേഷൻ ഗൈഡ്

Installation of the Rugged Ridge Soft Top requires careful attention to detail. It is recommended to perform the installation in a clean, dry environment. While specific step-by-step instructions are typically included with the product, the general process involves the following stages:

3.1. തയ്യാറാക്കൽ

1. Remove any existing soft top, frame, or hardware from the vehicle.
2. Clean the vehicle's tub rails, windshield frame, and door surrounds to ensure proper sealing.
3. Unpack all components and lay them out to identify each part.

3.2. ഫ്രെയിം അസംബ്ലി

1. Assemble the top bow assembly and adjustable spreader bars according to the included diagrams.
2. Attach the windshield channel to the vehicle's windshield frame.
3. Install the tub belt rails along the vehicle's body.

3.3. Fabric and Window Installation

1. Drape the main soft top fabric over the assembled frame, ensuring proper alignment.
2. Secure the fabric to the windshield channel, tub rails, and frame using the provided hardware and fasteners.
3. Zip in the side and rear tinted windows. Ensure zippers are fully engaged and smooth.
4. Install the tailgate bar.

3.4. Upper Door Skins

1. Attach the upper door skins with frames to your factory half doors.
2. Ensure a snug fit and proper seal with the soft top.

Note: Always refer to the detailed installation instructions provided in the product packaging for precise steps and safety warnings.

4. Operating the Soft Top

The Rugged Ridge Soft Top is designed for ease of use, allowing for various configurations depending on weather and preference.

4.1. തുറക്കലും അടയ്ക്കലും

• തുറക്കാൻ: Unzip windows, release fasteners, and fold the top back. Ensure the frame components are properly collapsed and secured to prevent damage during driving.
• അടയ്ക്കാൻ: Extend the frame, pull the fabric forward, and secure all fasteners and zippers. Ensure all windows are fully zipped to prevent leaks.

4.2. Window Operation

The windows feature marine-grade self-correcting zippers. If a zipper becomes misaligned, gently pull the slider back to the beginning of the track and re-zip slowly to correct it. Avoid forcing the zipper.

5. പരിപാലനവും പരിചരണവും

Proper maintenance will extend the life and appearance of your soft top.

• ക്ലീനിംഗ് ഫാബ്രിക്: Use mild soap and water with a soft brush or cloth. Rinse thoroughly and allow to air dry completely before folding or storing. Avoid harsh chemicals or abrasive cleaners.
• Cleaning Windows: ഒരു സോഫ്റ്റ് ഉപയോഗിക്കുക, ഡിamp cloth with a plastic-safe cleaner. Wipe gently to avoid scratching. Do not use paper towels or ammonia-based cleaners.
• സിപ്പർ കെയർ: Periodically apply a silicone-based lubricant to the zippers to ensure smooth operation and prevent corrosion.
• സംഭരണം: When not in use, store the soft top in a clean, dry place, away from direct sunlight and extreme temperatures. Fold neatly to prevent creases and damage.

Image 5.1: The Rugged Ridge soft top can be compactly stored in a durable black bag, as shown being carried by a person.

6. പ്രശ്‌നപരിഹാരം

This section addresses common issues you might encounter with your soft top.

7 സ്പെസിഫിക്കേഷനുകൾ

8. വാറൻ്റിയും പിന്തുണയും

For information regarding product warranty, please refer to the documentation included with your purchase or visit the official Rugged Ridge website. For technical assistance, missing parts, or any other inquiries, please contact Rugged Ridge customer support directly.

നിങ്ങൾക്ക് സാധാരണയായി നിർമ്മാതാവിന്റെ കോൺടാക്റ്റ് വിവരങ്ങൾ കണ്ടെത്താൻ കഴിയും webഉൽപ്പന്ന പാക്കേജിംഗിനുള്ളിൽ.
