സജ്ജമാക്കുക
പാക്കേജ് ഉള്ളടക്കം
The ALLPOWERS R600 portable power station package includes the R600 unit, an ALLPOWERS SP027 100W foldable solar panel, necessary connect cables (AC charging cable, MC-4 to XT 60 solar charging cable), and a user manual. Please note that the power station and solar panel may arrive separately.
പ്രാരംഭ ചാർജിംഗ്
The R600 can be fully charged from 0-100% in just 1 hour using its 400W max AC input. It supports three charge modes: Mute, Standard, and Fast Mode. For solar charging, it accepts up to 220W max input via the XT60 port. The voltage range accepted by solar energy is 12-60V. Ensure you choose a suitable solar panel and use parallel or series input for optimal energy capture.
Image: The ALLPOWERS R600 can be recharged via AC (400W Max), Solar (220W Max), or Car (200W Max) inputs, achieving a full charge in just 1 hour.
സോളാർ പാനൽ സജ്ജീകരണം
The ALLPOWERS SP027 100W foldable solar panel is designed for high efficiency (up to 22%) and portability. It is 1/3 lighter than similar power solar silicon panels. To set up, unfold the panel and use its integrated legs to prop it up, angling it towards the sun for maximum exposure. Connect the MC-4 to XT60 solar charging cable from the panel to the R600's XT60 input port.
Image: The ALLPOWERS SP027 solar panel is compatible with most solar generators, featuring various connector types including MC4.

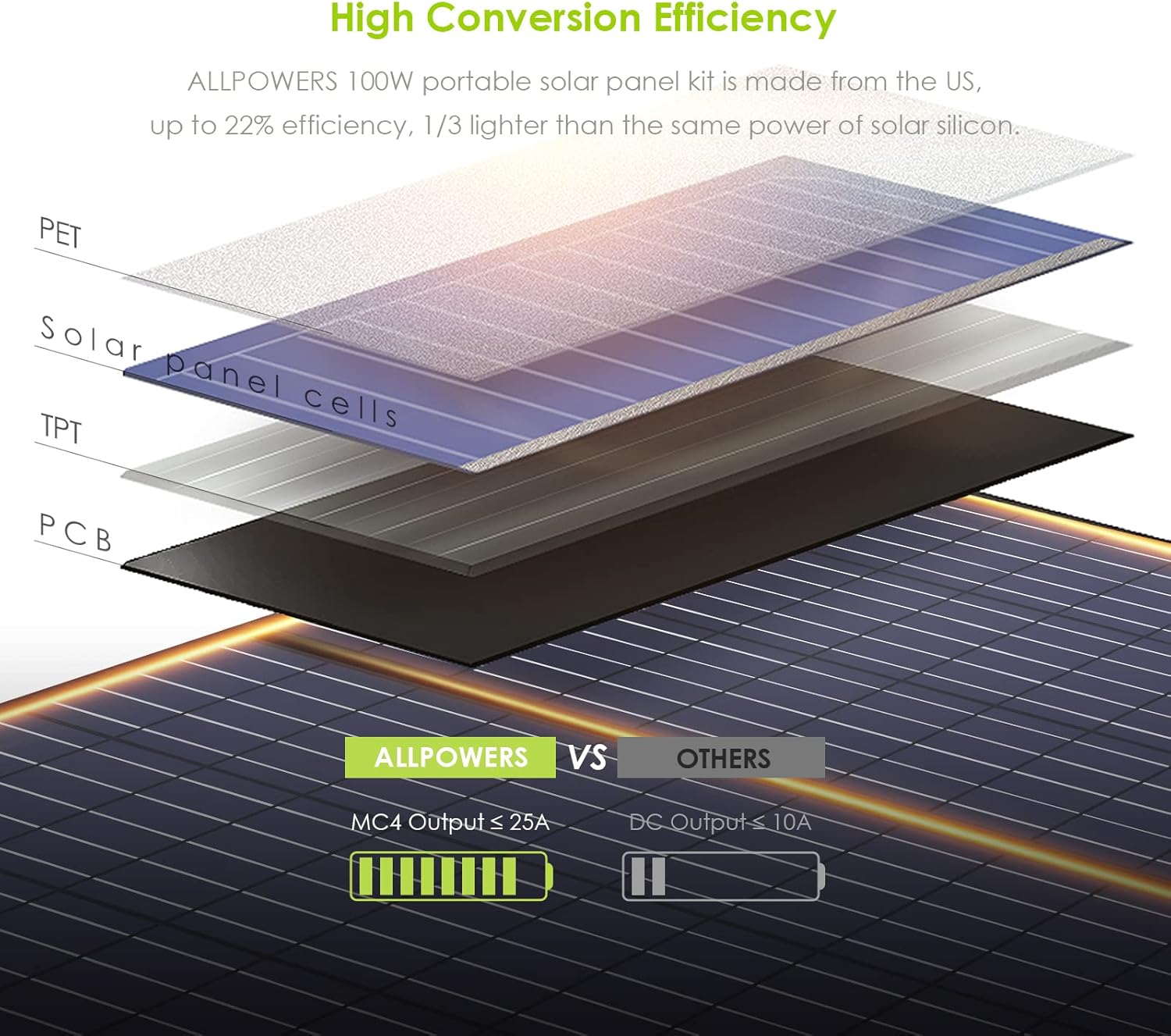

Image: The ALLPOWERS 100W portable solar panel kit features high conversion efficiency with layers of PET, Solar Panel cells, TPT, and PCB.
വീഡിയോ: ഒരു സംക്ഷിപ്ത വിവരണംview of the ALLPOWERS R600 power station and its SP027 solar panel, demonstrating its portability and ease of setup.
പ്രവർത്തന നിർദ്ദേശങ്ങൾ
പൊതു പ്രവർത്തനം
The ALLPOWERS R600 features a clear LCD display that shows remaining battery percentagഇ, ഇൻപുട്ട്/ഔട്ട്പുട്ട് വാട്ട്tage, and estimated runtime. It includes a built-in light with multiple settings (medium, bright, SOS). The unit is designed with a sturdy handle for easy portability and is well-made for durability.
Image: The ALLPOWERS R600 Portable Power Station shown with its accompanying SP027 solar panel, highlighting its compact design and integrated handle.
പവർ ഔട്ട്പുട്ട്
The R600 provides a huge stable output of up to 600W AC, capable of powering 8 essential devices simultaneously. It includes 2 AC outlets, 2 USB-A ports (18W Max), 2 USB-C ports (100W Max), and 1 Cigarette lighter port (120W Max). It also features a 15W Max wireless charger on top. For heating equipment, ensure the device power is within 600W and peak value within 1200W.
Image: The ALLPOWERS R600 features multiple output ports including AC, USB-A, USB-C, and a cigarette lighter, capable of powering various devices like mini-fridges, laptops, and drones.
യുപിഎസ് പ്രവർത്തനം
The ALLPOWERS R600 is equipped with an Uninterruptible Power Supply (UPS) function. In the event of a wall outlet interruption, the UPS will supply 110V AC power to the connected load in less than 10ms, providing faster, safer, and more intelligent power backup compared to ordinary power stations.
Image: The ALLPOWERS R600 provides UPS battery backup, ensuring non-stop power with a switchover time of less than 10ms.
അപ്ലിക്കേഷൻ നിയന്ത്രണം
The ALLPOWERS R600 can be controlled via a dedicated mobile application. The app allows you to monitor remaining power, input/output wattage, and control various settings such as work mode (Mute/Standard/Fast Mode) and ECO mode shutdown times (up to 6 hours). It also allows remote control of the AC output and LED lights.
Testing Power Output
The R600 can power various devices. For example, a fan drawing 122W can be powered, with output increasing to 185W on higher settings. A 525W heat gun can also be powered, drawing around 446W to 594W. The unit's fan may become slightly louder under heavier loads, but it is generally not excessively loud. The unit features overload protection, which will shut down power if the load exceeds its capacity (e.g., attempting to power a circular saw with a surge greater than 1200W).
