ആമുഖം
This instruction manual provides essential information for the safe and efficient installation, operation, and maintenance of the CAME 31 ATS 230V Kit for 3M Swing Gates. Please read this manual thoroughly before beginning any procedures to ensure proper functionality and to prevent damage or injury. Keep this manual for future reference.
ഉൽപ്പന്നം കഴിഞ്ഞുview ഘടകങ്ങളും
The CAME 31 ATS 230V Kit is designed for automating swing gates up to 3 meters in length per leaf. The kit includes all necessary components for a complete automation system.

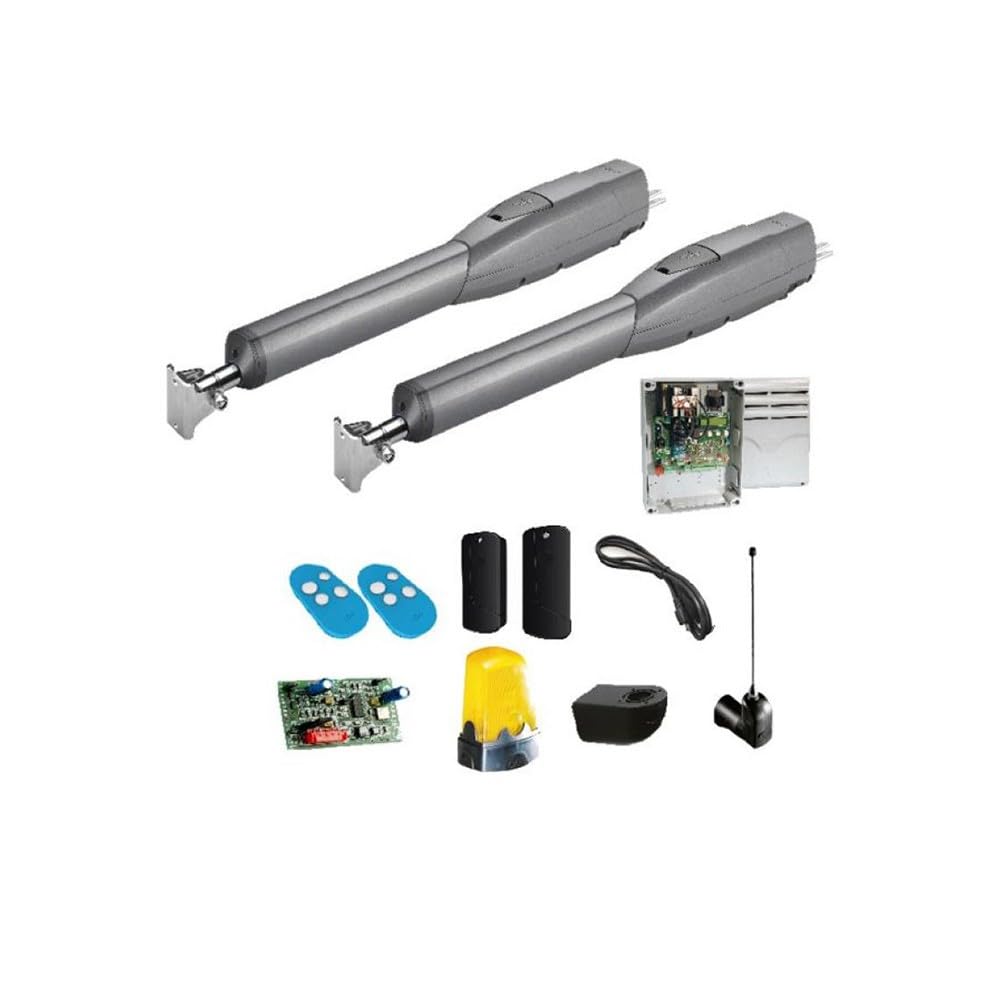

This image displays the complete CAME 31 ATS 230V Kit for 3M Swing Gates. It includes two linear actuators, a control unit in a protective casing, two blue remote controls, two black remote controls, a circuit board, a yellow flashing light, a receiver, and an antenna.
പ്രധാന ഘടകങ്ങളിൽ സാധാരണയായി ഇവ ഉൾപ്പെടുന്നു:
- Linear Actuators: Two electromechanical operators for moving the gate leaves.
- നിയന്ത്രണ യൂണിറ്റ്: The central electronic board managing all system functions.
- വിദൂര നിയന്ത്രണങ്ങൾ: Devices for wireless operation of the gate.
- മിന്നുന്ന വെളിച്ചം: Indicates gate movement for safety.
- ആൻ്റിന: Improves the range of the remote controls.
- Photocells (optional/not shown): Safety sensors to detect obstacles.
സജ്ജീകരണവും ഇൻസ്റ്റാളേഷനും
Installation of this gate automation system requires technical expertise and should be performed by qualified personnel in compliance with local regulations and safety standards. Incorrect installation can lead to serious injury or damage to property.
പ്രീ-ഇൻസ്റ്റലേഷൻ പരിശോധനകൾ:
- Ensure the gate structure is robust, well-maintained, and moves freely without friction.
- Verify that the gate hinges are in good working condition.
- Confirm the availability of a stable 230V AC power supply at the installation site.
General Installation Steps (Consult full technical manual for details):
- Mount Actuators: Securely attach the linear actuators to the gate posts and gate leaves according to the provided mounting dimensions.
- Install Control Unit: Mount the control unit in a protected, easily accessible location, ensuring it is safe from weather elements.
- ഇലക്ട്രിക്കൽ കണക്ഷനുകൾ: Connect the actuators, flashing light, antenna, and any safety devices (e.g., photocells) to the control unit. Ensure all wiring is correctly terminated and insulated.
- പവർ കണക്ഷൻ: Connect the 230V AC power supply to the control unit, ensuring proper grounding.
- പ്രോഗ്രാമിംഗ്: Follow the control unit's specific instructions to program the gate's opening and closing limits, remote controls, and any desired operating modes.
- സുരക്ഷാ ഉപകരണ പരിശോധന: Thoroughly test all safety devices (e.g., photocells, obstacle detection) to ensure they function correctly.
പ്രവർത്തന നിർദ്ദേശങ്ങൾ
Once installed and programmed, the gate system can be operated using the provided remote controls.
അടിസ്ഥാന പ്രവർത്തനം:
- തുറക്കൽ/അടയ്ക്കൽ: Press the designated button on the remote control to initiate the gate's opening or closing cycle. A second press during movement will typically stop the gate.
- നിർത്തുന്നു: Pressing the remote button during gate movement will stop the gate. Pressing it again will reverse the direction or continue the cycle, depending on the programming.
സുരക്ഷാ സവിശേഷതകൾ:
- The flashing light will activate during gate movement to alert pedestrians and vehicles.
- If safety photocells are installed, the gate will stop or reverse if an obstacle is detected in its path during closing.
- The system may include an obstacle detection feature that reverses the gate if it encounters resistance during movement.
Always ensure the gate area is clear before operating the system. Do not allow children to play near the gate or with the remote controls.
മെയിൻ്റനൻസ്
Regular maintenance ensures the longevity and reliable operation of your CAME gate automation system.
പ്രതിമാസ ചെക്കുകൾ:
- വിഷ്വൽ പരിശോധന: Check for any signs of wear, corrosion, or damage to the actuators, cables, and mounting brackets.
- ഗേറ്റ് പ്രസ്ഥാനം: Manually operate the gate (with power disconnected) to ensure it moves smoothly without excessive force or binding.
- സുരക്ഷാ ഉപകരണങ്ങൾ: Test photocells and other safety features to confirm they are functioning correctly.
വാർഷിക സർവീസിംഗ്:
- It is recommended to have the system inspected and serviced by a qualified technician annually.
- This includes checking electrical connections, lubricating moving parts, and verifying system parameters.
Always disconnect power to the control unit before performing any maintenance or inspection.
ട്രബിൾഷൂട്ടിംഗ്
This section addresses common issues you might encounter. For complex problems, contact a qualified technician.
| പ്രശ്നം | സാധ്യമായ കാരണം | പരിഹാരം |
|---|---|---|
| ഗേറ്റ് റിമോട്ട് കൺട്രോളിനോട് പ്രതികരിക്കുന്നില്ല. | Dead remote battery, remote out of range, power failure, remote not programmed. | Replace remote battery, move closer to antenna, check power supply, reprogram remote. |
| ഗേറ്റ് അപ്രതീക്ഷിതമായി നിൽക്കുകയോ പിന്നോട്ട് മാറുകയോ ചെയ്യുന്നു. | Obstacle detected by photocells, gate obstruction, motor overload. | Clear path, check photocells for alignment/obstruction, inspect gate for mechanical issues. |
| Flashing light does not work. | Bulb faulty, wiring issue. | Check bulb, inspect wiring connections. |
| ഗേറ്റ് സാവധാനത്തിലോ പ്രയാസത്തോടെയോ നീങ്ങുന്നു. | Mechanical friction, low voltage, motor issue. | Lubricate hinges, check power supply, consult technician for motor inspection. |
സ്പെസിഫിക്കേഷനുകൾ
- മോഡൽ: 8K01MP-026 ന്റെ സവിശേഷതകൾ
- ബ്രാൻഡ്: വന്നു
- വൈദ്യുതി വിതരണം: 230V എസി
- ഗേറ്റ് തരം: സ്വിംഗ് ഗേറ്റ്സ്
- Max Gate Leaf Length: 3 മീറ്റർ
- ഉൽപ്പന്ന അളവുകൾ (L x W x H): Approximately 10 x 10 x 10 cm (Control Unit/Actuator dimensions may vary)
- ഭാരം: 25 Kilograms (Total kit weight)
- ഉൾപ്പെടുന്ന ഘടകങ്ങൾ: 1 product (refer to Product Overview for detailed list)
വാറൻ്റിയും പിന്തുണയും
For information regarding the product warranty, please refer to the documentation provided with your purchase or contact your seller directly. Warranty terms and conditions may vary.
For technical support, spare parts, or professional assistance with installation and maintenance, please contact your authorized Came dealer or the seller from whom you purchased the kit. Always provide your product model number (8K01MP-026) when seeking support.
