1 പ്രധാനപ്പെട്ട സുരക്ഷാ വിവരങ്ങൾ
Operating a chainsaw requires careful attention to safety to prevent injury. Always wear appropriate personal protective equipment (PPE) including safety goggles, gloves, and sturdy footwear. Read and understand all instructions before operating the chainsaw.
പൊതു സുരക്ഷാ മുൻകരുതലുകൾ:
- Keep hands and body clear of the chain when operating.
- Ensure the safety lock and hand guard are properly engaged before use.
- നനഞ്ഞ സാഹചര്യങ്ങളിലോ കത്തുന്ന ദ്രാവകങ്ങൾക്കോ വാതകങ്ങൾക്കോ സമീപമോ ചെയിൻസോ പ്രവർത്തിപ്പിക്കരുത്.
- കുട്ടികളെയും കാഴ്ചക്കാരെയും സുരക്ഷിതമായ അകലത്തിൽ നിർത്തുക.
- Always inspect the chainsaw for damage or loose parts before each use.
ബാറ്ററി സുരക്ഷ:
- Use only the specified 21V Lithium-Ion batteries and charger.
- തീവ്രമായ താപനിലയിലോ നേരിട്ടുള്ള സൂര്യപ്രകാശത്തിലോ ബാറ്ററികൾ തുറന്നുകാട്ടരുത്.
- ബാറ്ററി ടെർമിനലുകളുടെ ഷോർട്ട് സർക്യൂട്ട് ഒഴിവാക്കുക.
- പ്രാദേശിക നിയന്ത്രണങ്ങൾ അനുസരിച്ച് ബാറ്ററികൾ ഉത്തരവാദിത്തത്തോടെ സംസ്കരിക്കുക.
2. ഉൽപ്പന്നം കഴിഞ്ഞുview
The Sainlogic 6-inch 21V Mini Chainsaw is a compact and versatile tool designed for light-duty cutting tasks such as pruning, trimming, and small logging. It features a brushless motor for efficient performance and extended lifespan.
ഘടകങ്ങൾ:
- Sainlogic Mini Chainsaw Unit
- 2 x 2000mAh 21V Lithium-Ion Batteries
- ബാറ്ററി ചാർജർ
- Spare Saw Chain (6-inch)
- സംരക്ഷണ കയ്യുറകൾ
- എണ്ണ കുപ്പി (ശൂന്യം)
- സുരക്ഷാ കണ്ണടകൾ
- ചുമക്കുന്ന കേസ്
The complete Sainlogic 6-inch mini chainsaw package, including the main unit, two 2000mAh batteries, a charging adapter, a spare saw chain, protective gloves, a small oil bottle, and safety goggles, all neatly organized in a durable carrying case.
A visual breakdown of the chainsaw's ergonomic and safety features, including the adjustable protective cover, convenient oil refill port, tool-free chain adjustment knob, robust hand guard, trigger safety lock, and comfortable anti-slip handle.
The 21V Max battery features multiple protection mechanisms, including safeguards against over-current, over-voltage, overheating, over-charging, and over-discharging, ensuring safe and reliable operation.
എ വിശദമായി view of the chainsaw's brushless motor, highlighting its pure copper construction and efficient cooling system, which contributes to its durability and performance.
3. സജ്ജീകരണം
3.1. ബാറ്ററി ചാർജിംഗ്
Insert the charging cable into the battery pack. Connect the charger to a standard power outlet. The battery indicator will show charging status. Ensure batteries are fully charged before first use for optimal performance.
വീഡിയോ റീview of the Sainlogic 6-inch mini electric chainsaw, including unboxing, demonstration of the oiling system, and battery charging.
3.2. Chain Installation and Adjustment
Refer to the included manual for detailed diagrams on how to correctly install the saw chain. Pay close attention to the direction of the cutting teeth. After installation, adjust the chain tension using the knob on the side of the chainsaw. The chain should be taut but still allow for slight movement.
Video demonstrating the unboxing, features, and a common chain installation error with the Sainlogic 6-inch mini chainsaw.
3.3. Lubrication System
The chainsaw features an automatic lubrication system. Locate the oil fill port on the top of the unit. Fill the included oil bottle with appropriate bar and chain oil. Alternatively, canola oil can be used as a substitute. Press the oil pump button several times before and during operation to ensure the chain is adequately lubricated. This prevents excessive wear and maintains cutting efficiency.

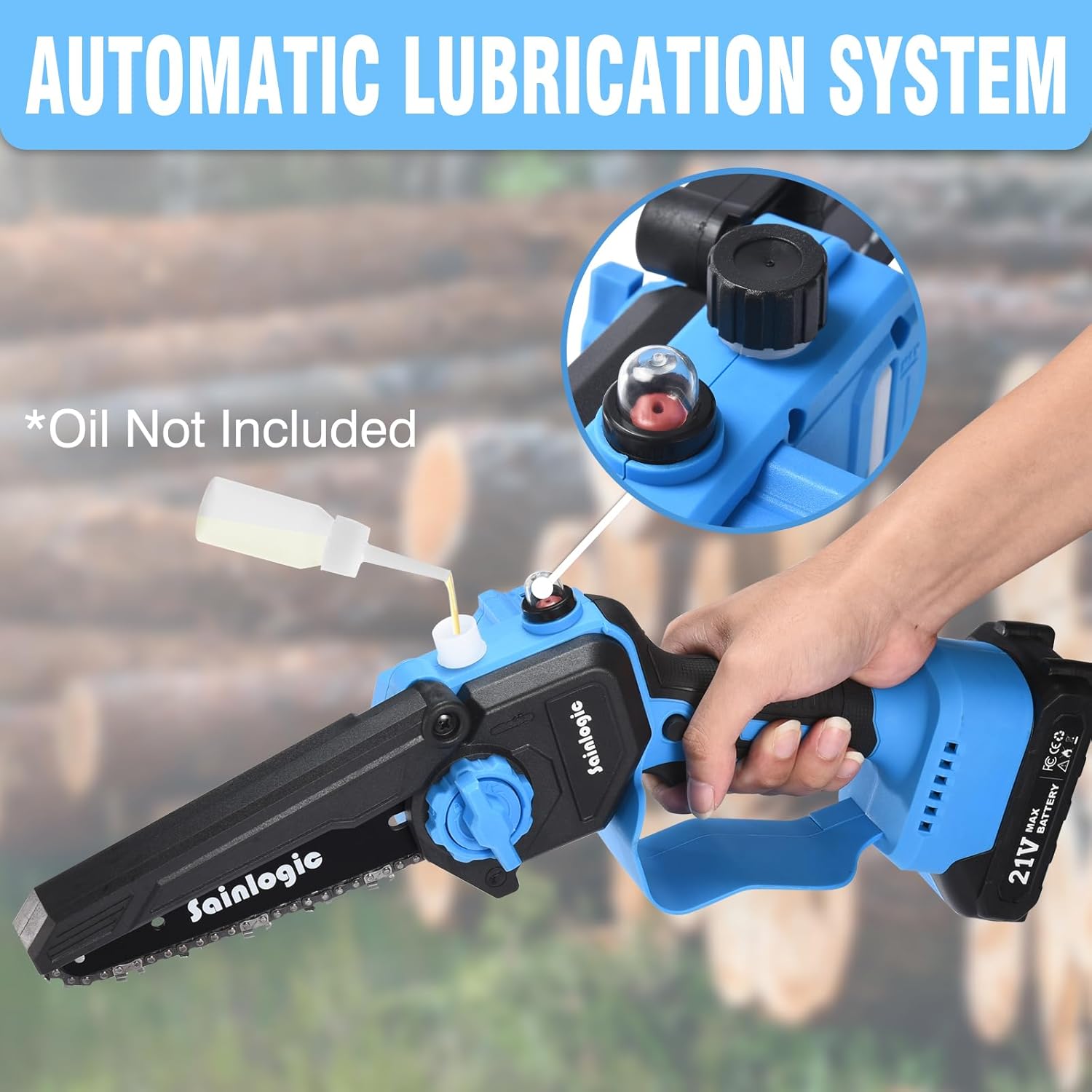

This image illustrates the automatic lubrication system, showing the oil refill port and the transparent oil bubble, allowing users to easily monitor and replenish the bar and chain oil for smooth operation. Note: Oil is not included.
വീഡിയോ റീview of the Sainlogic 6-inch mini electric chainsaw, including unboxing, demonstration of the oiling system, and battery charging.
4. പ്രവർത്തന നിർദ്ദേശങ്ങൾ
4.1. ആരംഭിക്കുന്നതും നിർത്തുന്നതും
To start the chainsaw, first press and hold the safety lock button located on the side of the handle. While holding the safety lock, squeeze the trigger to activate the chain. Release the trigger to stop the chainsaw.
4.2. Adjustable Head
The chainsaw features an adjustable head for different cutting angles. To adjust, locate the adjustment mechanism (often a button or lever) near the head of the saw. Press or release the mechanism and rotate the head to the desired angle. Ensure it locks securely into place before operating.
Video demonstrating the unboxing, features, and a common chain installation error with the Sainlogic 6-inch mini chainsaw. This video also shows the adjustable head feature.
4.3. കട്ടിംഗ് ടെക്നിക്കുകൾ
Always maintain a firm grip on the chainsaw with both hands (if applicable) and ensure stable footing. For optimal cutting, allow the chainsaw to do the work; do not force it. For thicker branches or logs, make multiple passes or cut from different angles if necessary. Be mindful of kickback and always cut away from your body.
The mini chainsaw is depicted in various use cases, demonstrating its versatility for woodworking tasks, general gardening maintenance, and light logging activities.
Video demonstrating the Sainlogic 6-inch mini chainsaw cutting a birch log, showcasing its cutting performance.
This test demo video showcases the Sainlogic 6-inch mini chainsaw's capability to cut through different wood thicknesses, from smaller branches to thicker logs. It provides a practical demonstration of the tool's power and ease of use for diverse cutting needs.
5. പരിപാലനം
പതിവ് അറ്റകുറ്റപ്പണികൾ നിങ്ങളുടെ ചെയിൻസോയുടെ ദീർഘായുസ്സും സുരക്ഷിതമായ പ്രവർത്തനവും ഉറപ്പാക്കുന്നു.
- ചെയിൻ ടെൻഷൻ: Periodically check and adjust the chain tension. A loose chain can derail or cause inefficient cutting.
- ലൂബ്രിക്കേഷൻ: Always ensure the chain is well-lubricated before and during use. Empty the oil reservoir if storing the chainsaw for an extended period to prevent leakage.
- വൃത്തിയാക്കൽ: After each use, clean sawdust and debris from the chain, bar, and motor vents. Use a brush or compressed air.
- സംഭരണം: Store the chainsaw in its carrying case in a dry, secure location, away from children and unauthorized users.
6. പ്രശ്നപരിഹാരം
6.1. Chain Not Cutting / Spinning Wrong Way
If the chainsaw is not cutting effectively or the chain appears to be spinning in the wrong direction, it is likely due to incorrect chain installation. Refer to the manual's diagrams and ensure the cutting teeth are oriented correctly. You may need to remove and re-install the chain, paying close attention to the directional arrows on the chain and bar.
Video demonstrating a common chain installation error where the chain spins in the wrong direction, and how to correct it.
6.2. Chain Comes Loose Frequently
If the chain frequently becomes loose during operation, it may require more frequent tension adjustments. Ensure the chain tension knob is tightened securely after adjustment. Over time, chains can stretch slightly, requiring more frequent tightening. If the issue persists, inspect the chain and bar for wear or damage.
7 സ്പെസിഫിക്കേഷനുകൾ
| നിർമ്മാതാവ് | sainlogic |
| ഇനത്തിൻ്റെ ഭാരം | 2.54 പൗണ്ട് |
| ഉൽപ്പന്ന അളവുകൾ | 17.13 x 5.91 x 4.72 ഇഞ്ച് |
| ഇനം മോഡൽ നമ്പർ | എസ്സി-15 |
| ബാറ്ററികൾ | 2 Lithium Ion batteries required (2000mAh each) |
| കുതിരശക്തി | 550 വാട്ട്സ് |
| മോട്ടോർ തരം | ബ്രഷ് ഇല്ലാത്ത മോട്ടോർ |
| ചെയിൻ സ്പീഡ് | 4100മി/മിനിറ്റ് |
| യു.പി.സി | 734257012867 |
8. വാറൻ്റിയും പിന്തുണയും
For warranty information and customer support, please refer to the warranty card included in your product package. You may also visit the official Sainlogic webകൂടുതൽ സഹായത്തിനും ഉൽപ്പന്ന രജിസ്ട്രേഷനുമുള്ള സൈറ്റ്.
