AVIOS Wireless Call Button

1. ആമുഖം

വാങ്ങിയതിന് നന്ദി.asing the AVIOS Wireless Call Button, model ape590. This device is designed to work seamlessly with AVIOS 3-digit and 8-digit display receiver monitors, providing a reliable and efficient calling system for various applications, particularly in hospitality settings. Its compact, stylish, and waterproof design ensures durability and ease of use.

This manual provides essential information on how to set up, operate, and maintain your call button to ensure optimal performance and longevity.

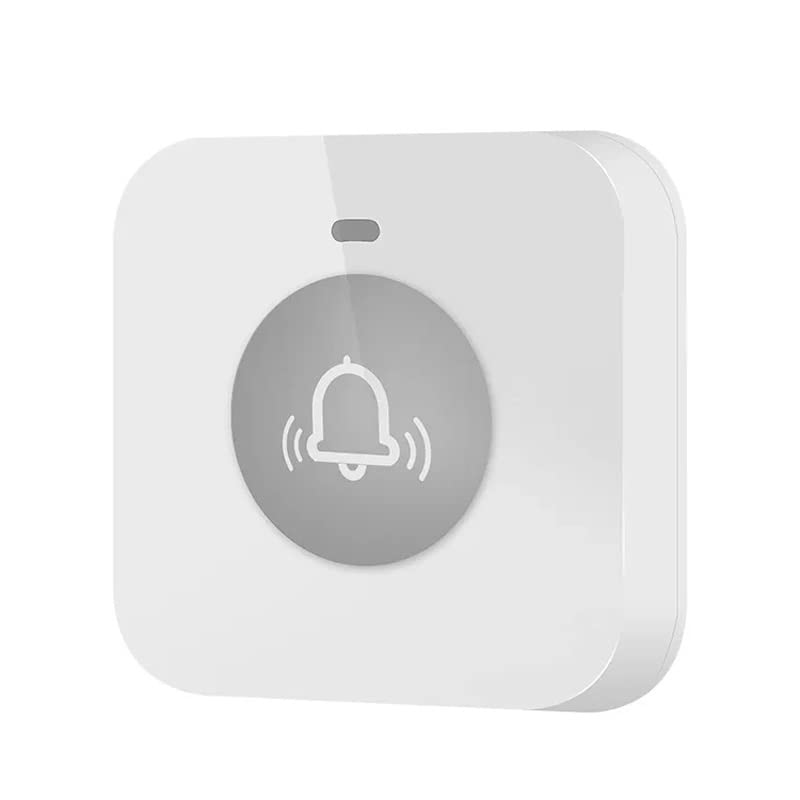

ചിത്രം: മുൻഭാഗം view of the AVIOS Wireless Call Button.

2. സവിശേഷതകൾ

• അനുയോജ്യത: Designed for use with AVIOS 3-digit and 8-digit display receiver monitors.
• വിപുലീകരണക്ഷമത: Supports up to 199 units with 3-digit display receivers and up to 660 units with 8-digit display receivers.
• മോടിയുള്ള മെറ്റീരിയൽ: Constructed from high-quality ABS for long-lasting performance.
• വാട്ടർപ്രൂഫ് ഡിസൈൻ: Features a waterproof construction, allowing for easy cleaning and alcohol disinfection.
• ഒതുക്കമുള്ള വലിപ്പം: Measures 52mm x 52mm x 15mm, making it unobtrusive and easy to place.
• ഊർജ്ജ സ്രോതസ്സ്: Operates on a single 23A 12V dry cell battery.
• LED സൂചകം: An LED illuminates when the button is pressed, confirming signal transmission.

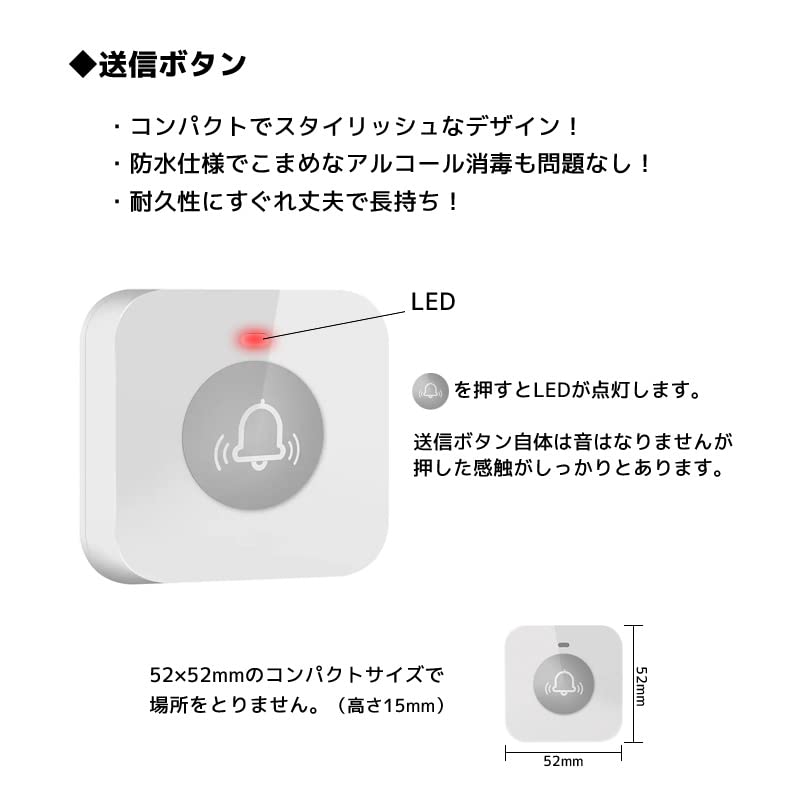

Image: Features and dimensions of the AVIOS Wireless Call Button, highlighting the LED indicator and compact size.

3. സജ്ജീകരണം

3.1 ബാറ്ററി ഇൻസ്റ്റാളേഷൻ

1. Locate the battery compartment on the back of the call button.
2. കമ്പാർട്ട്മെന്റ് കവർ ശ്രദ്ധാപൂർവ്വം തുറക്കുക.
3. Insert one 23A 12V dry cell battery, ensuring correct polarity (+/-).
4. ബാറ്ററി കമ്പാർട്ട്മെൻ്റ് കവർ സുരക്ഷിതമായി അടയ്ക്കുക.

3.2 Pairing with Receiver

The call button must be paired with a compatible AVIOS receiver monitor before use. The pairing process typically involves a specific sequence on the receiver. Please refer to the instruction manual of your AVIOS receiver monitor (e.g., 400D or HCM4300) for detailed pairing instructions.

3.3 പ്ലേസ്മെൻ്റ്

Place the call button on a flat, stable surface or mount it using the designated mounting points on the back. Ensure the button is within the operational range of your receiver monitor. Avoid placing it near large metal objects or other sources of interference that might obstruct the wireless signal.

ചിത്രം: മുന്നിലും പിന്നിലും view of the AVIOS Wireless Call Button, showing mounting points on the rear.

4. ഓപ്പറേഷൻ

Once the call button is paired with your receiver monitor, operation is straightforward:

• To send a call signal, simply press the button firmly.
• The LED indicator on the button will illuminate briefly, confirming that a signal has been transmitted.
• The call button itself does not produce any sound; the signal is received and audibly indicated by the paired receiver monitor.

5. പരിപാലനം

5.1 വൃത്തിയാക്കൽ

Due to its waterproof design, the call button can be easily cleaned. Use a soft, damp cloth with mild soap or an alcohol-based disinfectant to wipe the surface. Do not use abrasive cleaners or immerse the entire unit in water.

5.2 ബാറ്ററി മാറ്റിസ്ഥാപിക്കൽ

If the LED indicator does not light up when the button is pressed, or if the signal is not consistently received by the monitor, the battery may need replacement. Follow the battery installation steps in Section 3.1 to replace the 23A 12V dry cell battery.

5.3 സംഭരണം

When not in use for extended periods, store the call button in a cool, dry place away from direct sunlight and extreme temperatures. Consider removing the battery if storing for a very long time to prevent leakage.

6. പ്രശ്‌നപരിഹാരം

• Button not responding / LED not lighting up:
  • ബാറ്ററി പരിശോധിക്കുക. ആവശ്യമെങ്കിൽ അത് മാറ്റിസ്ഥാപിക്കുക.
  • Ensure the battery is inserted with correct polarity.
• Receiver not receiving signal:
  • Verify that the call button is properly paired with the receiver. Refer to your receiver's manual for re-pairing instructions.
  • Ensure the call button is within the operational range of the receiver.
  • Check for any obstructions (e.g., thick walls, large metal objects) between the button and the receiver.
  • Ensure the receiver is powered on and functioning correctly.
• ഇടപെടൽ:
  • If experiencing intermittent signals, try relocating the call button or receiver to minimize interference from other wireless devices.

7 സ്പെസിഫിക്കേഷനുകൾ

8. വാറൻ്റിയും പിന്തുണയും

For warranty information, technical support, or any inquiries regarding your AVIOS Wireless Call Button, please contact AVIOS customer service through the retailer or the official AVIOS website. Please have your model number (ape590) and purchase details ready when contacting support.
