1. ആമുഖം
This manual provides detailed instructions for the assembly, operation, and maintenance of your ROBOTIME MI03 Storm Beetle Mechanical 3D Puzzle Model Kit. Designed with intricate steampunk elements, this model offers an engaging building experience and a unique display piece. Please read all instructions carefully before beginning assembly.
2. പാക്കേജ് ഉള്ളടക്കം
Before starting, verify that all components listed below are present in your kit:
- Plastic Pieces (various frames containing model parts)
- ഇൻസ്ട്രക്ഷൻ ബുക്ക്
- Small tools (as specified in the instruction book, may include screwdriver, pliers, etc.)
- Additional materials (e.g., leather for wings, PVC for limbs, small metal components)
Note: Three AAA batteries are required for operation but are not included in the package due to customs policy.
3. അസംബ്ലി നിർദ്ദേശങ്ങൾ (സജ്ജീകരണം)
The assembly process for the Storm Beetle model kit is designed to be engaging and typically takes approximately 3 hours. Patience and attention to detail are crucial, especially with the smaller components.
3.1 തയ്യാറാക്കൽ
- Clear a well-lit, spacious workspace.
- Organize all parts according to the instruction book. Some parts are very small and require fine motor skills.
- Ensure you have three AAA batteries ready for installation.
3.2 ഘട്ടം ഘട്ടമായുള്ള അസംബ്ലി
Follow the included instruction book meticulously. The manual provides clear, concise steps, indicating which pieces to punch out and from which bags to retrieve necessary hardware. Pay close attention to diagrams and text to ensure correct placement of each part.
3.3 പ്രധാന പരിഗണനകൾ
- ചെറിയ ഭാഗങ്ങൾ: Many components, including screws and gears, are miniature. Use tweezers and a magnifying glass if needed.
- Delicate Parts: Some parts, particularly the wings, are delicate. Handle with care when cutting from frames.
- ബാറ്ററി ഇൻസ്റ്റാളേഷൻ: Install the three AAA batteries into the designated compartment as per the instructions. Ensure correct polarity.
4. പ്രവർത്തന നിർദ്ദേശങ്ങൾ

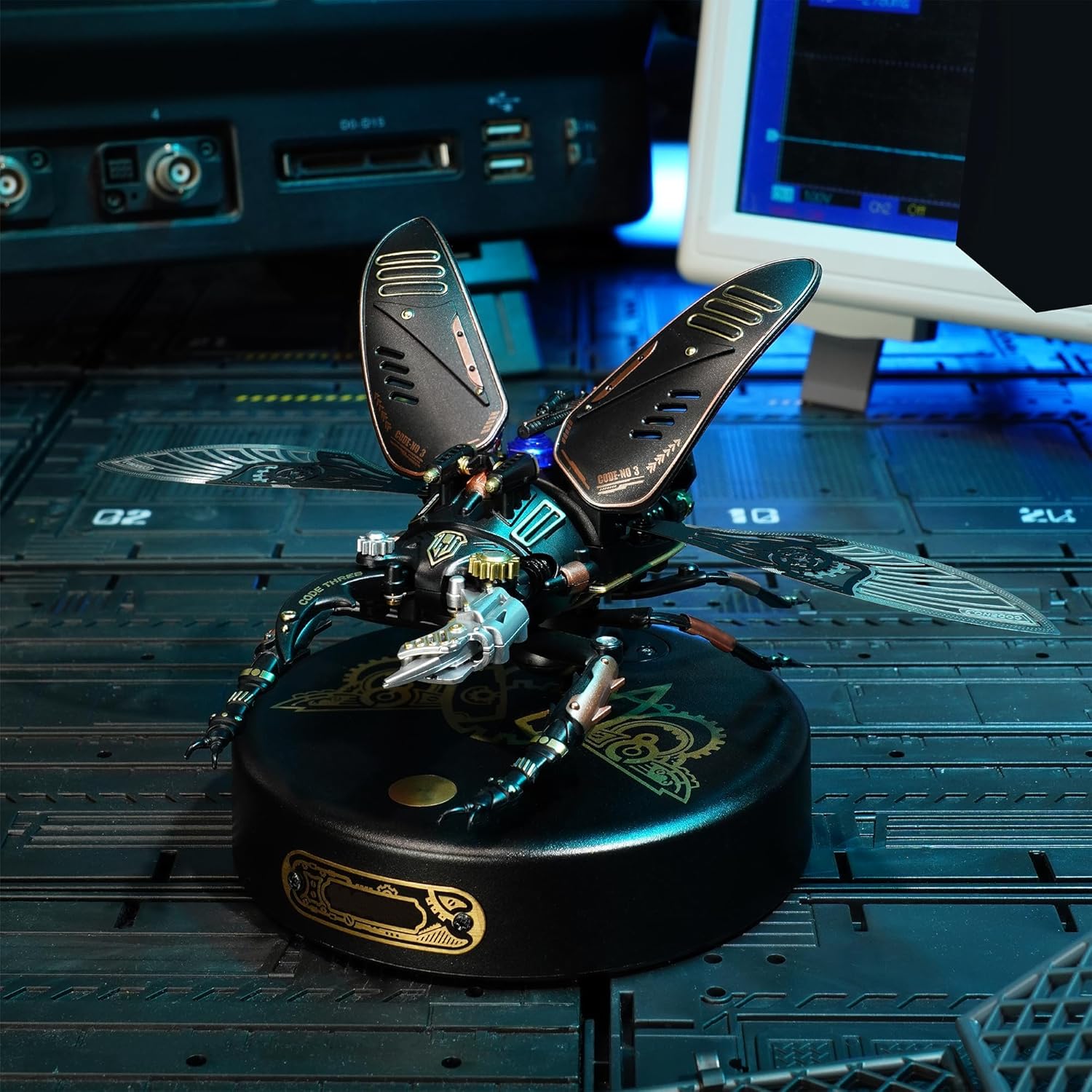

Once fully assembled and batteries are installed, your Storm Beetle model is ready for operation.
4.1 Activating the Model
Locate the activation switch on the model's base. Pressing this switch will initiate the mechanical movements and light features.
4.2 Features in Operation
- LED ലൈറ്റ്: A flashing blue LED light on the model's back will illuminate.
- Jaws and Wings: The model's jaws will clamp, and its membranous wings will activate, moving at a frequency of approximately 30 times per minute.
- യാന്ത്രിക ഷട്ട്-ഓഫ്: The model is designed to operate for about 3 minutes before automatically shutting off to conserve battery life.
4.3 Operational Video
Watch this video for a demonstration of the ROBOTIME MI03 Storm Beetle model in action:
Video 4.1: Official demonstration of the ROBOTIME MI03 Beetle Model Toy Building Set, showing its mechanical movements and light features.
5. പരിപാലനം
To ensure the longevity and optimal performance of your ROBOTIME MI03 model, follow these maintenance guidelines:
- വൃത്തിയാക്കൽ: Gently dust the model regularly with a soft, dry cloth. Avoid using harsh chemicals or abrasive materials.
- ലൂബ്രിക്കേഷൻ: Periodically apply a small amount of appropriate lubricant (e.g., silicone grease, as may be included in some kits) to moving gears and joints to ensure smooth operation.
- സംഭരണം: Store the model in a cool, dry place away from direct sunlight and extreme temperatures to prevent material degradation.
- ബാറ്ററി മാറ്റിസ്ഥാപിക്കൽ: Replace batteries when the model's movements become sluggish or the light dims. Always use fresh AAA batteries.
6. പ്രശ്നപരിഹാരം
If you encounter any issues with your Storm Beetle model, refer to the following troubleshooting tips:
6.1 Model Not Operating
- ബാറ്ററികൾ പരിശോധിക്കുക: Ensure batteries are correctly installed with the right polarity and are not depleted. Replace if necessary.
- Activation Switch: Verify that the activation switch is fully engaged.
- കണക്ഷനുകൾ: Inspect all electrical connections and mechanical linkages for any loose or improperly seated parts.
6.2 Sluggish Movement or Dim Light
- ബാറ്ററികൾ മാറ്റിസ്ഥാപിക്കുക: This is often an indication of low battery power.
- ലൂബ്രിക്കേഷൻ: Apply lubricant to gears and moving parts as described in the Maintenance section.
- തടസ്സങ്ങൾ: Check for any foreign objects or debris obstructing the movement of gears or wings.
6.3 Parts Not Moving Correctly
- അസംബ്ലി വീണ്ടും പരിശോധിക്കുക: Refer to the instruction manual and carefully review the assembly steps for the affected part. Incorrect placement of even small components can impact functionality. The manual often includes steps for disassembling specific sections if motorization issues arise.
- Over-tightening: Ensure screws are not over-tightened, which can restrict movement.
7 സ്പെസിഫിക്കേഷനുകൾ
| ഫീച്ചർ | വിശദാംശങ്ങൾ |
|---|---|
| ഉൽപ്പന്ന അളവുകൾ | 3.9 x 7.3 x 4.5 ഇഞ്ച് |
| ഇനത്തിൻ്റെ ഭാരം | 1.3 പൗണ്ട് |
| മോഡൽ നമ്പർ | MI03 |
| നിർമ്മാതാവ് | റോബോടൈം |
| ശുപാർശ ചെയ്യുന്ന പ്രായം | 14 വർഷവും അതിൽ കൂടുതലും |
| കഷണങ്ങളുടെ എണ്ണം | 115 |
| പവർ ഉറവിടം | 3 x AAA ബാറ്ററികൾ (ഉൾപ്പെടുത്തിയിട്ടില്ല) |
8. വാറൻ്റിയും പിന്തുണയും
For any questions, concerns, or support regarding your ROBOTIME MI03 Storm Beetle Model Kit, please refer to the contact information provided in your product packaging or visit the official ROBOTIME website. Specific warranty details, if applicable, will be outlined in the documentation accompanying your product.
