Datamax S30B വയർലെസ് 1D/2D ബാർകോഡ് സ്കാനർ ഉപയോക്തൃ മാനുവൽ

ആമുഖം

Thank you for choosing the Datamax S30B Wireless 1D/2D Barcode Scanner. This manual provides detailed instructions on how to set up, operate, and maintain your device, ensuring optimal performance and longevity. The S30B is a versatile scanner designed for various applications, including retail, logistics, libraries, offices, and manufacturing systems, offering multiple connection options and robust scanning capabilities for both 1D and 2D barcodes.

പാക്കേജ് ഉള്ളടക്കം

ആരംഭിക്കുന്നതിന് മുമ്പ്, എല്ലാ ഇനങ്ങളും പാക്കേജിൽ ഉണ്ടെന്ന് ദയവായി ഉറപ്പാക്കുക:

• Datamax S30B Barcode Scanner
• USB ചാർജിംഗ്/ഡാറ്റ കേബിൾ
• 2.4GHz വയർലെസ് യുഎസ്ബി ഡോംഗിൾ
• ഉപയോക്തൃ മാനുവൽ (ഈ പ്രമാണം)

Image: Contents of the Datamax S30B package, showing the scanner, USB cable, 2.4GHz wireless dongle, and the user manual.

സജ്ജമാക്കുക

1. Charging the Scanner

The S30B scanner is equipped with a rechargeable battery. Before first use, it is recommended to fully charge the device. Connect the provided USB cable to the scanner's charging port and plug the other end into a USB power source (e.g., computer USB port, USB wall adapter). The charging indicator light will show the charging status.

2. കണക്ഷൻ രീതികൾ

The Datamax S30B offers three versatile connection options:

2.1. ബ്ലൂടൂത്ത് കണക്ഷൻ

The scanner supports Bluetooth HID and SPP modes, compatible with Windows, Mac OS, Android, and other Bluetooth-enabled systems. To connect via Bluetooth:

1. സ്കാനർ ഓണാക്കിയിട്ടുണ്ടെന്ന് ഉറപ്പാക്കുക.
2. Scan the "Bluetooth HID Mode" barcode from the instruction manual (or the "One-Click Pairing" barcode if available).
3. On your device (computer, tablet, smartphone), enable Bluetooth and search for "BT Scanner HID_971A" (or similar).
4. Select the scanner to pair. A beep from the scanner and a steady blue light indicate successful pairing.

Image: Visual representation of the scanner connecting via Bluetooth to Android, iOS, iPad, laptop, and desktop computers.

2.2. 2.4GHz വയർലെസ് കണക്ഷൻ

For a stable wireless connection, use the provided 2.4GHz USB dongle:

1. നിങ്ങളുടെ കമ്പ്യൂട്ടറിൽ ലഭ്യമായ ഒരു USB പോർട്ടിലേക്ക് 2.4GHz USB ഡോംഗിൾ പ്ലഗ് ചെയ്യുക.
2. The scanner will automatically pair with the dongle. No driver installation is required.
3. A successful connection is indicated by a specific sound or light on the scanner.

Image: The Datamax S30B scanner demonstrating its wireless capability and USB charging feature. Visit barcoder.jp കൂടുതൽ വിവരങ്ങൾക്ക്.

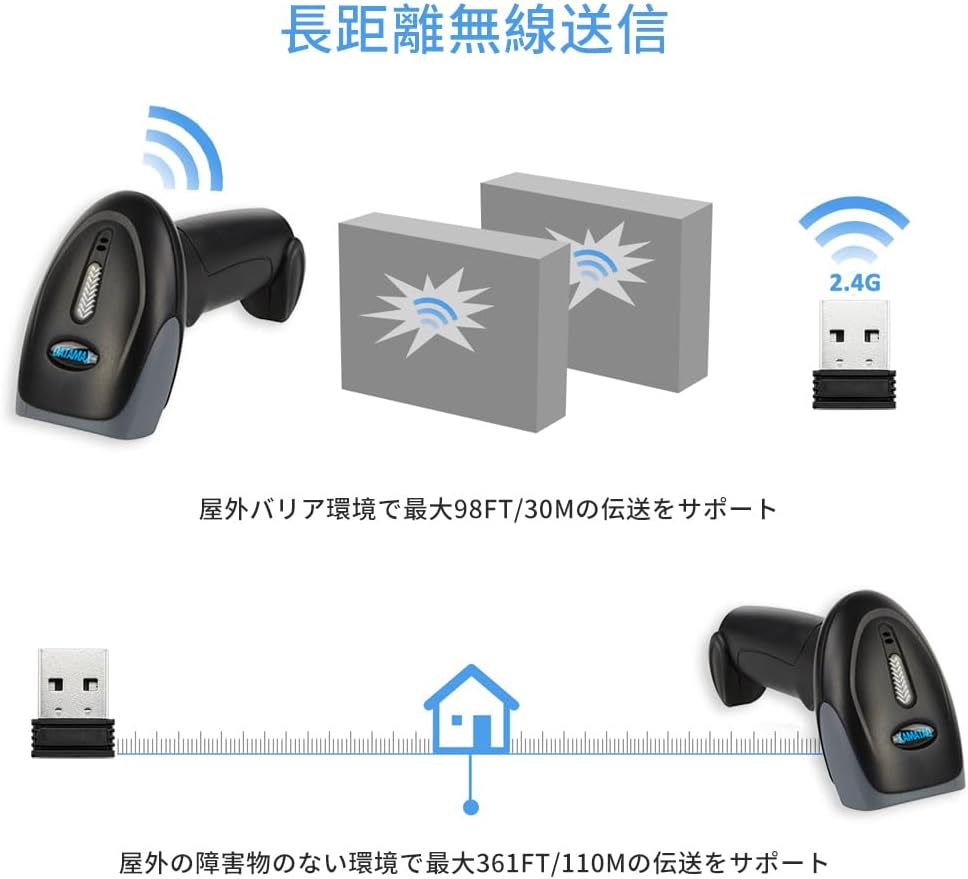

Image: This diagram shows the effective wireless range of the scanner, capable of transmitting up to 30 meters (98 feet) with obstacles and up to 110 meters (361 feet) in open environments.

2.3. വയർഡ് യുഎസ്ബി കണക്ഷൻ

For direct and reliable data transfer, connect the scanner via USB cable:

1. Connect one end of the USB cable to the scanner's port.
2. മറ്റേ അറ്റം നിങ്ങളുടെ കമ്പ്യൂട്ടറിലെ യുഎസ്ബി പോർട്ടിലേക്ക് പ്ലഗ് ചെയ്യുക.
3. The scanner will function as a plug-and-play device, requiring no additional drivers.

Image: The Datamax S30B barcode scanner, showcasing its primary components including the scanner unit, 2.4GHz wireless USB dongle, and the USB cable for wired connection and charging.

സ്കാനർ പ്രവർത്തിപ്പിക്കുന്നു

1. സ്കാനിംഗ് മോഡുകൾ

The S30B offers two primary scanning modes:

• Manual Scan Mode: Press the scan button to trigger each scan. This mode is ideal for precise, controlled scanning.
• Automatic Scan Mode: The scanner automatically detects and scans barcodes when they are presented within its reading range, without needing to press the button. This mode is efficient for high-volume scanning.

You can switch between these modes by scanning specific configuration barcodes found in the full instruction manual.

Image: Illustrates the difference between manual scanning (requiring a button press) and automatic scanning (auto-trigger, high-speed motion reading). Configuration barcodes for these modes are typically found in the detailed manual.

2. Supported Barcode Types

The S30B is equipped with advanced CMOS technology, allowing it to read a wide range of 1D and 2D barcodes from both paper and digital screens:

• 2D ബാർകോഡുകൾ: QR കോഡ്, ഡാറ്റ മാട്രിക്സ്, PDF417 മുതലായവ.
• 1D ബാർകോഡുകൾ: EAN, UPC, Code 39, Code 93, Code 128, UCC/EAN 128, Codabar, Interleaved 2 of 5, ITF-6, ITF-14, ISBN, ISSN, MSI-Plessey, GS1 Databar, Code 11, Industrial 25, Matrix 2 of 5, etc.

Image: The scanner's powerful decoding function is shown, capable of reading standard 1D barcodes, incomplete barcodes, folded barcodes, and 2D QR codes from various surfaces.

3. Data Upload Modes

സ്കാനർ രണ്ട് ഡാറ്റ അപ്‌ലോഡ് മോഡുകളെ പിന്തുണയ്ക്കുന്നു:

• Instant Mode: Barcodes are uploaded to the computer immediately after scanning.
• ഓഫ്‌ലൈൻ സംഭരണ ​​മോഡ്: The scanner can store up to 80,000 13-digit barcodes (or 16Mbit of internal storage) when out of range or disconnected. Data can be uploaded later by scanning a specific "Upload Data" barcode.

Image: Depicts the two upload modes: Instant Mode, where barcodes are immediately uploaded to the computer, and Offline Storage Mode, which allows for large-capacity offline storage of up to 80,000 13-digit barcodes in 16Mbit internal memory.

മെയിൻ്റനൻസ്

Proper maintenance ensures the longevity and performance of your scanner:

• വൃത്തിയാക്കൽ: Use a soft, dry cloth to clean the scanner's exterior. For the scanning window, use a lens cleaning cloth to avoid scratches. Do not use abrasive cleaners or solvents.
• ബാറ്ററി കെയർ: Avoid fully discharging the battery frequently. For long-term storage, charge the battery to about 50% and store in a cool, dry place.
• സംഭരണം: Store the scanner in a clean, dry environment, away from extreme temperatures, direct sunlight, and corrosive materials.
• ഈട്: The S30B features a shock-resistant silicone design, protecting it from drops and vibrations, with a drop resistance of up to 1.5 meters.

Image: Demonstrates the scanner's strong drop prevention performance, highlighting its IP42 rating and 1.5-meter drop resistance, along with a 10 million button press durability.

ട്രബിൾഷൂട്ടിംഗ്

If you encounter issues with your Datamax S30B scanner, please refer to the following common problems and solutions:

സ്പെസിഫിക്കേഷനുകൾ

Image: Detailed product dimensions of the S30B scanner: 2.6 inches (6.7 cm) width, 3.5 inches (9 cm) depth, and 6.4 inches (16.5 cm) height.

വാറൻ്റിയും പിന്തുണയും

Datamax is committed to providing high-quality products and customer satisfaction. For any warranty claims, technical support, or inquiries regarding your S30B barcode scanner, please refer to the contact information provided with your purchase or visit the official Datamax webവാറന്റി ആവശ്യങ്ങൾക്കായി വാങ്ങിയതിന്റെ തെളിവായി നിങ്ങളുടെ വാങ്ങൽ രസീത് സൂക്ഷിക്കുക.

കൂടുതൽ ഉറവിടങ്ങൾക്കും ഉൽപ്പന്ന വിവരങ്ങൾക്കും, നിങ്ങൾക്ക് സന്ദർശിക്കാവുന്നതാണ് Datamax Brand Store on Amazon.
