PATONA 6752 Replacement Battery User Manual

1. ആമുഖം

This manual provides essential information for the safe and effective use of your PATONA 6752 replacement Lithium-Ion battery, specifically designed for the JBL Flip 6 Bluetooth speaker. Please read this manual thoroughly before installation and use to ensure proper function and safety.

2. ഉൽപ്പന്നം കഴിഞ്ഞുview

The PATONA 6752 battery is a high-quality replacement power source for your JBL Flip 6 speaker, offering reliable performance and extended playtime. It is engineered to meet the original specifications for seamless compatibility.

പ്രധാന സവിശേഷതകൾ:

• ഉയർന്ന ശേഷി: 5200 mAh (19.24 Wh) for prolonged use.
• വാല്യംtage: 3.7 വോൾട്ട്.
• ബാറ്ററി തരം: Lithium-Ion.
• സുരക്ഷാ സവിശേഷതകൾ: Equipped with safety mechanisms comparable to the original battery.
• അനുയോജ്യത: Specifically designed for JBL Flip 6 Bluetooth speakers, including models like JBL GSP-1S2P-F6D, JBLFLIP6BLUAM, and JBLFLIP6REDAM.

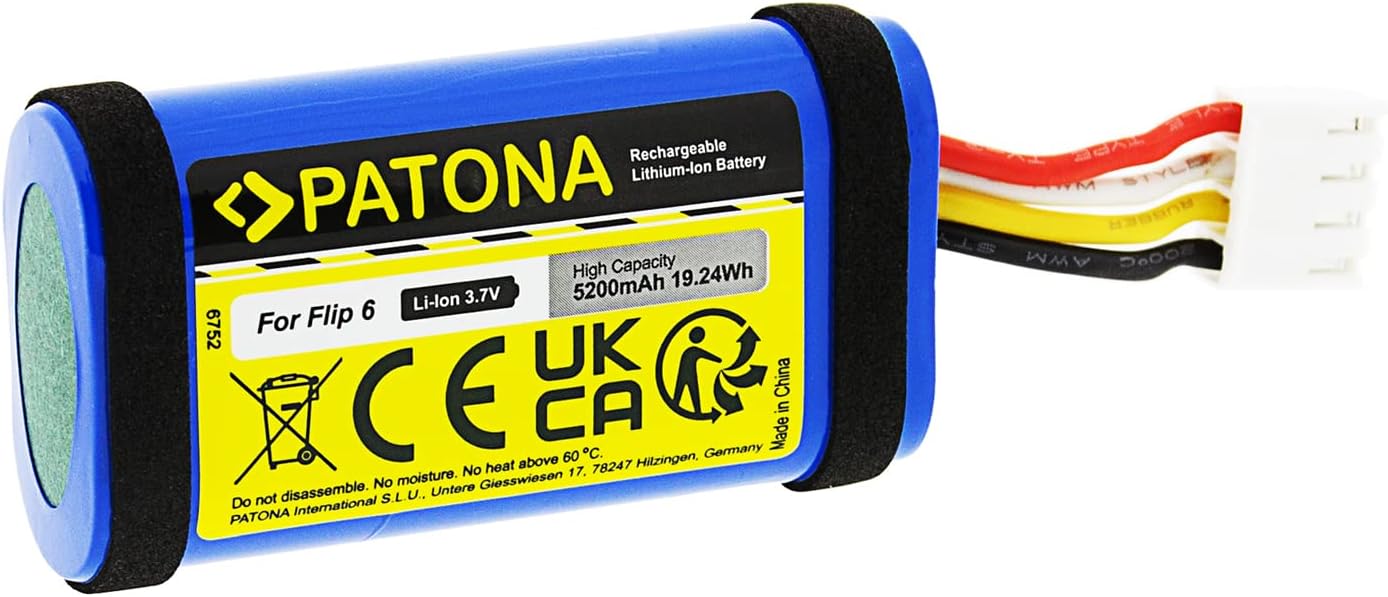

ചിത്രം 2.1: മുൻഭാഗം view of the PATONA 6752 battery, showing the brand logo, capacity (5200mAh 19.24Wh), voltage (3.7V), and compatibility (For Flip 6). Safety certifications and disposal symbols are also visible.

ചിത്രം 2.2: വശം view of the PATONA 6752 battery, highlighting its cylindrical shape and compact design. The black protective bands on each end are visible.

3 സുരക്ഷാ വിവരങ്ങൾ

Lithium-Ion batteries require careful handling. Adhere to the following safety guidelines to prevent damage, injury, or fire:

• ഡിസ്അസംബ്ലിംഗ് ചെയ്യരുത്: Never attempt to open or disassemble the battery pack. This can lead to short circuits, fire, or exposure to hazardous materials.
• ഈർപ്പം ഒഴിവാക്കുക: Keep the battery away from water, high humidity, and other liquids. Moisture can cause internal damage and short circuits.
• താപനില നിയന്ത്രണം: Do not expose the battery to temperatures above 60°C (140°F) or below 0°C (32°F). Extreme temperatures can degrade battery performance and pose a safety risk.
• ശരിയായ നീക്കം ചെയ്യൽ: Do not dispose of batteries in household waste. Lithium-Ion batteries must be recycled or disposed of according to local regulations. Look for designated battery recycling centers.
• Avoid Puncturing or Crushing: Do not puncture, drop, or crush the battery. Physical damage can lead to internal short circuits and fire.
• അനുയോജ്യമായ ചാർജറുകൾ ഉപയോഗിക്കുക: Only use the charging system integrated within the JBL Flip 6 speaker. Do not attempt to charge the battery externally with incompatible chargers.

4. സജ്ജീകരണവും ഇൻസ്റ്റാളേഷനും

Replacing the internal battery of the JBL Flip 6 speaker requires technical skill and specific tools. It is highly recommended that this procedure be performed by a qualified technician or an individual with experience in electronics repair. Improper installation can damage your speaker or the new battery, and may void your speaker's warranty.

General Installation Steps (Consult a Service Manual for Detailed Instructions):

1. പവർ ഓഫ്: Ensure the JBL Flip 6 speaker is completely powered off and disconnected from any power source.
2. വേർപെടുത്തുക: Carefully disassemble the speaker casing to access the internal battery compartment. This typically involves removing screws and potentially adhesive components. Refer to a specific service manual or repair guide for the JBL Flip 6 for precise instructions.
3. പഴയ ബാറ്ററി വിച്ഛേദിക്കുക: Locate the existing battery and carefully disconnect its connector from the speaker's circuit board. Note the orientation of the connector.
4. പഴയ ബാറ്ററി നീക്കം ചെയ്യുക: Gently remove the old battery from its housing. It may be secured with adhesive or a bracket.
5. പുതിയ ബാറ്ററി സ്ഥാപിക്കുക: Place the PATONA 6752 battery into the battery compartment. Ensure it fits securely without forcing.
6. പുതിയ ബാറ്ററി ബന്ധിപ്പിക്കുക: Carefully connect the battery's wire harness to the corresponding port on the speaker's circuit board. Ensure the connector is fully seated and correctly oriented.
7. പുനഃസംയോജനം: Reassemble the speaker casing, ensuring all screws and components are properly secured.
8. പ്രാരംഭ ചാർജ്: After reassembly, connect the speaker to its original charger and allow the new battery to fully charge before first use.

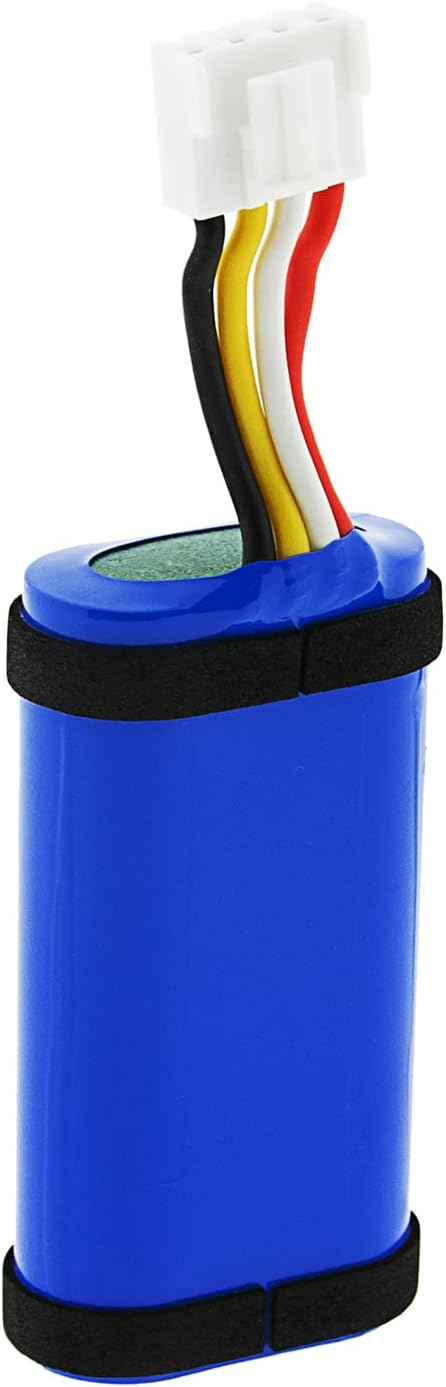

ചിത്രം 4.1: മുകളിൽ നിന്ന് താഴേക്ക് view of the PATONA 6752 battery, clearly showing the white multi-pin connector and the colored wires (red, white, yellow, black) extending from the battery. This connector is crucial for proper installation.

ചിത്രം 4.2: ആംഗിൾഡ് view of the PATONA 6752 battery, providing a perspective of its overall dimensions and the wire harness with its connector.

5. പ്രവർത്തന മാർഗ്ഗനിർദ്ദേശങ്ങൾ

Once the PATONA 6752 battery is correctly installed in your JBL Flip 6 speaker, its operation is integrated with the speaker's normal functions. The following guidelines pertain to general battery care and charging practices:

• ആദ്യ ഉപയോഗം: Fully charge the battery before its first use after installation. This helps calibrate the battery management system.
• പതിവ് ചാർജിംഗ്: Charge the speaker using its original JBL charger. Avoid using third-party chargers unless they are certified compatible and meet the speaker's power requirements.
• ആഴത്തിലുള്ള ഡിസ്ചാർജ് ഒഴിവാക്കുക: While Lithium-Ion batteries do not suffer from "memory effect," it is generally advisable to avoid completely draining the battery frequently. Recharge when the battery level is low.
• ഒപ്റ്റിമൽ ചാർജിംഗ് താപനില: Charge the battery at room temperature (between 10°C and 30°C / 50°F and 86°F) for optimal battery health and longevity.

6. പരിപാലനം

Proper maintenance can extend the lifespan of your PATONA 6752 battery:

• സംഭരണം: If the speaker will not be used for an extended period, store it with the battery charged to approximately 50-70%. Store in a cool, dry place away from direct sunlight and extreme temperatures.
• പതിവ് ഉപയോഗം: For optimal battery health, use and recharge the speaker periodically, even if not used frequently.
• വൃത്തിയാക്കൽ: Keep the speaker and its charging port clean and free of dust and debris. Do not use harsh chemicals or abrasive materials for cleaning.

7. പ്രശ്‌നപരിഹാരം

ബാറ്ററി മാറ്റിസ്ഥാപിച്ചതിന് ശേഷം നിങ്ങൾക്ക് പ്രശ്നങ്ങൾ നേരിടുകയാണെങ്കിൽ, ഇനിപ്പറയുന്ന കാര്യങ്ങൾ പരിഗണിക്കുക:

• സ്പീക്കർ ഓണാക്കുന്നില്ല:
  • Ensure the battery connector is securely and correctly seated on the circuit board.
  • Verify that the speaker is fully charged. Connect it to the charger and observe if the charging indicator lights up.
• ബാറ്ററി ചാർജുചെയ്യുന്നില്ല:
  • ചാർജിംഗ് കേബിളും അഡാപ്റ്ററും കേടുപാടുണ്ടോ എന്ന് പരിശോധിക്കുക.
  • Ensure the charging port on the speaker is clean and free of obstructions.
  • Confirm the battery connector is properly installed.
• ഹ്രസ്വ ബാറ്ററി ലൈഫ്:
  • Ensure the battery has been fully charged multiple times to allow for proper calibration.
  • Verify that the battery is a genuine PATONA 6752 and not a counterfeit.
  • Operating the speaker at maximum volume or in extreme temperatures can reduce battery life.

If troubleshooting steps do not resolve the issue, it is advisable to consult a professional repair service or contact PATONA customer support.

8 സ്പെസിഫിക്കേഷനുകൾ

9. വാറൻ്റിയും പിന്തുണയും

For information regarding the warranty period and terms for your PATONA 6752 replacement battery, please refer to the documentation provided with your purchase or visit the official PATONA website. Warranty details can vary by region and retailer.

If you require technical assistance, have questions about installation, or need to report a defect, please contact PATONA customer support directly. Contact information can typically be found on their official webസൈറ്റ് അല്ലെങ്കിൽ ഉൽപ്പന്ന പാക്കേജിംഗിൽ.

Note: Attempting to repair the battery yourself or using non-approved parts may void the warranty.
