ROBOTIME Magic Piano 3D Wooden Puzzle Music Box (Model ZQRT-AMK81) Instruction Manual

1. ആമുഖം

Thank you for choosing the ROBOTIME Magic Piano 3D Wooden Puzzle Music Box. This intricate model kit provides an engaging assembly experience, culminating in a functional music box with self-playing keys and visible gear mechanisms. This manual provides detailed instructions for assembly, operation, maintenance, and troubleshooting to ensure a successful and enjoyable experience.

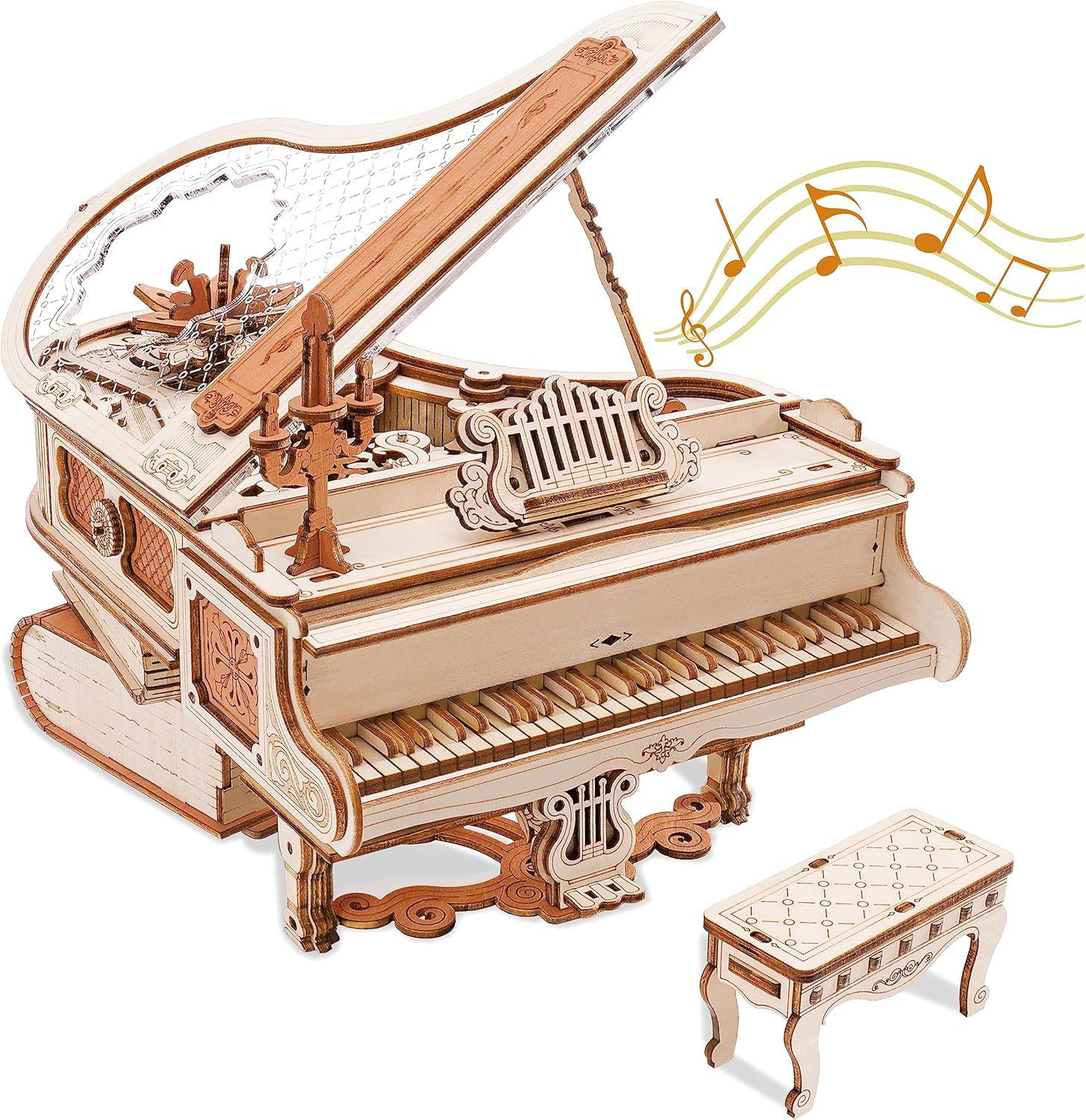

Figure 1.1: The fully assembled ROBOTIME Magic Piano 3D Wooden Puzzle Music Box.

2 സുരക്ഷാ വിവരങ്ങൾ

• ശുപാർശ ചെയ്യുന്ന പ്രായം: This product is recommended for individuals 14 വയസ്സും അതിൽ കൂടുതലും due to small parts and the complexity of assembly.
• ചെറിയ ഭാഗങ്ങൾ: The kit contains small parts that may pose a choking hazard. Keep out of reach of young children and pets.
• മൂർച്ചയുള്ള അഗ്രങ്ങൾ: Exercise caution when removing wooden pieces from the sheets, as some edges may be sharp. Use appropriate tools if necessary.
• ശ്രദ്ധയോടെ കൈകാര്യം ചെയ്യുക: Wooden components can be delicate. Apply gentle pressure during assembly to prevent breakage.

3. പാക്കേജ് ഉള്ളടക്കം

Before beginning assembly, verify that all components are present and undamaged. Refer to the included instruction booklet and the image below for a visual guide to the package contents.

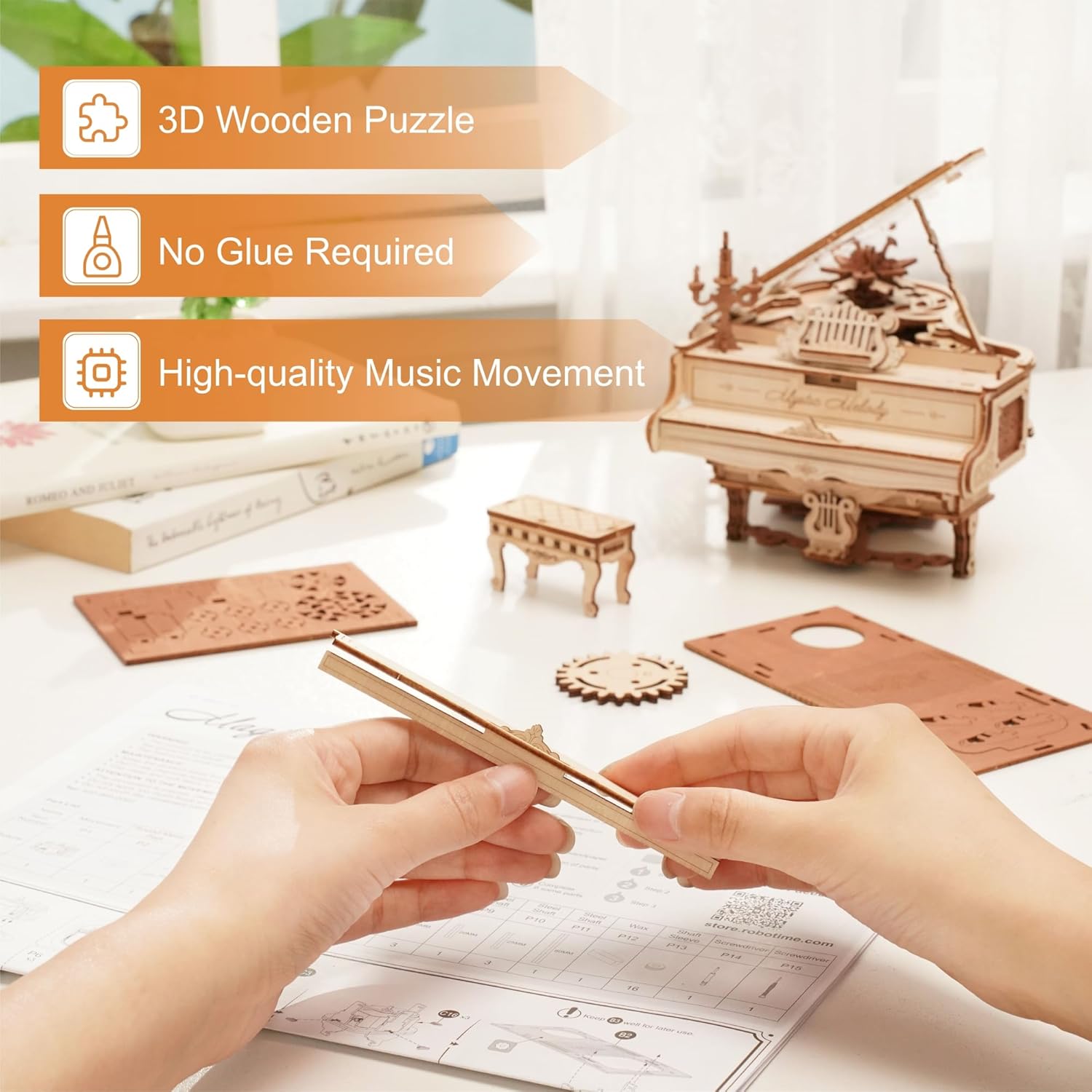

ചിത്രം 3.1: ഓവർview of the kit contents, including laser-cut wooden sheets, assembly tools, and the instruction manual.

കിറ്റിൽ സാധാരണയായി ഇവ ഉൾപ്പെടുന്നു:

• Laser-cut wooden sheets with 223 individual pieces.
• Music movement mechanism.
• Small hardware (screws, metal shafts).
• Wax stick for lubricating gears.
• Mini screwdriver and other basic assembly tools.
• Detailed instruction booklet.

4. അസംബ്ലി നിർദ്ദേശങ്ങൾ

Assembly of the Magic Piano typically takes approximately 4.5 hours. Patience and careful attention to the instruction booklet are crucial for a successful build. No glue is required for the primary assembly.

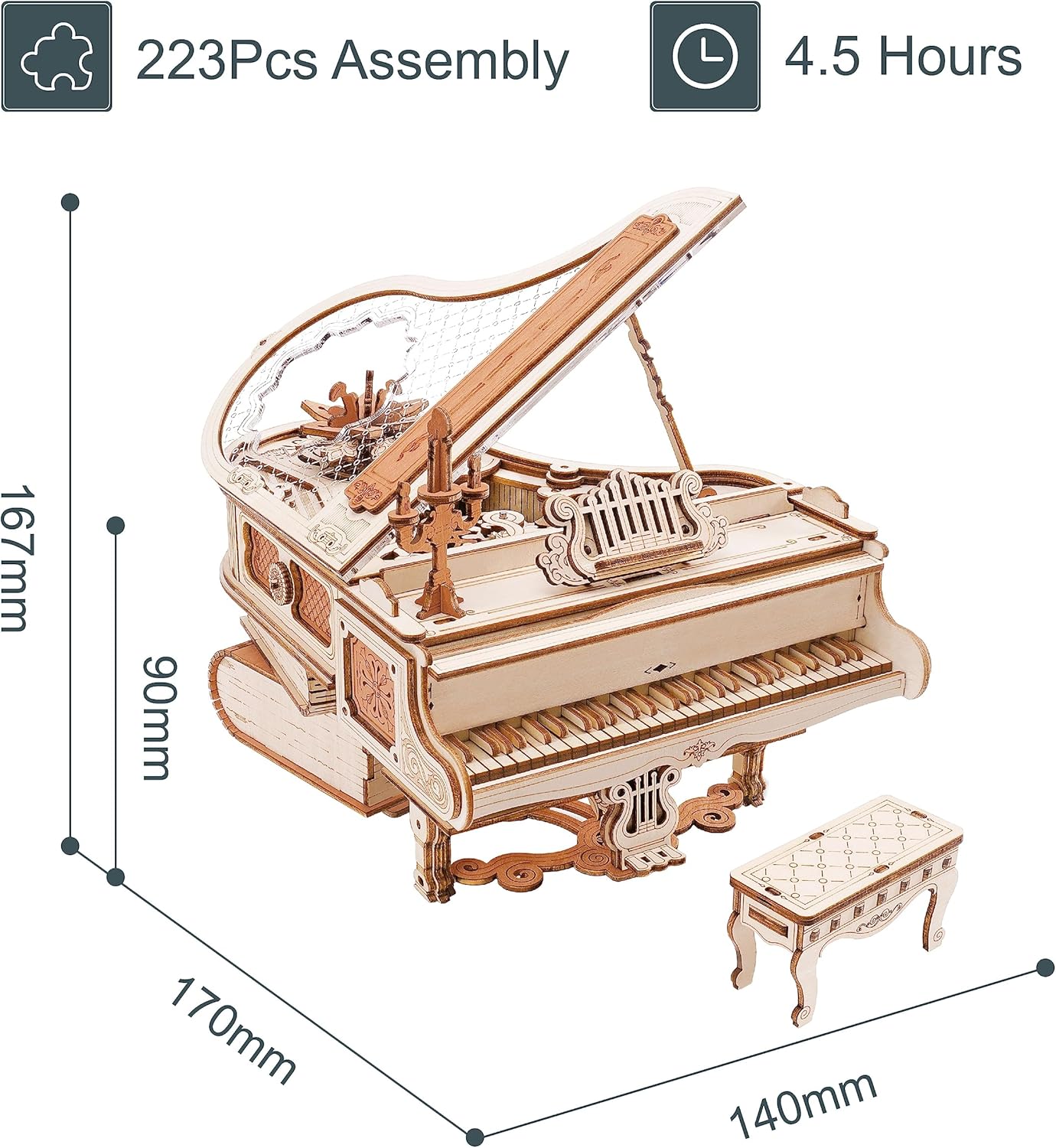

Figure 4.1: The assembled model with dimensions and estimated assembly time.

4.1 പൊതുസമ്മേളന നുറുങ്ങുകൾ

• നിർദ്ദേശങ്ങൾ വായിക്കുക: ശ്രദ്ധാപൂർവ്വം വീണ്ടുംview the entire instruction booklet before starting.
• ഭാഗങ്ങൾ സംഘടിപ്പിക്കുക: Punch out pieces gently and organize them by number or type to avoid confusion.
• സാൻഡിംഗ്: Lightly sand any rough edges or tabs on the wooden pieces for a smoother fit and operation, especially for moving parts.
• Waxing Gears: It is critical to apply the provided wax to all gears and moving parts മുമ്പ് assembly. This ensures smooth operation of the music box and piano keys.
• നേരിയ മർദ്ദം: Pieces should fit snugly. Do not force them, as this can cause breakage. If a piece doesn't fit, double-check its orientation and part number.

4.2 ഘട്ടം ഘട്ടമായുള്ള അസംബ്ലി

Follow the numbered steps in the included instruction booklet. Each step will guide you through connecting specific pieces. Pay close attention to the diagrams provided.

1. Begin by assembling the base structure, ensuring all foundational pieces are securely interlocked.
2. Integrate the music movement mechanism as instructed, making sure it is correctly oriented.
3. Assemble the gear system, applying wax to each gear and axle point before connecting them. This is vital for the functionality of the self-playing keys.
4. Construct the piano keys and their connecting mechanism. Ensure free movement after assembly.
5. Attach the decorative elements and the transparent lid.

ചിത്രം 4.2: വശം view illustrating the intricate internal gear system and the self-playing piano keys.

5. പ്രവർത്തന നിർദ്ദേശങ്ങൾ

Once fully assembled, your Magic Piano Music Box is ready to operate.

5.1 Winding the Music Box

• Locate the wind-up spring key, typically found on the side or bottom of the model.
• Gently turn the key clockwise until you feel a slight resistance. Do not over-wind, as this can damage the mechanism.
• Release the key, and the music box will begin to play, accompanied by the movement of the piano keys and internal gears.

Figure 5.1: Detail of the wind-up spring key for activating the music box.

5.2 Observing the Mechanism

• The transparent lid allows for observation of the intricate gear transmission as the music plays.
• The piano keys will move in sync with the melody, simulating a playing piano.

Figure 5.2: The self-playing piano keys in action.

6. പരിപാലനം

To ensure the longevity and smooth operation of your ROBOTIME Magic Piano Music Box, follow these simple maintenance guidelines:

• വൃത്തിയാക്കൽ: Dust the model regularly with a soft, dry cloth or a soft brush to prevent dust accumulation in the gears and moving parts. Avoid using liquid cleaners.
• ലൂബ്രിക്കേഷൻ: If the gears or piano keys begin to move stiffly, reapply a small amount of the provided wax (or a similar non-toxic wax) to the contact points of the gears and axles.
• സംഭരണം: Store the model in a dry environment, away from direct sunlight and extreme temperature fluctuations, which can cause the wood to warp or crack.

7. പ്രശ്‌നപരിഹാരം

If you encounter any issues with your Magic Piano Music Box, refer to the following common problems and solutions:

• മ്യൂസിക് ബോക്സ് പ്ലേ ചെയ്യുന്നില്ല:
  • Ensure the music box has been sufficiently wound.
  • Check for any obstructions in the music movement mechanism.
  • Verify that all gears connected to the music box are properly aligned and waxed.
• Piano Keys Not Moving Smoothly:
  • Reapply wax to all moving parts of the key mechanism and associated gears.
  • Check for any misaligned or stuck pieces that might be impeding movement.
  • Ensure no excess pressure was applied during assembly that might have warped parts.
• യോജിക്കാത്ത കഷണങ്ങൾ:
  • Double-check the part numbers and orientation against the instruction diagrams.
  • Gently sand the edges of the piece or the slot if there is a tight fit.
  • Do not force pieces together.

8 സ്പെസിഫിക്കേഷനുകൾ

9. വാറൻ്റിയും പിന്തുണയും

ROBOTIME is committed to providing high-quality products and customer satisfaction. We offer a quality guarantee for our wooden puzzle kits.

• സൗജന്യ മാറ്റിസ്ഥാപിക്കൽ ഭാഗങ്ങൾ: In the event of damaged or missing parts, ROBOTIME provides free replacement parts. Please contact our customer support with details of the issue and the specific parts required.
• ഉപഭോക്തൃ പിന്തുണ: If you have any questions, suggestions, or require assistance with your 3D jigsaw puzzle, please do not hesitate to contact us through the retailer's platform or the official ROBOTIME webസൈറ്റ്.
