1. ഉൽപ്പന്നം കഴിഞ്ഞുview
The Waveshare AW-CB375NF is a high-performance dual-band wireless network interface card (NIC) designed for various computing platforms, including Jetson Xavier NX, Orin NX, and Orin Nano. It integrates Wi-Fi 5 (802.11ac) for high-speed wireless connectivity and Bluetooth 5.0 for seamless peripheral connections.
- ഡ്യുവൽ-ബാൻഡ് വൈ-ഫൈ: Supports 2.4GHz and 5GHz bands, offering speeds up to 300Mbps on 2.4GHz and 867Mbps on 5GHz.
- ബ്ലൂടൂത്ത് 5.0: Compatible with Bluetooth 2.1+EDR for a wide range of devices.
- ഇൻ്റർഫേസ്: Utilizes the NGFF (M.2 A/E Key) interface for easy integration.
- കോർ: Powered by the RTL8822CE-CG core.
- അനുയോജ്യത: Supports Linux, Windows 10/11, and specific Jetson platforms.
Image: The Waveshare AW-CB375NF wireless NIC, shown with its accompanying antennas and connection cables.
2. പാക്കേജ് ഉള്ളടക്കം
ഇൻസ്റ്റാളേഷനുമായി മുന്നോട്ടുപോകുന്നതിനുമുമ്പ് എല്ലാ ഇനങ്ങളും പാക്കേജിൽ ഉണ്ടെന്ന് ഉറപ്പാക്കുക.

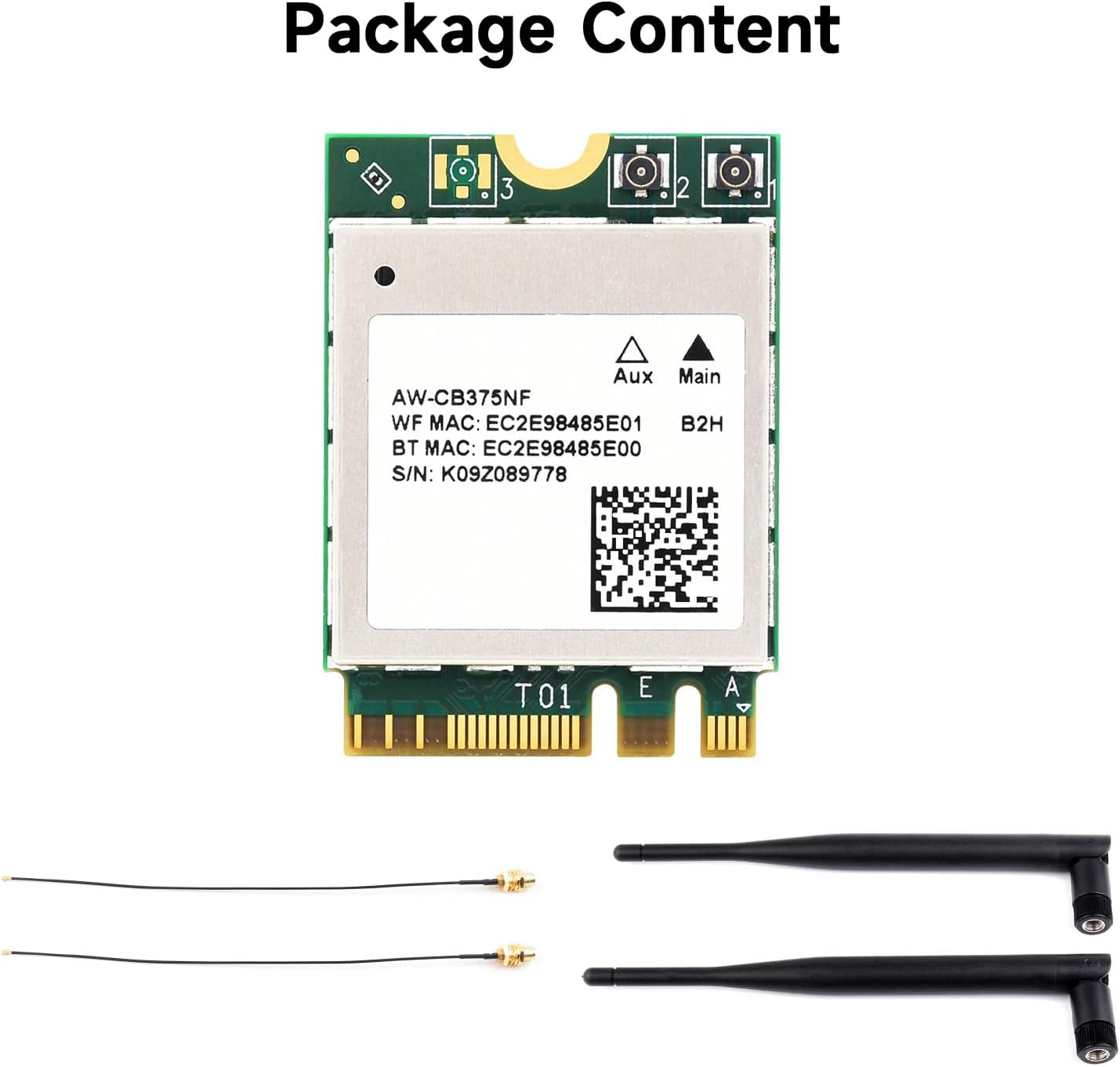

Image: Contents of the product package, typically including the wireless NIC, two antennas, and two IPEX to SMA adapter cables.
- 1x Waveshare AW-CB375NF Wireless NIC
- 2x ആന്റിനകൾ
- 2x IPEX to SMA Adapter Cables
Note: A mounting screw for the M.2 slot is typically not included and may need to be sourced separately.
3. സജ്ജീകരണവും ഇൻസ്റ്റാളേഷനും
Follow these steps to properly install the AW-CB375NF Wireless NIC into your compatible device.
3.1 Identify the M.2 A/E Key Interface
Locate the M.2 A/E Key slot on your motherboard or development board. This slot is specifically designed for Wi-Fi and Bluetooth modules.
Image: Diagram illustrating the NGFF (M.2 A/E Key) interface, screw hole, and I-PEX MHF4 antenna connectors on the AW-CB375NF card.
3.2 NIC Installation
- Carefully align the notch on the AW-CB375NF NIC with the key in the M.2 A/E Key slot.
- Insert the NIC into the slot at approximately a 45-degree angle.
- Gently push the NIC down until it lies flat against the motherboard.
- Secure the NIC with a small screw (not included) into the designated screw hole on the motherboard.
3.3 ആന്റിന കണക്ഷൻ
Connect the provided IPEX to SMA adapter cables to the I-PEX MHF4 connectors on the NIC. Ensure a secure connection.
Image: Illustration showing how to connect the antennas to the IPEX connectors on the wireless NIC via IPEX to SMA adapters.
- Attach one end of each IPEX to SMA adapter cable to the small circular connectors (I-PEX MHF4) on the AW-CB375NF card. These are typically labeled "Aux" and "Main".
- Connect the other end of the adapter cables (SMA connectors) to the base of the external antennas.
- Position the antennas for optimal signal reception. If your device has designated antenna ports, route the cables accordingly.
3.4 ഡ്രൈവർ ഇൻസ്റ്റലേഷൻ
The AW-CB375NF typically uses the Realtek RTL8822CE chipset. For most modern Linux distributions and Windows 10/11, drivers may be automatically detected and installed. If not, manual driver installation may be required.
- വിൻഡോസ്: Check Device Manager for unrecognized devices. Drivers can often be found on the Waveshare website or Realtek's official support page.
- Linux: Ensure your kernel is up-to-date. Many distributions include the necessary drivers. If issues persist, consult online forums or documentation specific to your Linux distribution and the RTL8822CE chipset.
4. പ്രവർത്തന നിർദ്ദേശങ്ങൾ
Once installed and drivers are recognized, the AW-CB375NF will enable Wi-Fi and Bluetooth functionalities on your system.
4.1 വൈ-ഫൈ കണക്റ്റിവിറ്റി
ഒരു Wi-Fi നെറ്റ്വർക്കിലേക്ക് കണക്റ്റുചെയ്യാൻ:
- Access your operating system's network settings.
- Enable Wi-Fi if it is not already active.
- ലഭ്യമായ നെറ്റ്വർക്കുകളുടെ പട്ടികയിൽ നിന്ന് നിങ്ങൾക്ക് ആവശ്യമുള്ള വൈഫൈ നെറ്റ്വർക്ക് തിരഞ്ഞെടുക്കുക.
- ആവശ്യപ്പെടുകയാണെങ്കിൽ നെറ്റ്വർക്ക് പാസ്വേഡ് നൽകുക.
- Confirm connection. The NIC supports both 2.4GHz and 5GHz bands for optimal performance.
Image: Visual representation of the RTL8822CE-CG core and the dual-band Wi-Fi capability (2.4G/5G) of the AW-CB375NF.
4.2 ബ്ലൂടൂത്ത് കണക്റ്റിവിറ്റി
ബ്ലൂടൂത്ത് ഉപകരണം ജോടിയാക്കാൻ:
- Go to your operating system's Bluetooth settings.
- ബ്ലൂടൂത്ത് പ്രവർത്തനക്ഷമമാക്കിയിട്ടുണ്ടെന്ന് ഉറപ്പാക്കുക.
- നിങ്ങളുടെ ബ്ലൂടൂത്ത് ഉപകരണം ജോടിയാക്കൽ മോഡിൽ ഇടുക.
- Select the device from the list of available Bluetooth devices on your system.
- Follow any on-screen prompts to complete the pairing process (e.g., entering a PIN).

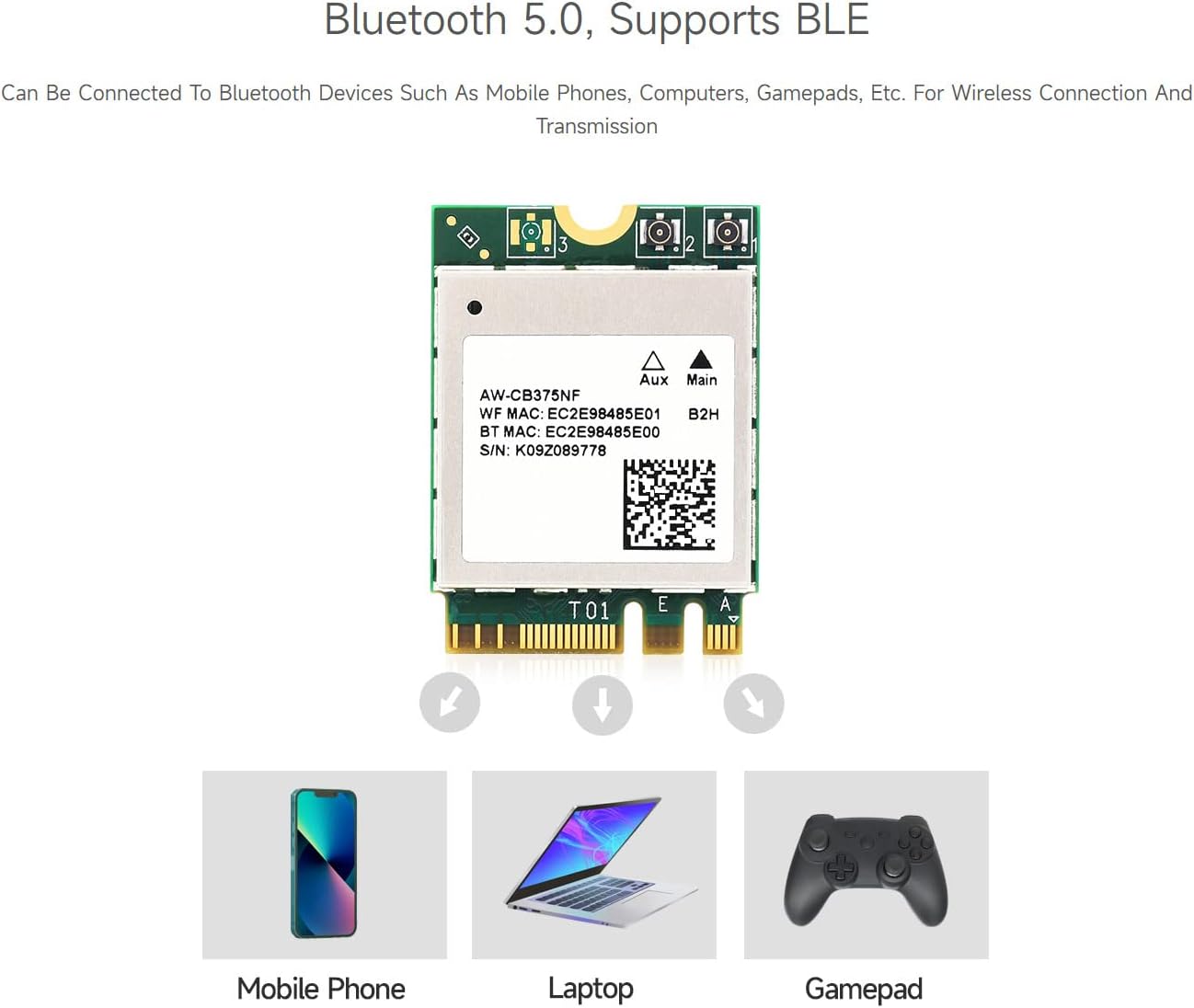

Image: Depiction of the AW-CB375NF's Bluetooth 5.0 capabilities, showing connectivity with mobile phones, laptops, and gamepads.
5. പരിപാലനം
The Waveshare AW-CB375NF Wireless NIC is designed for reliable operation with minimal maintenance. Adhering to the following guidelines can help ensure its longevity:
- വൃത്തിയായി സൂക്ഷിക്കു: Ensure the area around the NIC within your device is free from dust and debris to prevent overheating and maintain optimal performance.
- ശരിയായ വെൻ്റിലേഷൻ: Ensure your system has adequate airflow to prevent excessive heat buildup, which can affect the performance and lifespan of internal components.
- ശാരീരിക നാശം ഒഴിവാക്കുക: Handle the NIC with care during installation. Once installed, avoid any physical impacts or excessive vibrations to the system that could dislodge or damage the card or its connections.
- സോഫ്റ്റ്വെയർ അപ്ഡേറ്റുകൾ: Regularly update your operating system and drivers to benefit from performance improvements, bug fixes, and security enhancements.
6. പ്രശ്നപരിഹാരം
If you encounter issues with your AW-CB375NF Wireless NIC, consider the following troubleshooting steps:
6.1 No Wi-Fi or Bluetooth Functionality
- ഇൻസ്റ്റാളേഷൻ പരിശോധിക്കുക: Verify that the NIC is securely seated in the M.2 A/E Key slot and that the mounting screw is in place.
- ആന്റിന കണക്ഷൻ: Ensure the IPEX to SMA adapter cables are firmly connected to both the NIC and the external antennas. Loose connections can severely impact signal.
- Driver Status: Check your operating system's Device Manager (Windows) or equivalent system information (Linux) to confirm that the device is recognized and drivers are installed correctly without errors. Reinstall drivers if necessary.
- ബയോസ്/യുഇഎഫ്ഐ സജ്ജീകരണങ്ങൾ: Some motherboards may have options to enable/disable M.2 slots or integrated wireless modules in the BIOS/UEFI settings. Ensure these are enabled.
6.2 Slow Wi-Fi Speeds or Intermittent Connection
- സിഗ്നൽ ശക്തി: Check the Wi-Fi signal strength. Weak signals can lead to slow speeds. Try repositioning antennas or moving closer to the access point.
- ഇടപെടൽ: Other electronic devices (cordless phones, microwaves, other Wi-Fi networks) can cause interference. Try changing your Wi-Fi channel on your router.
- ബാൻഡ് തിരഞ്ഞെടുക്കൽ: Ensure your device is connecting to the 5GHz band for higher speeds if your router supports it and you are within range.
- ഡ്രൈവർ അപ്ഡേറ്റ്: Ensure you have the latest drivers installed for the RTL8822CE chipset.
6.3 ബ്ലൂടൂത്ത് ജോടിയാക്കൽ പ്രശ്നങ്ങൾ
- Device Pairing Mode: Confirm that the Bluetooth device you are trying to pair is in discoverable/pairing mode.
- ദൂരം: Ensure the Bluetooth device is within range of your system.
- ഇടപെടൽ: മറ്റ് വയർലെസ് ഉപകരണങ്ങളിൽ നിന്നുള്ള ഇടപെടൽ കുറയ്ക്കുക.
- Restart Bluetooth Service: Try disabling and re-enabling Bluetooth in your operating system settings, or restart your computer.
7 സ്പെസിഫിക്കേഷനുകൾ
| ഫീച്ചർ | വിശദാംശങ്ങൾ |
|---|---|
| മോഡൽ നമ്പർ | Wireless-AW-CB375NF |
| വയർലെസ് സ്റ്റാൻഡേർഡ് | IEEE 802.11ac/a/b/g/n (Wi-Fi 5) |
| ബ്ലൂടൂത്ത് സ്റ്റാൻഡേർഡ് | Bluetooth 5.0 (compatible with 2.1+EDR) |
| Wi-Fi Data Rate (2.4GHz) | 300 Mbps വരെ |
| Wi-Fi Data Rate (5GHz) | 867 Mbps വരെ |
| ഇൻ്റർഫേസ് | NGFF (M.2 A/E Key) |
| ചിപ്സെറ്റ് | RTL8822CE-CG |
| ആൻ്റിന കണക്ടറുകൾ | I-PEX MHF4 |
| അനുയോജ്യമായ ഓപ്പറേറ്റിംഗ് സിസ്റ്റങ്ങൾ | Linux, Windows 10/11 |
| അനുയോജ്യമായ ഉപകരണങ്ങൾ | Jetson Xavier NX, Jetson Orin NX, Jetson Orin Nano |
| അളവുകൾ | 22.00mm x 33.00mm x 2.40mm (ഏകദേശം) |
| ഇനത്തിൻ്റെ ഭാരം | 1.6 ഔൺസ് (ഏകദേശം) |
ചിത്രം: വിവിധം views of the AW-CB375NF wireless NIC, including detailed outline dimensions in millimeters.
8. വാറൻ്റിയും പിന്തുണയും
For specific warranty information regarding your Waveshare AW-CB375NF Wireless NIC, please refer to the documentation provided at the time of purchase or visit the official Waveshare website. Warranty terms may vary based on region and retailer.
For technical support, driver downloads, or further assistance, please visit the Waveshare official support page or contact their customer service directly. Keep your product model number (Wireless-AW-CB375NF) and purchase details readily available when seeking support.
ഔദ്യോഗിക വേവ്ഷെയർ Webസൈറ്റ്: www.waveshare.com
