Polti Thermostat Thermofusible Instruction Manual

ആമുഖം

This manual provides essential information for the Polti original replacement dual thermostat and thermofuse, part number 161791.322A01. This component is designed for use in various Polti Vaporetto and Vaporella steam generator and iron models. It functions as a critical safety and temperature regulation device, ensuring the safe and efficient operation of your appliance.

ഉൽപ്പന്ന ഐഡൻ്റിഫിക്കേഷൻ

The Polti dual thermostat thermofusible is identified by part number 161791.322A01. This part combines both a thermostat and a thermofuse into a single unit.

To ensure compatibility, locate the identification plate on your Polti appliance, which is generally found on the underside. Verify your appliance's specific model number against the list of compatible models provided in this manual.

ചിത്രം: പിൻഭാഗം view of the Polti dual thermostat thermofusible, displaying the part number 161791.322A01 and temperature ratings.

സാങ്കേതിക സവിശേഷതകൾ

• ഭാഗം നമ്പർ: 161791.322A01
• Thermostat Activation Temperature: 180°C
• Thermofusible Activation Temperature: 260°C
• ഘടക തരം: Dual Thermostat and Thermofuse
• ഏകദേശ ഭാരം: 10 ഗ്രാം
• ഏകദേശ അളവുകൾ: 4.5 x 3.5 x 1.5 സെ.മീ

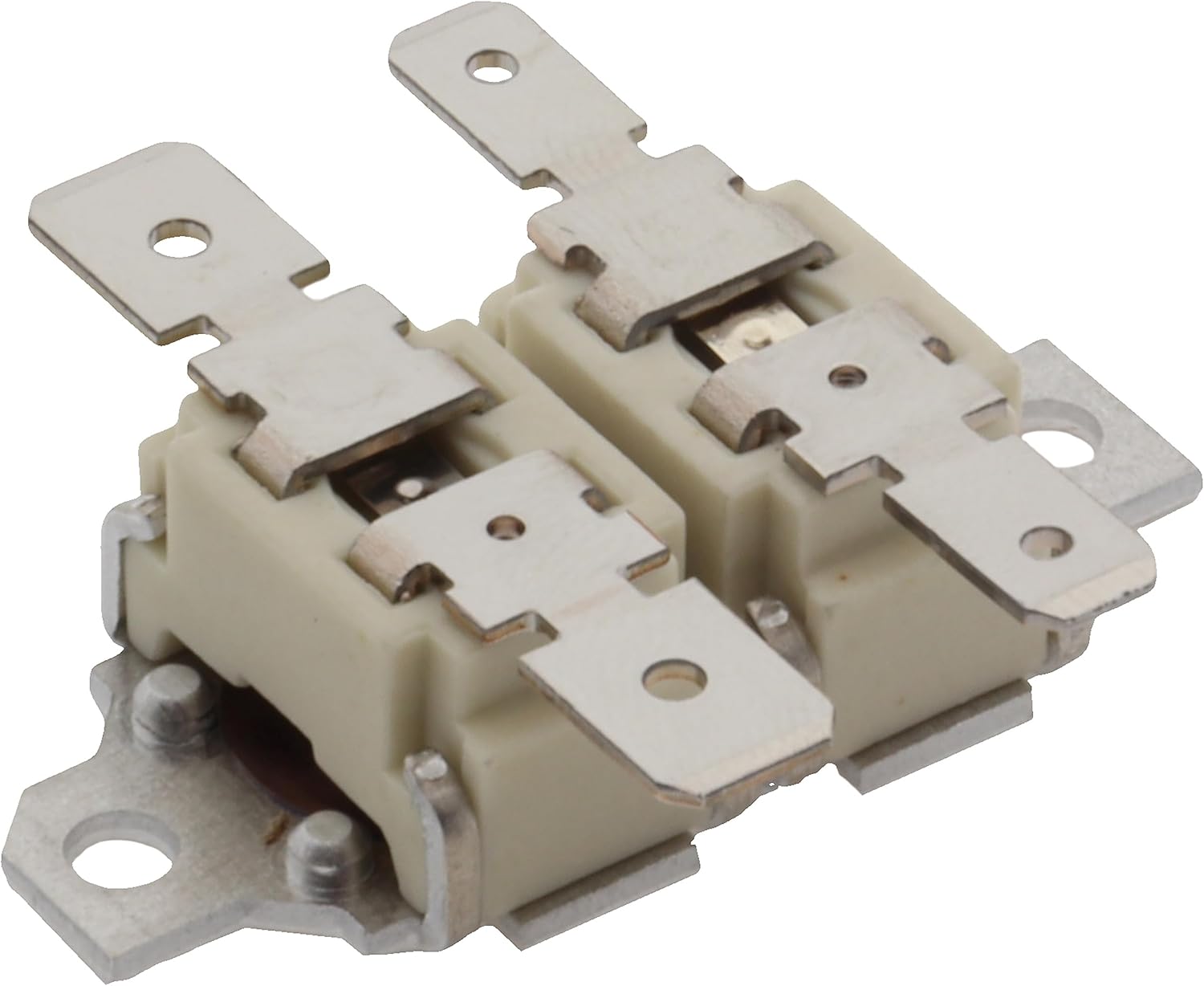

ചിത്രം: മുൻഭാഗം view of the Polti dual thermostat thermofusible, illustrating its compact design with two beige rectangular units and multiple metal terminals.

Compatible Polti Appliance Models

This replacement part is compatible with the following Polti Vaporetto and Vaporella models. Please verify your appliance's model number before purchase and installation.

• PBEU0079 UNICO MCV20 ALLERGY MULTIFLOOR
• PLeu0057 Vaporella Forever 1000
• PLeu0068 Vaporella Forever 900
• PLeu0075 Vaporella Forever 905
• PLEU0096 Vaporella Forever 900 Inox
• PLeu0107 Vaporella Forever 950
• PLeu0117 Vaporella Power System
• PLEU0154.01 Vaporella Forever 700
• PLEU0158.01 Vaporella Forever 800
• PLEU0224 LA Vaporella XB50R
• PLEU0225 LA Vaporella XB60C
• PLEU0226 LA Vaporella XM80R
• PLEU0227 LA Vaporella XM80C
• PLEU0228 LA Vaporella XT100C
• PLEU0229 LA Vaporella XM82C
• PLeu0232 Vaporella Next VN18.10
• PLEU0233 Vaporella Next VN18.15
• PLEU0236 Vaporella Next VN18.30
• PLEU0237 Vaporella Next VN18.35
• PLEU0247 LA Vaporella XT90C
• PLEU0248 LA Vaporella XT110C
• PLEU0262 LA Vaporella XM84C
• PLEU0263 LA Vaporella XT120C
• PVEU0081 LECOASPIRA FAV20
• PVEU0082 LECOASPIRA FAV30

ചിത്രം: വശം view of the Polti dual thermostat thermofusible, highlighting the metal mounting tabs and electrical terminals for connection.

ഇൻസ്റ്റലേഷൻ മാർഗ്ഗനിർദ്ദേശങ്ങൾ

This component is an electrical safety device. Installation should only be performed by a qualified technician or an individual with appropriate electrical repair experience. Incorrect installation can lead to appliance malfunction, electrical hazards, or personal injury.

General Steps (Consult your appliance's service manual for detailed instructions):

1. സുരക്ഷ ആദ്യം: Always disconnect the appliance from the main power supply before attempting any repair or installation. Ensure the appliance is cool.
2. പ്രവേശനം: Carefully open the appliance casing to access the existing thermostat/thermofuse assembly. Refer to your appliance's specific service manual for instructions on how to safely open the casing.
3. നീക്കം ചെയ്യൽ: Note the exact orientation and wiring connections of the old component. Take photographs if necessary. Disconnect all wires and carefully unmount the old part.
4. മാറ്റിസ്ഥാപിക്കൽ: Mount the new Polti dual thermostat thermofusible (161791.322A01) in the identical position and connect the wires securely, ensuring correct polarity and connections as noted during removal.
5. പുനഃസംയോജനം: Close the appliance casing, ensuring all screws are tightened and no wires are pinched or damaged during the process.
6. പരിശോധന: After reassembly, perform a functional test of the appliance according to the manufacturer's guidelines to confirm proper operation and safety.

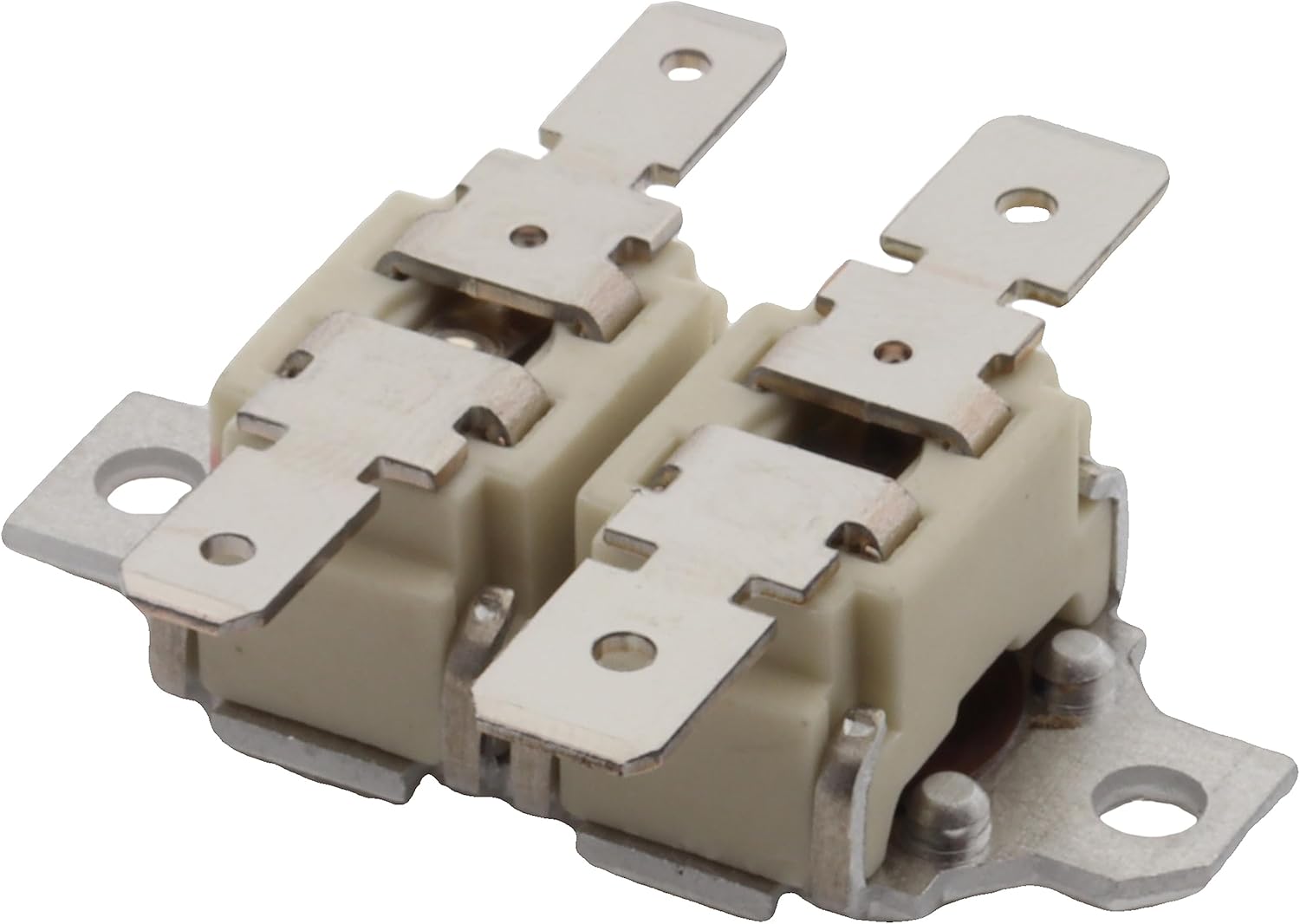

ചിത്രം: മറ്റൊരു വശം view of the Polti dual thermostat thermofusible, showcasing its robust construction and multiple connection points.

ഘടകം പ്രവർത്തനം

The dual thermostat thermofusible serves two primary functions within your Polti steam appliance:

• Thermostat (180°C): This component actively regulates the operating temperature of the appliance, ensuring it reaches and maintains the optimal temperature for steam generation. It prevents the appliance from exceeding safe operating temperatures during normal use.
• Thermofuse (260°C): This is a non-resettable, single-use safety device. If the primary thermostat fails and the temperature continues to rise beyond safe limits (260°C), the thermofuse will permanently break the electrical circuit. This action prevents further overheating, potential damage to the appliance, and reduces fire hazards. Once activated, the thermofuse must be replaced.

This integrated dual system provides a critical layer of safety and temperature control for your Polti appliance.

മെയിൻ്റനൻസ്

The Polti dual thermostat thermofusible is a sealed, non-serviceable component and does not require routine user maintenance. Its function is to operate reliably within the appliance's electrical system as a safety and control device.

If the appliance exhibits signs of inconsistent heating, failure to heat, or repeated tripping of safety mechanisms, it may indicate a fault with the thermostat or thermofuse. In such cases, professional inspection and replacement of the component are recommended.

ട്രബിൾഷൂട്ടിംഗ്

As a safety and temperature control component, the thermostat/thermofuse itself is not typically 'troubleshot' by the end-user. If your Polti appliance is experiencing issues related to heating or power, consider the following:

• No Heat/No Power: If the appliance does not heat up or receive power, and other electrical components are confirmed functional, the thermofuse may have activated due to an over-temperature event. This requires replacement of the component.
• പൊരുത്തമില്ലാത്ത ചൂടാക്കൽ: If the appliance heats intermittently or fails to maintain a consistent temperature, the thermostat portion of the component may be faulty.
• അമിത ചൂടാക്കൽ: If the appliance becomes excessively hot or emits burning smells, immediately disconnect it from power. This could indicate a thermostat failure, and the thermofuse is the last line of defense.

For any of these issues, it is strongly advised to consult a qualified service technician. Do not attempt to bypass or repair a faulty thermostat or thermofuse, as this can create significant safety hazards.

ചിത്രം: മുകളിൽ നിന്ന് താഴേക്ക് view of the Polti dual thermostat thermofusible, illustrating the compact arrangement of the two units and their various terminals.

പ്രധാനപ്പെട്ട സുരക്ഷാ വിവരങ്ങൾ

• വൈദ്യുത അപകടം: Always disconnect the appliance from the main power supply and allow it to cool completely before handling any internal components.
• പ്രൊഫഷണൽ ഇൻസ്റ്റാളേഷൻ: Due to the electrical nature and safety-critical function of this part, installation should be performed by a qualified professional or an experienced individual.
• യഥാർത്ഥ ഭാഗങ്ങൾ: Use only genuine Polti replacement parts to ensure proper function, compatibility, and safety.
• Do Not Bypass: Never attempt to bypass, modify, or repair a faulty thermostat or thermofuse. These are essential safety devices designed to prevent serious hazards.
• നീക്കം ചെയ്യൽ: Dispose of old electrical components responsibly according to local environmental regulations.

Failure to follow these safety guidelines can result in electric shock, fire, appliance damage, or other serious injury.

പിന്തുണയും വാറൻ്റിയും

This product is an original Polti replacement part. For technical support, service, or warranty inquiries regarding your Polti appliance, please refer to the official Polti website or contact Polti customer service directly.

Information regarding the availability of spare parts for this specific component is currently unavailable from the manufacturer.

For further assistance with your purchase, you may also contact the seller, PG Service, through the Amazon platform.
