1. ആമുഖം
Thank you for choosing the AlphaCool Portable Neck Fan. This device is designed to provide personal cooling relief, featuring a bladeless design, long battery life, and multiple speed settings for enhanced comfort. Please read this manual thoroughly before use to ensure proper operation and maintenance.
2 സുരക്ഷാ വിവരങ്ങൾ
- ഉപകരണം വെള്ളത്തിലോ മറ്റ് ദ്രാവകങ്ങളിലോ മുക്കരുത്.
- കുട്ടികൾക്കും വളർത്തുമൃഗങ്ങൾക്കും ലഭ്യമാകാതെ സൂക്ഷിക്കുക.
- Do not attempt to disassemble, repair, or modify the device. Contact qualified service personnel if needed.
- ഉപകരണത്തെ തീവ്രമായ താപനിലയിലോ നേരിട്ടുള്ള സൂര്യപ്രകാശത്തിലോ ദീർഘനേരം തുറന്നുകാട്ടുന്നത് ഒഴിവാക്കുക.
- നൽകിയിരിക്കുന്ന ചാർജിംഗ് കേബിളോ സാക്ഷ്യപ്പെടുത്തിയ തത്തുല്യമായതോ മാത്രം ഉപയോഗിക്കുക.
- ചാർജിംഗ് സമയത്ത് ശരിയായ വായുസഞ്ചാരം ഉറപ്പാക്കുക.
3. പാക്കേജ് ഉള്ളടക്കം
- AlphaCool Portable Neck Fan
- യുഎസ്ബി ചാർജിംഗ് കേബിൾ
- ഉപയോക്തൃ മാനുവൽ
4. ഉൽപ്പന്നം കഴിഞ്ഞുview
The AlphaCool Portable Neck Fan is designed for comfortable, hands-free cooling. It features a flexible neckband that adjusts to fit, with air outlets strategically placed to provide 360-degree airflow. The device is bladeless for safety and quiet operation.

Figure 1: AlphaCool Portable Neck Fan, showcasinഅതിന്റെ എർഗണോമിക് ഡിസൈൻ.
പ്രധാന ഘടകങ്ങൾ:
- എയർ ഔട്ട്ലെറ്റുകൾ: Located along the inner circumference for 360-degree airflow.
- Power/Speed Button: Controls power and fan speed settings.
- ചാർജിംഗ് പോർട്ട്: USB-C port for recharging the internal battery.
- ഇൻഡിക്കേറ്റർ ലൈറ്റ്: Displays charging status and power level.
- Flexible Neckband: Allows for comfortable and secure placement around the neck.
5. സജ്ജീകരണം
Before first use, it is recommended to fully charge your AlphaCool Portable Neck Fan.
ഉപകരണം ചാർജ് ചെയ്യുന്നു:
- Locate the USB charging port on the device.
- നൽകിയിരിക്കുന്ന USB ചാർജിംഗ് കേബിൾ ഫാനിന്റെ ചാർജിംഗ് പോർട്ടുമായി ബന്ധിപ്പിക്കുക.
- Plug the other end of the USB cable into a compatible USB power source (e.g., wall adapter, computer USB port, power bank).
- The indicator light will illuminate during charging. Once fully charged, the light may change color or turn off (refer to specific indicator behavior in the Troubleshooting section if unsure).

Figure 2: Illustration of the internal 5000mAh rechargeable battery.
6. പ്രവർത്തന നിർദ്ദേശങ്ങൾ
പവർ ഓൺ/ഓഫ്, സ്പീഡ് അഡ്ജസ്റ്റ്മെൻ്റ്:
- പവർ ഓണാക്കാൻ: Press the Power/Speed button once. The fan will start at the lowest speed setting.
- വേഗത ക്രമീകരിക്കാൻ: Press the Power/Speed button repeatedly to cycle through the 3 available speed settings (Low → Medium → High).
- പവർ ഓഫ് ചെയ്യാൻ: After the highest speed setting, pressing the Power/Speed button one more time will turn the fan off. Alternatively, press and hold the Power/Speed button for approximately 2-3 seconds to turn off the device from any speed setting.

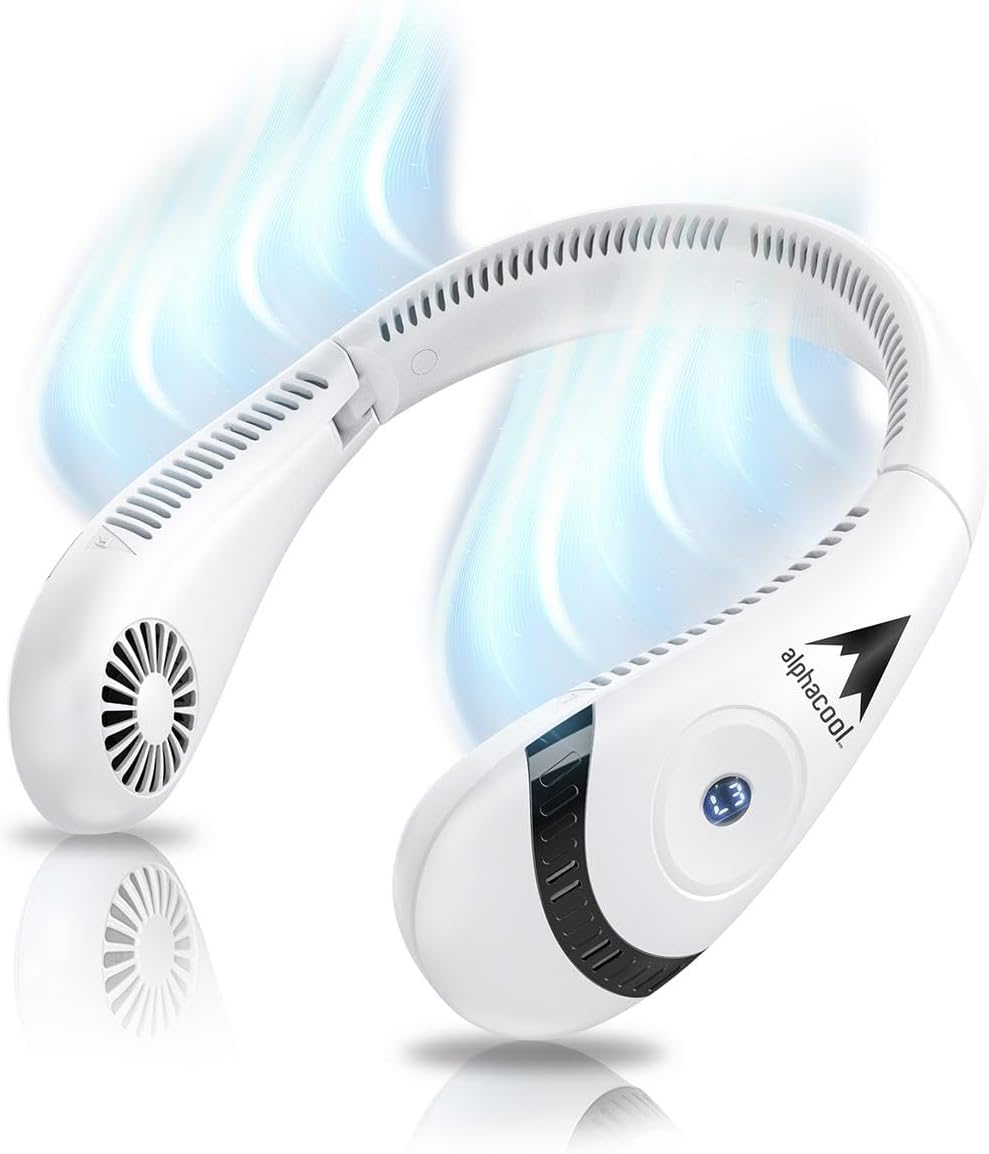

Figure 3: Visual representation of airflow from the neck fan.
സംഭരണത്തിനായി മടക്കിക്കളയുന്നു:
The AlphaCool Portable Neck Fan is designed to be foldable for easy storage and transport. Gently fold the two ends of the fan inwards until they meet. This compact design makes it convenient to carry in a bag or backpack.

Figure 4: The neck fan in its folded position for storage.
7. പരിപാലനം
വൃത്തിയാക്കൽ:
- വൃത്തിയാക്കുന്നതിന് മുമ്പ് ഫാൻ ഓഫാക്കിയിട്ടുണ്ടെന്നും അൺപ്ലഗ് ചെയ്തിട്ടുണ്ടെന്നും ഉറപ്പാക്കുക.
- ഫാനിന്റെ പുറംഭാഗം മൃദുവായതും ഉണങ്ങിയതുമായ തുണി ഉപയോഗിച്ച് തുടയ്ക്കുക.
- അബ്രാസീവ് ക്ലീനറുകൾ, ലായകങ്ങൾ, കഠിനമായ രാസവസ്തുക്കൾ എന്നിവ ഉപയോഗിക്കരുത്.
- Do not rinse the fan directly under water.
സംഭരണം:
- Store the fan in a cool, dry place away from direct sunlight.
- If storing for an extended period, charge the battery to approximately 50% every 3 months to prolong battery life.
8. പ്രശ്നപരിഹാരം
| പ്രശ്നം | സാധ്യമായ കാരണം | പരിഹാരം |
|---|---|---|
| ഫാൻ ഓണാകുന്നില്ല. | ബാറ്ററി തീർന്നു. | Charge the fan fully using the provided USB cable. |
| ഫാൻ ചാർജ് ചെയ്യുന്നില്ല. | Charging cable is faulty or not properly connected. Power source issue. | Ensure the USB cable is securely connected. Try a different USB port or power adapter. |
| കുറഞ്ഞ വായുപ്രവാഹം. | Fan is on a low speed setting. Air outlets are obstructed. | Increase the fan speed. Check and clear any obstructions from the air outlets. |
| പ്രവർത്തന സമയത്ത് അസാധാരണമായ ശബ്ദം. | ആന്തരിക തടസ്സം അല്ലെങ്കിൽ കേടുപാടുകൾ. | Turn off the fan immediately. Do not attempt to open or repair. Contact customer support. |
9 സ്പെസിഫിക്കേഷനുകൾ
| ഫീച്ചർ | വിശദാംശങ്ങൾ |
|---|---|
| ബ്രാൻഡ് | ആൽഫാകൂൾ |
| മോഡലിൻ്റെ പേര് | AC-BNF-LI-W |
| നിറം | കറുപ്പ് |
| പവർ ഉറവിടം | ബാറ്ററി പവർ |
| ബാറ്ററി ശേഷി | 5000mAh റീചാർജ് ചെയ്യാവുന്ന ബിൽറ്റ്-ഇൻ ബാറ്ററി |
| ബാറ്ററി ലൈഫ് | 12 മണിക്കൂർ വരെ |
| ഫാൻ ഡിസൈൻ | Wearable Fan (Bladeless) |
| പ്രത്യേക സവിശേഷതകൾ | Bladeless, Foldable, Lightweight, Portable |
| എയർ ഫ്ലോ | 360° with 80 air outlets |
| ശബ്ദ നില | കുറഞ്ഞ ശബ്ദം |
| നിയന്ത്രണ രീതി | സ്പർശിക്കുക |
| പവർ ലെവലുകളുടെ എണ്ണം | 3 |
| ഇനത്തിൻ്റെ ഭാരം | 12.6 ഔൺസ് |
| ഉൽപ്പന്ന അളവുകൾ | 8.15 x 4.88 x 2.72 ഇഞ്ച് |
