1. ആമുഖം
Thank you for choosing the VINGLI FC0W2RB 2-Drawer Mobile File Cabinet. This manual provides essential information for the safe assembly, operation, and maintenance of your new filing cabinet. Please read these instructions carefully before use and retain them for future reference.
2 പ്രധാനപ്പെട്ട സുരക്ഷാ വിവരങ്ങൾ
മുന്നറിയിപ്പ്:
- Use caution when opening and closing drawers to avoid pinch points.
- Always secure confidential materials using the provided locks and keys.
- Do not overload drawers beyond their weight capacity.
3. ഉൽപ്പന്ന സവിശേഷതകൾ
- Ample File ഡ്രോയറുകൾ: Two drawers customized for letter/A4 size folders with tabs. Reinforced stainless steel hanging rods prevent bending.
- സുരക്ഷിത ലോക്കിംഗ് സംവിധാനം: Features quality locks and two keys for confidential materials.
- Stable and Movable: Equipped with five wheels, including a central anti-tipping wheel for enhanced stability. All four main wheels are lockable for flexible movement and secure positioning.
- നീണ്ടുനിൽക്കുന്ന നിർമ്മാണം: Made of P2 Grade MDF, offering scratch-resistant and water-resistant properties.
- സുഗമമായ പ്രവർത്തനം: Drawers feature full-extension ball bearing slides for easy access to contents.
- ബഹുമുഖ ഉപയോഗം: Can be used as an under-desk filing cabinet or a printer stand.
- ഉപയോക്തൃ-സൗഹൃദ ഡിസൈൻ: Round, stainless steel wire drawing material handles prevent accidental scratches.
4 സ്പെസിഫിക്കേഷനുകൾ
| ഫീച്ചർ | വിശദാംശങ്ങൾ |
|---|---|
| ബ്രാൻഡ് | വിംഗ്ലി |
| മോഡൽ നമ്പർ | FC0W2RB |
| നിറം | ഇരുണ്ട തവിട്ട് |
| ഉൽപ്പന്ന അളവുകൾ | 15.7"D x 15.7"W x 27.2"H (casters included) |
| ഇനത്തിൻ്റെ ഭാരം | 44 പൗണ്ട് |
| Weight Limit (per drawer) | 55 പൗണ്ട് |
| മെറ്റീരിയൽ | Engineered Wood (P2 Grade MDF) |
| ഡ്രോയറുകളുടെ എണ്ണം | 2 |
| പ്രത്യേക സവിശേഷതകൾ | Lockable, Wheeled, Printer Stand, Scratch & Water Resistant |
| അസംബ്ലി ആവശ്യമാണ് | അതെ |
Figure 1: Product Dimensions and Drawer Capacity
5. പാക്കേജ് ഉള്ളടക്കം
Before beginning assembly, ensure all parts are present and undamaged. Refer to the detailed instruction manual included in your package for a complete list of components.
- File Cabinet Pieces (P2 Grade MDF panels)
- Hardware (screws, dowels, cam locks, drawer slides, handles, casters, locks, keys)
- വിശദമായ നിർദ്ദേശ മാനുവൽ
6. സജ്ജീകരണവും അസംബ്ലിയും
Assembly is designed to be straightforward with labeled parts and clear instructions. It is recommended to have a screwdriver and potentially a drill for pre-drilling if needed, as some users have found this helpful. For optimal results, follow the step-by-step guide provided in your physical manual.
Assembly Tips & Visual Guides:
വീഡിയോ 1: Bottom-mounted Drawer Slide Installation - This video demonstrates the correct procedure for installing the bottom-mounted drawer slides, ensuring smooth drawer operation. Refer to your manual for specific screw hole locations.
വീഡിയോ 2: Three-in-One Connector & Wooden Dowel Installation - A visual guide on how to properly install three-in-one connectors and wooden dowels, crucial for structural integrity during assembly.
വീഡിയോ 3: Recommendations for Assembly - This video offers general tips and recommendations for assembling the VINGLI 2-drawer filing cabinet, highlighting common steps and considerations.
വീഡിയോ 4: Review of the VINGLI 2 Drawer Rolling File കാബിനറ്റ് - An honest review that includes insights into the assembly process and overall functionality of the VINGLI 2-drawer cabinet.
വീഡിയോ 5: Review of the 2 Drawer Filing Cabinet with Locks - This video provides a detailed look at the 2-drawer filing cabinet, including its locking features and assembly experience.
7. പ്രവർത്തന നിർദ്ദേശങ്ങൾ
7.1 ഡ്രോയറുകൾ ഉപയോഗിക്കുന്നു
The drawers are designed for smooth, full-extension operation, allowing complete access to your files. Gently pull the handles to open and push to close. Avoid slamming the drawers to ensure longevity of the slides.
Figure 2: Full-Extension Drawers for Easy Access

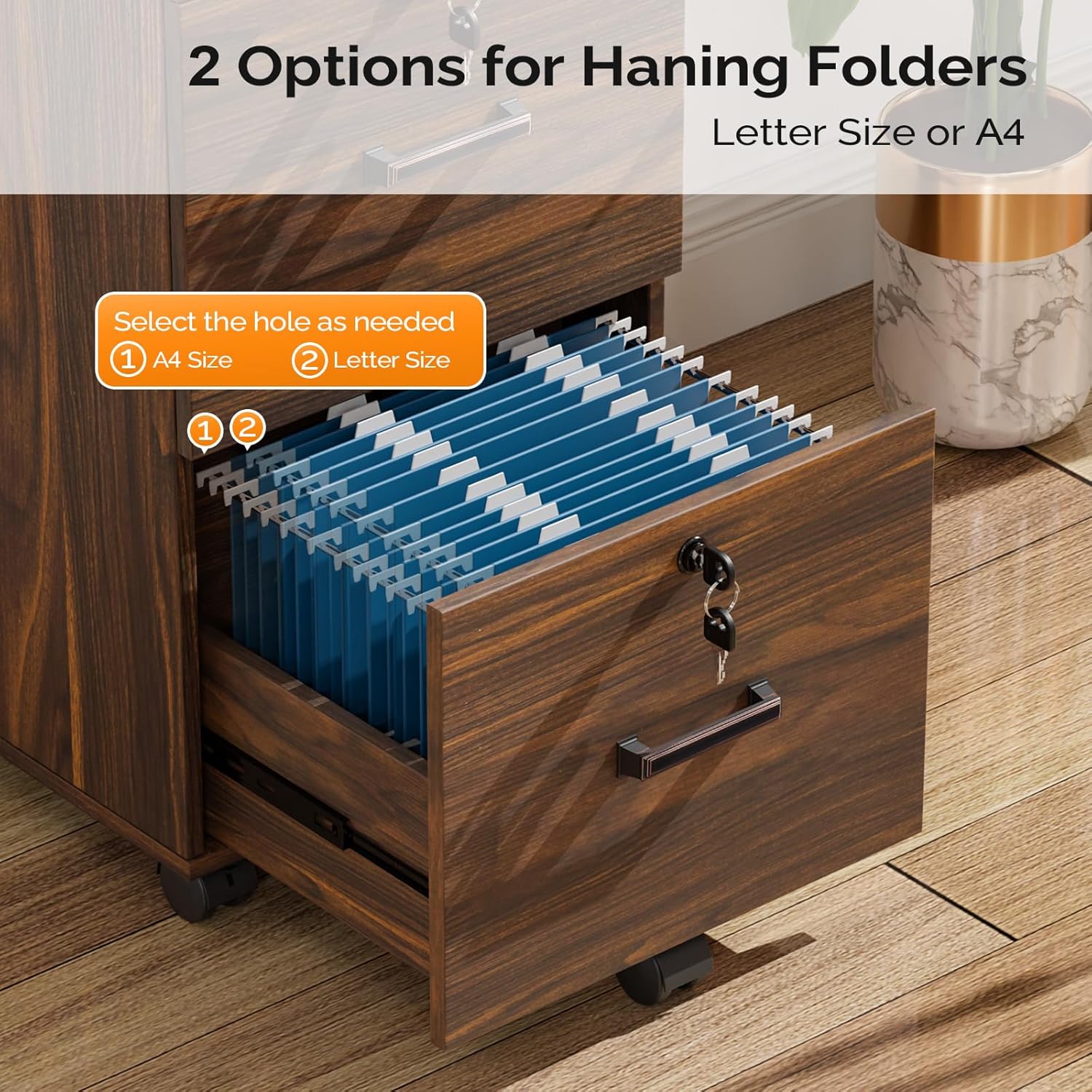

7.2 File Organization (Letter/A4 Size)
The drawers are equipped with hanging rods that can be adjusted to accommodate both Letter and A4 size hanging file folders. Refer to the markings or slots within the drawer to set the appropriate width for your documents.
Figure 3: Adjustable Hanging File ഓപ്ഷനുകൾ
7.3 ലോക്കിംഗും അൺലോക്കിംഗും
Use the provided keys to lock and unlock the drawers. Insert the key into the lock on the drawer face and turn to secure or release the mechanism. Ensure the drawers are fully closed before locking.
Figure 4: Upgraded Quality Lock for Security
7.4 മന്ത്രിസഭാ നീക്കം
The cabinet features five wheels for mobility, including a central anti-tipping wheel for safety. The four main wheels are lockable. To move the cabinet, unlock the casters. To secure it in place, engage the locks on the casters by pressing down on the lever.
Figure 5: Lockable Casters and Anti-Tipping Design
8. പരിപാലനം
8.1 ശുചീകരണവും പരിചരണവും
The P2 Grade MDF material is scratch-resistant and water-resistant. To clean, wipe the surfaces with a soft, damp cloth. Avoid using harsh chemicals or abrasive cleaners, which may damage the finish. Promptly wipe up any spills to prevent water damage.
Figure 6: Durable and Easy-to-Maintain Surface
8.2 ഭാരം
Each drawer can hold up to 55 lbs. The top surface can support a home-use printer. Do not exceed these weight limits to prevent damage to the cabinet and ensure safe operation.
9. പ്രശ്നപരിഹാരം
- ഡ്രോയറുകൾ സുഗമമായി സ്ലൈഡുചെയ്യുന്നില്ല: Ensure the drawer slides are correctly installed and free of obstructions. Check that all screws are tightened appropriately.
- Cabinet unstable: Verify that all casters are properly installed and locked when the cabinet is stationary. Ensure the central anti-tipping wheel is making contact with the floor.
- Lock not working: Check that the key is fully inserted and turned correctly. Ensure no foreign objects are obstructing the lock mechanism.
If you encounter any issues not covered here, please refer to the detailed instruction manual or contact VINGLI customer service for assistance.
10. വാറൻ്റിയും പിന്തുണയും
VINGLI offers a lifetime quality warranty for this file cabinet. We are committed to providing professional customer service before and after your purchase. For any inquiries or support needs, please contact VINGLI-Direct customer service.
