ഗീക്ക്‌വേപ്പ് വെനാക്സ് എസ്3 ഇവിഒ വേപ്പ് പെൻ കിറ്റ് യൂസർ മാനുവൽ

1. ആമുഖം

The Geekvape Wenax S3 EVO Pod Kit is an advanced vaping device designed for ease of use and a satisfying experience. It features an upgraded Geekvape S Cartridge and enhanced LED indicators, offering precise control over airflow and output. This manual provides essential information for the safe and effective operation and maintenance of your device.

2 സുരക്ഷാ വിവരങ്ങൾ

This product is intended for use with nicotine-free e-liquids only. It does not contain nicotine, tobacco, or any related substances. Keep out of reach of children and pets.

• ഉപകരണത്തെ തീവ്രമായ താപനിലയിലോ, നേരിട്ടുള്ള സൂര്യപ്രകാശത്തിലോ, വെള്ളത്തിലോ തുറന്നുകാട്ടരുത്.
• ഉപകരണം ഡിസ്അസംബ്ലിംഗ് ചെയ്യുകയോ പരിഷ്കരിക്കുകയോ ചെയ്യരുത്.
• Use only the specified charging cable (Type-C) for charging.
• Dispose of the device and cartridges responsibly according to local regulations.
• If a puff lasts longer than 10 1 2 seconds, the red light will blink 3 times, and the device will stop working (Overtime Protection).
• In case of a short circuit, the red light will blink 8 times, and the device will stop working (Short-circuit Protection).

3. പാക്കേജ് ഉള്ളടക്കം

അൺബോക്സിംഗ് ചെയ്യുമ്പോൾ പാക്കേജ് ഉള്ളടക്കങ്ങൾ പരിശോധിക്കുക:

• 1x Geekvape WENAX S3 Evo Pod Kit 1100mAh Device
• 1x Geekvape S Cartridge (2ml) (0.81, Pre-installed)

4. ഉൽപ്പന്നം കഴിഞ്ഞുview

The Wenax S3 EVO features a compact design with intelligent indicators and versatile cartridge options.

ചിത്രം 4.1: മുൻഭാഗം view of the Geekvape Wenax S3 EVO Vape Pen Kit in black, showcasing its sleek design and LED indicators.

4.1 Cartridge Compatibility

The Wenax S3 EVO is compatible with the new S cartridge, which offers three different drip tip options for varied vaping experiences.

Figure 4.2: Illustration showing the compatibility of the S cartridge across different Wenax devices, including Wenax Stylus, Wenax S3 EVO, and Wenax S-C.

4.2 Upgraded Geekvape S Cartridge

The upgraded S Cartridge is fully compatible with Soft-touch Drip Tip, Filter Drip Tip, and M1 Plastic Drip Tip. It supports 0.81 (14-18W) and 1.21 (9-13W) coil resistances.

ചിത്രം 4.3: വിശദമായി view of the upgraded Geekvape S Cartridge, highlighting its compatibility with various drip tips and indicating the supported coil resistances.

4.3 Precise Airflow Adjustments

The device features a new airflow structure that allows for easier and more precise control of the airflow, contributing to a smoother flavor experience.

Figure 4.4: Visual representation of the airflow control mechanism on the Wenax S3 EVO, demonstrating how users can adjust it for optimal experience.

4.4 Upgraded Intelligent Indicator

The Wenax S3 EVO incorporates upgraded 3600 ring indicators, providing an intelligent and intuitive way to check the device status from any angle.

Figure 4.5: A close-up image of the device's base, showing the multi-color LED ring indicator that provides real-time status updates.

5. സജ്ജീകരണം

5.1 ഉപകരണം ചാർജ് ചെയ്യുന്നു

Before first use, fully charge the device. Connect the Type-C charging cable to the charging port located on the device and plug the other end into a suitable USB power source. The LED indicator will show charging status.

5.2 Installing the Cartridge

Insert the Geekvape S Cartridge firmly into the top of the device until it clicks into place. Ensure the cartridge is properly seated to prevent leaks and ensure proper connection.

6. ഓപ്പറേഷൻ

6.1 വാപ്പിംഗ്

The Wenax S3 EVO supports both auto-draw and button-activated vaping. Simply inhale from the drip tip or press the button while inhaling to activate the device.

6.2 3-Level Output Adjustments

Quickly press the button 3 times to switch between Low (Red), Med (Blue), and High (Green) output levels. This allows you to adjust the output for different airflow levels and enjoy various flavors.

Figure 6.1: Visual guide demonstrating how to cycle through the three output levels (Low, Medium, High) using the device's button, indicated by different LED colors.

6.3 ബൂസ്റ്റ് മോഡ്

Press the button to activate the maximum output for increased vapor production. This mode boosts the possibilities for flavor and vapor.

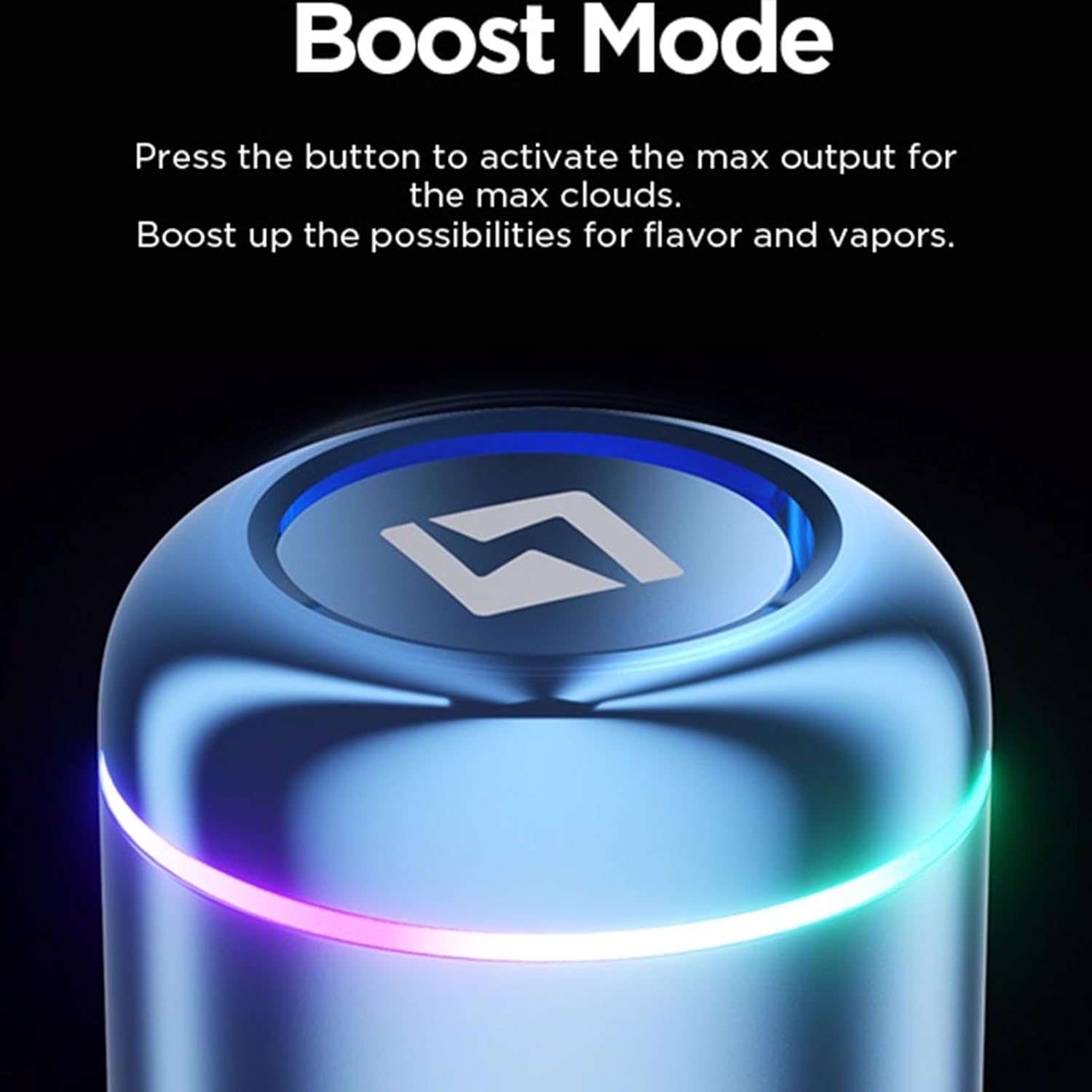

Figure 6.2: An image highlighting the button and its surrounding LED ring, illustrating the activation of Boost Mode for enhanced performance.

6.4 Battery Status Indications

The intelligent LED indicator provides clear battery status:

• വൈറ്റ് ലൈറ്റ്: 0-30% ബാറ്ററി ശേഷിക്കുന്നു
• നീല വെളിച്ചം: 31% -69% ബാറ്ററി ശേഷിക്കുന്നു
• ഗ്രീൻ ലൈറ്റ്: 70% -100% ബാറ്ററി ശേഷിക്കുന്നു

7. പരിപാലനം

7.1 വൃത്തിയാക്കൽ

Regularly clean the device, especially the cartridge connection area, with a dry cloth or cotton swab to prevent e-liquid buildup and ensure optimal performance.

7.2 കാട്രിഡ്ജ് മാറ്റിസ്ഥാപിക്കൽ

Replace the cartridge when you notice a burnt taste, reduced vapor production, or a change in flavor. Simply pull out the old cartridge and insert a new one.

8. പ്രശ്‌നപരിഹാരം

• Device not firing: Ensure the cartridge is properly installed and the battery is charged. Check for any error indications (red light blinks).
• No vapor or weak vapor: Check e-liquid level in the cartridge. Ensure the cartridge is not clogged. Try adjusting the output level.
• Burnt taste: Replace the cartridge. Ensure the cartridge is adequately primed before first use (allow e-liquid to soak for 5-10 minutes).
• ചോർച്ച: Ensure the cartridge is properly seated. Avoid overfilling the cartridge.
• Overtime Protection: If a puff lasts longer than 10 1 2 seconds, the red light will blink 3 times, and the device will stop working. This is a safety feature.
• ഷോർട്ട് സർക്യൂട്ട് സംരക്ഷണം: If a short circuit is detected, the red light will blink 8 times, and the device will stop working. Discontinue use and contact support if this persists.

9 സ്പെസിഫിക്കേഷനുകൾ

10. വാറൻ്റിയും പിന്തുണയും

For warranty information and customer support, please refer to the official GEEKVAPE webസൈറ്റിൽ ബന്ധപ്പെടുക അല്ലെങ്കിൽ നിങ്ങളുടെ റീട്ടെയിലറെ ബന്ധപ്പെടുക. ഏതെങ്കിലും വാറന്റി ക്ലെയിമുകൾക്കായി നിങ്ങളുടെ വാങ്ങിയതിന്റെ തെളിവ് സൂക്ഷിക്കുക.
