1. ആമുഖം
This manual provides detailed instructions for the assembly, installation, operation, and maintenance of your JUBEST 36in x 84in Glass Sliding Barn Door, Model KDA03N. This product features a 3-panel black aluminum frame with clear tempered glass, designed for modern interior spaces. Please read all instructions carefully before proceeding with assembly and installation.

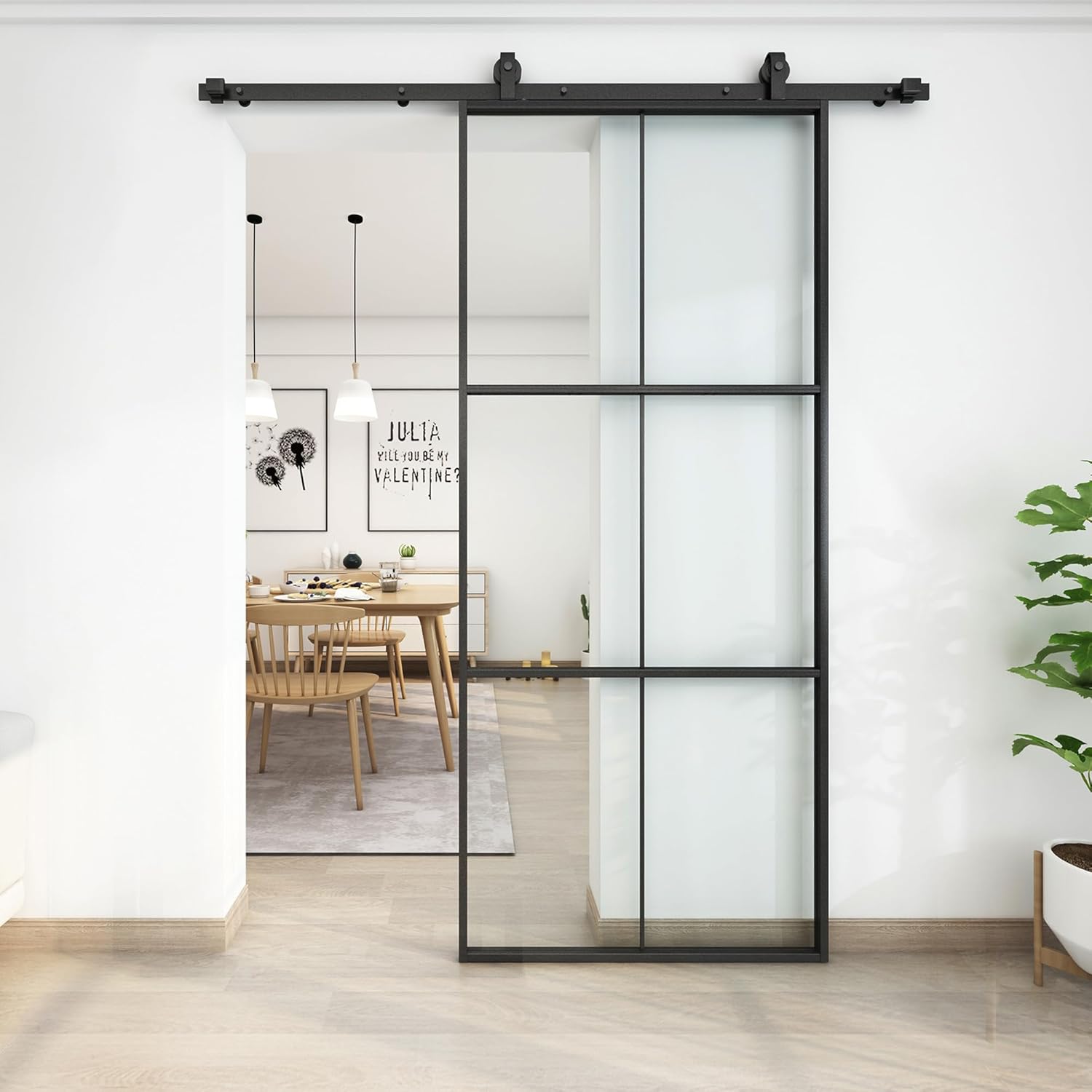

A JUBEST 36x84 inch glass sliding barn door installed in a modern interior, separating a dining area from another room. The door features a black aluminum frame with three clear tempered glass panels.
An image highlighting key features of the JUBEST glass barn door: high-quality metal construction, easy installation, wide applicability, and clear tempered glass.
2 പ്രധാനപ്പെട്ട സുരക്ഷാ വിവരങ്ങൾ
- Always handle glass panels with extreme care to prevent breakage and potential injury.
- Wear appropriate safety gear, including gloves and eye protection, during all stages of assembly and installation.
- Ensure the installation surface (wall) is structurally sound and capable of safely supporting the combined weight of the door and the sliding hardware system.
- This door panel requires a separate sliding hardware kit for installation. Ensure the hardware kit is compatible and installed strictly according to its specific instructions.
- Assembly and installation should ideally be performed by two or more individuals due to the size and weight of the door panels.
- Keep children and pets away from the work area during installation to prevent accidents.
3. പാക്കേജ് ഉള്ളടക്കം
Verify that all components are present and undamaged before beginning assembly. If any parts are missing or damaged, please contact JUBEST customer service for assistance.
- 3-Panel Glass Door Sections (pre-drilled for assembly)
- Assembly Screws and Fasteners
- Adjustable Floor Guide
- ഇൻസ്റ്റലേഷൻ നിർദ്ദേശങ്ങൾ (ഈ പ്രമാണം)
കുറിപ്പ്: The sliding barn door hardware kit (track, rollers, hangers, etc.) is sold separately and is not included with this door panel. You must acquire a compatible hardware kit for full installation.
4. സജ്ജീകരണവും ഇൻസ്റ്റാളേഷനും
This section outlines the assembly of the door panel itself. For instructions on installing the sliding track and hangers, please refer to the separate manual provided with your sliding hardware kit.
ഘട്ടം 1: അൺപാക്ക് ചെയ്ത് പരിശോധിക്കുക
Carefully unpack all components from the packaging. Inspect the glass panels and aluminum frames for any signs of damage, scratches, or defects. Report any issues to customer service before proceeding.
Step 2: Assemble Door Panels
The door consists of three main sections. Carefully align the pre-drilled holes on each section and secure them together using the provided assembly screws and fasteners. A power drill equipped with an appropriate Allen key bit is recommended to expedite this process. Ensure all connections are tight and secure.
A visual guide showing the three main sections of the JUBEST glass barn door being assembled into a single unit using screws. This illustrates the modular design for easier installation.
ഘട്ടം 3: ഫ്ലോർ ഗൈഡ് ഇൻസ്റ്റാൾ ചെയ്യുക
Attach the adjustable floor guide to the bottom edge of the assembled door panel. This guide is crucial for stabilizing the door and ensuring smooth, controlled movement during operation. Follow the specific instructions for the floor guide's placement and secure it firmly.
Step 4: Attach to Sliding Hardware (Not Included)
Once the door panel is fully assembled, attach it to your compatible sliding barn door hardware kit. This typically involves mounting hangers to the top of the door and then placing the hangers onto the installed track. Follow the specific instructions provided with your hardware kit for proper mounting, alignment, and adjustment. Ensure the door hangs level and slides smoothly along the track without binding.
5. പ്രവർത്തന നിർദ്ദേശങ്ങൾ
To open the door, gently push or pull the door panel along the track until it reaches the desired open position. To close, slide the door back until it fully covers the opening. Always operate the door with a smooth, controlled motion. Avoid forcing the door or allowing it to slam against the wall or door frame, as this can cause damage to the door, hardware, or surrounding structure.
6. പരിപാലനം
Cleaning the Glass Panels
Use a soft, lint-free cloth and a non-abrasive glass cleaner to clean the clear tempered glass panels. Spray the cleaner onto the cloth first, then wipe the glass. Avoid spraying cleaner directly onto the frame or hardware. Do not use harsh chemicals, abrasive pads, or sharp objects that could scratch the glass or damage the frame finish.
A close-up image showcasing the clear tempered glass of the JUBEST barn door, emphasizing its high hardness, anti-scratch, and wear-resistant properties.
Cleaning the Aluminum Frame
Wipe the black aluminum frame with a soft, damp cloth. For more stubborn marks or grime, a mild soap solution can be used, followed by thoroughly drying with a clean, soft cloth to prevent water spots.
ഹാർഡ്വെയർ മെയിൻ്റനൻസ്
Periodically check the sliding hardware (track, rollers, hangers, and floor guide) for any loose screws or components. Tighten them as necessary, but do not overtighten. Lubricate the track and rollers as recommended by the hardware kit manufacturer to ensure continued smooth and quiet operation.
7. പ്രശ്നപരിഹാരം
Door Does Not Slide Smoothly
- Check the sliding track for any obstructions, debris, or dirt that might impede movement. Clean the track thoroughly.
- Ensure the rollers are properly seated on the track and are not misaligned.
- Verify that the track itself is level and securely mounted to the wall. An unlevel track can cause binding.
- Lubricate the rollers and track if necessary, following the recommendations in your hardware kit instructions.
Door is Difficult to Open/Close
- Inspect the floor guide for proper alignment and ensure it is not causing excessive friction with the bottom of the door. Adjust if needed.
- Check for any instances where the door panel might be rubbing against the wall or door frame. Adjust door stops or track position if possible.
അയഞ്ഞ ഘടകങ്ങൾ
- Periodically check all assembly screws and fasteners on the door panel and tighten them if they have become loose. Do not overtighten, as this can strip threads or damage the frame.
8. ഉൽപ്പന്ന സവിശേഷതകൾ
A detailed size chart for the JUBEST 36x84 inch glass sliding barn door, indicating the door's dimensions (36 inches wide, 84 inches high) and the recommended fit for opening widths (≤36 inches) and heights (≤82 inches).
| ഫീച്ചർ | വിശദാംശങ്ങൾ |
|---|---|
| ബ്രാൻഡ് | ജുബെസ്റ്റ് |
| മോഡൽ | KDA03N |
| Dimensions (Door Panel) | 36 ഇഞ്ച് (വീതി) x 84 ഇഞ്ച് (ഉയരം) |
| ഉൽപ്പന്ന അളവുകൾ (മൊത്തം) | 1.37 x 36 x 84 ഇഞ്ച് |
| മെറ്റീരിയൽ | Aluminum Frame, Tempered Glass |
| നിറം | Black Frame, Clear Glass |
| ശൈലി | ആധുനികം |
| ഇനത്തിൻ്റെ ഭാരം | 46.7 പൗണ്ട് |
| അസംബ്ലി ആവശ്യമാണ് | അതെ |
| പാനലുകളുടെ എണ്ണം | 3-Panel Design |
An image detailing the unique design elements of the JUBEST glass barn door, including the aluminum frame panels, solid construction, and an adjustable floor guide.
9. വാറണ്ടിയും ഉപഭോക്തൃ പിന്തുണയും
JUBEST is committed to providing high-quality products and excellent customer service. For any quality issues, missing parts, or assistance with installation, please do not hesitate to contact our professional customer service team.
Our customer service team is available to assist you with any inquiries or concerns regarding your JUBEST product. Please refer to your purchase documentation or the JUBEST official webനിർദ്ദിഷ്ട വാറന്റി വിശദാംശങ്ങൾക്കും ബന്ധപ്പെടാനുള്ള വിവരങ്ങൾക്കും സൈറ്റ്.
