VTOMAN VS200 Pro പോർട്ടബിൾ സോളാർ പാനൽ യൂസർ മാനുവൽ

1. ആമുഖം

Thank you for choosing the VTOMAN VS200 Pro Portable Solar Panel. This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your solar panel. Please read this manual thoroughly before use and retain it for future reference.

The VTOMAN VS200 Pro is a high-efficiency, foldable solar panel designed for off-grid power generation, compatible with various power stations, including VTOMAN FlashSpeed 1500. Its robust design and versatile connectivity make it ideal for home backup, camping, മറ്റ് ഔട്ട്ഡോർ പ്രവർത്തനങ്ങൾ.

2. സുരക്ഷാ നിർദ്ദേശങ്ങൾ

ഉൽപ്പന്നത്തിന് പരിക്കേൽക്കുകയോ കേടുപാടുകൾ സംഭവിക്കുകയോ ചെയ്യാതിരിക്കാൻ ഇനിപ്പറയുന്ന സുരക്ഷാ മുൻകരുതലുകൾ എപ്പോഴും പാലിക്കുക:

• Do not attempt to disassemble, repair, or modify the solar panel. Unauthorized modifications can lead to electric shock, fire, or product damage.
• Keep the solar panel away from open flames, heat sources, and highly flammable materials.
• Avoid dropping or subjecting the solar panel to severe impacts.
• While the panel has an IP67 water-resistant rating, it is അല്ല designed to be submerged in water or left exposed to heavy rain for extended periods. Protect connectors from moisture.
• Ensure proper ventilation around the solar panel during operation to prevent overheating.
• Handle the panel by its designated handles. Avoid touching the solar cells directly.
• കുട്ടികൾക്കും വളർത്തുമൃഗങ്ങൾക്കും ലഭ്യമാകാതെ സൂക്ഷിക്കുക.
• ബന്ധിപ്പിക്കുന്നതിന് മുമ്പ്, വോളിയം ഉറപ്പാക്കുകtage and current of the solar panel match the input requirements of your power station.

3. പാക്കേജ് ഉള്ളടക്കം

നിങ്ങളുടെ പാക്കേജിൽ എല്ലാ ഇനങ്ങളും ഉണ്ടെന്ന് ഉറപ്പാക്കുക:

• 1 x VTOMAN VS200 Pro 200W/48V Portable Solar Panel with MC-4 connector
• 1 x MC-4 to Anderson/XT60/DC5521 Adapter Cable
• 1 x ഉപയോക്തൃ മാനുവൽ

Image: Contents of the VTOMAN VS200 Pro package, including the solar panel, adapter cable, and user manual.

4. സജ്ജീകരണവും കണക്ഷനും

Follow these steps to set up and connect your VTOMAN VS200 Pro solar panel:

1. സോളാർ പാനൽ തുറക്കുക: Carefully unfold the VS200 Pro solar panel completely.
2. സ്ഥാനനിർണ്ണയം: Place the solar panel in a location with direct sunlight. Utilize the integrated adjustable kickstands to angle the panel towards the sun for optimal efficiency. For hanging applications, use the circular holes provided.

Image: The VTOMAN VS200 Pro solar panel deployed with its adjustable kickstands, demonstrating easy setup.
3. അഡാപ്റ്റർ കേബിൾ ബന്ധിപ്പിക്കുക: Connect the MC-4 connector built into the solar panel to the MC-4 connector on the adapter cable.
4. പവർ സ്റ്റേഷനുമായി ബന്ധിപ്പിക്കുക: Select the appropriate adapter connector (Anderson, XT60, or DC5521) from the 3-in-1 adapter cable that matches the input port of your power station. Insert the selected connector firmly into the power station's input.

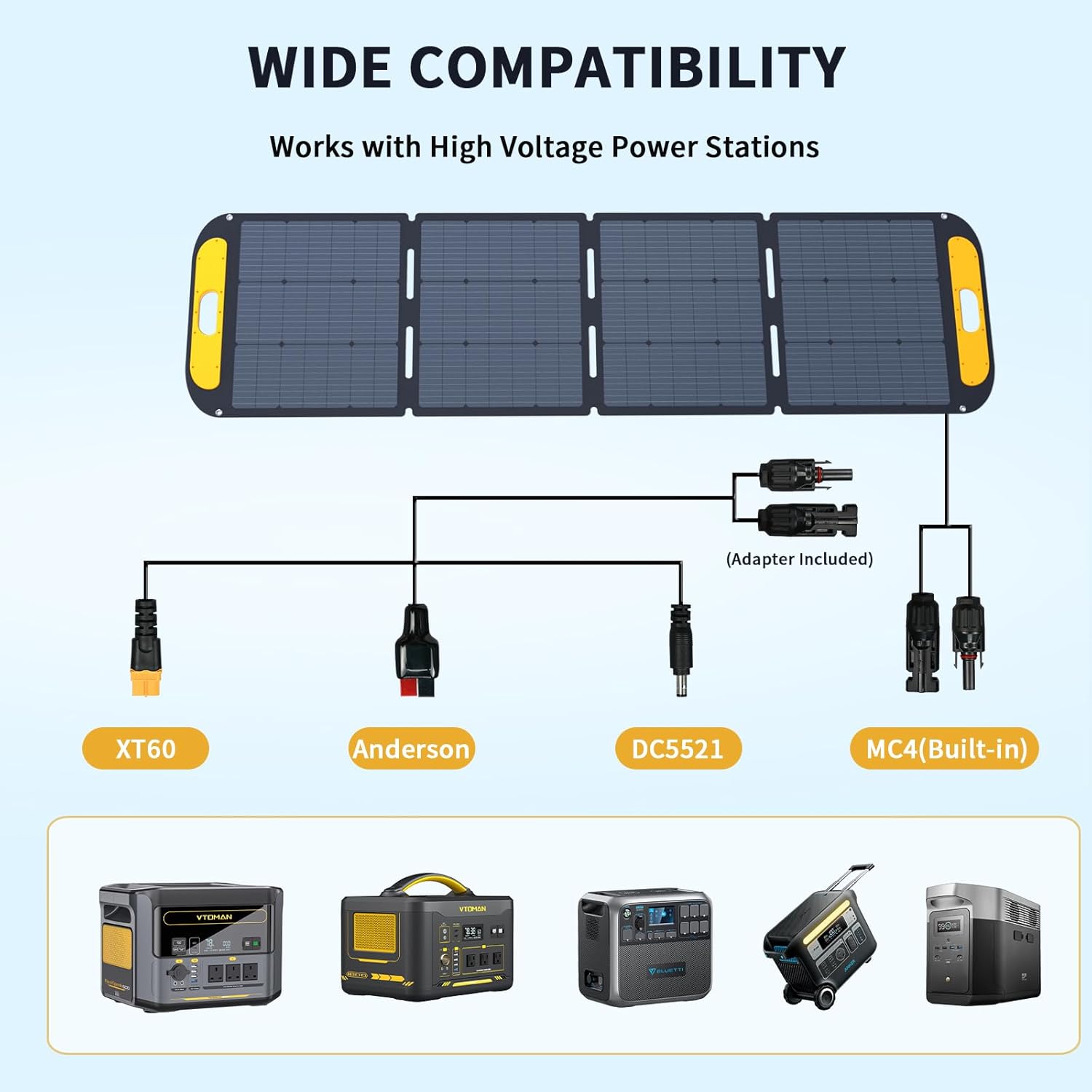

Image: Connection diagram illustrating how to connect the solar panel to various power stations using the included MC-4 to Anderson/XT60/DC5521 adapter cable.

5. ചാർജിംഗ് ആരംഭിക്കുക: Once connected, your power station should begin charging from the solar panel. Monitor the power station's display for charging status.

5. Operating the Solar Panel

The VTOMAN VS200 Pro is designed for straightforward operation. Optimal performance is achieved by ensuring maximum exposure to direct sunlight.

• സൂര്യപ്രകാശ ഒപ്റ്റിമൈസേഷൻ: Adjust the angle of the solar panel throughout the day to follow the sun's path. This maximizes energy capture. The adjustable kickstands facilitate this.


Image: Illustration of how to adjust the solar panel's angle for optimal sunlight absorption during morning, midday, and afternoon.

• കാര്യക്ഷമത: The panel features 23% high energy conversion rate due to its monocrystalline silicon solar cells. Ensure the panel surface is clean for best performance.


Image: Detail of the solar panel emphasizing its 23% high conversion efficiency, achieved through high-efficiency monocrystalline cells.

• പോർട്ടബിലിറ്റി: When not in use, fold the panel for compact storage and easy transport. Its folded dimensions are approximately 26.4 x 23.7 x 2 inches and it weighs 19.5 lbs.

Image: A person carrying the folded VTOMAN VS200 Pro solar panel, illustrating its portability. Dimensions for both folded and unfolded states are provided.

6. പരിപാലനവും സംഭരണവും

Proper maintenance ensures the longevity and performance of your solar panel:

• വൃത്തിയാക്കൽ: സോളാർ പാനലിന്റെ ഉപരിതലം മൃദുവായ, ഡി-ടച്ച് ഉപയോഗിച്ച് പതിവായി തുടയ്ക്കുക.amp cloth to remove dust, dirt, or debris. A clean surface ensures maximum light absorption. Do not use abrasive cleaners or harsh chemicals.
• ജല പ്രതിരോധം: The panel is IP67 rated for water resistance, protecting it from splashes. However, avoid prolonged exposure to heavy rain or submersion in water. Ensure connectors are dry before use.

Image: The solar panel surface with water droplets, demonstrating its IP67 water-resistant rating.
• സംഭരണം: When not in use, fold the solar panel and store it in a cool, dry place, away from direct sunlight and extreme temperatures.
• പരിശോധന: Periodically inspect the panel and cables for any signs of damage, wear, or corrosion. If any damage is found, discontinue use and contact customer support.

7. പ്രശ്‌നപരിഹാരം

If you encounter issues with your VTOMAN VS200 Pro solar panel, refer to the following common problems and solutions:

8 സ്പെസിഫിക്കേഷനുകൾ

9. വാറൻ്റിയും പിന്തുണയും

VTOMAN products come with a manufacturer's warranty. For specific warranty terms and conditions, please refer to the warranty card included with your product or visit the official VTOMAN webസൈറ്റ്.

If you require technical assistance, have questions about product operation, or need to report a defect, please contact VTOMAN customer support:

• VTOMAN Official Webസൈറ്റ്: www.vtoman.com
• ഉപഭോക്തൃ സേവന ഇമെയിൽ: (ഉൽപ്പന്ന പാക്കേജിംഗ് അല്ലെങ്കിൽ ഔദ്യോഗിക webനിലവിലെ ബന്ധപ്പെടാനുള്ള വിവരങ്ങൾക്ക് സൈറ്റ്)

Please have your product model number (VS200 Pro) and purchase date ready when contacting support.
