1. Introduction to the ECO-WORTHY Solar System
This manual provides essential information for the safe and efficient operation of your ECO-WORTHY 4kWh 1000W 24V Solar System. This comprehensive off-grid system includes 6x 170W solar panels, 2x 100Ah LiFePO4 lithium batteries, and a 3000W 24V-220V all-in-one inverter with integrated control. Please read this manual thoroughly before installation and use.
Image: ECO-WORTHY solar panels installed on a house roof, illustrating the system's capability to generate 4kWh per day.
2. സിസ്റ്റം ഘടകങ്ങൾ
Your ECO-WORTHY solar system includes the following main components:
- സൌരോര്ജ പാനലുകൾ: 6 units of 170W monocrystalline solar panels.
- ലിഥിയം ബാറ്ററികൾ: 2 units of 100Ah 12.8V LiFePO4 batteries.
- All-in-One Inverter: 3000W 24V DC to 220V AC pure sine wave inverter with integrated MPPT charge controller.
- PV Combiner Box: For simplified wiring and protection.
- കേബിളുകളും കണക്ടറുകളും: Necessary cables and MC4 connectors for system assembly.

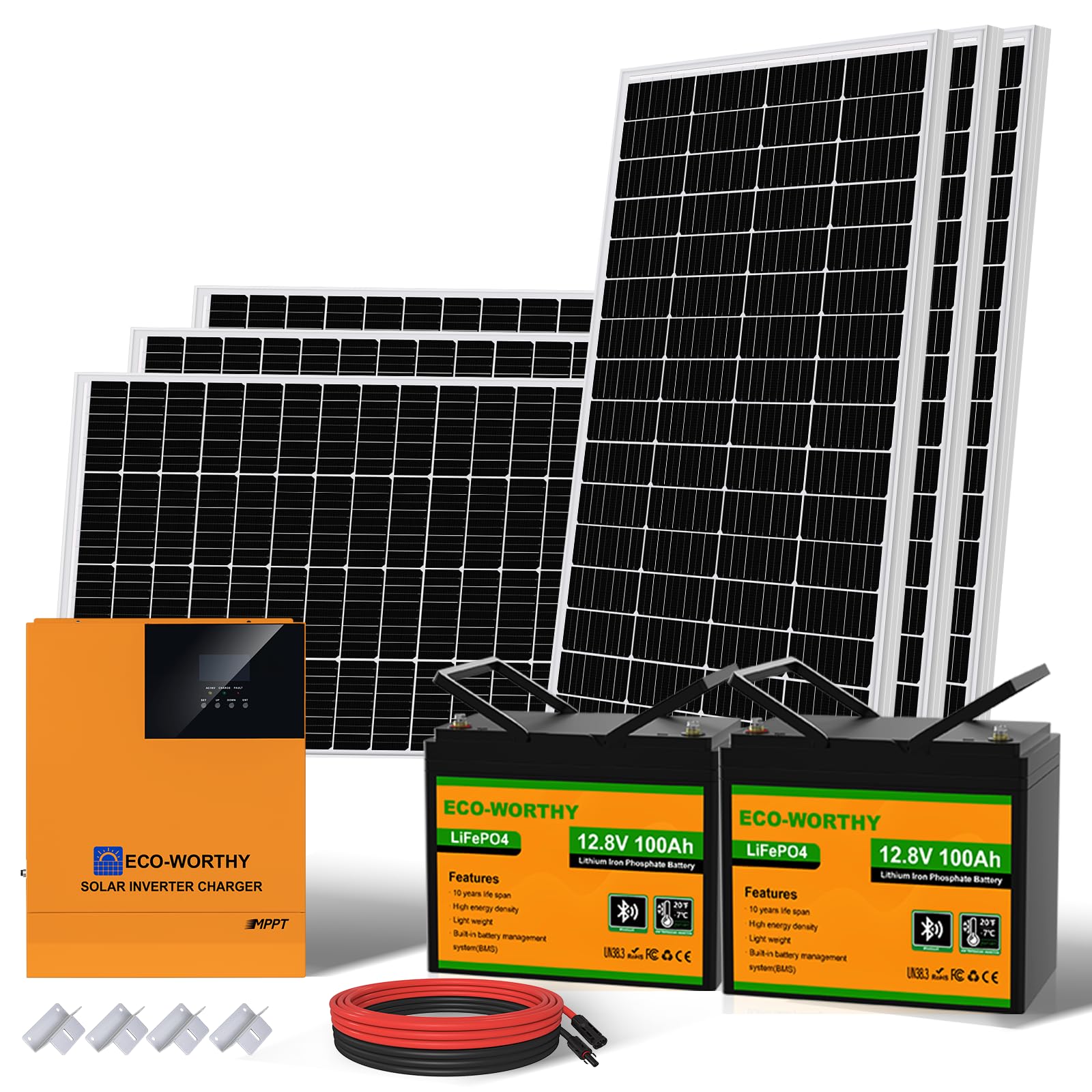

Image: A visual representation of the DIY solar system components, including batteries, hybrid inverter, solar panels, and connection accessories.
3. സജ്ജീകരണവും ഇൻസ്റ്റാളേഷനും
The ECO-WORTHY solar system is designed for straightforward installation. It is crucial to follow all safety guidelines and local electrical codes during installation. Professional installation is recommended if you are unfamiliar with electrical systems.
3.1 സോളാർ പാനൽ സവിശേഷതകൾ
The solar panels feature IP65 rated junction boxes, IP67 sealed tempered glass, and pre-drilled mounting holes for easy installation. They utilize plug-and-play connectors for simplified wiring.
ചിത്രം: ക്ലോസ്-അപ്പ് view of solar panel features, highlighting plug-and-play connectors, an IP65 junction box, IP67 sealed tempered glass, and preserved mounting holes.
3.2 Wiring Diagram (5-Step Installation)
The system can be installed in a few simple steps. Refer to the detailed wiring diagram below for proper connection of batteries, inverter, and solar panels.
- Connect the batteries in series or parallel as required (ensure correct voltage for the inverter).
- Connect the battery bank to the inverter.
- Connect the solar panels to the PV combiner box, then to the inverter.
- Connect the inverter to the main load or distribution panel.
- Verify all connections and power on the system.
Image: Detailed wiring diagram showing the connections between solar panels, the inverter, and batteries for the ECO-WORTHY solar system.
Image: A visual guide illustrating the 5-step installation process for the solar system, from battery connection to final appliance hookup.
Important Note on Shipping:
Please be aware that your order may be shipped in multiple packages and may arrive at different times. Kindly be patient and wait for all packages to arrive before beginning installation.
4. പ്രവർത്തന നിർദ്ദേശങ്ങൾ
Once installed, your ECO-WORTHY solar system will convert sunlight into electricity, store it in batteries, and provide AC power for your appliances.
4.1 ബാറ്ററി നിരീക്ഷണം
The LiFePO4 batteries can be monitored via a dedicated application. This app provides real-time data on voltage, current, and state of charge, allowing you to manage your power usage effectively.
Image: A smartphone screen displaying the battery monitoring application, showing real-time data and anomaly notifications for quick troubleshooting.
4.2 Inverter Usage
The 3000W pure sine wave inverter provides stable 220V AC power, suitable for most household appliances. This includes microwaves, coffee makers, TVs, refrigerators, freezers, and pond pumps. Pure sine wave output protects your appliances from electromagnetic pollution and extends their lifespan compared to modified sine wave inverters.
Image: Diagram illustrating the internal components of the all-in-one inverter, including the 3000W pure sine wave inverter and 60A MPPT solar charge controller, with 230V AC output and 50/60Hz switchable frequency.
4.3 Daily Power Output
The system is designed to provide approximately 4000 Wh (4 kWh) of power daily, depending on sunlight availability. This makes it ideal for various applications, including:
- ഔട്ട്ഡോർ ഉപയോഗം
- RV and caravan power
- Off-grid homes and cabins
- Boats and yachts
- Electric vehicles and golf carts
- Tents and backpacks
Image: A table showing estimated operating times for various household appliances (e.g., electric iron, TV, refrigerator, microwave, oven) with a 3000W AC power output and 4.08kWh generation.
ചിത്രം: ഉദാamples of the solar system's applications, including residential roof installations, RVs, and boats.
5. പരിപാലനം
Regular maintenance ensures the longevity and optimal performance of your solar system.
- സൌരോര്ജ പാനലുകൾ: Periodically clean the surface of the solar panels to remove dust, dirt, and debris that can reduce efficiency. Use a soft cloth and water.
- ബാറ്ററികൾ: Monitor battery health using the dedicated app. Ensure connections are secure and free from corrosion. LiFePO4 batteries require minimal maintenance compared to lead-acid batteries.
- ഇൻവെർട്ടർ: Keep the inverter's ventilation openings clear to prevent overheating. Ensure it is installed in a dry, well-ventilated area.
- കണക്ഷനുകൾ: Regularly inspect all electrical connections for tightness and signs of wear or damage.
6. പ്രശ്നപരിഹാരം
If you encounter issues with your ECO-WORTHY solar system, refer to the following common troubleshooting steps:
| പ്രശ്നം | സാധ്യമായ കാരണം | പരിഹാരം |
|---|---|---|
| ഇൻവെർട്ടറിൽ നിന്ന് പവർ ഔട്ട്പുട്ട് ഇല്ല | Battery low, inverter off, faulty connection, overload. | Check battery charge, ensure inverter is on, inspect all wiring, reduce load. |
| Low solar panel output | Shading, dirty panels, cloudy weather, incorrect panel angle. | Clear shading, clean panels, adjust panel angle for optimal sun exposure. |
| ബാറ്ററി ചാർജ് ചെയ്യുന്നില്ല | Faulty solar panel connection, charge controller issue, low sunlight. | Verify solar panel connections, check charge controller status, ensure adequate sunlight. |
| Inverter making unusual noise | Overload, internal fault, fan obstruction. | Reduce load, check for obstructions in fan, contact support if noise persists. |
For issues not covered here, or if problems persist, please contact ECO-WORTHY customer support.
7 സ്പെസിഫിക്കേഷനുകൾ
| ഫീച്ചർ | സ്പെസിഫിക്കേഷൻ |
|---|---|
| നിർമ്മാതാവ് | ഇക്കോ-വർത്തി |
| മോഡൽ നമ്പർ | L02M170-NK30EUL200-6 |
| System Output (Daily) | 4 kWh (4000 Wh) |
| Total Solar Panel Power | 1000 Watt (6 x 170W panels) |
| ബാറ്ററി തരം | LiFePO4 ലിഥിയം |
| ബാറ്ററി ശേഷി | 2 x 100Ah (12.8V each) |
| ഇൻവെർട്ടർ പവർ | 3000 Watt (Pure Sine Wave) |
| Inverter Input Voltage | 24V DC |
| ഇൻവെർട്ടർ ഔട്ട്പുട്ട് വോളിയംtage | 220V എസി |
| മെറ്റീരിയൽ | Crystalline Silicon (panels) |
| കാര്യക്ഷമത | 21% (panels) |
| പരമാവധി താപനില | 85 ഡിഗ്രി സെൽഷ്യസ് |
| യു.പി.സി | 810127130388 |
Image: Diagram showing the dimensions of a single solar panel: 770mm (30.3in) x 1110mm (43.7in) x 35mm (1.4in).
8. വാറൻ്റിയും പിന്തുണയും
ECO-WORTHY stands behind the quality of its products.
- വാറൻ്റി: ഈ ഉൽപ്പന്നം 1 വർഷത്തെ വാറന്റിയോടെയാണ് വരുന്നത്.
- സാങ്കേതിക സഹായം: 24/7 technical assistance is available. If you have any questions or concerns, please contact ECO-WORTHY customer service.
For further assistance, please visit the official ECO-WORTHY webസൈറ്റ് സന്ദർശിക്കുക അല്ലെങ്കിൽ അവരുടെ പിന്തുണാ ടീമിനെ നേരിട്ട് ബന്ധപ്പെടുക.
