1. ആമുഖം
This manual provides detailed instructions for the installation, operation, and maintenance of your FALCON RIDGE UTV Soft Full Doors Kit. This kit is designed to provide protection and comfort for your Yamaha Wolverine (2016-2018, all options) or Yamaha Viking 700 (2016-2019, all options) UTV. Please read all instructions carefully before proceeding with installation and use.
2 സുരക്ഷാ വിവരങ്ങൾ
- വാഹന വേഗത: It is not recommended to exceed 45 MPH with soft goods installed on your vehicle. High speeds can cause excessive wear or damage to the doors and potentially affect vehicle handling.
- ദൃശ്യപരത: Ensure windows are clean and clear before operating the vehicle. Obstructed views can lead to accidents.
- സുരക്ഷിത ഇൻസ്റ്റാളേഷൻ: Always ensure all straps, snaps, and Velcro fasteners are securely attached before operating the vehicle. Loose components can detach during operation.
- പരിസ്ഥിതി വ്യവസ്ഥകൾ: Be aware that soft doors offer protection from elements but do not provide the same level of structural integrity as hard doors. Exercise caution in extreme weather conditions.
3. പാക്കേജ് ഉള്ളടക്കം
Before beginning installation, verify that all components are present in your kit:
- Soft Full Doors (Left and Right)
- Self-adhesive Velcro strips
- Installation and Care Instructions (this manual)
4. ഇൻസ്റ്റലേഷൻ നിർദ്ദേശങ്ങൾ
The FALCON RIDGE UTV Soft Full Doors Kit is designed for straightforward installation using Velcro straps and snaps. Follow these steps for proper fitment:
4.1. തയ്യാറാക്കൽ
- Ensure your UTV is parked on a level surface and the engine is off.
- Clean the areas of your UTV where the self-adhesive Velcro strips will be applied. This includes the roll cage, door frame, and any other contact points. Allow to dry completely.
4.2. Attaching the Doors
- സ്ഥാനനിർണ്ണയം: Carefully position one soft door onto the side of your UTV. Align it with the existing door frame and roll cage.
- വെൽക്രോ സ്ട്രാപ്പുകൾ: Utilize the integrated hook and loop straps to secure the top and front edges of the door to the roll cage. Ensure a snug fit.
Image: Hook and loop straps provide versatile and secure attachment points for the soft doors.
- Self-Adhesive Velcro: Apply the provided self-adhesive Velcro strips to the UTV's body panels where the soft door makes contact. Press firmly to ensure good adhesion. Then, press the corresponding Velcro on the soft door onto these strips.
- സ്നാപ്പ് ഫാസ്റ്റനറുകൾ: Secure the bottom and rear edges of the soft door using the button fasteners. These fasteners provide a robust connection to the vehicle.
Image: Heavy-duty button fasteners ensure a secure fit of the soft doors to the UTV.
- ആവർത്തിക്കുക: Repeat the process for the other side of the UTV.
- അന്തിമ പരിശോധന: Once both doors are installed, inspect all attachment points to ensure they are secure and the doors fit properly without excessive gaps or sagging.

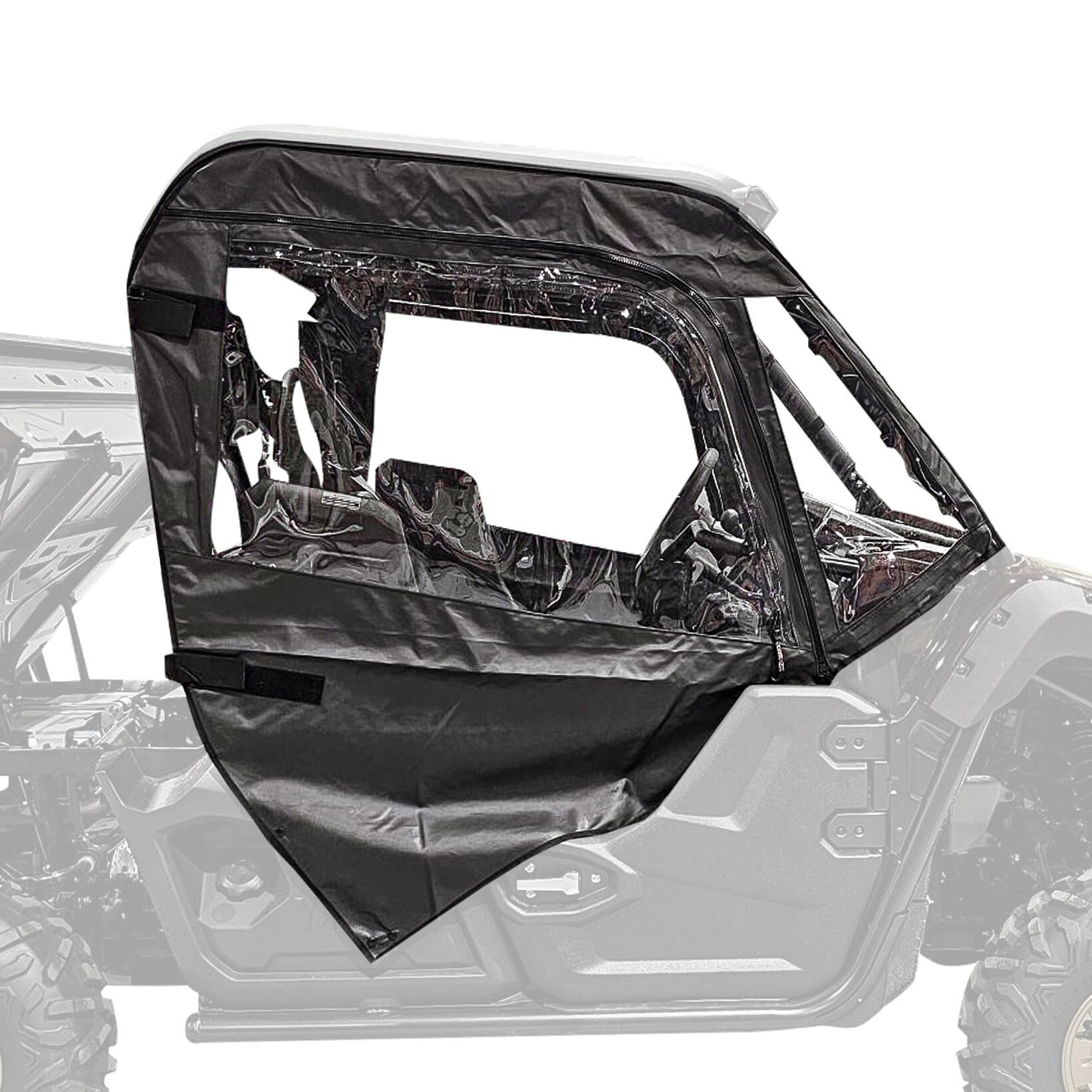

Image: FALCON RIDGE UTV Soft Full Door installed on a Yamaha Wolverine.
ചിത്രം: ഉൾഭാഗം view of the UTV with the soft door installed, highlighting the clear window.
5. പ്രവർത്തന നിർദ്ദേശങ്ങൾ
5.1. Using Zippered Windows
The soft doors feature full-length double-pull zippers with large rubber pulls for easy opening and closing, even while wearing gloves. These zippers allow for ventilation and access.
Image: Durable zippers with easy-grip pulls for convenient window operation.
5.2. Rolling Away Doors
When not needed, the doors can be rolled away and stored internally. This provides an open-air experience without removing the entire door assembly.
- Unzip the door completely.
- Carefully roll the door fabric upwards or inwards, depending on the design, ensuring the vinyl window is not creased sharply.
- Secure the rolled door using the integrated straps or fasteners to keep it neatly stowed.
Image: UTV with soft doors rolled away, providing an open-air configuration.
6. പരിപാലനവും പരിചരണവും
- വൃത്തിയാക്കൽ: Clean the marine textile fabric with mild soap and water. Avoid harsh chemicals or abrasive cleaners, which can damage the material.
- വിൻഡോ കെയർ: The 30 mil vinyl windows should be cleaned with a soft cloth and a vinyl-specific cleaner to maintain clarity and prevent scratching. Do not use ammonia-based cleaners.
- സംഭരണം: When storing the doors for extended periods, ensure they are clean and dry. Store them in a cool, dry place away from direct sunlight to prevent fading and material degradation. Avoid folding the vinyl windows sharply to prevent permanent creases.
- സിപ്പർ പരിപാലനം: സുഗമമായ പ്രവർത്തനം ഉറപ്പാക്കാൻ സിപ്പറുകൾ ഇടയ്ക്കിടെ വൃത്തിയാക്കുകയും സിലിക്കൺ അടിസ്ഥാനമാക്കിയുള്ള ലൂബ്രിക്കന്റ് പുരട്ടുകയും ചെയ്യുക.
7. പ്രശ്നപരിഹാരം
- അയഞ്ഞ ഫിറ്റ്: If doors appear loose after installation, re-check all Velcro straps and snap fasteners. Ensure self-adhesive Velcro is firmly attached to the UTV surface.
- Zipper Difficulty: If zippers are stiff, clean any debris from the teeth and apply a zipper lubricant. Do not force a stuck zipper.
- Window Clarity: If windows become cloudy, clean them with a recommended vinyl cleaner. Avoid scratching the surface.
- Velcro Adhesion Issues: In certain climates, self-adhesive Velcro may degrade over time. Ensure surfaces are thoroughly cleaned and dry before initial application. Replacement adhesive Velcro may be required for long-term use.
8 സ്പെസിഫിക്കേഷനുകൾ
- മെറ്റീരിയൽ: Professional grade marine textile (waterproof, puncture-resistant, tear-resistant, fade-resistant, abrasion-resistant polyester)
- വിൻഡോ മെറ്റീരിയൽ: Durable 30 mil vinyl
- ഫാസ്റ്റനറുകൾ: Velcro straps, self-adhesive Velcro, button snaps, full-length double-pull zippers
- അനുയോജ്യത: Yamaha Wolverine 2016-2018 (all options), Yamaha Wolverine R-Spec 2016-2018 (all options), Yamaha Viking 700 2016-2019 (all options)
- നിർമ്മാതാവിൻ്റെ ഭാഗം നമ്പർ: YA-WOLVERINE-SDK01-Z
- ഇനത്തിൻ്റെ ഭാരം: ഏകദേശം 1.81 കി.ഗ്രാം (4 പൗണ്ട്)
9. പിന്തുണ
For further assistance, questions regarding installation, or to inquire about replacement parts, please contact FALCON RIDGE customer support. Refer to your purchase documentation for specific contact information.
