Brilvibera Motion Sensor Porch Light User Manual

1. ആമുഖം

Thank you for choosing the Brilvibera Motion Sensor Porch Light. This outdoor lighting fixture is designed to provide reliable and efficient illumination for your home, featuring advanced motion sensing capabilities and durable construction. This manual provides detailed instructions for installation, operation, and maintenance to ensure optimal performance and longevity of your light.

The Brilvibera Motion Sensor Porch Light is an updated dusk-to-dawn outdoor lighting solution, ideal for porches, patios, corridors, balconies, terraces, garage doors, and entryways. It combines modern design with robust functionality, offering three distinct lighting modes and an upgraded dial control for easy adjustments.

2. ഉൽപ്പന്നം കഴിഞ്ഞുview

The Brilvibera Motion Sensor Porch Light is a large, wall-mounted fixture measuring 6.3 inches in width and 16 inches in height. It features a matte black finish with clear, unique glass panels, providing both functionality and a sophisticated aesthetic. The light is designed to withstand various outdoor elements, ensuring reliable operation in rain, snow, and fluctuating temperatures.

Image: The Brilvibera Motion Sensor Porch Light, showcasing its large size and modern design, installed on an exterior wall.

പ്രധാന സവിശേഷതകൾ:

• Upgraded Dial Control: Easily adjust brightness and switch between lighting modes without a wall switch.
• മോഷൻ സെൻസർ: Features a 40ft detection range and a 220° angle for comprehensive coverage.
• നീണ്ടുനിൽക്കുന്ന നിർമ്മാണം: Crafted with heavy-duty rugged metal and sealed with waterproof glue for weather resistance (anti-corrosion, waterproof, sunproof, snowproof, dustproof).
• ബൾബ് അനുയോജ്യത: Compatible with standard E26 socket bulbs (bulbs not included). Dimmable LED or incandescent bulbs are recommended to prevent flickering.
• ആധുനിക ഡിസൈൻ: Matte black finish with clear glass panels enhances outdoor decor.

Image: Visual representation of the light's weather resistance, highlighting its anti-corrosion, waterproof, sunproof, snowproof, and dustproof properties.

3. ഘടകങ്ങൾ

Your Brilvibera Motion Sensor Porch Light package includes the following main components:

• Light Fixture with pre-assembled glass shade
• Built-in Motion Sensor
• E26 Bulb Base (bulb not included)
• Upgraded Dial Control for brightness and mode selection
• Mounting Hardware (included for easy installation)

ചിത്രം: വിശദമായത് view of the light fixture, pointing out the built-in motion sensor, E26 bulb base, adjustable lighting dial, and unique glass design.

4. സജ്ജീകരണവും ഇൻസ്റ്റാളേഷനും

Installation of the Brilvibera Motion Sensor Porch Light is designed to be straightforward. All necessary mounting hardware is included. Please ensure power is turned off at the circuit breaker before beginning installation.

ഇൻസ്റ്റലേഷൻ ഘട്ടങ്ങൾ:

1. മൗണ്ടിംഗ് ഏരിയ തയ്യാറാക്കുക: Ensure the electrical box is securely mounted to the wall.
2. മൗണ്ടിംഗ് പ്ലേറ്റ് അറ്റാച്ചുചെയ്യുക: Secure the sturdy mounting plate to the electrical box using the provided screws.
3. വയർ കണക്ഷനുകൾ: Connect the light fixture's wires to your household wiring according to local electrical codes (typically black to black, white to white, and ground to ground). Use wire nuts to secure connections.
4. ഫിക്സ്ചർ മൌണ്ട് ചെയ്യുക: Carefully align the light fixture with the mounting plate and secure it with the provided screws.
5. ബൾബ് സ്ഥാപിക്കുക: Insert a compatible E26 bulb (not included) into the socket. Dimmable LED or incandescent bulbs are recommended to prevent flickering.
6. പവർ പുന ore സ്ഥാപിക്കുക: സർക്യൂട്ട് ബ്രേക്കറിൽ പവർ ഓണാക്കുക.

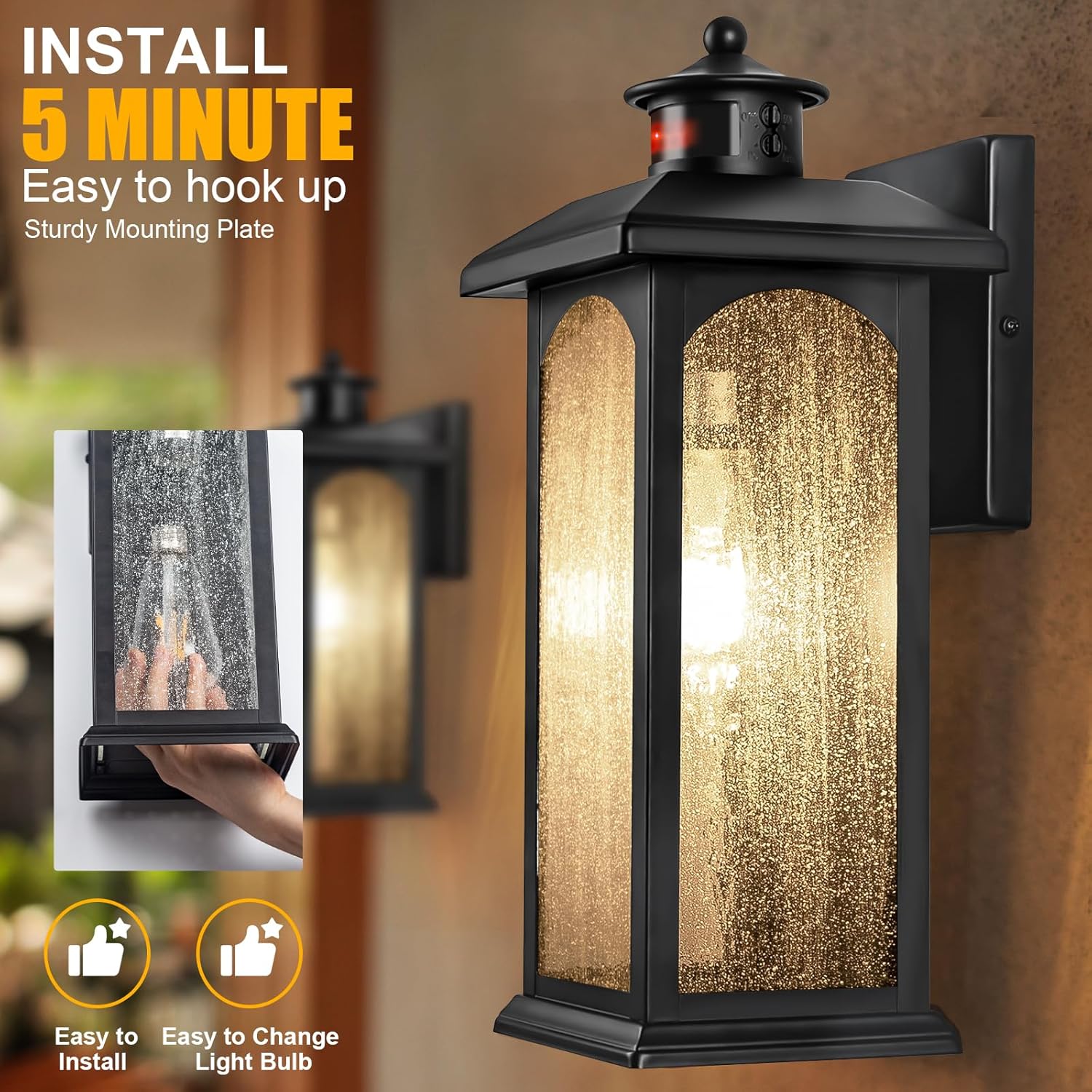

Image: A visual guide indicating the ease of installation, suggesting a 5-minute setup time with a sturdy mounting plate.

5. പ്രവർത്തന നിർദ്ദേശങ്ങൾ

The Brilvibera Motion Sensor Porch Light features an upgraded dial control on top of the fixture, allowing for easy adjustment of brightness and selection of three distinct lighting modes. You do not need to adjust the mode via a wall switch.

Dial Control Functions:

• Brightness Adjustment (OFF-50%): Rotate this dial to adjust the brightness level of the light.
• Mode Selection (PC-AUTO): Rotate this dial to select one of the three operating modes.

ചിത്രം: വിശദമായ ഒരു ചിത്രം view of the light's top-mounted dial, illustrating the controls for brightness adjustment and mode selection.

ലൈറ്റിംഗ് മോഡുകൾ:

• PC Mode (Dusk to Dawn): The light automatically illuminates at night and turns off during the day. This is a fully energy-saving mode where the light remains off when no motion is detected.
• Auto Mode (Motion Sensing with Dimming): At dusk, the light activates to 100% brightness when motion is detected. After 60 seconds of no motion, it automatically dims to a low brightness level.
• Auto+ Mode (Long-Time Lighting with Motion Sensing): The light turns on at an adjustable brightness level at dusk without requiring motion. When motion is detected, it switches to 100% brightness. After a period of no motion, it returns to the adjustable low brightness. The light will automatically turn off at dawn.

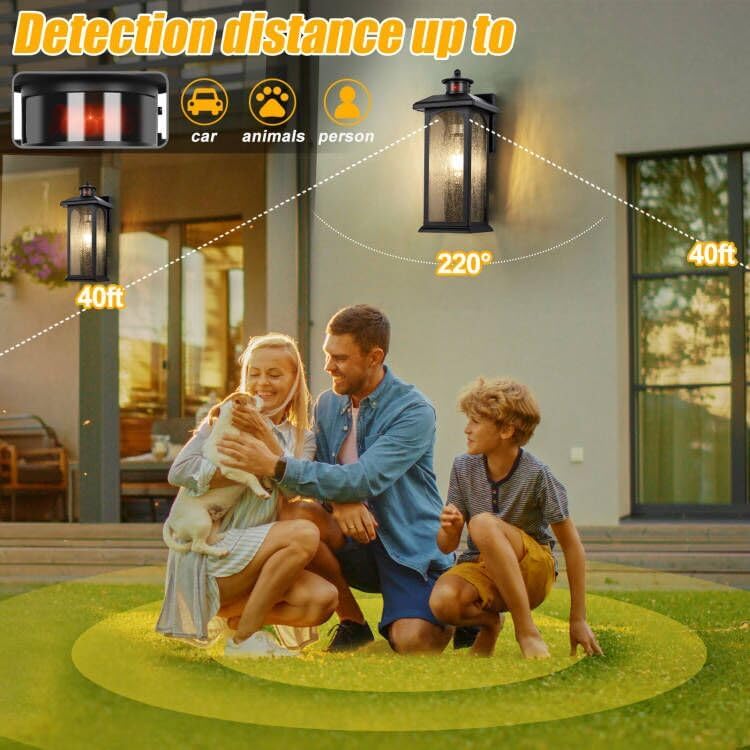

Image: A diagram showing the light's motion detection capabilities, including a 40ft detection distance and a 220° detection angle for persons, animals, and cars.

ഉൽപ്പന്ന വീഡിയോകൾ:

6. പരിപാലനം

To ensure the continued optimal performance and appearance of your Brilvibera Motion Sensor Porch Light, follow these simple maintenance guidelines:

• വൃത്തിയാക്കൽ: ഇടയ്ക്കിടെ മൃദുവായ, ഡി ക്ലീനർ ഉപയോഗിച്ച് ഫിക്സ്ചർ തുടയ്ക്കുക.amp cloth to remove dust, dirt, and debris. Avoid using abrasive cleaners or solvents, as they may damage the finish or glass.
• ഗ്ലാസ് കെയർ: The unique glass panels can be cleaned with standard glass cleaner. Ensure the light is off and cool before cleaning.
• ബൾബ് മാറ്റിസ്ഥാപിക്കൽ: Always turn off power at the circuit breaker before replacing the bulb. Allow the bulb to cool completely before handling.
• കണക്ഷനുകൾ പരിശോധിക്കുക: Annually inspect electrical connections and mounting hardware for tightness and signs of wear.
• സെൻസർ ഏരിയ: Keep the motion sensor clear of obstructions (e.g., overgrown plants, spiderwebs) to ensure proper functionality.

7. പ്രശ്‌നപരിഹാരം

If you encounter issues with your Brilvibera Motion Sensor Porch Light, please refer to the following common troubleshooting steps:

• ലൈറ്റ് ഓണാക്കുന്നില്ല:
  • ഫിക്സ്ചറിലേക്ക് വൈദ്യുതി വിതരണം ചെയ്തിട്ടുണ്ടെന്ന് ഉറപ്പാക്കാൻ സർക്യൂട്ട് ബ്രേക്കർ പരിശോധിക്കുക.
  • ബൾബ് ശരിയായി ഇൻസ്റ്റാൾ ചെയ്തിട്ടുണ്ടെന്നും കത്തിച്ചിട്ടില്ലെന്നും ഉറപ്പാക്കുക.
  • Ensure the dial control is set to the desired mode (PC, Auto, or Auto+).
  • In PC or Auto modes, ensure it is dark enough for the light sensor to activate.
• Light Not Turning Off / Stays On:
  • Check for constant motion within the sensor's detection range.
  • Ensure the sensor is not obstructed or dirty.
  • Verify the mode setting on the dial control. In PC mode, the light should turn off during the day.
• നേരിയ മിന്നൽ:
  • Ensure you are using a dimmable LED or incandescent bulb, as recommended. Non-dimmable LED bulbs may flicker.
  • അയഞ്ഞ വയറിംഗ് കണക്ഷനുകൾ പരിശോധിക്കുക.
• Motion Sensor Not Detecting / Overly Sensitive:
  • Adjust the sensitivity setting using the dial control if available, or try different modes.
  • സെൻസർ ലെൻസ് വൃത്തിയുള്ളതാണെന്നും തടസ്സങ്ങളില്ലെന്നും ഉറപ്പാക്കുക.
  • Consider the placement of the fixture relative to common motion paths.
• ഇൻസ്റ്റലേഷൻ ബുദ്ധിമുട്ടുകൾ:
  • Ensure all mounting hardware is correctly aligned and tightened.
  • If working with uneven surfaces like brick, ensure the mounting plate is level before attaching the fixture.
  • If you encounter significant difficulties, it is recommended to consult a qualified electrician.

8 സ്പെസിഫിക്കേഷനുകൾ

Detailed technical specifications for the Brilvibera Motion Sensor Porch Light:

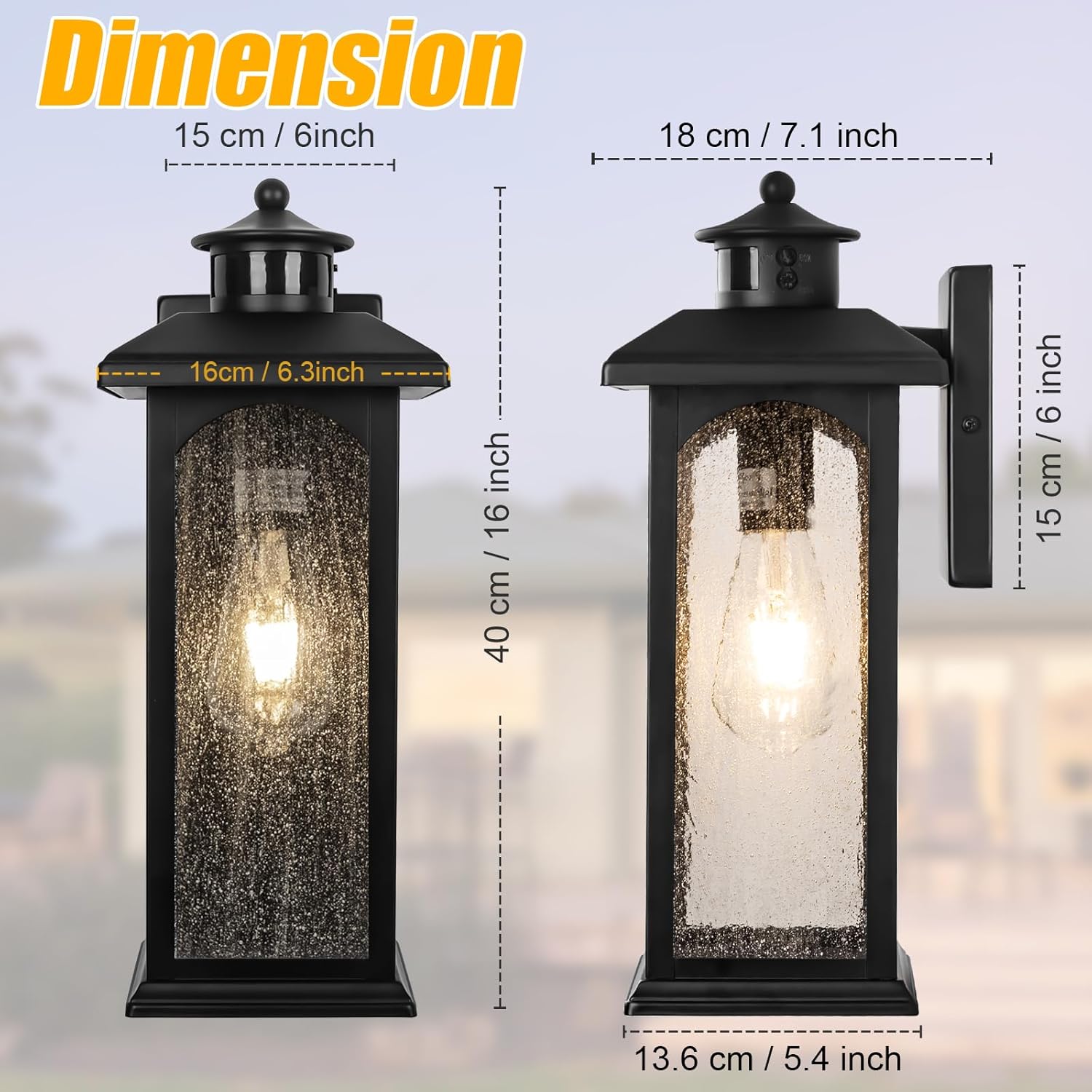

Image: A diagram illustrating the physical dimensions of the light fixture, including its width and height.

9. വാറൻ്റിയും പിന്തുണയും

Brilvibera is committed to providing high-quality products and customer satisfaction. For any questions, concerns, or technical support regarding your motion sensor porch light, please contact Brilvibera customer service. Please refer to your purchase documentation for specific warranty details and contact information.

We recommend keeping your proof of purchase for warranty claims.
