Homdox PGD750 Heavy Duty Garden Cart Instruction Manual

ആമുഖം

Thank you for choosing the Homdox PGD750 Heavy Duty Garden Cart. This manual provides essential information for the safe and efficient assembly, operation, and maintenance of your garden cart. Please read this manual thoroughly before use and retain it for future reference.

The Homdox PGD750 is designed for transporting various materials in gardens, yards, beaches, and farms, featuring a robust metal construction, detachable mesh sides, and a 180° rotating handle for ease of use.

സുരക്ഷാ നിർദ്ദേശങ്ങൾ

• Always ensure the cart is assembled correctly before use.
• Do not exceed the maximum load capacity of 550 lbs (250 kg). Overloading can cause damage to the cart and potential injury.
• സ്ഥിരത നിലനിർത്താൻ കാർട്ട് ബെഡിലുടനീളം ലോഡ് തുല്യമായി വിതരണം ചെയ്യുക.
• Exercise caution when pulling the cart on uneven terrain or inclines.
• Keep hands and feet clear of moving parts, especially wheels and the handle mechanism.
• Store the cart in a dry, protected area when not in use to prevent rust and wear.
• This cart is not intended for transporting people or animals.

പാക്കേജ് ഉള്ളടക്കം

Before assembly, verify that all components are present and undamaged. If any parts are missing or damaged, contact Homdox customer support.

• Cart Base Frame
• Mesh Side Panels (4)
• അസംബ്ലി കൈകാര്യം ചെയ്യുക
• ചക്രങ്ങൾ (4)
• Axles and Hardware (bolts, nuts, washers, pins)
• ഇൻസ്ട്രക്ഷൻ മാനുവൽ

സജ്ജീകരണവും അസംബ്ലിയും

Assembly typically requires basic hand tools (not included), such as a wrench and pliers.

Step 1: Attach Wheels to Axles

Secure each of the four 10-inch pneumatic tires to the axles using the provided hardware. Ensure all nuts and bolts are tightened securely.

ചിത്രം: ക്ലോസ് അപ്പ് view of the 10-inch pneumatic tires, highlighting their robust construction and suitability for various terrains. The image shows the wheel assembly with arrows indicating noise reduction and shock absorption features.

Step 2: Assemble the Cart Base

Connect the main base frame components. Refer to the included diagram for specific bolt placements. Ensure the frame is stable before proceeding.

Step 3: Install Mesh Side Panels

Attach the four mesh side panels to the cart base. These panels are designed to be detachable for versatility. Secure them using the provided pins or latches.

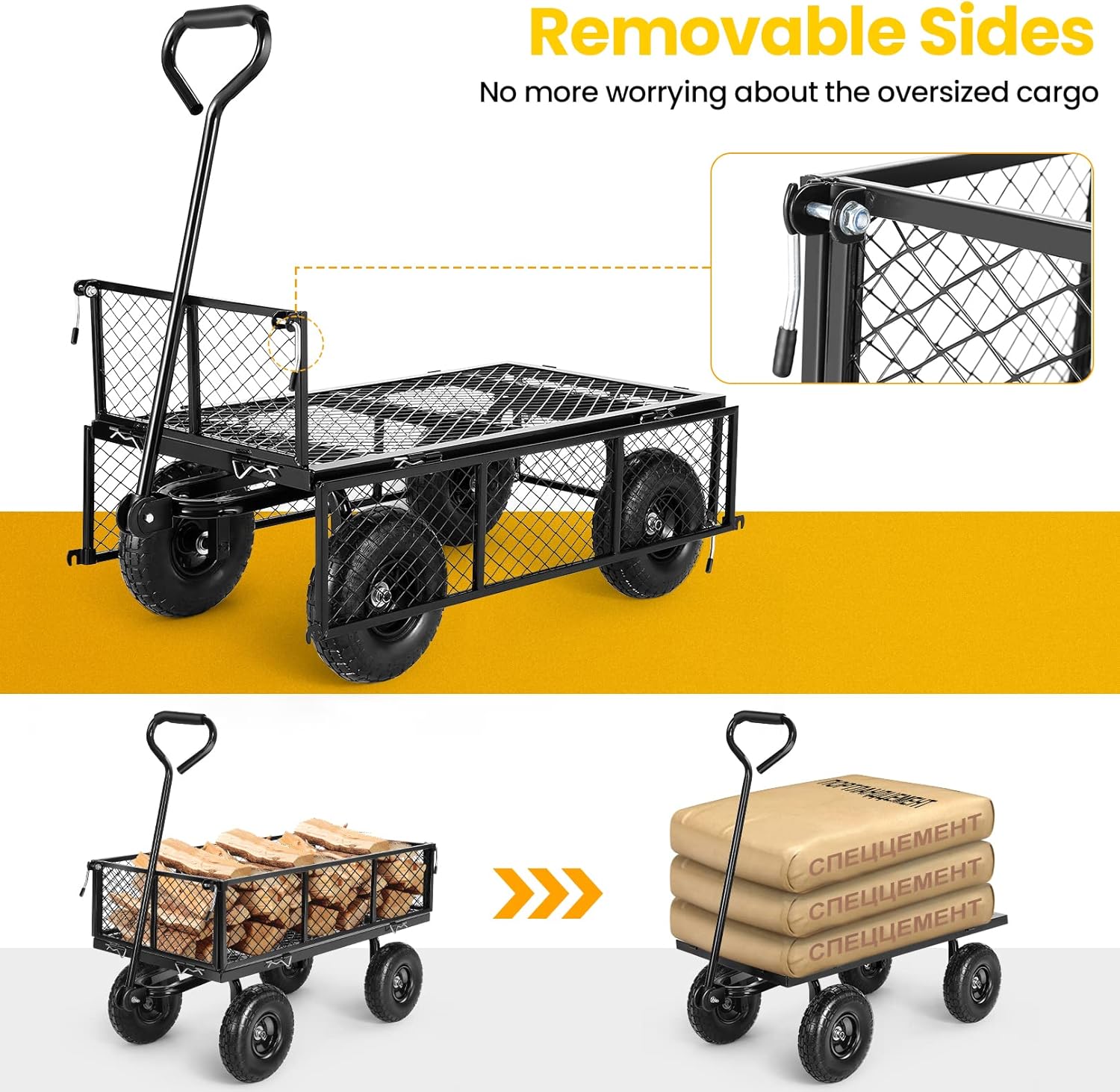

ചിത്രം: Illustration demonstrating the removable side panels of the garden cart. The top right inset shows a close-up of the latch mechanism for detaching the mesh sides. Below, two smaller images show the cart with sides for carrying wood and without sides for larger items like cement bags.

Step 4: Attach the Handle Assembly

Connect the 180° rotating handle to the front of the cart. Ensure the pivot points are securely fastened, allowing for smooth rotation.

ചിത്രം: Depiction of the garden cart's 180° adjustable handle. The main image shows the handle rotating through various positions. Insets highlight the rubber handlebar grip and the connection point to the cart's lever mechanism.

പ്രവർത്തന നിർദ്ദേശങ്ങൾ

Loading the Cart

• ഭാരം ശേഷി: പരമാവധി ലോഡ് 550 പൗണ്ട് (250 കി.ഗ്രാം) കവിയരുത്.
• ലോഡ് വിതരണം: Place heavier items in the center of the cart to maintain balance and stability.
• Detachable Sides: For oversized items like long lumber or large bags, the mesh side panels can be removed by unlatching them. Reattach them for smaller, loose items to prevent spillage.

ചിത്രം: The Homdox PGD750 Garden Cart shown from an elevated angle, loaded with various gardening tools, flower pots, and a garden hose. The mesh sides are in place, containing the items securely.

Pulling and Maneuvering

• ക്രമീകരണം കൈകാര്യം ചെയ്യുക: The handle can rotate 180° up and down. Adjust it to a comfortable height for pulling, reducing strain.
• ഭൂപ്രദേശം: The 10-inch pneumatic tires are designed for various terrains including gravel, highway, muddy roads, and sand. Pull the cart slowly and carefully over rough or uneven surfaces.
• തിരിയുന്നു: The front axle steering allows for easy maneuvering. Take wide turns when the cart is heavily loaded to prevent tipping.

ചിത്രം: This image illustrates the versatility of the 10-inch pneumatic tires on different surfaces. It shows the cart's wheels with arrows indicating their movement, and small inset pictures depict gravel, highway, muddy road, and beach environments, demonstrating the cart's all-terrain capability.

മെയിൻ്റനൻസ്

• വൃത്തിയാക്കൽ: After each use, especially when transporting dirt or wet materials, clean the cart with water and a mild detergent. Dry thoroughly to prevent rust.
• ലൂബ്രിക്കേഷൻ: Periodically lubricate the axle bearings and handle pivot points with a general-purpose grease or oil to ensure smooth operation.
• ടയർ മർദ്ദം: Check the tire pressure regularly. Maintain the recommended pressure (usually indicated on the tire sidewall) for optimal performance and longevity.
• ഹാർഡ്‌വെയർ പരിശോധന: Regularly inspect all bolts, nuts, and pins for tightness. Tighten any loose fasteners to ensure structural integrity.
• സംഭരണം: Store the cart in a dry, covered area to protect it from weather elements, which can cause rust and material degradation.

ട്രബിൾഷൂട്ടിംഗ്

സ്പെസിഫിക്കേഷനുകൾ

• മോഡൽ: PGD750
• ബ്രാൻഡ്: ഹോംഡോക്സ്
• മെറ്റീരിയൽ: ലോഹം
• നിറം: കറുപ്പ്
• ലോഡ് കപ്പാസിറ്റി: 250 കി.ഗ്രാം (550 പൗണ്ട്)
• ഉൽപ്പന്ന അളവുകൾ (L x W x H): ഏകദേശം 40 x 20.2 x 22.5 ഇഞ്ച് (101.6 x 51.3 x 57.15 സെ.മീ)
• ചക്ര തരം: 10 ഇഞ്ച് ന്യൂമാറ്റിക് ടയറുകൾ
• കൈകാര്യം ചെയ്യുക: 180° Rotating Handle with Rubber Grip
• പ്രത്യേക സവിശേഷതകൾ: Detachable Mesh Sides, Collapsible (sides), Durable
• ശുപാർശ ചെയ്യുന്ന ഉപയോഗം: Outdoor (Garden, Yard, Beach, Farm)

ചിത്രം: An illustration of the Homdox PGD750 Garden Cart with key dimensions labeled. It shows the overall length of 40 inches, width of 20.2 inches, and height of 22.5 inches (to the top of the mesh sides). The internal bed dimensions are also indicated as 40x20x10 inches.

വാറൻ്റിയും പിന്തുണയും

For warranty information, technical support, or to order replacement parts, please contact Homdox customer service. Refer to your purchase documentation for specific warranty terms and contact details.

കുറിപ്പ്: If you encounter issues such as missing parts or require further assistance, please refer to your retailer's (e.g., Amazon) return and support policies as an alternative.
