IKIER K1 Pro Max 48W Laser Engraver with R2 Rotary Module User Manual

1. ആമുഖം

The IKIER K1 Pro Max is an advanced laser engraving and cutting machine designed for precision and efficiency. Featuring a powerful 48W laser module, it offers high-speed operation up to 900 mm/s and includes innovative functionalities such as automatic focus, continuous engraving, and a robust cooling system. This manual provides essential information for the safe and effective use of your device.

2 സുരക്ഷാ വിവരങ്ങൾ

WARNING: Laser radiation can be dangerous. Always wear appropriate laser safety glasses when operating the machine. Never look directly into the laser beam. Ensure proper ventilation during operation.

• നേത്ര സംരക്ഷണം: Always wear certified laser safety glasses to protect your eyes from direct or reflected laser light.
• വെൻ്റിലേഷൻ: Operate the machine in a well-ventilated area to dissipate fumes and smoke produced during engraving or cutting.
• മേൽനോട്ടം: പ്രവർത്തന സമയത്ത് യന്ത്രം ശ്രദ്ധിക്കാതെ വിടരുത്.
• കത്തുന്ന വസ്തുക്കൾ: Avoid placing flammable materials near the laser path.
• അടിയന്തരമായി നിർത്തുക: Familiarize yourself with the emergency stop button location.

സംയോജിത സുരക്ഷാ സവിശേഷതകൾ:

• ടിൽറ്റ് ഡിറ്റക്ഷൻ: The machine automatically stops if tilted more than 15 degrees, preventing unintended laser operation.
• ജ്വാല കണ്ടെത്തൽ: An integrated sensor detects open flames directly below the laser module, triggering an alarm and returning the module to its origin.
• സുരക്ഷാ ലോക്ക്: A physical key lock prevents unauthorized use.
• Omnidirectional Limit Switch: Ensures the laser module operates within safe boundaries.

ചിത്രം 1: ഓവർview of IKIER K1 Pro Max Safety Protections and Working Modes.

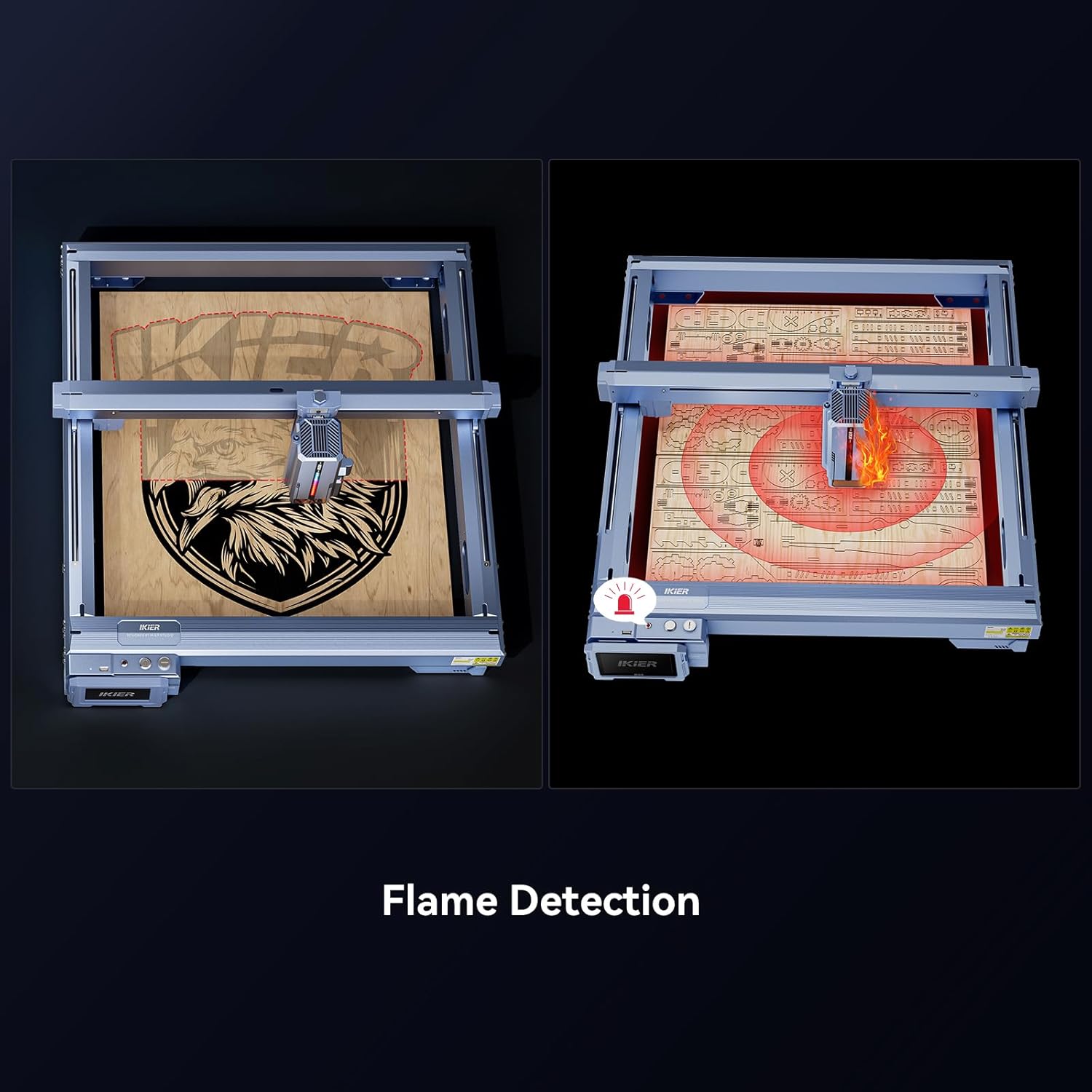

Figure 2: Flame Detection in action, showing the laser module detecting an open flame.

3. സജ്ജീകരണം

The IKIER K1 Pro Max is designed for easy setup, with most components pre-assembled. Follow these general steps for initial setup:

1. അൺബോക്സിംഗ്: പാക്കേജിംഗിൽ നിന്ന് എല്ലാ ഘടകങ്ങളും ശ്രദ്ധാപൂർവ്വം നീക്കം ചെയ്യുക. പാക്കിംഗ് ലിസ്റ്റിൽ ലിസ്റ്റ് ചെയ്തിരിക്കുന്ന എല്ലാ ഭാഗങ്ങളും ഉണ്ടെന്ന് ഉറപ്പാക്കുക.
2. അസംബ്ലി: Attach the X-axis to the main frame. Ensure all connections are secure.
3. പവർ കണക്ഷൻ: പവർ അഡാപ്റ്റർ മെഷീനിലേക്കും അനുയോജ്യമായ ഒരു പവർ ഔട്ട്‌ലെറ്റിലേക്കും ബന്ധിപ്പിക്കുക.
4. ഡാറ്റ കണക്ഷൻ: Connect the machine to your computer via USB or prepare for offline operation using a USB drive.

Figure 3: IKIER K1 Pro Max Laser Engraver with included accessories.

4. പ്രവർത്തന നിർദ്ദേശങ്ങൾ

4.1 Power Modes (48W/24W)

The IKIER K1 Pro Max features a switchable laser power module, allowing you to optimize performance for different tasks:

• 48W മോഡ്: Ideal for powerful cutting tasks, providing maximum laser intensity.
• 24W മോഡ്: Suitable for fine engraving, offering a smaller laser spot for delicate work.

A dedicated button on the laser module allows for easy switching between these modes.

Figure 4: Switchable Power Mode illustration with varying laser spot sizes.

Figure 5: Comparison of Engraving Mode (24W) and Cutting Mode (48W).

4.2 Autofocus & Auto Air Assist

The K1 Pro Max is equipped with an electric lift for automatic focusing and integrated auto air assist:

• ഓട്ടോഫോക്കസ്: The electric lift automatically adjusts the laser module height to achieve optimal focus with a single touch, ensuring precision and efficiency.
• Auto Air Assist: Automatically controls airflow during cutting, improving cut quality and reducing charring.

Figure 6: Autofocus and Auto Air Assist features.

4.3 Continuous Engraving

This feature allows the machine to resume an engraving task after an unexpected interruption, such as a power outage. To use this function, save your project files to a USB drive and connect it to the machine's 4.3-inch touchscreen for offline operation. Ensure the 'Auto-home startup' setting is turned off in your software (e.g., LightBurn) to prevent interference with this function.

4.4 Auxiliary Positioning

The auxiliary positioning feature uses a red cross laser to indicate the precise focus position of the laser, aiding in accurate material placement and job setup. This is particularly useful for ensuring your design is placed exactly where intended on your material.

4.5 Sinking Cutting

Sinking cutting allows for deeper cuts by performing multiple passes, gradually lowering the laser module. This is effective for thicker materials. The fixed focus distance of the laser module is 8mm. When setting the 'Number of Passes' and 'Z step per pass' in your software, ensure that 'Number of Passes * Z step per pass' is less than 8mm to avoid triggering the limit switch.

Figure 7: Sinking Cutting capability on thick wood.

4.6 കൂളിംഗ് സിസ്റ്റം

The K1 Pro Max incorporates a super cooling system to maintain optimal performance and extend the lifespan of the laser module. It features an innovative dual air duct design with four high-quality copper tubes for thermal conduction, two rows of large fins, and a high-power fan for maximum heat dissipation.

ചിത്രം 8: ആന്തരിക view of the laser module's heat dissipation system.

4.7 പ്രവർത്തന രീതികൾ

The machine offers three distinct working modes to suit various project requirements:

• High-speed Mode: For rapid engraving and cutting, reaching speeds up to 900 mm/s.
• സമതുലിതമായ മോഡ്: The universal default mode, offering a good balance between speed and precision.
• High-precision Mode: For intricate details and superior accuracy in engraving.

4.8 സോഫ്റ്റ്‌വെയർ അനുയോജ്യത

The IKIER K1 Pro Max is compatible with popular laser control software such as LightBurn and LaserGRBL. Refer to the software's documentation for detailed instructions on creating and executing laser projects.

5. പരിപാലനം

പതിവ് അറ്റകുറ്റപ്പണികൾ നിങ്ങളുടെ ലേസർ എൻഗ്രേവറിന്റെ ദീർഘായുസ്സും മികച്ച പ്രകടനവും ഉറപ്പാക്കുന്നു:

• ലേസർ ലെൻസ് വൃത്തിയാക്കുക: Periodically clean the laser lens with a soft, lint-free cloth and appropriate lens cleaning solution.
• ചലിക്കുന്ന ഭാഗങ്ങൾ ലൂബ്രിക്കേറ്റ് ചെയ്യുക: Apply a small amount of lubricant to the linear rails and lead screws to ensure smooth movement.
• കണക്ഷനുകൾ പരിശോധിക്കുക: Regularly inspect all electrical and data connections for tightness and wear.
• പരിസരം വൃത്തിയായി സൂക്ഷിക്കുക: Ensure the work area is free of dust and debris, which can affect machine performance.

6. പ്രശ്‌നപരിഹാരം

If you encounter issues with your IKIER K1 Pro Max, consider the following common troubleshooting steps:

• മെഷീൻ പ്രവർത്തിക്കുന്നില്ല: Check all power connections and ensure the power switch is in the 'On' position. Verify the power outlet is functional.
• ലേസർ വെടിവയ്ക്കുന്നില്ല: Ensure the security key is inserted and turned to the 'On' position. Check software settings for laser power and speed.
• Engraving Deviation: Ensure the material is securely fixed and the machine is stable. Check for any loose belts or mechanical components.
• Tilt Detection Alarm: If the machine prompts 'The machine is tilted', place it on a flat, stable surface and tap 'OK' on the screen to dismiss the alarm.
• Flame Detection Alarm: If 'Flame detected' appears, ensure there is no open flame near the laser module. Restart the machine if necessary after clearing the area.
• ഓട്ടോഫോക്കസ് പ്രശ്നങ്ങൾ: Ensure the laser module can physically touch the object within its effective stroke. Keep a distance of at least 5mm between the laser slider and the base.

For more detailed troubleshooting or persistent issues, please refer to the official IKIER support resources.

7 സ്പെസിഫിക്കേഷനുകൾ

8. വാറണ്ടിയും പിന്തുണയും

IKIER is committed to providing quality products and customer satisfaction.

• തിരികെ നൽകൽ നയം: വാങ്ങിയതിന് 31 ദിവസത്തിനുള്ളിൽ ഉൽപ്പന്നം റീഫണ്ടിനോ മാറ്റിസ്ഥാപിക്കലിനോ അർഹമാണ്.
• ഉപഭോക്തൃ പിന്തുണ: For technical assistance, troubleshooting, or warranty inquiries, please visit the official IKIER website or utilize their online chat support for quick responses.
