Andeman Level 2 EV Charger User Manual

ആമുഖം

Thank you for choosing the Andeman Level 2 EV Charger. This portable 240V charger is designed to provide efficient and reliable charging for your electric and hybrid vehicles, featuring a SAE-J1772 connector and NEMA 14-50 plug. With adjustable current settings, smart app control, and robust safety features, this manual will guide you through its setup, operation, and maintenance to ensure optimal performance and longevity.

Image: The Andeman Level 2 EV Charger, showcasing the main control unit, the J1772 charging plug, and a compact carrying case. An accompanying smartphone screen displays the charger's smart app interface.

സുരക്ഷാ വിവരങ്ങൾ

Please read all safety warnings and instructions carefully before installation and use. Failure to follow these instructions may result in electric shock, fire, or serious injury.

• Ensure the electrical outlet and wiring are suitable for the charger's specifications (240V, 32A). Consult a qualified electrician if unsure.
• Do not use the charger if the cable, plug, or charging connector is damaged.
• Keep the charger and cables away from water, flammable materials, and extreme temperatures. The unit is IP66 waterproof, but proper care is still essential.
• Do not attempt to disassemble or repair the charger. Contact customer support for assistance.
• Always ensure the charging connector is fully inserted into the vehicle's charging port before initiating charging.
• The charger includes overheating protection. If the unit becomes excessively hot, it will automatically reduce power or stop charging.

Image: Visual representation of the charger's durability, highlighting its ability to withstand extreme temperatures (50°C and -30°C), IP66 waterproof rating, and integrated overheating protection.

ഉൽപ്പന്ന സവിശേഷതകൾ

• ഫാസ്റ്റ് ചാർജിംഗ്: Delivers up to 7.68kW (32A) for rapid charging, significantly reducing charging times compared to Level 1 chargers.


ചിത്രം: സ്പീഡ് അഡ്വാൻസിനെ ചിത്രീകരിക്കുന്ന ഒരു ഗ്രാഫിക്tage of the Andeman Level 2 EV Charger, showing it charges up to 9 times faster than a typical Level 1 charger, adding approximately 29 miles of range per hour.

• ക്രമീകരിക്കാവുന്ന കറന്റ്: Current can be adjusted between 8-32 Amps to match your electrical circuit capacity and prevent overloads.


Image: A visual demonstrating the adjustable current feature of the charger, with options ranging from 8A to 32A, and corresponding miles per hour of charge.

• സാർവത്രിക അനുയോജ്യത: Equipped with a standard SAE J1772 plug, compatible with most electric and hybrid vehicles. (Note: Tesla vehicles require an additional adapter, not included).


Image: An illustration showing the SAE J1772 plug and its compatibility with various electric vehicle brands such as Tesla (with adapter), Chevrolet, Ford, Rivian, Lucid, Porsche, BMW, and Nissan.

• സ്മാർട്ട് ആപ്പ് നിയന്ത്രണം: Connect via WiFi for remote control, scheduled charging, current adjustment, charging time management, and real-time monitoring of charging status and statistics.

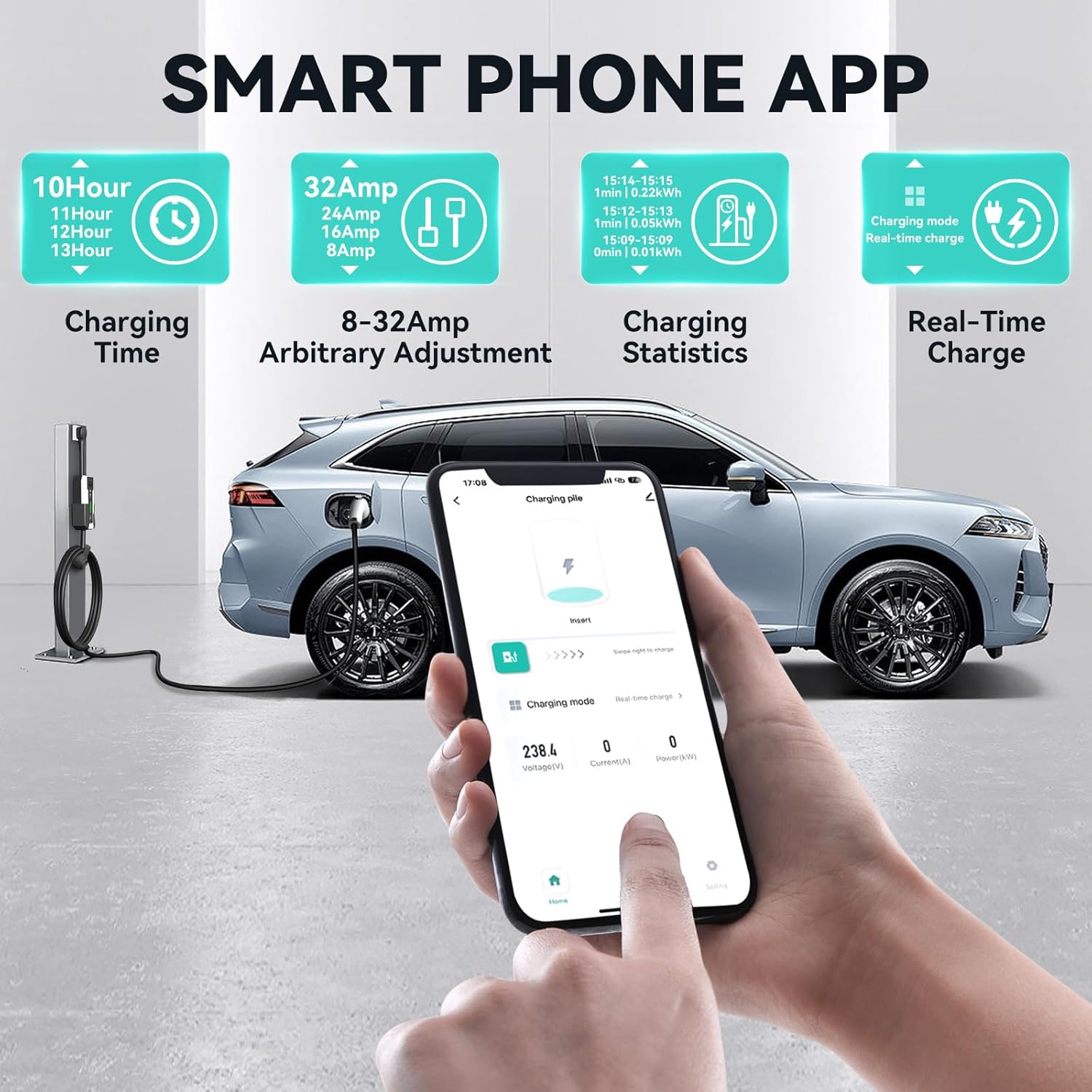

Image: A smartphone displaying the Andeman EV charger app interface, showing features like charging time, arbitrary amperage adjustment (8-32A), charging statistics, and real-time charge status.

• 25 FT Cable: നൽകുന്നു ample reach for convenient charging in various locations, whether indoors or outdoors.


ചിത്രം: ഒരു ഓവർഹെഡ് view illustrating the convenience of the 25-foot charging cable, allowing the EV charger to reach vehicles parked at a distance.

• പോർട്ടബിൾ ഡിസൈൻ: Easy to store and carry, making it suitable for both home charging stations and mobile use at campsites or during fieldwork.


Image: Two scenarios demonstrating the charger's versatility: as a fixed EV charging station at home or a parking lot, and as a mobile EV charger for use at camp sites, picnics, or fieldwork.

സജ്ജമാക്കുക

1. ഫിസിക്കൽ ഇൻസ്റ്റലേഷൻ

1. ലൊക്കേഷൻ തിരഞ്ഞെടുക്കുക: Select a dry, well-ventilated area near a NEMA 14-50 outlet. Ensure the 25 FT cable can comfortably reach your vehicle's charging port.
2. മൗണ്ടിംഗ് (ഓപ്ഷണൽ): The charger can be mounted to a wall using appropriate hardware (not included) for a permanent charging station setup. Ensure the mounting surface is sturdy enough to support the charger's weight.
3. പവറിലേക്ക് ബന്ധിപ്പിക്കുക: Plug the NEMA 14-50 plug into a dedicated 240V NEMA 14-50 outlet. The charger's display should illuminate.

2. Smart APP Installation & Connection

1. അപ്ലിക്കേഷൻ ഡൗൺലോഡുചെയ്യുക: Scan the QR code provided in the charger's packaging or search for "Andeman EV Charger" (or similar, check packaging for exact name) in your smartphone's app store (iOS/Android).
2. രജിസ്റ്റർ ചെയ്യുക/ലോഗിൻ ചെയ്യുക: ഒരു അക്കൗണ്ട് സൃഷ്‌ടിക്കുക അല്ലെങ്കിൽ നിങ്ങൾക്ക് ഇതിനകം ഒന്ന് ഉണ്ടെങ്കിൽ ലോഗിൻ ചെയ്യുക.
3. ഉപകരണം ചേർക്കുക: Follow the in-app instructions to add your EV charger. This typically involves putting the charger into pairing mode (refer to charger display or physical buttons for specific instructions) and connecting it to your home WiFi network.
4. കണക്ഷൻ സ്ഥിരീകരിക്കുക: Once connected, the app should display the charger's status, and you should be able to control it remotely.

Video: This video demonstrates the key features of the Andeman EV charger's smart app, including setting charging schedules, adjusting current, and tracking historical charging data. It highlights how the app enhances user control and monitoring of the charging process.

പ്രവർത്തന നിർദ്ദേശങ്ങൾ

1. Starting a Charge (Plug-and-Charge Mode)

1. Ensure the charger is powered on and connected to your NEMA 14-50 outlet.
2. Open your vehicle's charging port.
3. Firmly insert the SAE J1772 charging connector into your vehicle's charging port until it clicks into place.
4. The charger will automatically detect the vehicle and begin charging. The display will show real-time charging data (voltage, current, power, time).

2. കറന്റ് ക്രമീകരിക്കൽ

• ആപ്പ് വഴി: Open the Andeman EV Charger app. Navigate to the current adjustment section. Select your desired amperage (8A-32A) and confirm. (Note: Current adjustment is typically available in standby mode, before charging begins).
• Via Charger Button: The charger unit may have a physical button to cycle through preset amperage settings (e.g., 16A, 24A, 32A). Refer to the charger's display for the current setting.

3. Scheduled Charging (Via App)

1. Connect the charger to your vehicle.
2. In the Andeman EV Charger app, select the "Delayed Charging" or "Scheduled Charging" option.
3. Set the desired start time or delay duration. This feature is useful for charging during off-peak electricity hours to save costs.
4. Confirm your settings. The charger will wait until the scheduled time to begin charging.

4. Stopping a Charge

• Via Vehicle: Most EVs allow you to stop charging from within the vehicle's infotainment system or companion app.
• Via Charger Button: Press the stop/power button on the charger unit.
• ആപ്പ് വഴി: Use the "Click to turn off the power" or similar button in the app.
• Once charging has stopped, safely disconnect the charging connector from your vehicle.

മെയിൻ്റനൻസ്

• വൃത്തിയാക്കൽ: Regularly wipe the charger unit and cables with a soft, dry cloth. Do not use abrasive cleaners or solvents. Ensure the unit is unplugged before cleaning.
• കേബിൾ കെയർ: Avoid kinking, twisting, or driving over the charging cable. Store the cable neatly when not in use to prevent damage.
• സംഭരണം: When not in use for extended periods, store the charger in a cool, dry place, ideally in its original carrying case.
• പരിശോധന: Periodically inspect the plug, cable, and charging connector for any signs of wear, damage, or corrosion.

ട്രബിൾഷൂട്ടിംഗ്

സ്പെസിഫിക്കേഷനുകൾ

വാറൻ്റിയും പിന്തുണയും

For warranty information and technical support, please refer to the documentation included with your product or visit the official Andeman website. If you encounter any issues not covered in this manual, please contact Andeman customer service for assistance.

നിങ്ങൾക്ക് സന്ദർശിക്കാനും കഴിയും Andeman Store on Amazon കൂടുതൽ ഉൽപ്പന്ന വിവരങ്ങൾക്കും പിന്തുണാ ഉറവിടങ്ങൾക്കും.
