Tone King Imperial Tube Preamp Pedal with IR and MIDI Instruction Manual

1. ആമുഖവും അവസാനവുംview

The Tone King Imperial All-Tube Preamp pedal is designed to deliver the legendary tones of Tone King's MKII amplifier, encompassing '50s tweed, '60s blackface, and vintage British rock sounds. This compact pedalboard-friendly unit integrates the exact preamp ഇംപീരിയൽ എംകെഐഐയുടെ സെക്ഷൻ, ഫേസ് ഇൻവെർട്ടർ സർക്യൂട്ട് amp. It also includes onboard Reverb, Tremolo, and Attenuation, providing a rich harmonic sound and responsive touch. Powered by three 12AX7 preamp tubes operating at high voltage, the pedal ensures authentic amplifier sound and interaction with your pickups and effects. Advanced features include a low-latency impulse response (IR) loader per channel, headphone output, and MIDI capabilities for seamless integration into modern guitar setups.

പ്രധാന സവിശേഷതകൾ:

• സ്വതന്ത്ര ശക്തി amp simulation with HF Comp and Low-Pass filters.
• Access to 15 included OwnHammer IRs.
• Ability to load custom IRs and manage your IR library.
• Six assignable IR slots (three per channel).
• Comprehensive control over reverb, reverb tails, tremolo, and effects loop bypass settings.

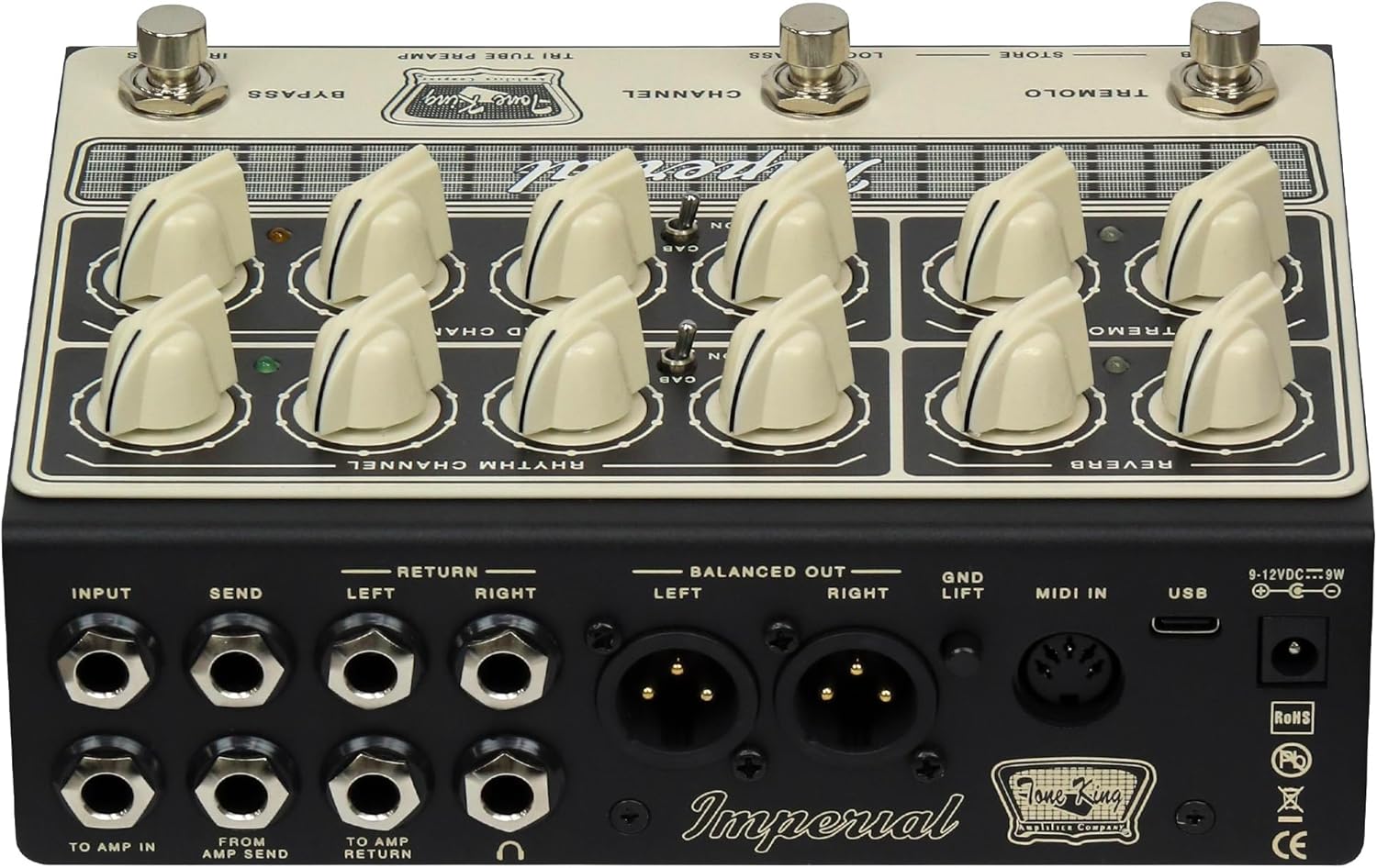

2. സജ്ജീകരണവും കണക്ഷനുകളും

Proper setup ensures optimal performance and sound quality. Follow these steps to connect your Imperial Preamp പെഡൽ:

പവർ കണക്ഷൻ:

• Connect the provided 12V DC power adapter to the '9-12VDC 9W' input jack on the rear panel. Ensure the correct voltage and polarity to prevent damage.

ഓഡിയോ കണക്ഷനുകൾ:

• ഇൻപുട്ട്: Connect your guitar to the 'INPUT' jack on the rear panel.
• ലേക്ക് Amp ഇതിൽ: For connecting to the input of a guitar ampജീവൻ.
• നിന്ന് Amp അയയ്ക്കുക: For connecting from an amplifier's effects send.
• ലേക്ക് Amp മടക്കം: ഒരു കണക്റ്റുചെയ്യുന്നതിന് amplifier's effects return.
• Send (Line Out) / Return: These jacks form an effects loop, allowing you to integrate external effects pedals. The 'Send' jack can also function as a line out.
• Cab Sim (Headphones): Connect headphones to this 3.5mm jack for silent practice with cabinet simulation.
• Speaker Output (8Ω / 16Ω): Connect to a speaker cabinet. Ensure the impedance matches your cabinet (8 or 16 ohms).
• Balanced Out (Left/Right XLR): For connecting to a mixing console, audio interface, or PA system.
• GND ലിഫ്റ്റ്: Use this switch to eliminate ground loop hum when using the balanced outputs.

MIDI, USB:

• MIDI ഇൻ: Connect MIDI devices for external control.
• USB: Connect to a computer for IR management, firmware updates, and deeper editing.

3. പെഡൽ പ്രവർത്തിപ്പിക്കൽ

The Imperial Preamp Pedal offers intuitive controls for shaping your tone. The front panel is divided into sections for Reverb, Tremolo, Rhythm Channel, and Lead Channel, along with footswitches for various functions.

ഫ്രണ്ട് പാനൽ നിയന്ത്രണങ്ങൾ:

• റിവേർബ്: Adjusts the overall reverb level.
• താമസിക്കുക: Controls the decay time of the reverb.
• Tremolo Depth: Sets the intensity of the tremolo effect.
• Tremolo Speed: ട്രെമോലോ ഇഫക്റ്റിൻ്റെ നിരക്ക് ക്രമീകരിക്കുന്നു.
• Attenuation (Rhythm/Lead): Controls the output level of each channel, simulating power amp ശോഷണം.
• Bass (Rhythm): Adjusts the low-frequency response of the Rhythm channel.
• Treble (Rhythm): Adjusts the high-frequency response of the Rhythm channel.
• Volume (Rhythm/Lead): Sets the overall output volume for each channel.
• Mid-Bite (Lead): Shapes the mid-range character of the Lead channel.
• Tone (Lead): Adjusts the overall brightness of the Lead channel.

കാൽ സ്വിച്ചുകൾ:

• റിവേർബ്: റിവേർബ് ഇഫക്റ്റ് ഓൺ/ഓഫ് ടോഗിൾ ചെയ്യുന്നു.
• സ്റ്റോർ: Used to save custom presets and IR assignments.
• ചാനൽ: Switches between the Rhythm and Lead channels.
• Loop Bypass: Engages or bypasses the effects loop.
• IR Bypass: Toggles the Impulse Response loader on/off.

4. വിപുലമായ സവിശേഷതകൾ

Impulse Response (IR) Loader:

The Imperial Preamp Pedal features a powerful, low-latency IR loader. It comes pre-loaded with 15 premium OwnHammer IRs, offering a variety of cabinet emulations. You can also load your own custom IRs via the USB connection and assign them to the pedal's six available slots (three per channel) for quick recall.

Reverb and Tremolo:

The onboard Reverb and Tremolo effects are designed to emulate classic amplifier effects. Adjust the 'Reverb' and 'Dwell' controls to fine-tune your reverb sound, and use 'Depth' and 'Speed' to customize the tremolo effect. The 'Store' footswitch allows you to save your preferred settings.

ഇഫക്റ്റ് ലൂപ്പ്:

The dedicated 'Send' and 'Return' jacks provide a transparent effects loop, allowing you to insert your favorite modulation, delay, or other time-based effects into the signal chain after the preamp section but before the IR loader. The 'Loop Bypass' footswitch offers convenient control.

MIDI Capabilities:

The 'MIDI In' port enables advanced control over the pedal's functions. You can integrate the Imperial Preamp Pedal into a larger MIDI-controlled setup, allowing for remote switching of channels, effects, and other parameters.

ഹെഡ്ഫോൺ ഔട്ട്പുട്ട്:

The 'Cab Sim' output provides a convenient way to practice silently using headphones, delivering a fully processed and cabinet-emulated tone directly to your ears.

ശക്തി Amp അനുകരണം:

The independent power amp simulation features 'HF Comp' and 'Low-Pass' filters, allowing you to fine-tune the high-frequency compression and overall tonal balance, mimicking the characteristics of different power amp വിഭാഗങ്ങൾ.

5. പരിപാലനം

To ensure the longevity and optimal performance of your Tone King Imperial Tube Preamp Pedal, follow these maintenance guidelines:

• വൃത്തിയാക്കൽ: പെഡലിന്റെ പുറംഭാഗം വൃത്തിയാക്കാൻ മൃദുവായതും ഉണങ്ങിയതുമായ തുണി ഉപയോഗിക്കുക. അബ്രസിവ് ക്ലീനറുകളോ ലായകങ്ങളോ ഉപയോഗിക്കുന്നത് ഒഴിവാക്കുക.
• സംഭരണം: Store the pedal in a cool, dry place away from direct sunlight, extreme temperatures, and humidity.
• കൈകാര്യം ചെയ്യൽ: പെഡൽ ശ്രദ്ധയോടെ കൈകാര്യം ചെയ്യുക. അത് താഴെയിടുകയോ ശക്തമായ ആഘാതങ്ങൾക്ക് വിധേയമാക്കുകയോ ചെയ്യരുത്.
• ട്യൂബ് കെയർ: The pedal uses three 12AX7 preamp tubes. While designed for durability, tubes are delicate. If you experience a significant change in tone or excessive noise, a tube replacement may be necessary. Consult a qualified technician for tube replacement.
• വൈദ്യുതി വിതരണം: Always use the specified 12V DC power supply. Using an incorrect power supply can damage the unit and void the warranty.

6. പ്രശ്‌നപരിഹാരം

If you encounter issues with your Imperial Preamp Pedal, try the following troubleshooting steps:

• ശക്തിയില്ല: Ensure the 12V DC power adapter is securely connected to both the pedal and a working power outlet. Check the power outlet with another device.
• ശബ്ദമില്ല: Verify all audio cables are correctly connected. Check your guitar, amplifier, and other pedals in the signal chain. Ensure the 'Volume' knobs on both channels are not set to zero. If using headphones, ensure they are plugged into the 'Cab Sim' jack and the volume is adequate.
• ഹം അല്ലെങ്കിൽ ശബ്ദം: Check all cable connections for proper seating. If using balanced outputs, try engaging the 'GND Lift' switch. Ensure your power supply is not faulty and is providing clean power.
• Unexpected Tone: Check the settings of all knobs and footswitches. Ensure the correct IR is selected and loaded. If using the effects loop, bypass it to determine if an external pedal is causing the issue.
• ഫുട്‌സ്വിച്ച് തകരാർ: Ensure the footswitch is clean and free from debris. If a footswitch is unresponsive, try restarting the pedal.
• IR Loading Issues: Refer to the detailed instructions in the full user manual for loading custom IRs via USB. Ensure the correct file format and size are used.

If problems persist, contact Tone King customer support or an authorized service center.

7 സ്പെസിഫിക്കേഷനുകൾ

8. വാറൻ്റിയും പിന്തുണയും

For warranty claims and technical support, it is crucial to purchase your Tone King Imperial Tube Preamp Pedal from an authorized dealer. Warranties may be invalidated if the product is not purchased through official channels.

Tone King does not offer direct repair services. In the event of a malfunction, especially concerning internal components like the circuit board, you will need to rely on your warranty through an authorized dealer or seek independent repair services if the warranty is not applicable.

Always retain your proof of purchase from an authorized dealer to ensure warranty eligibility.
