ആമുഖം
The STRONG POWERL600DUOMINI Mini Duo Powerline Kit provides a high-speed home network solution by utilizing your existing electrical wiring. This kit includes two adapters, enabling you to extend your internet connection to any room with a power outlet, eliminating the need for new network cables. It supports speeds up to 600 Mbit/s, making it suitable for IPTV, HD video streaming, and online gaming.
പാക്കേജ് ഉള്ളടക്കം
ആരംഭിക്കുന്നതിന് മുമ്പ്, നിങ്ങളുടെ പാക്കേജിൽ എല്ലാ ഇനങ്ങളും ഉണ്ടെന്ന് ദയവായി പരിശോധിക്കുക:
- 2 x STRONG Powerline 600 Mini Adapters
- 2 x Ethernet Cables
- 1 x ദ്രുത ഇൻസ്റ്റലേഷൻ ഗൈഡ്
Image: The STRONG Powerline 600 Mini Duo Kit, showing both adapters and the included Ethernet cables.
സജ്ജീകരണ ഗൈഡ്
Follow these simple steps to set up your Powerline network:
Step 1: Connect the First Adapter
- Plug one STRONG Powerline 600 Mini Adapter into a power outlet near your internet router or modem.
- Connect one end of an Ethernet cable to the LAN port on the Powerline adapter.
- Connect the other end of the Ethernet cable to an available LAN port on your router or modem.
Image: Close-up of the bottom of a Powerline adapter, highlighting the Ethernet LAN port for connection.
Step 2: Connect the Second Adapter
- Plug the second STRONG Powerline 600 Mini Adapter into a power outlet in the room where you need internet access (e.g., near your computer, smart TV, or game console).
- Wait for the Powerline LED indicator (house icon) on both adapters to turn solid green, indicating a successful connection.
- Connect your device (computer, smart TV, etc.) to the LAN port of the second Powerline adapter using the second Ethernet cable.

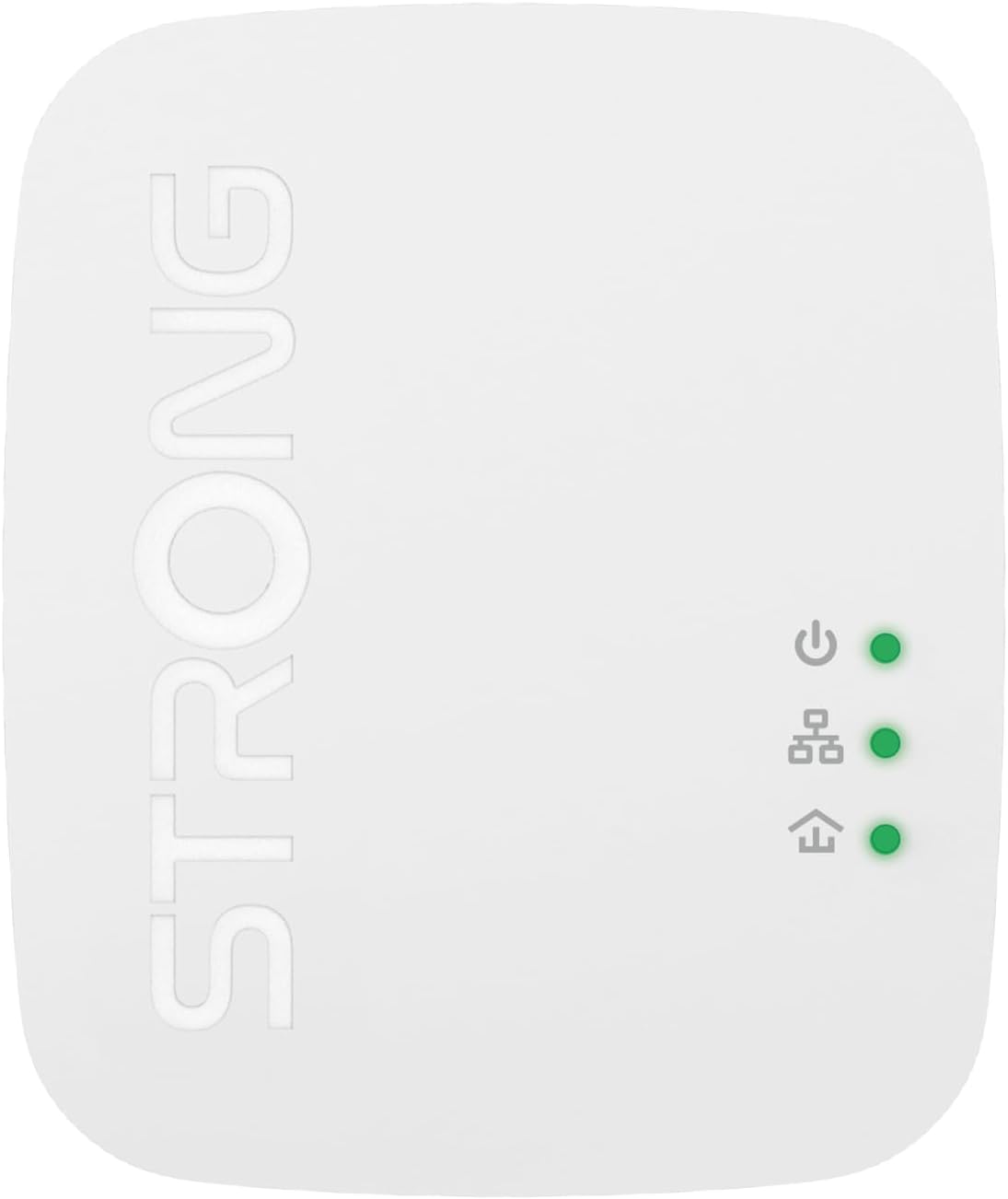

ചിത്രം: മുകളിൽ view of a Powerline adapter, displaying the power, Powerline (house), and Ethernet LED indicators.
Step 3: Secure Your Network (Optional)
For enhanced security, you can encrypt your Powerline network:
- Press the "PAIR/RST" button on the side of the first Powerline adapter for 1 second. The Power LED will start blinking.
- Within 2 minutes, press the "PAIR/RST" button on the second Powerline adapter for 1 second. The Power LED will also start blinking.
- Both adapters will automatically establish a secure, encrypted connection. The Power LED will stop blinking and remain solid.
ചിത്രം: വശം view of the Powerline adapter, highlighting the recessed PAIR/RST button for pairing and resetting.
പ്രവർത്തന നിർദ്ദേശങ്ങൾ
Once set up, your Powerline network operates automatically. Here are some key operational aspects:
- പ്ലഗ് & പ്ലേ: The Powerline adapters are designed for immediate use after initial setup. No additional software or configuration is typically required.
- LED സൂചകങ്ങൾ:
- Power LED (top): Indicates power status. Solid green means powered on. Blinking indicates pairing mode.
- Powerline LED (middle, house icon): Indicates Powerline network status. Solid green means a strong connection. Blinking indicates data transfer. Off means no Powerline connection.
- Ethernet LED (bottom, arrow icon): Indicates Ethernet connection status. Solid green means a device is connected via Ethernet. Blinking indicates data transfer. Off means no Ethernet connection.
- പവർ സേവിംഗ് മോഡ്: The adapters automatically enter a power-saving mode when no data activity is detected for a period, reducing power consumption by up to 85%.
ചിത്രം: ഒരു ആംഗിൾ view of the Powerline adapter, clearly showing the three LED indicators and their positions.
മെയിൻ്റനൻസ്
To ensure optimal performance and longevity of your STRONG Powerline Kit, consider the following maintenance tips:
- വൃത്തിയാക്കൽ: Gently wipe the adapters with a soft, dry cloth. Do not use liquid cleaners or aerosols.
- വെൻ്റിലേഷൻ: Ensure the adapters are plugged into outlets that allow for proper airflow around the device. Do not cover the ventilation slots.
- Direct Outlet Connection: For best performance, plug the Powerline adapters directly into a wall outlet. Avoid using power strips, extension cords, or surge protectors, as these can interfere with Powerline signal quality.
- ഫേംവെയർ അപ്ഡേറ്റുകൾ: Periodically check the Strong official website for any available firmware updates for your model. Updates can improve performance and stability.
ചിത്രം: സൈഡ് പ്രോfile of the Powerline adapter, illustrating the ventilation slots designed for heat dissipation.
ട്രബിൾഷൂട്ടിംഗ്
If you encounter issues with your Powerline Kit, refer to the following common problems and solutions:
| പ്രശ്നം | സാധ്യമായ കാരണം | പരിഹാരം |
|---|---|---|
| No Powerline connection (Powerline LED is off) | Adapters are not on the same electrical circuit, or signal interference. |
|
| വേഗത കുറഞ്ഞ നെറ്റ്വർക്ക് വേഗത | Electrical interference, distance, or network congestion. |
|
| No internet access on connected device | Ethernet cable issue, router problem, or adapter not receiving internet. |
|
സ്പെസിഫിക്കേഷനുകൾ
| ഫീച്ചർ | വിശദാംശങ്ങൾ |
|---|---|
| മോഡൽ നമ്പർ | POWERL600DUOMINI |
| ഡാറ്റ കൈമാറ്റ നിരക്ക് | 600 Mbps വരെ |
| ഹാർഡ്വെയർ ഇന്റർഫേസ് | Ethernet (1x LAN port per adapter) |
| ഡാറ്റ ലിങ്ക് പ്രോട്ടോക്കോൾ | ഇഥർനെറ്റ് |
| കവറേജ് | Up to 300 meters on electrical circuit |
| സുരക്ഷ | 128- ബിറ്റ് AES എൻക്രിപ്ഷൻ |
| പവർ സേവിംഗ് | Automatic power saving mode (up to 85% reduction) |
| അളവുകൾ (L x W x H) | 7.48 x 2.24 x 5.51 ഇഞ്ച് (ഏകദേശം) |
| ഇനത്തിൻ്റെ ഭാരം | 2.79 ഔൺസ് (ഏകദേശം 79 ഗ്രാം) |
| നിറം | വെള്ള |
| അനുയോജ്യമായ ഉപകരണങ്ങൾ | Desktop computers, laptops, smart TVs, game consoles, etc. |
വാറൻ്റിയും പിന്തുണയും
STRONG products are designed for reliability and performance. For information regarding warranty coverage, technical support, or to download the latest drivers and firmware, please visit the official STRONG webസൈറ്റ്:
When contacting support, please have your product model number (POWERL600DUOMINI) and purchase information ready.
