CKLMMC Queen Size Murphy Bed Instruction Manual

Model: Murphy Bed | Brand: CKLMMC

1. ആമുഖം

This manual provides detailed instructions for the assembly, operation, and maintenance of your CKLMMC Queen Size Murphy Bed. Designed for versatility, this bed transforms from a compact cabinet into a comfortable sleeping solution, ideal for multi-purpose rooms. It features a built-in USB charging module and convenient movable side desks.

CKLMMC Queen Size Murphy Bed in open position, showing a mattress and bedding, with a USB port and movable shelf visible.

Image 1.1: The CKLMMC Queen Size Murphy Bed in its fully extended, open position, ready for use. Note the integrated USB port and the pull-out side shelf.

2 സുരക്ഷാ വിവരങ്ങൾ

Please read and adhere to all safety warnings to ensure safe operation and prevent injury or damage.

3. ഘടകങ്ങളും പാക്കേജ് ഉള്ളടക്കങ്ങളും

അസംബ്ലി ആരംഭിക്കുന്നതിന് മുമ്പ് താഴെ ലിസ്റ്റ് ചെയ്തിരിക്കുന്ന എല്ലാ ഘടകങ്ങളും നിലവിലുണ്ടെന്ന് ഉറപ്പാക്കുക. ഏതെങ്കിലും ഭാഗങ്ങൾ നഷ്ടപ്പെട്ടാലോ കേടുപാടുകൾ സംഭവിച്ചാലോ, ഉപഭോക്തൃ പിന്തുണയുമായി ബന്ധപ്പെടുക.

Diagram showing the dimensions of the CKLMMC Queen Size Murphy Bed in its open configuration.

Image 3.1: Dimensional diagram of the Murphy bed, illustrating key measurements for planning and assembly.

4. സജ്ജീകരണവും അസംബ്ലിയും

Assembly is required for this product. While designed for easy assembly, it is recommended to have two people for certain steps. Ensure you have ample space and all tools provided or required before starting.

  1. ഘടകങ്ങൾ അൺപാക്ക് ചെയ്യുക: Carefully remove all parts from the packaging and lay them out on a clean, soft surface to prevent scratches. Identify each part using the provided parts list.
  2. Assemble Main Cabinet: Follow the step-by-step instructions in the included installation manual to construct the primary cabinet structure. Ensure all connections are secure.
  3. Install Bed Frame: Attach the bed frame components, including slats and support legs, to the main cabinet. Pay close attention to hinge and locking mechanisms.
  4. Attach Movable Desks: Secure the movable side desks to their designated runners on the cabinet. Test their smooth operation.
  5. Connect USB Module: Ensure the built-in dual power/USB module is correctly installed and connected according to electrical safety guidelines.
  6. അന്തിമ പരിശോധനകൾ: Once assembled, gently test the transformation mechanism to ensure it operates smoothly and securely. Verify all screws and bolts are tightened.

Note: A mattress is not included with this product.

Partially assembled CKLMMC Murphy Bed showing the internal bed frame and side shelves.

ചിത്രം 4.1: View of the Murphy bed during assembly, highlighting the internal bed frame structure and the mechanism for the pull-out side shelves.

5. പ്രവർത്തന നിർദ്ദേശങ്ങൾ

This section details how to transform and utilize the features of your Murphy bed.

5.1 Transforming the Bed

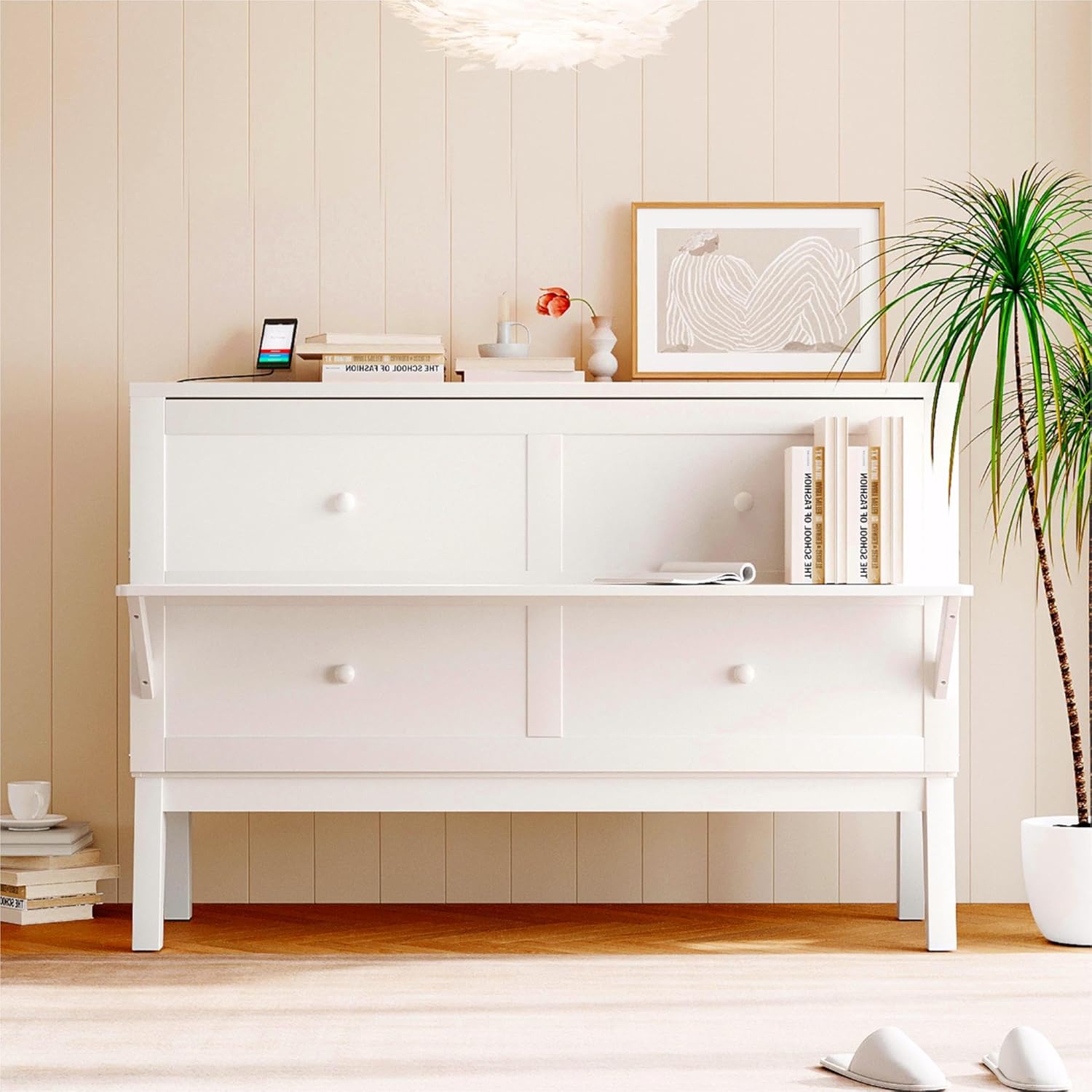

CKLMMC Queen Size Murphy Bed in its closed cabinet form, appearing as a stylish piece of furniture.

Image 5.1: The Murphy bed in its compact, closed cabinet configuration, blending seamlessly into a room.

5.2 Using the Built-in Dual Power/USB Module

The Murphy bed is equipped with a power and USB charging module for convenience.

ക്ലോസ് അപ്പ് view of the built-in dual power and USB charging module on the side of the Murphy bed cabinet.

ചിത്രം 5.2: വിശദമായത് view of the integrated power and USB charging module, providing convenient access to power.

5.3 Utilizing the Movable Desks/Shelves

The bed features two movable desks located beside the headboard, which can be slid in and out.

ക്ലോസ് അപ്പ് view of the pull-out movable side desk on the CKLMMC Murphy Bed, showing the sliding mechanism.

Image 5.3: Close-up of the movable side desk, demonstrating its pull-out functionality and the smooth sliding mechanism.

6. പരിപാലനവും പരിചരണവും

Proper care will extend the life and appearance of your Murphy bed.
