1. ആമുഖം
Thank you for choosing the VGR V-669 Premium Metal Housing Salon Series Pro Li Outliner Cordless Hair Clipper. This manual provides essential information for the safe and effective use, maintenance, and troubleshooting of your new hair clipper. Please read it thoroughly before first use and keep it for future reference.

Image 1.1: VGR V-669 Hair Clipper with included accessories and packaging.
2 സുരക്ഷാ വിവരങ്ങൾ
വൈദ്യുതാഘാതം, പരിക്ക് അല്ലെങ്കിൽ തീപിടുത്തം എന്നിവയുടെ അപകടസാധ്യത കുറയ്ക്കുന്നതിന്, എല്ലായ്പ്പോഴും ഈ അടിസ്ഥാന സുരക്ഷാ മുൻകരുതലുകൾ പാലിക്കുക:
- Do not immerse the clipper in water or other liquids.
- Keep the appliance away from water sources when charging or in use.
- Do not use the clipper if it has a damaged cord or plug, or if it is not working properly.
- മേൽനോട്ടമോ നിർദ്ദേശമോ നൽകിയിട്ടില്ലെങ്കിൽ, ശാരീരികമോ ഇന്ദ്രിയപരമോ മാനസികമോ ആയ കഴിവുകൾ കുറഞ്ഞവർ, അല്ലെങ്കിൽ അനുഭവപരിചയമോ അറിവോ ഇല്ലാത്തവർ എന്നിവർക്ക് ഈ ഉപകരണം ഉപയോഗിക്കാൻ ഉദ്ദേശിച്ചുള്ളതല്ല.
- കുട്ടികൾക്ക് ലഭ്യമാകാതെ സൂക്ഷിക്കുക.
- ഉപകരണത്തിനൊപ്പം നൽകിയിരിക്കുന്ന ചാർജർ മാത്രം ഉപയോഗിക്കുക.
- Unplug the clipper from the power outlet immediately after charging and before cleaning.
3. പാക്കേജ് ഉള്ളടക്കം
പാക്കേജിൽ എല്ലാ ഇനങ്ങളും ഉണ്ടെന്ന് ഉറപ്പാക്കുക:
- VGR V-669 Hair Clipper
- 5 Attachment Combs (1.5mm, 3mm, 6mm, 9mm, 12mm)
- യുഎസ്ബി ചാർജിംഗ് കേബിൾ
- ക്ലീനിംഗ് ബ്രഷ്
- ലൂബ്രിക്കറ്റിംഗ് ഓയിൽ
- ഉപയോക്തൃ മാനുവൽ
4. സജ്ജീകരണം
4.1 പ്രാരംഭ ചാർജിംഗ്
Before first use, fully charge the clipper for approximately 3 hours. The LED indicator will show charging status.
- Connect the USB charging cable to the clipper's charging port.
- Plug the other end of the USB cable into a suitable USB power adapter (not included) or a USB port.
- The LED strip indicator will illuminate to show the power status (100-80-60-40-20%).
- Once fully charged, the clipper provides up to 200 minutes of cordless operation.

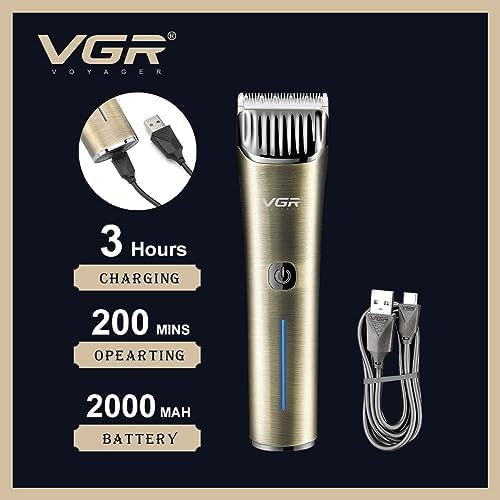

Image 4.1: Illustration of the charging process and battery life indicators.
4.2 Attaching and Removing Combs
The clipper comes with 5 attachment combs for various cutting lengths.
- To attach: Align the comb with the clipper blade and push it firmly until it clicks into place.
- To remove: Gently pull the comb upwards from the clipper blade.

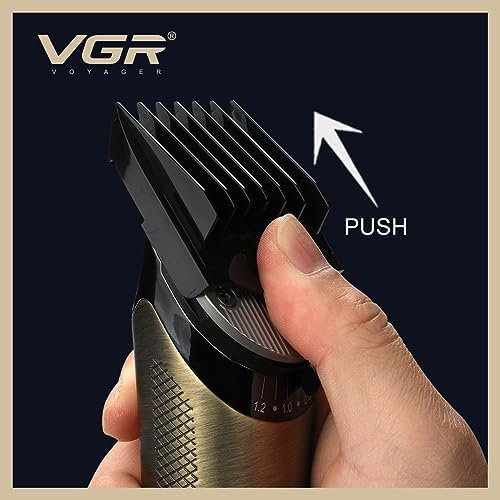

Image 4.2: Demonstrates how to attach and adjust the cutting comb.
5. പ്രവർത്തന നിർദ്ദേശങ്ങൾ
5.1 പവർ ഓൺ/ഓഫ്
ക്ലിപ്പർ ഓൺ അല്ലെങ്കിൽ ഓഫ് ചെയ്യാൻ അതിന്റെ മുൻവശത്തുള്ള പവർ ബട്ടൺ അമർത്തുക.
5.2 കട്ടിംഗ് നീളം ക്രമീകരിക്കൽ
The clipper offers a trimming range from 0.8mm to 1.2mm without an attachment comb. Use the provided attachment combs for longer lengths (1.5mm, 3mm, 6mm, 9mm, 12mm).
5.3 Turbo Power Function
The VGR V-669 features a dual motor with a Turbo function. Press the power button again while the clipper is on to activate the Turbo mode for extra power when needed, especially for thicker hair.

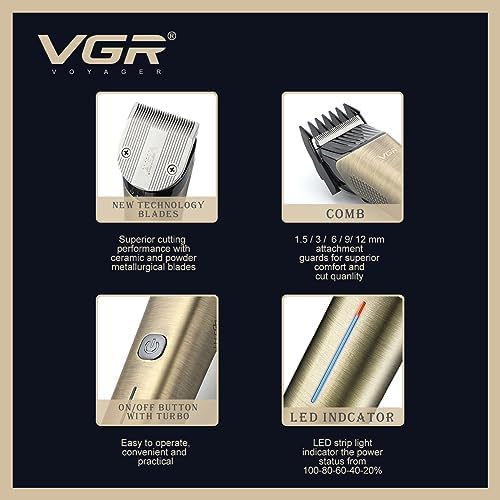

ചിത്രം 5.1: കഴിഞ്ഞുview of key features including new technology blades, comb attachments, on/off button with turbo, and LED indicator.
6. പരിപാലനം
6.1 ബ്ലേഡുകൾ വൃത്തിയാക്കൽ
പതിവായി വൃത്തിയാക്കുന്നത് മികച്ച പ്രകടനവും ശുചിത്വവും ഉറപ്പാക്കുന്നു.
- Turn off the clipper and remove any attachment combs.
- Use the provided cleaning brush to remove hair clippings from the blades.
- For a more thorough clean, the blades can be carefully detached (refer to specific instructions if provided with the product for blade removal).
- Do not rinse the entire clipper under water. The blades are designed for dry cleaning.

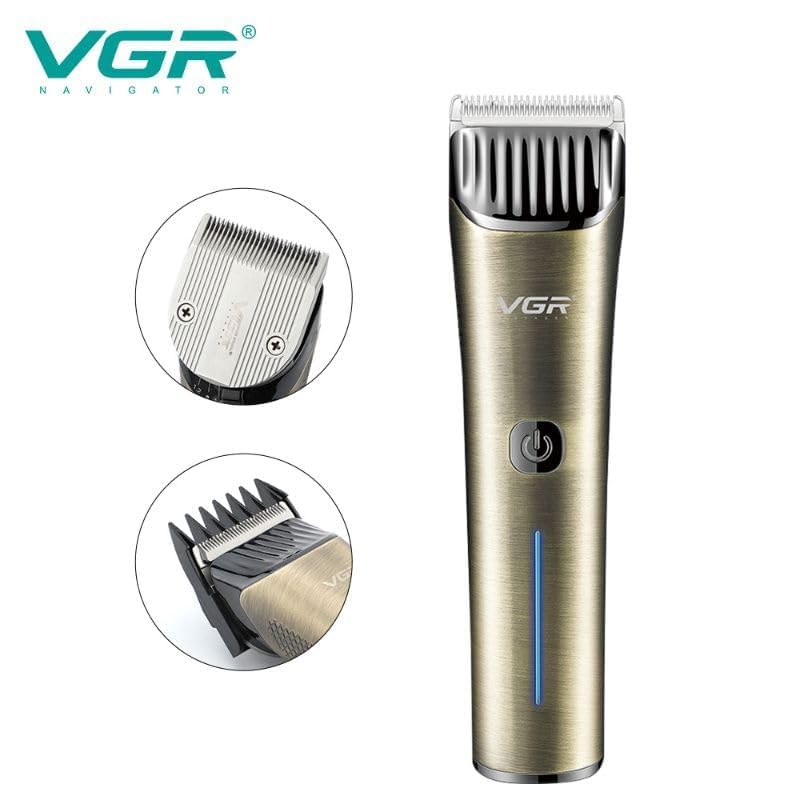

ചിത്രം 6.1: ക്ലോസ്-അപ്പ് view of the ceramic and powder metallurgical blades.
6.2 ബ്ലേഡുകളിൽ എണ്ണ പുരട്ടൽ
To maintain cutting performance and blade longevity, oil the blades regularly.
- After cleaning, apply a few drops of the provided lubricating oil onto the blades.
- എണ്ണ തുല്യമായി വിതരണം ചെയ്യാൻ ക്ലിപ്പർ കുറച്ച് സെക്കൻഡ് ഓണാക്കുക.
- ഏതെങ്കിലും അധിക എണ്ണ മൃദുവായ തുണി ഉപയോഗിച്ച് തുടയ്ക്കുക.
6.3 സംഭരണം
Store the clipper in a cool, dry place, away from direct sunlight and moisture. Ensure it is turned off and unplugged before storing.
7. പ്രശ്നപരിഹാരം
| പ്രശ്നം | സാധ്യമായ കാരണം | പരിഹാരം |
|---|---|---|
| ക്ലിപ്പർ ഓണാകുന്നില്ല. | ബാറ്ററി കുറവാണ് അല്ലെങ്കിൽ തീർന്നു. | ക്ലിപ്പർ പൂർണ്ണമായും ചാർജ് ചെയ്യുക. |
| Clipper runs slowly or pulls hair. | ബ്ലേഡുകൾ വൃത്തികെട്ടതോ എണ്ണ പുരട്ടിയതോ അല്ല. | Clean and oil the blades. |
| Clipper is making unusual noise. | Blades may be misaligned or damaged. | Check blade alignment. If damaged, contact customer support. |
| ബാറ്ററി ലൈഫ് പ്രതീക്ഷിച്ചതിലും ചെറുതാണ്. | ബാറ്ററി പൂർണ്ണമായും ചാർജ് ചെയ്തിട്ടില്ല അല്ലെങ്കിൽ കാലഹരണപ്പെട്ടിരിക്കുന്നു. | Ensure full charge cycle. Battery performance may degrade over time. |
If the problem persists after trying the above solutions, please contact VGR customer support.
8 സ്പെസിഫിക്കേഷനുകൾ
- മോഡൽ: വി-669
- ബ്ലേഡ് മെറ്റീരിയൽ: Stainless Steel (Ceramic & Powder Metallurgical Blades)
- ഊർജ്ജ സ്രോതസ്സ്: Battery Powered (Cordless/Corded operation)
- ബാറ്ററി തരം: 2000 mAh ലിഥിയം-അയൺ ബാറ്ററി
- ചാർജിംഗ് സമയം: ഏകദേശം 3 മണിക്കൂർ
- പ്രവർത്തന സമയം: 200 മിനിറ്റ് വരെ (കോർഡ്ലെസ്)
- കട്ടിംഗ് ദൈർഘ്യം: 0.8mm - 1.2mm (without comb), 1.5mm, 3mm, 6mm, 9mm, 12mm (with combs)
- പ്രത്യേക സവിശേഷതകൾ: Dual Motor with Turbo Function, Charge Indicator Light, Rechargeable, USB Charging
- ഇനത്തിൻ്റെ ഭാരം: 770 ഗ്രാം
- അളവുകൾ (LxWxH): 23.5 x 13.6 x 7.1 സെൻ്റീമീറ്റർ
- നിറം: സ്വർണ്ണം
- നിർമ്മാതാവ്: Ningbo VGR Electric Appliance Co., Ltd., Yiwu Gemei Electric Appliance Co. Ltd
- മാതൃരാജ്യം: ചൈന
9. വാറൻ്റിയും പിന്തുണയും
VGR offers a 12-month quality warranty for this product. If you encounter any issues or are not satisfied with the product, please contact VGR customer service. Our customer service team aims to respond within 24 hours and provide a satisfactory resolution.
For support, please refer to the contact information provided on the product packaging or the official VGR webസൈറ്റ്.
