1. ഉൽപ്പന്നം കഴിഞ്ഞുview
The ABASK M18 Dash Cam is a comprehensive car camera system designed to enhance driving safety and provide reliable video evidence. It features front 2K (1440P) and rear 1080P recording capabilities, a 3-inch display, and a wide 320° viewing angle. Key functionalities include parking monitoring, motion detection, G-sensor for accident detection, loop recording, WDR technology, and night vision.

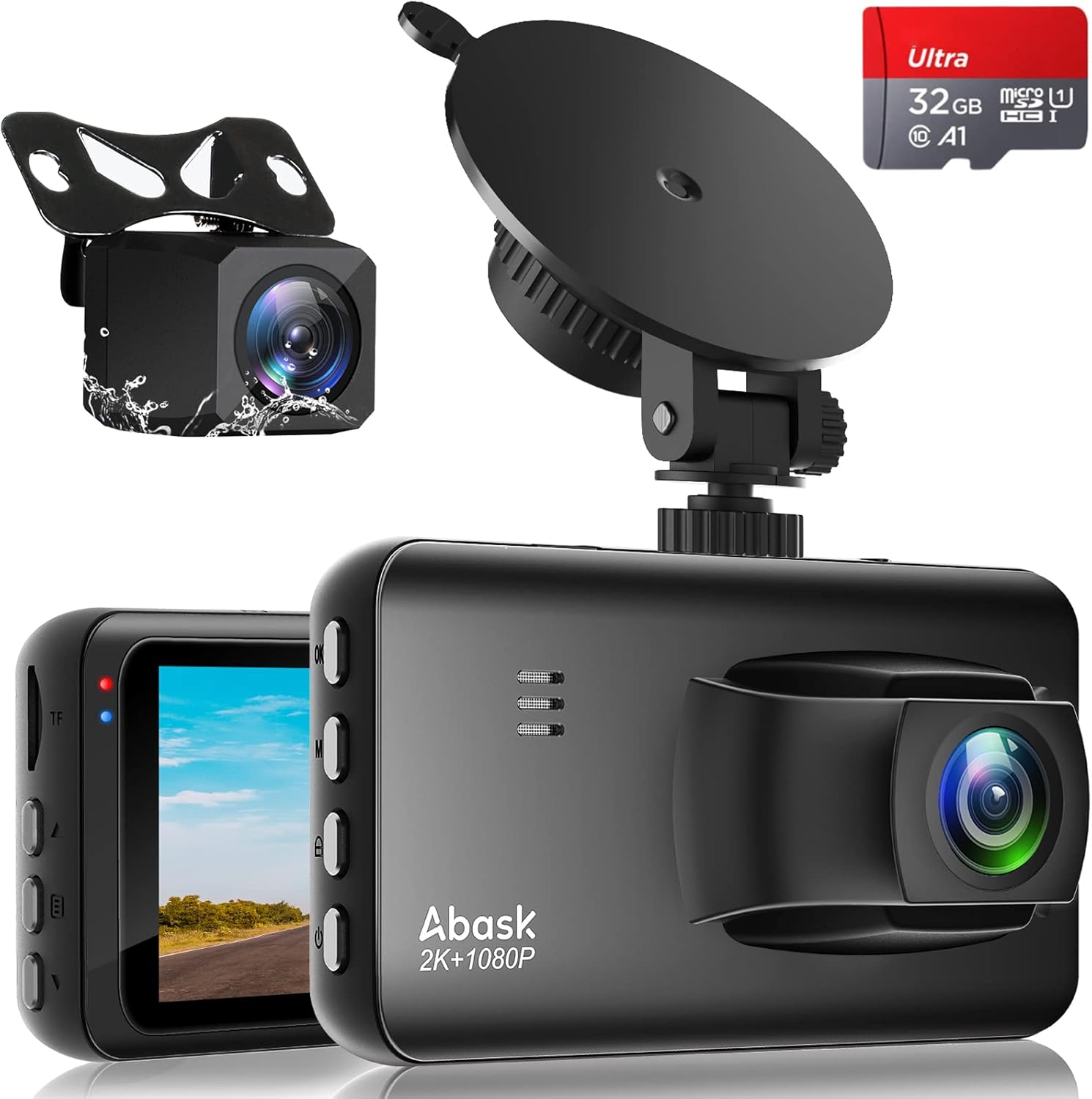

Image: The ABASK M18 Dash Cam system, showing the main unit, rear camera, suction cup mount, and an included 32GB MicroSD card.
2. പാക്കേജ് ഉള്ളടക്കം
അൺബോക്സിംഗ് ചെയ്യുമ്പോൾ എല്ലാ ഘടകങ്ങളും ഉണ്ടെന്ന് ഉറപ്പാക്കാൻ പാക്കേജ് ഉള്ളടക്കങ്ങൾ പരിശോധിക്കുക:
- ABASK M18 Dash Cam (Main Unit)
- പിൻഭാഗം View ക്യാമറ
- സക്ഷൻ കപ്പ് മ .ണ്ട്
- Car Charger (Cigarette Lighter Adapter)
- പിൻ ക്യാമറ കേബിൾ
- USB കേബിൾ
- ഉപയോക്തൃ മാനുവൽ
- Memory Card (32GB MicroSD)
Image: A visual representation of the items included in the ABASK M18 Dash Cam package.
3 പ്രധാന സവിശേഷതകൾ
- ഡ്യുവൽ ചാനൽ റെക്കോർഡിംഗ്: Records simultaneously in 2K (1440P) resolution for the front camera and 1080P for the rear camera, capturing both front and rear views of the road.
Image: Illustration of the dual-channel recording capability, showing clear front and rear video capture.
- 3-Inch Screen & Wide Viewഇൻ ആംഗിൾ: Features a super high-definition 3-inch screen for clear viewing and easy menu navigation. The front camera offers a 170° viewing angle, and the rear camera offers a 150° angle, providing a comprehensive 320° coverage without blind spots.
Image: The 3-inch display and a diagram illustrating the wide 170° front and 150° rear viewകോണുകൾ.
- Parking Monitor & Motion Detection: Automatically activates and records video when a collision or motion is detected while the vehicle is parked, providing 24-hour surveillance.
Note: A dash cam hardwiring kit (not included) is required to utilize the 24-hour parking monitoring feature.
Image: Visual representation of the 24/7 parking mode, detecting impacts around the vehicle.
- G-Sensor & Loop Recording: The G-Sensor detects sudden impacts or collisions, automatically saving and locking the current video footage to prevent it from being overwritten. Loop recording ensures continuous recording by overwriting the oldest unlocked fileമെമ്മറി കാർഡ് നിറയുമ്പോൾ s.
Image: Depiction of G-Sensor locking important footage and loop recording managing storage space.
- WDR (Wide Dynamic Range) & Night Vision: Equipped with a 6-layer HD lens and WDR technology, the dash cam delivers clear images and videos in various lighting conditions, including low-light environments, ensuring excellent night vision performance.
Image: The dash cam's super night vision capability, providing clear recordings in dark conditions.
- Reversing Assist: When the vehicle is in reverse, the dash cam display automatically shows the rear view with parking guidelines, making parking safer and more convenient.
Image: The reversing assist function displaying parking lines on the screen for easier maneuvering.
4. സജ്ജീകരണവും ഇൻസ്റ്റാളേഷനും
Follow these steps for proper installation of your ABASK M18 Dash Cam:
4.1. Prepare the Memory Card
- Insert the included 32GB MicroSD card into the dash cam's TF card slot.
- Before first use, or if experiencing issues, format the memory card through the dash cam's menu settings. This ensures optimal performance and compatibility.
4.2. Install the Main Camera
- Clean the area on your front windshield where you intend to mount the dash cam. Ensure it does not obstruct your driving view.
- Attach the suction cup mount to the main dash cam unit.
- Press the suction cup firmly against the cleaned windshield and engage the lock lever to secure it.
- Connect the car charger cable to the main dash cam unit and plug the other end into your vehicle's cigarette lighter socket.
- Route the power cable neatly along the windshield edge and down to the cigarette lighter, tucking it into the trim where possible.
4.3. പിൻ ക്യാമറ ഇൻസ്റ്റാൾ ചെയ്യുക
There are two common methods for installing the rear camera:
- Method 1 (Inside Vehicle): Paste the rear camera inside the rear windshield of the vehicle. This method is simpler and protects the camera from external elements.
- Method 2 (Outside Vehicle, near License Plate): Install the camera near the license plate on the outside of the vehicle. This provides a clearer view for reversing assist. If using this method, ensure the camera is securely mounted and the cable is routed safely into the vehicle.
- Connect the rear camera cable to the main dash cam unit.
- For the reversing assist function to work, connect the red wire from the rear camera cable to the positive pole of your vehicle's reverse lamp. This allows the dash cam to automatically switch to the rear view when you engage reverse gear.
- Route the rear camera cable neatly from the main unit to the rear of the vehicle, tucking it into the headliner and pillar trim.
Image: An illustration detailing the routing of cables for both front and rear camera installation.
5. പ്രവർത്തന നിർദ്ദേശങ്ങൾ
5.1. പവർ ഓൺ/ഓഫ്
- The dash cam will automatically power on and begin recording when your vehicle's ignition is turned on (and power is supplied to the cigarette lighter socket).
- ഇഗ്നിഷൻ ഓഫാക്കിയതിന് ശേഷം കുറച്ച് നിമിഷങ്ങൾക്കുള്ളിൽ ഇത് യാന്ത്രികമായി ഓഫാകും.
- To manually power on/off, press and hold the Power button located on the side of the unit.
5.2. മെനു നാവിഗേഷനും ക്രമീകരണങ്ങളും
- Use the buttons on the side of the dash cam to navigate through the menu options displayed on the 3-inch screen.
- Common settings include:
- Video Resolution (Front/Rear)
- ലൂപ്പ് റെക്കോർഡിംഗ് ദൈർഘ്യം
- G-Sensor Sensitivity (High/Medium/Low/Off)
- Parking Monitor (On/Off)
- Motion Detection (On/Off)
- WDR (On/Off)
- തീയതി/സമയം സെൻ്റ്amp
- Audio Recording (On/Off)
- സ്ക്രീൻ സേവർ
- ഭാഷ
- SD കാർഡ് ഫോർമാറ്റ് ചെയ്യുക
- Refer to the on-screen prompts and the included quick start guide for detailed menu navigation.
5.3. Playback Videos
- ലേക്ക് view recorded videos directly on the dash cam, enter playback mode via the menu.
- Alternatively, remove the MicroSD card and insert it into a computer's card reader.
- Videos are typically saved in MP4 or MOV format. Locked files (from G-Sensor events) will be in a separate folder or marked to prevent overwriting.
6. പരിപാലനം
- വൃത്തിയാക്കൽ: Use a soft, dry cloth to clean the dash cam lens and screen. Avoid using abrasive cleaners or solvents that could damage the surfaces.
- മെമ്മറി കാർഡ് മാനേജ്മെന്റ്:
- Regularly format the MicroSD card (e.g., once a month) to maintain optimal performance and prevent data corruption.
- Use a high-quality Class 10 or U3 MicroSD card for reliable recording. The dash cam supports up to 256GB.
- പ്രധാനപ്പെട്ട വീഡിയോയുടെ ബാക്കപ്പ് എടുക്കുക fileകാർഡ് ഫോർമാറ്റ് ചെയ്യുന്നതിന് മുമ്പ് ഒരു കമ്പ്യൂട്ടറിലേക്ക് s.
- താപനില പരിഗണനകൾ: The dash cam is designed to operate within a temperature range of -30°C to 70°C (-86°F to 158°F). Avoid prolonged exposure to extreme temperatures outside this range, which could affect performance or damage the device.
Image: Illustration of the dash cam's ability to withstand a wide range of temperatures.
7. പ്രശ്നപരിഹാരം
| പ്രശ്നം | സാധ്യമായ കാരണം | പരിഹാരം |
|---|---|---|
| ഡാഷ് ക്യാം പവർ ഓൺ ചെയ്യുന്നില്ല. | വൈദ്യുതി ഇല്ല; കാർ ചാർജർ തകരാറിലായി; കണക്ഷൻ നഷ്ടപ്പെട്ടു. | Check if the car charger is properly plugged into the cigarette lighter and the dash cam. Ensure the vehicle's ignition is on. Test the charger in another vehicle or use a different USB cable/charger if available. |
| റെക്കോർഡിംഗ് നിർത്തുകയോ മരവിപ്പിക്കുകയോ ചെയ്യുന്നു. | Memory card full; slow or faulty memory card; memory card error. | Format the MicroSD card. Ensure you are using a high-speed (Class 10 or U3) MicroSD card. Try a different MicroSD card. |
| "മെമ്മറി കാർഡ് പിശക്" എന്ന സന്ദേശം. | Memory card not inserted correctly; corrupted card; incompatible card. | Reinsert the memory card. Format the card in the dash cam's settings. Try a different, compatible MicroSD card. |
| Parking Monitor not working. | Feature not enabled; no continuous power supply. | Ensure Parking Monitor is enabled in the settings. This feature requires a continuous power supply, typically achieved with a hardwiring kit (sold separately) connected to the vehicle's fuse box. |
| കഴിയില്ല view videos on computer (HEVC codec issue). | Computer lacks necessary video codec for HEVC (High-Efficiency Video Coding) files. | Install a free HEVC codec pack or a media player that supports HEVC (e.g., VLC Media Player) on your computer. Avoid purchasing codecs if free alternatives are available. |
| പിൻ ക്യാമറ പ്രദർശിപ്പിക്കുന്നില്ല. | Loose cable connection; faulty camera or cable. | Check the connection of the rear camera cable to both the main unit and the rear camera itself. Ensure the cable is not damaged. |
8 സ്പെസിഫിക്കേഷനുകൾ
| ഫീച്ചർ | വിശദാംശങ്ങൾ |
|---|---|
| മോഡൽ നമ്പർ | M18 |
| മുൻവശത്തെ വീഡിയോ റെസല്യൂഷൻ | 2K (1440P) |
| പിൻ വീഡിയോ റെസല്യൂഷൻ | 1080P |
| സ്ക്രീൻ വലിപ്പം | 3 ഇഞ്ച് |
| ഫ്രണ്ട് Viewing ആംഗിൾ | 170° |
| പിൻഭാഗം Viewing ആംഗിൾ | 150° |
| പ്രത്യേക സവിശേഷതകൾ | Night Vision, WDR, G-Sensor, Loop Recording, Parking Monitor, Motion Detection, Reversing Assist |
| കണക്റ്റിവിറ്റി ടെക്നോളജി | USB |
| പിന്തുണയ്ക്കുന്ന മെമ്മറി കാർഡ് | മൈക്രോഎസ്ഡി (256 ജിബി വരെ) |
| പ്രവർത്തന താപനില | -30°C മുതൽ 70°C വരെ (-86°F മുതൽ 158°F വരെ) |
| ഉൽപ്പന്ന അളവുകൾ | 7.87 x 4.33 x 2.76 ഇഞ്ച് (ഏകദേശം) |
| ഇനത്തിൻ്റെ ഭാരം | 12.1 ഔൺസ് (ഏകദേശം) |
9. വാറൻ്റിയും പിന്തുണയും
ABASK is committed to providing high-quality products and customer satisfaction. While specific warranty details are not provided in this manual, please retain your proof of purchase for any warranty claims.
For any questions, technical assistance, or issues encountered with your ABASK Dash Cam, please contact our customer support team. We aim to respond to inquiries within 24 hours and provide a satisfactory solution.
You can typically find contact information on the product packaging, the official ABASK webസൈറ്റ്, അല്ലെങ്കിൽ നിങ്ങൾ ഉൽപ്പന്നം വാങ്ങിയ റീട്ടെയിലർ വഴി.
Image: ABASK customer support team ready to assist.
