KEMIMOTO Soft Rear Windshield Instruction Manual

1. Introduction and Compatibility

This manual provides detailed instructions for the installation, operation, and maintenance of your KEMIMOTO Soft Rear Windshield. Please read this manual thoroughly before installation and use to ensure proper function and longevity of the product.

This KEMIMOTO Soft Rear Windshield (Model B0110-14302BK) is compatible with the following Can-Am Defender UTV models:

• Can-Am Defender HD 5, 7, 8, 9, 10 (2016-2024)
• Can-Am Defender DPS, XT, XMR, Max (2016-2024)
• Can-Am Defender Limited/Pro HD 10 (2020-2024)
• Can-Am Defender Max Limited/Pro HD 10 (2020-2024)
• Can-Am Defender Max HD 7, 8, 9, 10 models

The windshield is designed to provide protection from dust, water, and wind, enhancing your UTV driving experience.

Figure 1.1: KEMIMOTO Soft Rear Windshield installed on a Can-Am Defender UTV.

2 സുരക്ഷാ വിവരങ്ങൾ

Always ensure the windshield is securely installed before operating your UTV. Regularly inspect the straps and attachment points for wear or damage. Do not operate the UTV if the windshield is loose or improperly secured. Maintain a clear view through the transparent film at all times. Clean the windshield regularly to prevent visibility obstruction.

3. പാക്കേജ് ഉള്ളടക്കം

ഇൻസ്റ്റാളേഷൻ ആരംഭിക്കുന്നതിന് മുമ്പ് എല്ലാ ഘടകങ്ങളും നിലവിലുണ്ടെന്ന് ഉറപ്പാക്കുക:

• 1 x KEMIMOTO Soft Rear Windshield (PVC & Composite Fabric)
• Hook-and-loop straps for attachment
• Self-adhesive tapes for secure fitting

ചിത്രം 3.1: ഓവർview of the KEMIMOTO Soft Rear Windshield and its components.

4. ഇൻസ്റ്റലേഷൻ നിർദ്ദേശങ്ങൾ

No drilling or special tools are required for installation. Follow these steps for a secure fit:

1. Prepare the UTV: Ensure the rear area of your Can-Am Defender is clean and free of debris where the windshield will be installed.
2. Position the Windshield: Carefully place the soft rear windshield against the rear frame of your UTV. Ensure the transparent PVC section aligns with the rear opening for optimal visibility.
3. Attach Hook-and-Loop Straps: Secure the windshield to the UTV's roll cage or frame using the integrated hook-and-loop straps. Wrap the straps firmly around the frame and press them together to secure. Ensure all straps are tight to prevent flapping during operation.
4. Apply Self-Adhesive Tapes: Utilize the provided self-adhesive tapes to further secure the bottom edge of the windshield to the metal frame of the UTV bed. This helps create a dustproof and waterproof seal. Press firmly along the entire length of the tape for maximum adhesion.
5. അന്തിമ പരിശോധന: Once all straps and tapes are secured, gently pull on the windshield to confirm it is firmly attached and does not move excessively.

Figure 4.1: Illustration of attaching hook-and-loop straps and self-adhesive tapes during installation.

Installation Video Reference

For a visual guide on installing a KEMIMOTO soft rear window, please refer to the video below. While this video may feature a variant with a zipper design, the general installation steps using hook-and-loop straps and securing the bottom edge are applicable to your 'No Zipper' model.

5. ഓപ്പറേഷൻ

The KEMIMOTO Soft Rear Windshield is designed for fixed use to provide continuous protection. To adjust for airflow or access the rear, the transparent PVC section can be rolled up and secured. Unfasten the lower straps and roll the PVC section upwards, then secure it using the upper straps or ties provided on the windshield itself. This allows for increased ventilation when desired.

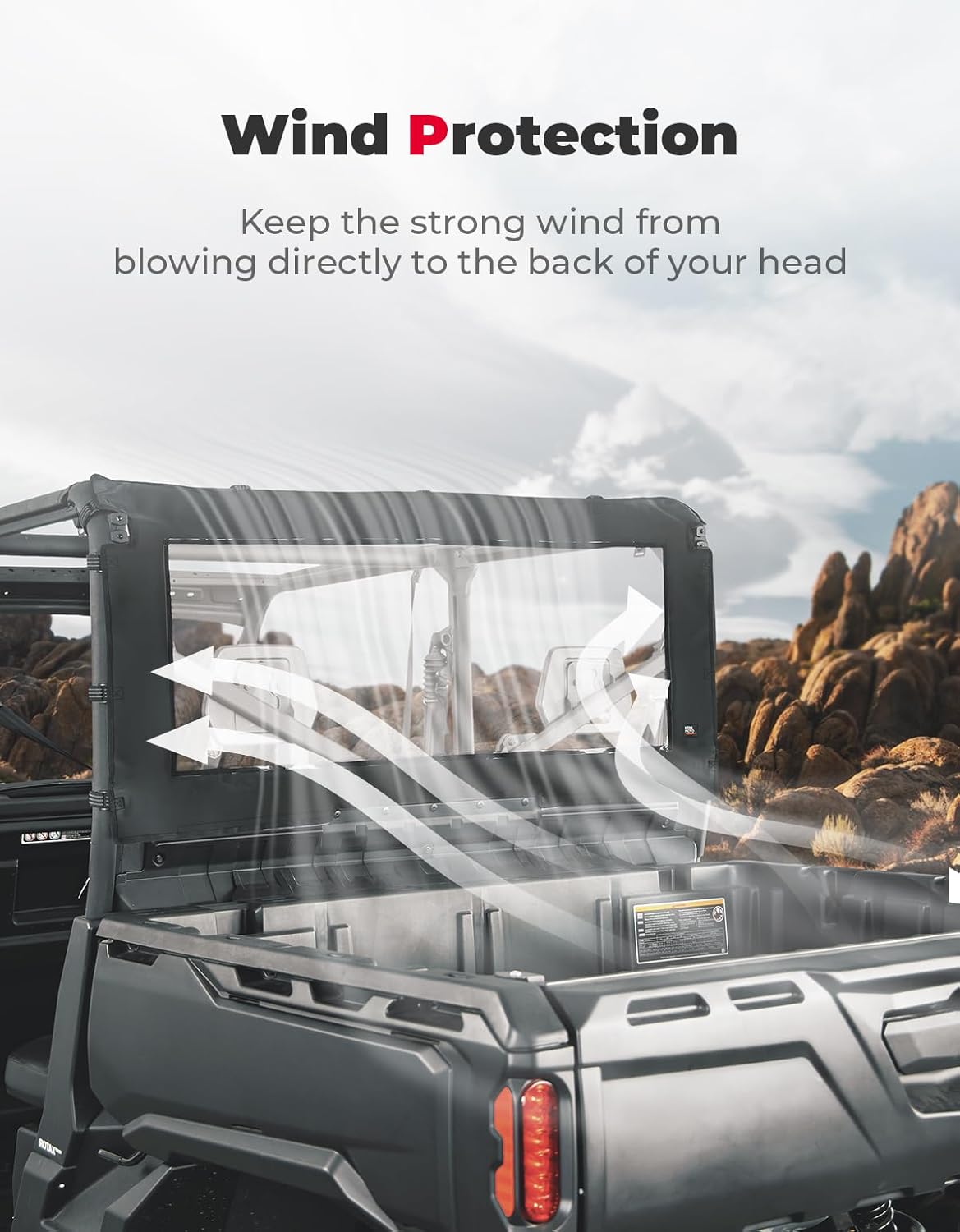

Figure 5.1: The windshield effectively blocks strong wind from entering the cabin.

Figure 5.2: The PVC transparent film ensures a clear view from inside the UTV.

6. പരിപാലനവും പരിചരണവും

Proper care will extend the life of your soft rear windshield:

• വൃത്തിയാക്കൽ: Use a soft cloth and mild soap with water to clean the PVC transparent film and composite fabric. Avoid abrasive cleaners or brushes that could scratch the surface. Rinse thoroughly with clean water and allow to air dry.
• സംഭരണം: If removing the windshield for extended periods, clean it thoroughly, ensure it is completely dry, and then fold or roll it neatly. Store in a cool, dry place away from direct sunlight to prevent material degradation.
• പരിശോധന: Periodically check the fabric, PVC film, and all attachment points for any signs of wear, tears, or damage. Address any issues promptly to maintain product integrity.

Figure 6.1: The windshield offers multiple protections against dust, water, and snow.

Figure 6.2: The composite fabric is designed for enhanced tear resistance.

7. പ്രശ്‌നപരിഹാരം

• Windshield Flapping: Ensure all hook-and-loop straps are tightly secured around the UTV frame. Re-adjust if necessary. Check that the self-adhesive tapes are firmly attached along the bottom edge.
• Reduced Visibility: Clean the PVC transparent film using mild soap and water. Avoid harsh chemicals. If scratches occur, they may be permanent.
• വെള്ളം ചോർച്ച: Verify that the self-adhesive tapes are properly sealed to the UTV frame. Ensure there are no gaps where water can enter. Check for any tears in the fabric or PVC film.

8 സ്പെസിഫിക്കേഷനുകൾ

9. വാറൻ്റിയും പിന്തുണയും

KEMIMOTO products are designed for quality and durability. For specific warranty information, please refer to the product packaging or contact KEMIMOTO customer support directly. If you encounter any issues or have questions regarding your soft rear windshield, please reach out to our support team for assistance.

Visit the official KEMIMOTO store for more products and support: കെമിമോട്ടോ സ്റ്റോർ
