സോണൽ പി-6 അഡ്വാൻസ്ഡ് ബൈപോളാർ വോളിയംtagഇ ഇൻഡിക്കേറ്റർ ഉപയോക്തൃ മാനുവൽ

1. ആമുഖം

The Sonel P-6 is a state-of-the-art bipolar voltage indicator designed for professional electrical measurements. It offers a comprehensive range of functions including automatic AC/DC voltage detection up to 1000V, unique phase identification, continuity testing, RCD operational checks, and bipolar phase rotation testing. Engineered for safety and durability, the P-6 features a robust, IP65-rated housing, clear LCD and LED bar indications, and integrated safety alarms, making it an essential tool for electricians and technicians.

2 സുരക്ഷാ വിവരങ്ങൾ

Always read and understand this manual before operating the Sonel P-6. Failure to follow safety instructions may result in injury or damage to the device.

• CAT IV 1000V Rating: This device is rated for CAT IV installations up to 1000V, indicating its suitability for measurements at the source of the low-voltagഇ ഇൻസ്റ്റലേഷൻ.
• IP65 സംരക്ഷണം: The P-6 is protected against dust ingress and low-pressure water jets from any direction. Do not immerse the device in water.
• അപകടകരമായ വോളിയംtage Alarms: The device provides acoustic and visual alarms for voltages exceeding 50V AC and 120V DC. Always treat live circuits with extreme caution.
• ഉപയോഗിക്കുന്നതിന് മുമ്പ് പരിശോധിക്കുക: Before each use, inspect the device and test leads for any signs of damage. Do not use if damaged.
• ബാറ്ററി സുരക്ഷ: Ensure correct battery polarity during installation. Replace batteries when the low battery indicator appears.
• യോഗ്യതയുള്ള ഉദ്യോഗസ്ഥർ: Only qualified and trained personnel should perform electrical measurements.

3. ഉൽപ്പന്നം കഴിഞ്ഞുview ഘടകങ്ങളും

The Sonel P-6 voltage indicator consists of two main probes connected by a flexible cable. It features an LCD display, LED indicators, and control buttons for various functions.

ചിത്രം 3.1: Sonel P-6 Voltage Indicator with included accessories. This image shows the main unit with its two probes, four interchangeable probe tips, two protective caps for the tips, and two AAA batteries.

3.1 പ്രധാന ഘടകങ്ങൾ:

• Main Unit (Probe 1): Contains the LCD display, LED indicators, function buttons, and battery compartment.
• Secondary Probe (Probe 2): Connected to the main unit via a flexible cable.
• LCD ഡിസ്പ്ലേ: Shows numerical voltage readings, resistance, and other measurement data.
• LED Bar Indicators: Provide optical indication of voltage levels (e.g., 12V, 24V, 50V, 120V, 230V, 400V, 690V, 1000V).
• ഫംഗ്ഷൻ ബട്ടണുകൾ: For RCD test, HOLD function, and backlight.
• അന്വേഷണ നുറുങ്ങുകൾ: Interchangeable tips for various applications.
• സംരക്ഷണ തൊപ്പികൾ: For safe storage of probe tips.

3.2 വിശദമായത് Views:

ചിത്രം 3.2: വിശദമായി views of the Sonel P-6, highlighting the secure connection points of the probes, the clear LCD and LED display area, and the robust cable attachment, ensuring durability and reliable performance.

4. സജ്ജീകരണം

4.1 ബാറ്ററി ഇൻസ്റ്റാളേഷൻ:

The Sonel P-6 requires 2 AAA batteries (included). To install or replace batteries:

1. Locate the battery compartment on the rear of the main unit.
2. ബാറ്ററി കവർ തുറക്കുക.
3. Insert 2 AAA batteries, ensuring correct polarity as indicated inside the compartment.
4. ബാറ്ററി കവർ സുരക്ഷിതമായി അടയ്ക്കുക.

4.2 Attaching Probe Tips:

Select the appropriate probe tips for your measurement task and securely attach them to the probes.

5. പ്രവർത്തന നിർദ്ദേശങ്ങൾ

5.1 Automatic AC/DC Voltagഇ അളവ്:

The P-6 automatically detects and displays AC or DC voltage. Connect the two probes to the circuit under test. The voltage will be indicated on the LCD display and by the LED bar.

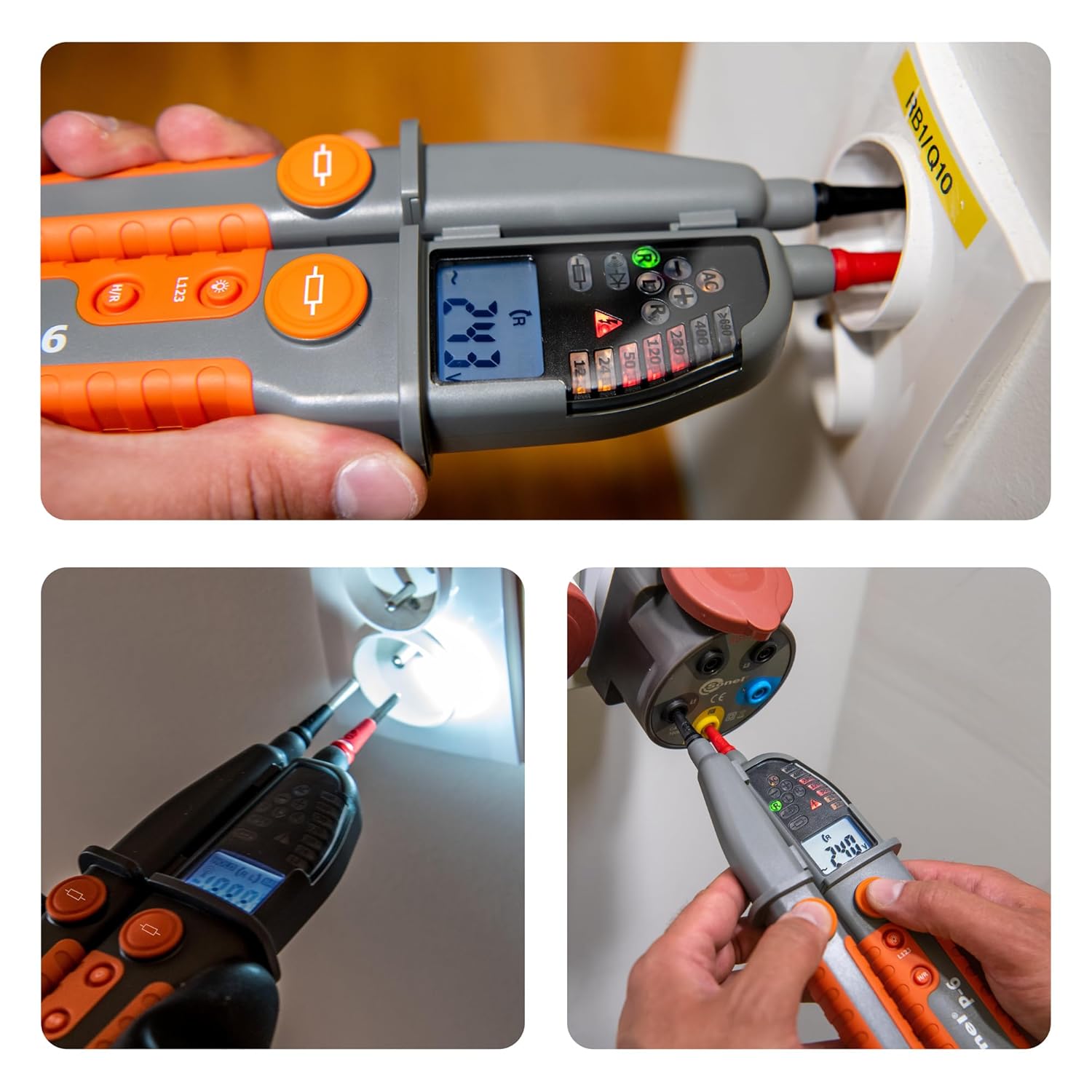

ചിത്രം 5.1: The Sonel P-6 in use, measuring voltage in a wall socket. The LCD displays the voltage reading, and the LED bar indicates the voltage range, providing clear and immediate feedback.

5.2 Phase Identification:

The Sonel P-6 is capable of unique phase identification. When measuring AC voltage, the device will indicate the phase line.

5.3 തുടർച്ച പരിശോധന:

To test for continuity, connect the probes across the component or circuit path. The device will provide an audible and visual indication if continuity is detected.

5.4 RCD Function Test:

The P-6 includes a function for testing Residual Current Devices (RCDs) with an additional load. Refer to the on-screen prompts or specific instructions for this test.

5.5 Bipolar Phase Rotation Test:

For three-phase systems, the P-6 can perform a bipolar phase rotation test to determine the correct phase sequence.

5.6 HOLD Function:

Press the "HOLD" button to freeze the current measurement reading on the LCD display for easier recording or analysis.

5.7 ബാക്ക്ലൈറ്റ്:

Press the backlight button to illuminate the LCD display for better visibility in low-light conditions. The device also has an integrated flashlight.

6. പരിപാലനം

6.1 വൃത്തിയാക്കൽ:

ഒരു സോഫ്റ്റ്, ഡി ഉപയോഗിച്ച് ഉപകരണം വൃത്തിയാക്കുകamp cloth. Do not use abrasive cleaners or solvents. Ensure the device is dry before storage or next use.

6.2 സംഭരണം:

Store the Sonel P-6 in a cool, dry place, away from direct sunlight and extreme temperatures. If storing for extended periods, remove the batteries to prevent leakage.

6.3 ബാറ്ററി മാറ്റിസ്ഥാപിക്കൽ:

Replace batteries promptly when the low battery indicator appears on the display to ensure accurate measurements and proper device function.

7. പ്രശ്‌നപരിഹാരം

8 സാങ്കേതിക സവിശേഷതകൾ

9. വാറൻ്റിയും പിന്തുണയും

For warranty information and technical support, please contact Sonel customer service or visit the official Sonel webസൈറ്റ്. വാങ്ങിയതിന്റെ തെളിവായി നിങ്ങളുടെ വാങ്ങൽ രസീത് സൂക്ഷിക്കുക.

Manufacturer: Sonel
