ആമുഖം
This manual provides essential information for the safe and efficient installation, operation, and maintenance of your Duluth Forge DLS-18R-2 Dual Fuel Ventless Fireplace Logs Set. Please read all instructions carefully before use and retain this manual for future reference. This log set is designed to provide supplemental heat and aesthetic ambiance to your living space.
സുരക്ഷാ വിവരങ്ങൾ
Your safety and the safety of others are paramount. This appliance must be installed and serviced by a qualified installer, service agency, or gas supplier. Improper installation, adjustment, alteration, service, or maintenance can cause injury or property damage. Read the installation, operating, and maintenance instructions thoroughly before installing or servicing this equipment.
- വെൻ്റിലേഷൻ: This is a ventless appliance. Ensure adequate ventilation as specified in the full installation guide.
- ഓക്സിജൻ ഡിപ്ലിഷൻ സെൻസർ (ODS): The unit is equipped with a Safety Pilot O.D.S. (Oxygen Depletion Sensor) which automatically shuts off the gas supply if oxygen levels in the room fall below a safe threshold. Do not tampഈ സുരക്ഷാ സവിശേഷത ഉണ്ടെങ്കിലോ ഒഴിവാക്കുകയാണെങ്കിലോ.
- കാർബൺ മോണോക്സൈഡ്: Improper use or installation can lead to carbon monoxide poisoning. Always ensure proper room ventilation.
- അനുമതികൾ: Maintain minimum clearances to combustibles as specified in the detailed installation instructions.
- ഇൻഡോർ ഉപയോഗത്തിന് മാത്രം: ഈ ഉൽപ്പന്നം ഇൻഡോർ ഉപയോഗത്തിനായി മാത്രം രൂപകൽപ്പന ചെയ്തിട്ടുള്ളതാണ്.
- ഇന്ധന തരം: This unit operates on either Natural Gas or Liquid Propane. Ensure the correct fuel type is connected and that the unit is configured for that fuel.
സജ്ജീകരണവും ഇൻസ്റ്റാളേഷനും
Some assembly is required. This log set must be installed in a masonry or agency-approved firebox. Refer to the detailed installation manual for complete instructions.
Minimum Firebox Requirements:
- ഉയരം: 20 ഇഞ്ച് (എച്ച്)
- വീതി (മുന്നിൽ): 29 ഇഞ്ച് (പശ്ചിമ)
- വീതി (പിൻഭാഗം): 22 ഇഞ്ച് (പശ്ചിമ)
- ആഴം: 13 ഇഞ്ച് (D)
ചിത്ര വിവരണം: A diagram illustrating the required minimum dimensions for the firebox: 20 inches height, 29 inches front width, 22 inches rear width, and 13 inches depth. The log set is shown within these dimensions.
ഉൾപ്പെടുന്ന ഘടകങ്ങൾ:
ഇൻസ്റ്റാളേഷൻ ആരംഭിക്കുന്നതിന് മുമ്പ്, എല്ലാ ഘടകങ്ങളും ഉണ്ടെന്ന് ഉറപ്പാക്കുക:
- 7 Hand Painted Ceramic Logs
- Gas Burner Chassis (U-Burner design)
- റിമോട്ട് കൺട്രോൾ
- റിസീവർ ബോക്സ്
- 4 AA Batteries (for receiver)
- 3 AAA Batteries (1 for remote, 2 for Piezo ignition)
- ഹാർഡ്വെയർ പായ്ക്ക്

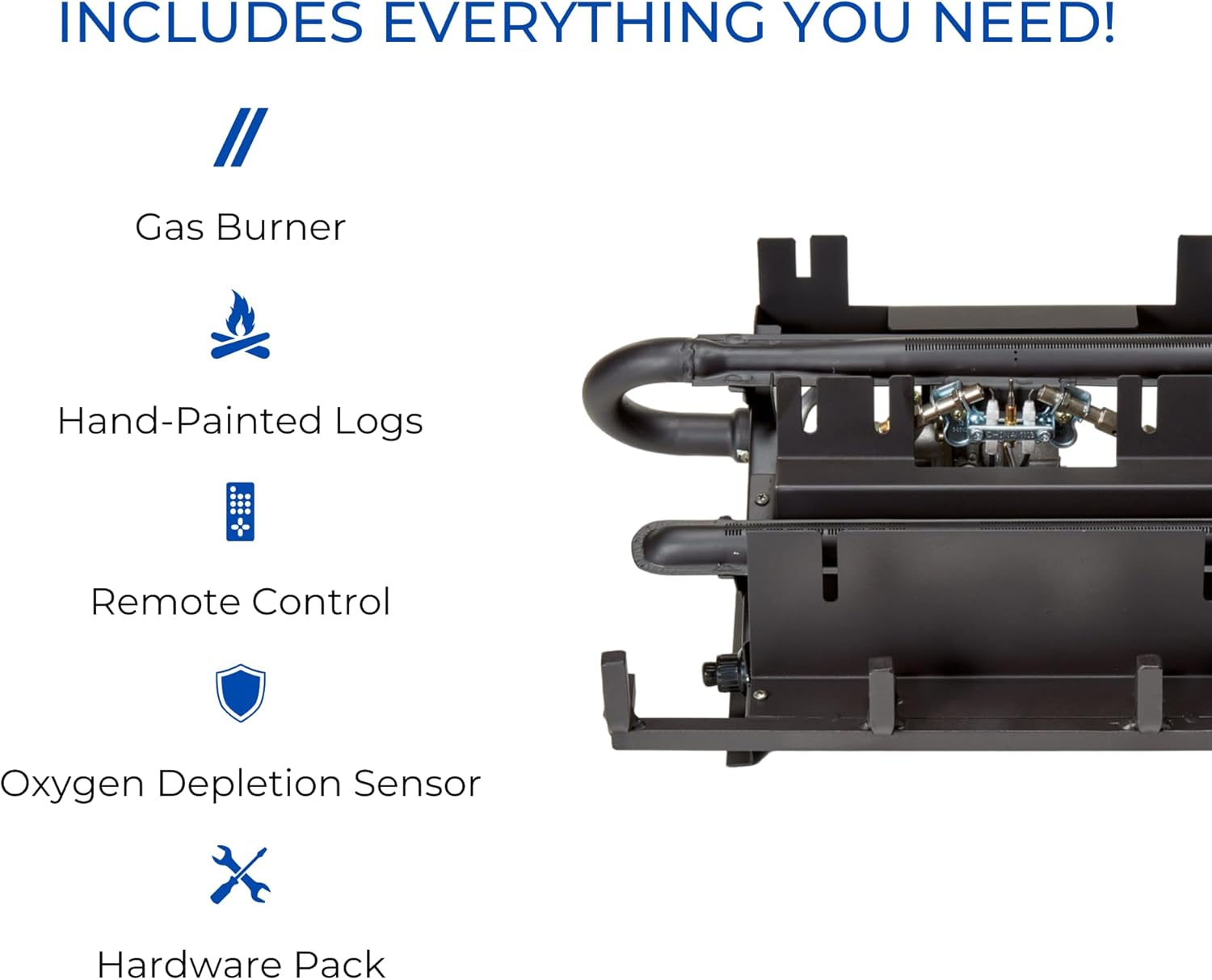

ചിത്ര വിവരണം: An illustration detailing the various components included with the fireplace log set, such as the gas burner, hand-painted logs, remote control, oxygen depletion sensor, and a hardware pack.
ലോഗ് പ്ലേസ്മെൻ്റ്:
Carefully arrange the 7 hand-painted ceramic logs on the U-burner chassis and iron grate to achieve a realistic appearance. Refer to the detailed log placement diagram in the full installation guide for optimal flame presentation and safety.
ചിത്ര വിവരണം: ഒരു ക്ലോസപ്പ് view of the seven hand-painted ceramic logs, showcasing their realistic stacked red oak appearance with charring details, positioned on the burner base.
പ്രവർത്തന നിർദ്ദേശങ്ങൾ
ജ്വലനം:
The unit features battery-assisted Piezo ignition. Ensure the AAA battery for the igniter is correctly installed. Follow the specific ignition sequence outlined in the full manual, typically involving turning the gas valve to the pilot position, pressing and holding the igniter button, and then turning to the ON position once the pilot is lit.
റിമോട്ട് കൺട്രോൾ ഓപ്പറേഷൻ:
The included thermostatic remote control allows for convenient operation of your log set. Ensure the receiver box is properly installed and connected, and that the 4 AA batteries are inserted. The remote communicates wirelessly with the receiver to control the burner.
- പവർ ഓൺ/ഓഫ്: Use the ON/OFF buttons to activate or deactivate the main burner. A standing pilot light allows for remote ignition.
- താപനില നിയന്ത്രണം: The remote's LCD screen displays the current room temperature (in °F or °C) and allows you to set a desired temperature. The log set will cycle on and off to maintain this setting in Thermostat Mode.
- മോഡ് തിരഞ്ഞെടുക്കൽ: Switch between Thermostat Mode and Manual Mode using the MODE button. In Manual Mode, the flame intensity can be adjusted directly.
- ഫ്ലേം അഡ്ജസ്റ്റ്മെൻ്റ്: Use the manual flame adjustment control on the unit or the remote (if applicable) to regulate flame height.
ചിത്ര വിവരണം: A clear image of the remote control, highlighting its buttons for 'ON', 'OFF', 'MODE', and 'SET', along with an LCD screen displaying the temperature.
ചിത്ര വിവരണം: A close-up photograph of the remote control's LCD screen, showing a temperature reading of '77°F TEMP'.
മെയിൻ്റനൻസ്
Regular maintenance ensures the longevity and safe operation of your log set. Always turn off the gas supply and allow the unit to cool completely before performing any maintenance.
- Cleaning Logs: Periodically inspect the ceramic logs for soot buildup. Clean gently with a soft brush or cloth. Do not use abrasive cleaners.
- Pilot and Burner: Inspect the pilot light and main burner ports for dust or debris. Clean with a soft brush or compressed air if necessary.
- വെൻ്റിലേഷൻ: Ensure that the area around the fireplace remains clear and unobstructed to allow for proper air circulation.
- വാർഷിക പരിശോധന: It is recommended to have a qualified service technician inspect the log set annually to ensure all components are functioning correctly and safely.
- ബാറ്ററി മാറ്റിസ്ഥാപിക്കൽ: Replace batteries in the remote control and receiver box as needed, typically annually or when performance degrades.
ട്രബിൾഷൂട്ടിംഗ്
If you encounter issues with your log set, consult the following common troubleshooting steps. For complex problems, contact a qualified service technician.
| പ്രശ്നം | സാധ്യമായ കാരണം | പരിഹാരം |
|---|---|---|
| Pilot light will not light or stay lit. | No gas supply; Pilot orifice clogged; Thermocouple/thermopile issue; ODS activated. | Check gas valve; Clean pilot orifice; Consult technician for thermocouple/thermopile; Ensure adequate ventilation. |
| Main burner will not ignite. | Pilot not lit; Remote control batteries low/dead; Receiver not powered; Gas valve not fully open. | Light pilot; Replace remote/receiver batteries; Check receiver power; Fully open gas valve. |
| റിമോട്ട് കൺട്രോൾ പ്രതികരിക്കുന്നില്ല. | Dead batteries; Receiver out of range or not powered; Interference. | Replace remote/receiver batteries; Ensure receiver is powered and within range; Remove obstructions. |
| അസാധാരണമായ ദുർഗന്ധം. | Initial burn-off of manufacturing oils; Gas leak. | Initial odors are normal for first few uses. If odor persists or is strong, turn off gas and contact gas supplier immediately. |
സ്പെസിഫിക്കേഷനുകൾ
| ഫീച്ചർ | വിശദാംശങ്ങൾ |
|---|---|
| മോഡലിൻ്റെ പേര് | DLS-18R-2 |
| ഇന്ധന തരം | Dual Fuel (Natural Gas or Liquid Propane) |
| ഹീറ്റ് ഔട്ട്പുട്ട് | 30,000 ബി.ടി.യു |
| ചൂടാക്കൽ കവറേജ് | 1,000 ചതുരശ്ര അടി വരെ |
| Log Material | സെറാമിക് |
| Log Style | Stacked Red Oak |
| ഇൻസ്റ്റലേഷൻ തരം | Freestanding (within approved firebox) |
| വെൻ്റിലേഷൻ തരം | വെന്റ് ഫ്രീ |
| ഇഗ്നിഷൻ തരം | Battery Assisted Piezo |
| പ്രത്യേക സവിശേഷതകൾ | Adjustable Thermostat, Flame Effect, Safety Shut Off (ODS) |
| ഉൽപ്പന്ന അളവുകൾ | 15.5"D x 15.5"W x 18"H |
| ഇനത്തിൻ്റെ ഭാരം | 45.8 പൗണ്ട് |
| സർട്ടിഫിക്കേഷനുകൾ | ANSI Certified System, PFS Approved |
വാറൻ്റിയും പിന്തുണയും
This Duluth Forge DLS-18R-2 Dual Fuel Ventless Fireplace Logs Set comes with a പരിമിത വാറൻ്റി. For specific details regarding warranty coverage, duration, and terms, please refer to the warranty card included with your product packaging or contact Duluth Forge customer support directly. Keep your proof of purchase for warranty claims.
For technical assistance, replacement parts, or further inquiries, please visit the official Duluth Forge website or contact their customer service department. Always provide your model number (DLS-18R-2) when seeking support.
