1. ആമുഖം
This manual provides essential information for the safe and efficient operation, setup, and maintenance of your OMTech 130W CO2 Laser Engraver, Model SH-G1490. This industrial-grade laser cutting and engraving machine is designed for precision work on various non-metallic materials.
Image: The OMTech 130W CO2 Laser Engraver, featuring the main unit, an external water chiller, and examples of engraved materials such as wooden ornaments, coasters, and leather items.
Image: The OMTech 130W CO2 Laser Engraver positioned in a workshop environment, highlighting its robust design and integration with other equipment.
2. സജ്ജീകരണം
Proper setup is crucial for the optimal performance and safety of your laser engraver. Follow these guidelines for initial installation and configuration.
2.1. Work Area and Machine Placement
The machine features a generous 35"x55" work area, supported by both honeycomb and aluminum blade beds. Ensure adequate space around the machine for operation and material handling. The three-way pass-through doors allow for processing larger and longer items, requiring clear access on all sides.
Image: A diagram illustrating the 35x55 inch work area, detailing the interchangeable honeycomb and aluminum blade beds for different material types and cutting needs.
2.2. ഓട്ടോഫോക്കസ് സിസ്റ്റം
The pre-installed autofocus system simplifies the setup process by automatically finding the correct focal distance. This eliminates the need for manual adjustments, ensuring precise engraving and cutting results with minimal effort.
ചിത്രം: വിശദമായ ഒരു ചിത്രം view of the laser head demonstrating the automatic focusing mechanism, showing the sensor detecting the material surface to set the optimal focal point.
2.3. Water Chiller Connection
An industrial water chiller (CW-5200) is included to maintain optimal laser performance and extend the lifespan of the Yongli H6 tube. Connect the chiller according to the separate chiller manual to ensure proper cooling during operation.
Image: The CW-5200 industrial water chiller, designed to keep the laser engraver's tube cool for consistent and reliable performance.
2.4. എയർ അസിസ്റ്റ് സിസ്റ്റം
The built-in air assist system is essential for removing smoke and dust during laser operations. This protects the laser lenses and reflective mirrors from debris, ensuring clean cuts and engravings while enhancing safety.
Image: A visual representation of the automatic air assist function, showing a stream of air clearing smoke and debris from the engraving area to maintain clarity and protect components.
3. പ്രവർത്തന നിർദ്ദേശങ്ങൾ
Your OMTech 130W CO2 Laser Engraver is capable of precise cutting and engraving on a variety of non-metallic materials. Understanding its capabilities will help you achieve optimal results.
3.1. Engraving and Cutting Capabilities
This machine can cut and engrave as deep as 0.4 inches on materials such as wood, glass, acrylic, and leather. It supports speeds up to 23.6 inches per second (600 mm/s), significantly boosting productivity for various projects.

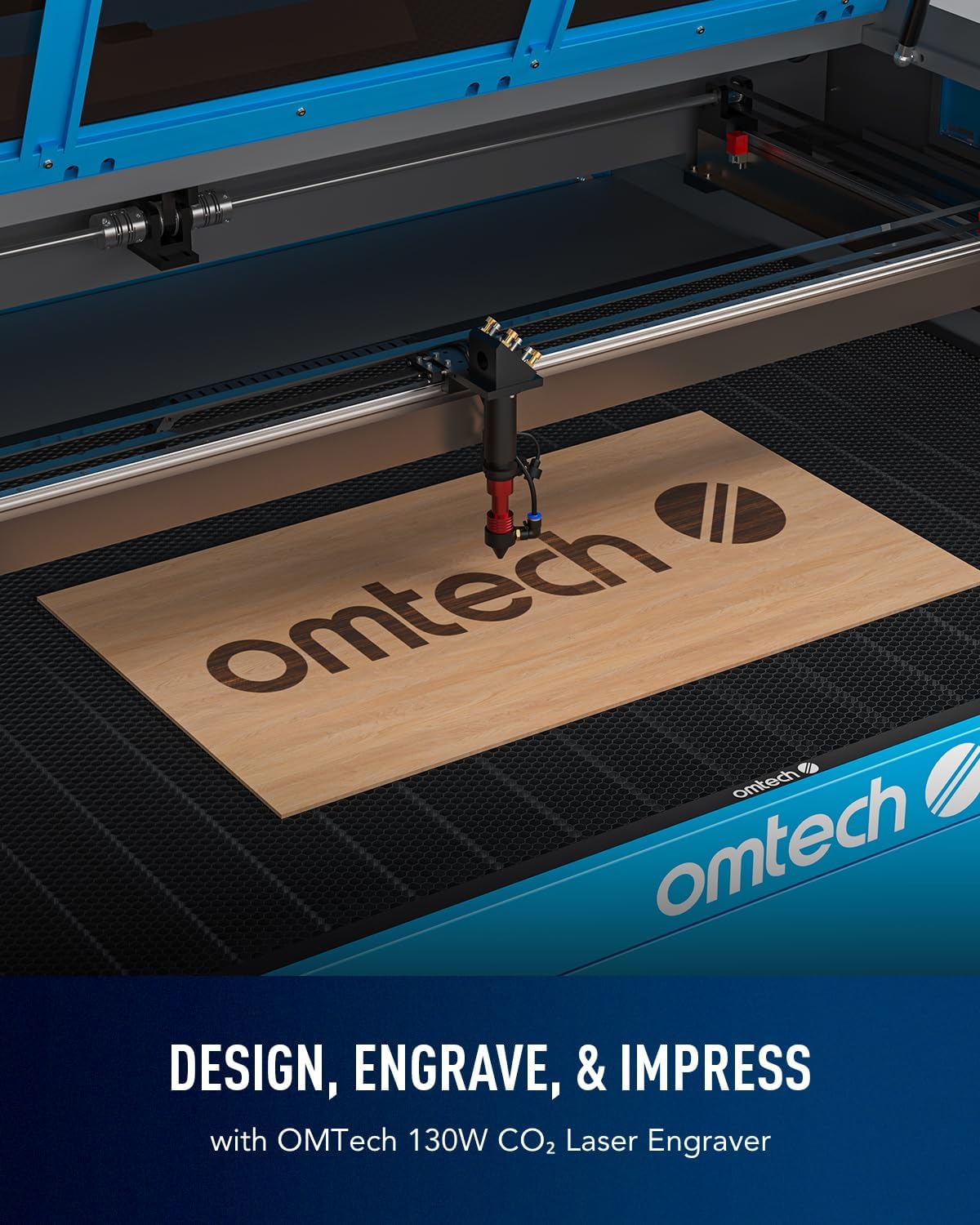

Image: The laser engraver actively working on a wooden board, demonstrating its ability to precisely engrave designs, such as the OMTech logo.
Image: An illustration highlighting the increased productivity of the laser engraver, capable of speeds up to 600 mm/s for efficient batch work.
3.2. അനുയോജ്യമായ വസ്തുക്കൾ
The OMTech 130W CO2 Laser Engraver is suitable for engraving and cutting a wide range of non-metallic materials. Refer to the table below for common compatible materials:
Image: A comprehensive list of materials categorized by their suitability for either engraving or cutting with the OMTech laser system.
3.3. കണക്റ്റിവിറ്റി ഓപ്ഷനുകൾ
The laser engraver supports multiple data transmission methods for convenience and flexibility in your workflow:
- യൂഎസ്ബി കേബിൾ: Direct connection to a computer.
- ഇഥർനെറ്റ് കേബിൾ: Network connectivity for shared access.
- യുഎസ് ബി ഫ്ളാഷ് ഡ്രെവ്: For offline operation and file കൈമാറ്റം.
- വൈഫൈ: Wireless connectivity for enhanced flexibility.
Image: A visual representation of the various connectivity options available for the laser engraver, including Wi-Fi, USB, and Ethernet, allowing for flexible integration into different setups.
3.4. ഔദ്യോഗിക ഉൽപ്പന്ന വീഡിയോ
Video: An official video from OMTech Direct titled "Laser Guys from OMTech," showcasing the practical applications and benefits of OMTech laser engravers in a business setting. This video provides insights into the machine's capabilities and user experience.
4. പരിപാലനം
Regular maintenance ensures the longevity and consistent performance of your OMTech laser engraver.
4.1. Laser Tube Lifespan
The high-performance Yongli H6 tube is designed for up to 8,000 hours of usage. Its lifespan can be extended by consistently operating the machine at lower power settings when appropriate. Monitor the tube's performance and replace it as needed.
4.2. Lens and Mirror Cleaning
The built-in air assist helps keep lenses and mirrors clean, but periodic manual cleaning is recommended. Use appropriate cleaning solutions and lint-free cloths to prevent damage to optical components. Refer to the detailed cleaning instructions in the full product manual.
4.3. Water Chiller Maintenance
Ensure the water chiller is regularly checked for proper water levels and circulation. Clean the chiller's filter and condenser coils periodically to maintain efficient cooling. Use distilled water or a recommended coolant to prevent mineral buildup and corrosion.
5. പ്രശ്നപരിഹാരം
This section provides general guidance for common issues. For detailed troubleshooting steps, please consult the comprehensive troubleshooting guide available on the OMTech support webസൈറ്റ്.
5.1. Poor Engraving/Cutting Quality
- Check Focus: Ensure the autofocus system has correctly set the focal distance. Manual adjustment may be required for certain materials.
- ക്ലീൻ ഒപ്റ്റിക്സ്: Dirty lenses or mirrors can significantly degrade laser performance. Clean them as described in the Maintenance section.
- Power/Speed Settings: Verify that the power and speed settings are appropriate for the material being processed. Incorrect settings can lead to incomplete cuts or faint engravings.
- Material Consistency: Inconsistent material thickness or composition can affect results.
5.2. Machine Not Responding
- വൈദ്യുതി വിതരണം: Ensure the machine is properly connected to a power source and the power switch is on.
- അടിയന്തരമായി നിർത്തുക: Check if the emergency stop button is engaged. Disengage it by twisting or pulling.
- കണക്റ്റിവിറ്റി: Verify USB, Ethernet, or Wi-Fi connections are secure and active.
5.3. അമിത ചൂടാക്കൽ പ്രശ്നങ്ങൾ
- വാട്ടർ ചില്ലർ: Confirm the water chiller is operating correctly, water levels are adequate, and there are no blockages in the water lines.
- ആംബിയൻ്റ് താപനില: Ensure the operating environment is within the recommended temperature range to prevent overheating.
6 സ്പെസിഫിക്കേഷനുകൾ
Detailed technical specifications for the OMTech 130W CO2 Laser Engraver (Model SH-G1490).
| ഫീച്ചർ | വിശദാംശങ്ങൾ |
|---|---|
| മോഡൽ നമ്പർ | SH-G1490 |
| ലേസർ ക്ലാസ് | ക്ലാസ് 2 |
| ഔട്ട്പുട്ട് പവർ | 0.827mW |
| Laser Tube Power | 130W (Yongli H6 tube) |
| പരമാവധി. കൊത്തുപണി വേഗത | 600 മിമി/സെക്കൻഡ് (23.6 ഐപിഎസ്) |
| വർക്ക് ഏരിയ | 35 x 55 ഇഞ്ച് |
| ഉൽപ്പന്ന അളവുകൾ | 78.7 x 56.7 x 37.8 ഇഞ്ച് |
| ഇനത്തിൻ്റെ ഭാരം | 679 പൗണ്ട് |
| നിർമ്മാതാവ് | ഒഎംടെക് |
| ആദ്യ തീയതി ലഭ്യമാണ് | ഓഗസ്റ്റ് 24, 2023 |

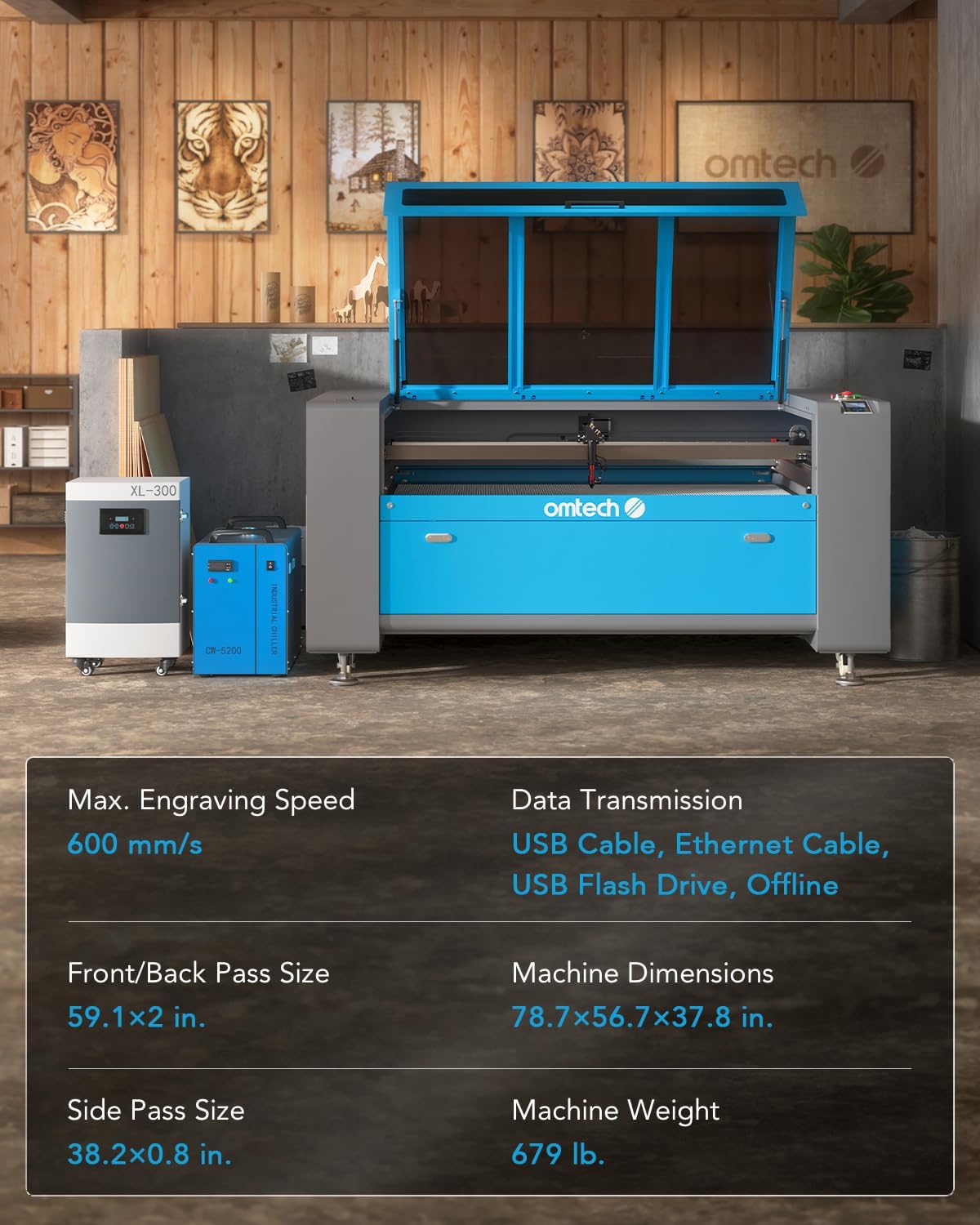

Image: A visual summary of key specifications for the OMTech 130W CO2 Laser Engraver, including engraving speed, machine dimensions, and weight.
7. വാറൻ്റിയും പിന്തുണയും
OMTech is committed to providing quality products and reliable customer service.
7.1. വാറൻ്റി വിവരങ്ങൾ
Your OMTech 130W CO2 Laser Engraver comes with a strong 2-year general warranty. The laser tube and power supply are covered by a 12 മാസ വാറൻ്റി. സാധാരണ ഉപയോഗത്തിലുള്ള മെറ്റീരിയലുകളിലെയും ജോലികളിലെയും വൈകല്യങ്ങൾ ഈ വാറന്റി ഉൾക്കൊള്ളുന്നു.
7.2. ഉപഭോക്തൃ പിന്തുണ
OMTech offers US-based customer service and technical support to assist you with any inquiries or issues. You can reach out to them via:
- ഫോൺ: +1 (949) 438-4949
- ഉപഭോക്തൃ സേവനത്തിനായുള്ള ഇമെയിൽ: SUPPORT@OMTECHLASER.COM
- Email for Tech Support: TECHSUPPORT@OMTLASER.COM
ആഴ്ചയിൽ 7 ദിവസവും 24 മണിക്കൂറും പിന്തുണ ലഭ്യമാണ്.
Image: Information detailing OMTech's 7x24 hour after-sale support, including contact phone numbers and email addresses for customer service and technical assistance.
