EP 14/3C SJTW Heavy-Duty Replacement Power Cord Instruction Manual

1. ആമുഖം

This manual provides essential information for the safe and effective use of your EP 14/3C SJTW Heavy-Duty Replacement Power Cord. Please read these instructions carefully before installation and operation to ensure proper function and safety.

Image 1.1: Two EP 14/3C SJTW Replacement Power Cords (3ft)

2 സുരക്ഷാ വിവരങ്ങൾ

നിങ്ങളുടെ സുരക്ഷയാണ് പരമപ്രധാനം. പരിക്കുകളോ നാശനഷ്ടങ്ങളോ തടയാൻ എല്ലാ സുരക്ഷാ മാർഗ്ഗനിർദ്ദേശങ്ങളും പാലിക്കുക.

• UL ലിസ്റ്റുചെയ്തത്: This power cord is UL Listed, indicating it meets recognized safety standards.
• ഗ്രൗണ്ടഡ് കണക്ഷൻ: The 3-prong plug provides a grounded connection for enhanced safety. Ensure the outlet you use is properly grounded.
• വാല്യംtagഇ കൂടാതെ Ampകോപം: Do not exceed the cord's maximum ratings of 15 Amps, 125 Volts, and 1875 Watts. Overloading can cause overheating and fire hazards.
• ഇൻഡോർ/doട്ട്ഡോർ ഉപയോഗം: The SJTW jacket is designed for both indoor and outdoor applications, with a temperature range of -40°F to +140°F. It offers resistance to moisture, abrasion, and direct sunlight. However, always keep plug connections dry.
• Bare Ends: The pigtail end features bare wires. Exercise extreme caution when handling and connecting these wires. Ensure all connections are secure and properly insulated to prevent electrical shock or short circuits.
• പരിശോധന: Before each use, inspect the cord for any signs of damage, such as cuts, fraying, or exposed wires. Do not use a damaged cord.

Image 2.1: Weather Resistant Jacket Features

3. ഉൽപ്പന്ന സവിശേഷതകൾ

The EP 14/3C SJTW Power Cord is engineered for reliability and durability.

• വയർ ഗേജ്: 14 AWG (American Wire Gauge) for robust power delivery.
• കണ്ടക്ടർമാർ: 3-wire design (Hot, Neutral, Ground) for safe operation.
• Jacket Type: SJTW (Service Junior Thermoplastic Weather-resistant) flexible vinyl jacket, providing protection against environmental factors.
• ഇലക്ട്രിക്കൽ റേറ്റിംഗ്: 15 Amps, 125 Volts, 1875 Watts maximum.
• പ്ലഗ് തരം: NEMA 5-15P male plug with reinforced blades to prevent bending or breaking.
• End Type: Pigtail (bare end) for direct wiring into appliances or tools.

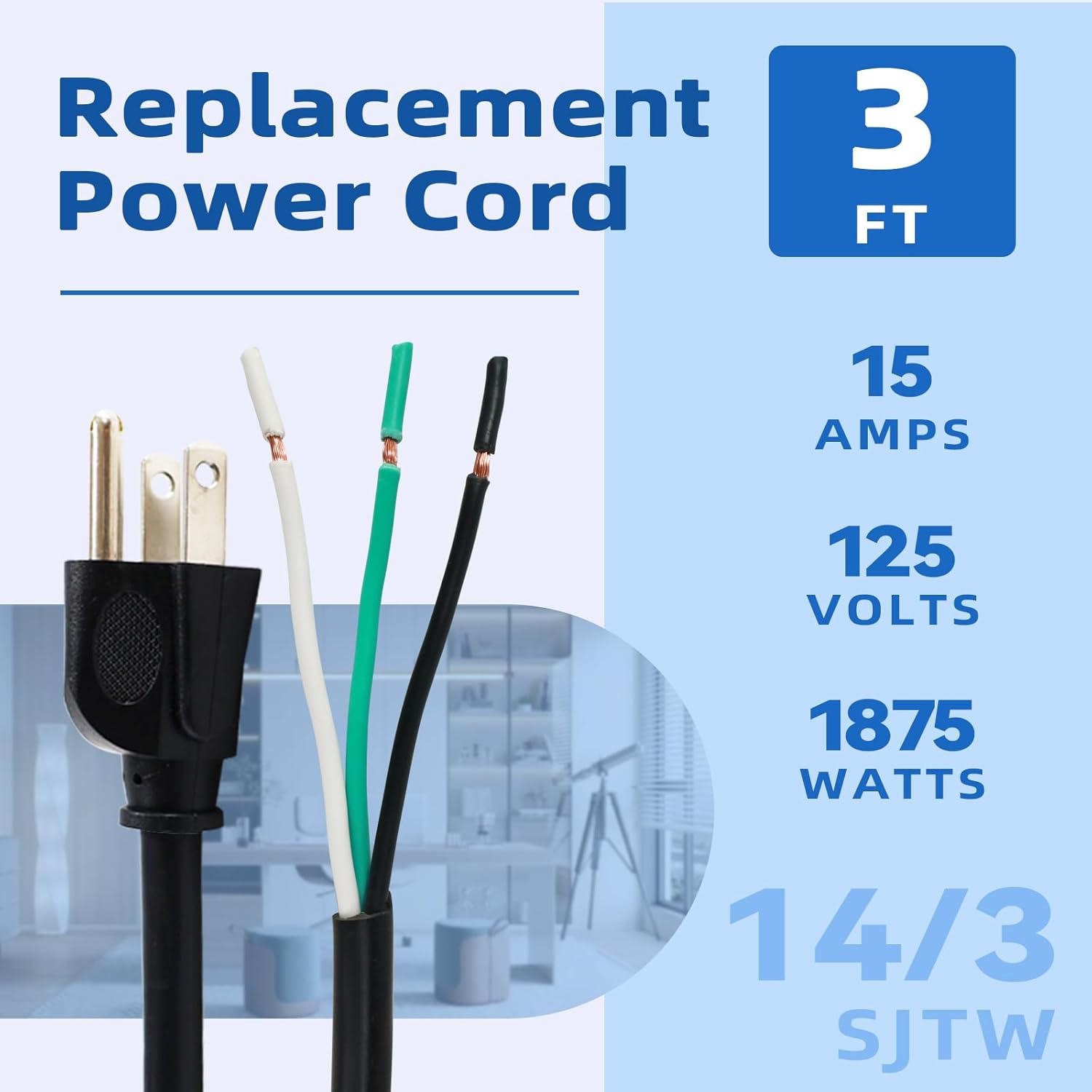

Image 3.1: Cord Specifications Overview

Image 3.2: NEMA 5-15P Plug Detail

4. സജ്ജീകരണവും ഇൻസ്റ്റാളേഷനും

This power cord is designed for replacement or custom wiring applications. Professional installation is recommended if you are not familiar with electrical wiring.

1. തയ്യാറാക്കൽ: Ensure the appliance or tool is disconnected from any power source. Gather necessary tools such as wire strippers, crimpers, and electrical tape or wire nuts.
2. വയറുകൾ തിരിച്ചറിയുക: The pigtail end of the cord contains three color-coded wires:
   • പച്ച: നിലത്തു വയർ
   • വെള്ള: ന്യൂട്രൽ വയർ
   • കറുപ്പ്: Hot (Live) wire
3. കണക്ഷൻ: Carefully strip the insulation from the bare ends of the cord and the corresponding wires on your appliance/tool. Connect the wires according to their color codes (Green to Ground, White to Neutral, Black to Hot).
4. സുരക്ഷിത കണക്ഷനുകൾ: Use appropriate connectors (e.g., wire nuts, crimp connectors) to ensure all connections are secure and insulated. Avoid loose connections, which can cause arcing and fire hazards.
5. ഇൻസുലേഷൻ: After securing connections, ensure all exposed wire is fully insulated with electrical tape or heat shrink tubing.
6. പരിശോധന: Before full operation, perform a continuity test if possible, or carefully plug the appliance into a grounded outlet and test for proper function.

Image 4.1: Pigtail End Wiring

5. പ്രവർത്തന നിർദ്ദേശങ്ങൾ

Once installed, operate the power cord responsibly.

• Match Requirements: Ensure the power requirements of the connected appliance or tool do not exceed the cord's specifications (15A, 125V, 1875W).
• ശരിയായ ഉൾപ്പെടുത്തൽ: Insert the 3-prong plug fully into a compatible, grounded electrical outlet.
• ഓവർലോഡിംഗ് ഒഴിവാക്കുക: Do not connect multiple high-power devices that collectively exceed the cord's wattagഇ റേറ്റിംഗ്.
• പരിസ്ഥിതി വ്യവസ്ഥകൾ: While the cord is weather-resistant, avoid submerging it in water. Keep connections dry, especially in outdoor environments.
• ചരട് സ്ഥാപിക്കൽ: Route the cord to avoid tripping hazards, sharp edges, or areas where it could be pinched or damaged.

Image 5.1: Versatile Applications

6. പരിപാലനം

Regular maintenance helps prolong the life of your power cord and ensures safe operation.

• പതിവ് പരിശോധന: Periodically check the entire length of the cord, including the plug and the pigtail end, for any signs of wear, cuts, cracks, or discoloration.
• വൃത്തിയാക്കൽ: If necessary, wipe the cord with a dry or slightly damp cloth. Ensure the cord is unplugged and completely dry before use. Do not use harsh chemicals or abrasive cleaners.
• സംഭരണം: When not in use, coil the cord loosely to prevent kinks and store it in a dry, cool place away from direct sunlight and extreme temperatures. Avoid wrapping it tightly around objects.
• കേടായ കമ്പികൾ: If any damage is found, discontinue use immediately and replace the cord. Do not attempt to repair damaged insulation or wires yourself unless you are a qualified electrician.

7. പ്രശ്‌നപരിഹാരം

If you encounter issues with your power cord, consider the following:

• ഉപകരണത്തിന് വൈദ്യുതിയില്ല:
  • Check if the cord is fully plugged into the wall outlet.
  • Verify the wall outlet is functional by testing it with another device.
  • Inspect the appliance's internal wiring and connections to the pigtail end for looseness or damage.
  • Ensure the appliance's power switch is in the 'ON' position.
• അമിത ചൂടാക്കൽ:
  • Unplug the cord immediately.
  • Check if the connected appliance's wattage exceeds the cord's 1875W rating.
  • Ensure the cord is not coiled or covered, which can trap heat.
• ദൃശ്യമായ കേടുപാടുകൾ: If the cord shows any physical damage (cuts, exposed wires, burnt areas), discontinue use and replace it. Do not attempt to repair.

For issues not resolved by these steps, consult a qualified electrician or contact customer support.

8 സ്പെസിഫിക്കേഷനുകൾ

9. വാറൻ്റിയും പിന്തുണയും

For information regarding warranty coverage or technical support, please refer to the product packaging or contact the manufacturer directly. Keep your purchase receipt for warranty claims.

Manufacturer: EP
