SMARTGEN HT10M Water Heater Instruction Manual

1. ആമുഖം

The SMARTGEN HT Series Water Heater is designed for preheating engine coolant. This device is crucial for ensuring reliable engine starting and operation in cold environments, specifically when the ambient temperature falls below 4℃ (39.2℉). In such conditions, engine coolant and lubricant can become viscous, impairing their effectiveness and potentially causing engine damage. The HT10M model is suitable for engines with a displacement of 0 to 7 liters.

Key features of the HT10M Water Heater include:

• Durable cast aluminum enclosure with a specialized surface treatment for high corrosion resistance and performance across a wide temperature range.
• Internal pipes and end closure constructed from stainless steel, offering high corrosion resistance.
• Integrated thermostat for precise coolant temperature control, ensuring simple connections and high reliability.
• Indicator lights for power, heating status, and overheat protection, providing clear operational feedback.
• An overheating thermostat mechanism that protects against dry heating and excessive temperatures.

2 സുരക്ഷാ വിവരങ്ങൾ

Read all safety warnings and instructions carefully before installation and operation. Failure to follow these instructions may result in electric shock, fire, serious injury, or property damage.

• വൈദ്യുത ഷോക്ക് അപകടം: Ensure the power supply is disconnected before performing any installation, maintenance, or troubleshooting. Only qualified personnel should perform electrical connections.
• ചൂടുള്ള ഉപരിതല അപകടം: The heater's surface and coolant lines can become very hot during operation. Avoid direct contact to prevent burns. Allow the unit to cool before handling.
• ഡ്രൈ ഹീറ്റിംഗ് പ്രൊട്ടക്ഷൻ: The heater is equipped with an overheating thermostat to prevent damage from dry heating. However, always ensure the heater is filled with coolant before applying power. Operating without coolant will damage the unit.
• Proper Coolant: Use only recommended engine coolant. Do not use water alone.
• മൗണ്ടിംഗ്: Mount the heater securely according to the instructions to prevent movement or damage.

Figure 2.1: HT10M Control Panel with Safety Warnings. This image displays the heater's control panel, featuring LED indicators for 'Heating', 'Overheat', and 'Power', along with 'Reset' and 'Test' buttons. Prominent safety symbols for 'Electric Shock' and 'Hot Surface' are visible, emphasizing the importance of caution during use.

3. ഉൽപ്പന്നം കഴിഞ്ഞുview

3.1 ഘടകങ്ങൾ

The SMARTGEN HT10M Water Heater consists of a robust housing, internal heating elements, a thermostat, and connection ports for the engine's coolant system and electrical supply.

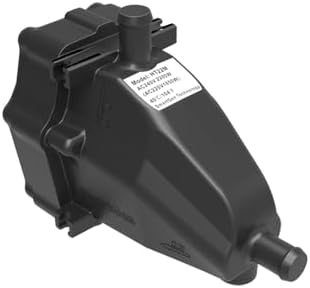

Figure 3.1: Main Product View. This image shows the overall design of the SMARTGEN HT10M Water Heater, a compact black unit with a visible product label detailing its model number and electrical ratings.

ചിത്രം 3.2: വശം View with Coolant Ports. This image provides a side perspective of the HT10M heater, highlighting the two distinct ports for coolant circulation within the engine system.

ചിത്രം 3.3: മുകളിൽ View with Mounting Points. This image displays the top surface of the HT10M heater, clearly showing the integrated mounting brackets designed for secure installation.

4. ഇൻസ്റ്റലേഷൻ

4.1 പ്രീ-ഇൻസ്റ്റലേഷൻ ചെക്ക്‌ലിസ്റ്റ്

• Ensure the engine is cool and the ignition is off.
• Verify that the heater's voltage and power specifications match your electrical supply.
• Gather necessary tools: wrenches, screwdrivers, hose clamps, coolant, and appropriate electrical connectors.
• Confirm the engine's coolant system is compatible with the heater's flow requirements.

4.2 ഹീറ്റർ മൌണ്ട് ചെയ്യുന്നു

1. Select a suitable mounting location on the engine or chassis that is stable, free from excessive vibration, and allows for easy access to coolant lines and electrical connections.
2. Ensure the heater is mounted in an upright position, as indicated by any 'THIS SIDE UP' markings, to facilitate proper coolant circulation and air bleeding.
3. Secure the heater using appropriate fasteners through its designated mounting points.

4.3 കൂളന്റ് കണക്ഷനുകൾ

1. Drain a sufficient amount of coolant from the engine system to allow for heater installation without spillage.
2. Connect the heater's inlet and outlet ports to the engine's coolant system using appropriate hoses and hose clamps. Refer to the engine manufacturer's recommendations for the optimal connection points to ensure effective coolant circulation through the heater. Typically, the heater should be installed in a bypass circuit or in line with a low-point return.
3. Ensure all hose connections are tight and leak-free.
4. Refill the engine's coolant system to the correct level with the recommended coolant, and bleed any air from the system according to the engine manufacturer's instructions.

4.4 ഇലക്ട്രിക്കൽ കണക്ഷനുകൾ

1. Ensure the power supply is disconnected at the source.
2. Connect the heater to a dedicated electrical circuit with appropriate overcurrent protection (e.g., circuit breaker or fuse).
3. Follow all local electrical codes and regulations. Use properly sized wiring for the heater's power requirements.
4. Ensure all electrical connections are secure and insulated to prevent short circuits or electric shock.

4.5 Post-installation Checks

• Visually inspect all coolant and electrical connections for tightness and integrity.
• Check coolant levels and top up if necessary.
• Ensure there are no obstructions around the heater that could impede airflow or cause overheating.

5. ഓപ്പറേഷൻ

5.1 പ്രാരംഭ ആരംഭം

1. After successful installation and verification of all connections, restore power to the heater.
2. The 'Power' indicator light should illuminate, confirming the unit is receiving electricity.
3. The 'Heating' indicator light will illuminate when the heater is actively heating the coolant.

5.2 ഇൻഡിക്കേറ്റർ ലൈറ്റുകൾ

• പവർ സൂചകം: Illuminates when the heater is connected to a power source.
• ചൂടാക്കൽ സൂചകം: Illuminates when the heating element is active. This light will cycle on and off as the thermostat maintains the desired coolant temperature.
• Overheat Protection Indicator: Illuminates if the heater detects an overheating condition, typically due to insufficient coolant or a malfunction. If this light illuminates, disconnect power immediately and investigate the cause.

5.3 തെർമോസ്റ്റാറ്റ് നിയന്ത്രണം

The HT10M Water Heater features an internal thermostat that automatically regulates the coolant temperature. Once the coolant reaches the preset temperature (e.g., 40℃ for standard models), the heating element will switch off. It will reactivate when the coolant temperature drops below the set point, maintaining optimal engine readiness.

6. പരിപാലനം

Regular maintenance ensures the longevity and efficient operation of your SMARTGEN HT10M Water Heater.

6.1 പതിവ് പരിശോധനകൾ

• പ്രതിമാസ: Inspect all coolant hoses and clamps for signs of wear, leaks, or corrosion. Tighten clampആവശ്യമെങ്കിൽ എസ്.
• ത്രൈമാസിക: Check electrical connections for tightness and signs of corrosion. Ensure wiring insulation is intact.
• വാർഷികം: Inspect the heater's housing for any physical damage. Verify that indicator lights function correctly.

6.2 വൃത്തിയാക്കൽ

Keep the exterior of the heater clean and free from dirt, debris, or oil buildup. Use a soft, damp വൃത്തിയാക്കാനുള്ള തുണി. ഉരച്ചിലുകളുള്ള ക്ലീനറുകളോ ലായകങ്ങളോ ഉപയോഗിക്കരുത്.

6.3 കൂളന്റ് സിസ്റ്റം കെയർ

Ensure the engine's coolant system is properly maintained, including regular coolant changes as recommended by the engine manufacturer. Using the correct type and concentration of coolant is vital for the heater's performance and to prevent corrosion.

7. പ്രശ്‌നപരിഹാരം

This section provides solutions to common issues encountered with the HT10M Water Heater.

8 സ്പെസിഫിക്കേഷനുകൾ

Technical specifications for the SMARTGEN HT10M Water Heater:

9. വാറൻ്റിയും പിന്തുണയും

For warranty information and technical support regarding your SMARTGEN HT10M Water Heater, please refer to the documentation provided with your purchase or contact the authorized SMARTGEN distributor or reseller from whom the product was acquired.

For direct inquiries, you may contact SmartGen-America, the seller of this product, for assistance.
