VirtuFit M2 Basic Massage Gun User Manual

ആമുഖം

The VirtuFit M2 Basic Massage Gun is designed to provide deep tissue muscle massage, helping to relieve muscle tension, soreness, and fatigue. With its portable, cordless design and multiple speed settings, it offers a versatile solution for muscle recovery and relaxation.

പ്രധാനപ്പെട്ട സുരക്ഷാ വിവരങ്ങൾ

Always read the label, warnings, and instructions provided with the product before use.

• Consult a doctor before use if you have pre-existing medical conditions, are pregnant, or have any concerns about your health.
• Do not use on injured, inflamed, swollen, or bruised areas of the body. Avoid direct contact with bones and joints.
• Keep out of reach of children and pets. This device is not a toy.
• Do not immerse the device in water or other liquids. Keep it away from excessive heat and moisture.
• Use only the provided charging cable. Do not attempt to modify or repair the device yourself.
• Do not operate continuously for more than 15 minutes. Allow the device to rest for 10 minutes before resuming use.

പാക്കേജ് ഉള്ളടക്കം

എല്ലാ ഇനങ്ങളും ഉണ്ടെന്ന് ഉറപ്പാക്കാൻ ദയവായി ബോക്സ് ചെക്ക് ചെയ്യുക:

• 1 x VirtuFit M2 Basic Massage Gun
• 6 x Massage Head Attachments
• 1 x USB to USB-C Charging Cable
• 1 x ഉപയോക്തൃ മാനുവൽ

ഉൽപ്പന്നം കഴിഞ്ഞുview

Familiarize yourself with the components of your VirtuFit M2 Basic Massage Gun.

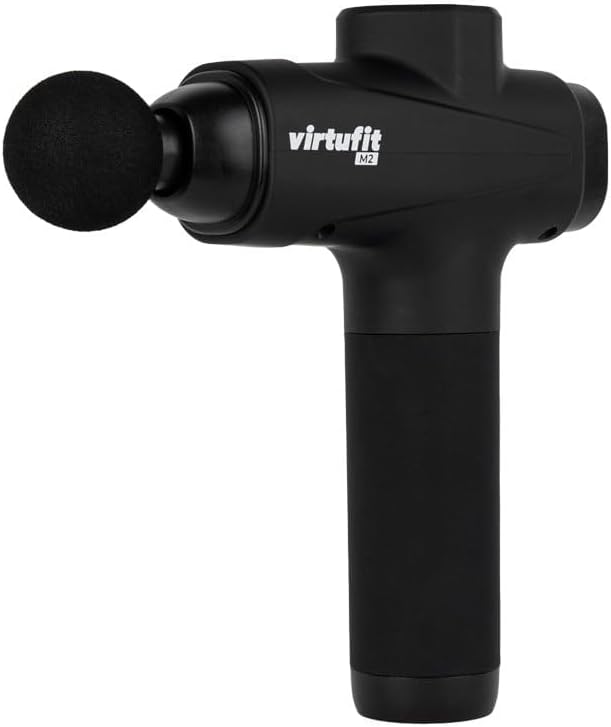

Image: The VirtuFit M2 Basic Massage Gun, showing its ergonomic design and main body.

മസാജ് ഹെഡ് അറ്റാച്ചുമെന്റുകൾ

The VirtuFit M2 comes with 6 interchangeable massage heads, each designed for specific muscle groups and massage types.

Image: A visual representation of the six distinct massage head attachments, including Round, U-Head, Flat, and Ball heads.

• റൗണ്ട് ഹെഡ്: For use on all muscles and routine massage.
• U-Head: For use around the spine. Improves flexibility of the back and shoulders.
• പരന്ന തല: For use on flat muscles that need a deeper massage.
• ബോൾ ഹെഡ്: For use on muscles that are tight, deep treatment.
• Other Specialized Heads: Two additional heads are included for varied massage needs.

സജ്ജമാക്കുക

ഉപകരണം ചാർജ് ചെയ്യുന്നു

Before first use, fully charge the massage gun.

1. Connect the USB-C end of the charging cable to the charging port on the massage gun.
2. Connect the USB-A end to a compatible USB power adapter (not included) or computer USB port.
3. The LCD display will indicate charging status. A full charge takes approximately 3-4 hours.

Image: The massage gun displaying its battery level, indicating a charge of 2-3 hours of use from a 1500 mAh battery.
4. പൂർണ്ണമായി ചാർജ് ചെയ്തുകഴിഞ്ഞാൽ, ചാർജിംഗ് കേബിൾ വിച്ഛേദിക്കുക.

Attaching Massage Heads

1. ഉപകരണം ഓഫാണെന്ന് ഉറപ്പാക്കുക.
2. Gently push the desired massage head into the front opening of the massage gun until it is securely seated.
3. To remove, gently pull the massage head straight out.

പ്രവർത്തന നിർദ്ദേശങ്ങൾ

പവർ ഓൺ/ഓഫ്

The VirtuFit M2 features an intuitive LCD touch display.

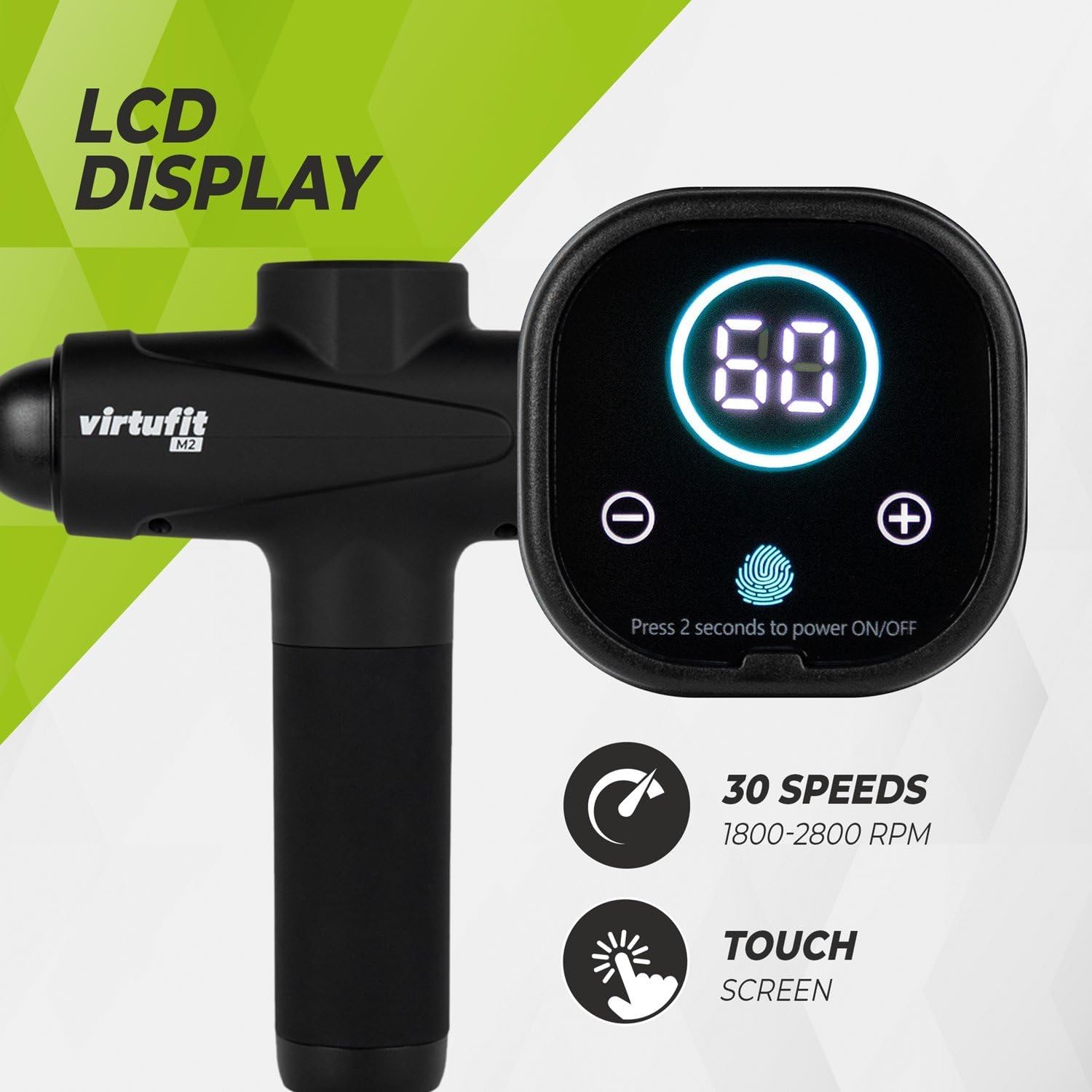

Image: Close-up of the massage gun's LCD display, showing the power button, speed controls, and current speed setting.

1. To power on, press and hold the power button (fingerprint icon) on the LCD display for 2 seconds.
2. To power off, press and hold the power button for 2 seconds again.

സ്പീഡ് ലെവലുകൾ ക്രമീകരിക്കുന്നു

The massage gun offers 30 adjustable speed levels (1800-2800 RPM) for customized intensity.

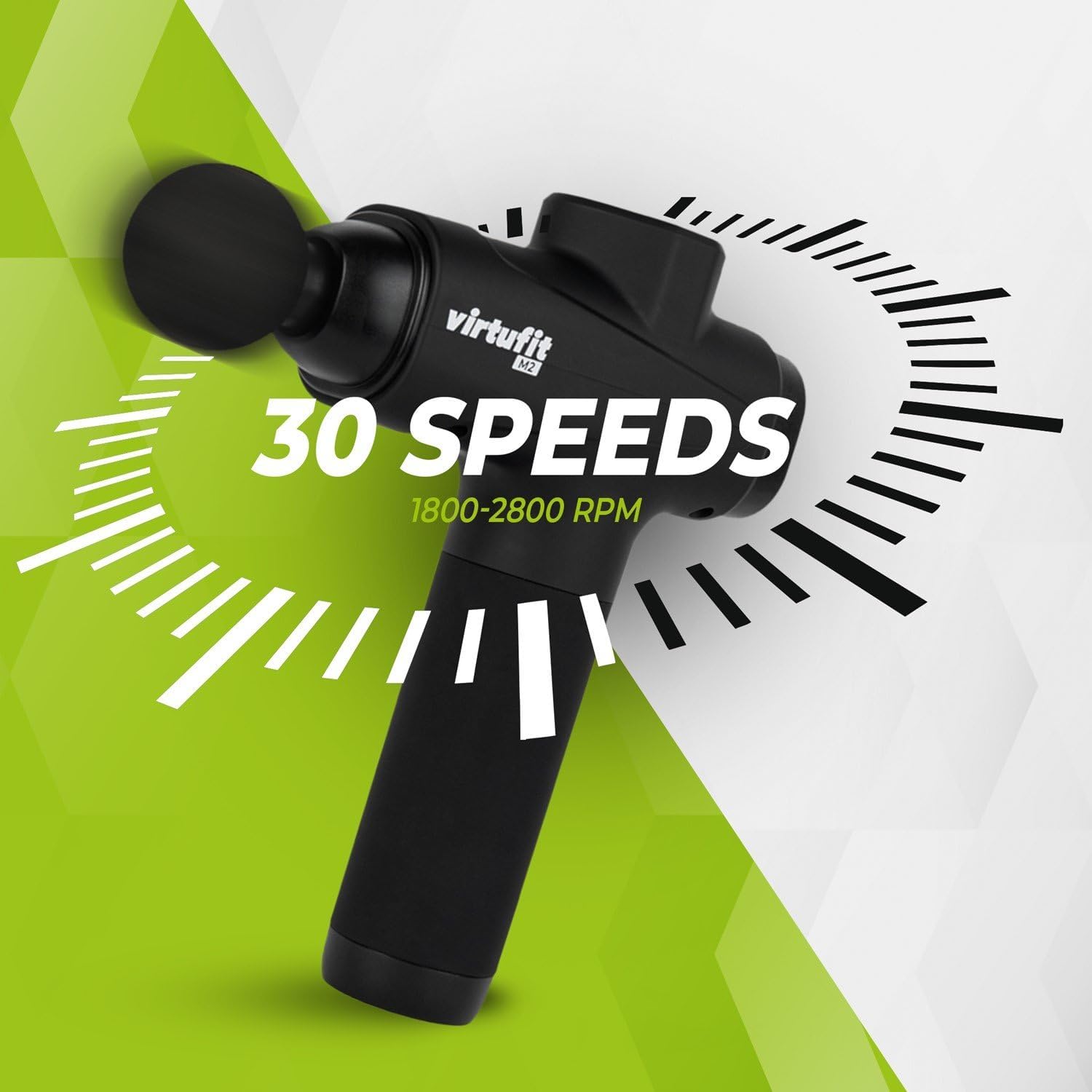

Image: The massage gun highlighting its 30 speed settings, ranging from 1800 to 2800 RPM.

1. Once powered on, use the '+' and '-' buttons on the LCD display to increase or decrease the massage intensity.
2. The current speed level will be displayed on the screen.

മസാജ് ഗൺ ഉപയോഗിച്ച്

1. Select the appropriate massage head for the area you wish to treat.
2. Turn on the device and select your desired speed level.
3. Gently apply the massage gun to the target muscle group. Do not apply excessive pressure.
4. Move the massage gun slowly over the muscle, avoiding bones and joints.
5. For optimal results, use for 1-2 minutes per muscle group.

Image: A visual representation of the massage gun's 6mm amplitude, showing the depth of percussion.

The VirtuFit M2 has a 6mm amplitude, providing effective deep tissue massage.

ശാന്തമായ പ്രവർത്തനം

Image: The massage gun depicted with a muted speaker icon and text indicating quiet operation, allowing for discreet use.

മെയിൻ്റനൻസ്

വൃത്തിയാക്കൽ

1. വൃത്തിയാക്കുന്നതിന് മുമ്പ് ഉപകരണം ഓഫാക്കിയിട്ടുണ്ടെന്നും അൺപ്ലഗ് ചെയ്തിട്ടുണ്ടെന്നും ഉറപ്പാക്കുക.
2. Wipe the surface of the massage gun with a slightly damp തുണി. കഠിനമായ രാസവസ്തുക്കളോ ഉരച്ചിലുകളുള്ള ക്ലീനറുകളോ ഉപയോഗിക്കരുത്.
3. Clean massage heads with a mild soap and water solution, then dry thoroughly before reattaching.

സംഭരണം

Store the massage gun in a cool, dry place, away from direct sunlight and extreme temperatures. Keep it in its original packaging or a protective case when not in use.

ട്രബിൾഷൂട്ടിംഗ്

സ്പെസിഫിക്കേഷനുകൾ

Image: The massage gun with its dimensions clearly marked: 17 cm width and 24 cm height.

വാറൻ്റിയും പിന്തുണയും

For warranty information and customer support, please refer to the VirtuFit official webസൈറ്റിൽ ബന്ധപ്പെടുക അല്ലെങ്കിൽ നിങ്ങളുടെ റീട്ടെയിലറെ ബന്ധപ്പെടുക. ഏതെങ്കിലും വാറന്റി ക്ലെയിമുകൾക്കായി നിങ്ങളുടെ വാങ്ങിയതിന്റെ തെളിവ് സൂക്ഷിക്കുക.
