ആമുഖം
This manual provides essential information for the proper use and maintenance of SINGER Class 15J Transparent Bobbins. These bobbins are designed for specific SINGER sewing and embroidery machines to ensure optimal performance and stitch quality. Please read this manual thoroughly before use.
Image: Two packs of SINGER Class 15J Transparent Bobbins, each containing three bobbins.
ഉൽപ്പന്നം കഴിഞ്ഞുview
SINGER Class 15J bobbins are transparent plastic bobbins specifically designed for compatibility with various SINGER sewing and embroidery machines. Their transparent nature allows for easy monitoring of thread supply.
പ്രധാന സവിശേഷതകൾ:
- മെറ്റീരിയൽ: Durable transparent plastic.
- അനുയോജ്യത: Specifically designed for SINGER Futura Embroidery Machines series 2600s, 3900s, 7400s, 8700s, and Izek 1500. Also compatible with Touch & Sew, Companion, and Confidence machines.
- അളവ്: Typically sold in packs of three.
ചിത്രം: ഒരു ക്ലോസ്-അപ്പ് view of three individual SINGER Class 15J transparent bobbins.
സജ്ജമാക്കുക
ബോബിൻ വൈൻഡിംഗ്:
- Place the desired thread spool onto the spool pin of your sewing machine.
- Follow your sewing machine's specific threading path for bobbin winding. This usually involves guiding the thread through a tension disc and then to the bobbin winding spindle.
- Place an empty SINGER Class 15J bobbin onto the bobbin winding spindle. Ensure it is seated correctly.
- Wrap the thread around the bobbin a few times clockwise to secure it.
- Engage the bobbin winding mechanism (refer to your sewing machine's manual for exact steps).
- Start the machine to begin winding. The bobbin will fill evenly.
- Once the bobbin is full, stop the machine, cut the thread, and remove the wound bobbin.
പ്രധാനപ്പെട്ടത്: Never add sewing thread to a partially wound bobbin. This can lead to uneven winding, which may cause thread tangling or breakage during sewing.
Image: Multiple SINGER Class 15J bobbins, some stacked, demonstrating their transparent design.
പ്രവർത്തിക്കുന്നു
ബോബിൻ ചേർക്കൽ:
- Ensure your sewing machine is turned off and unplugged for safety.
- Open the bobbin case area of your sewing machine. This location varies by machine model (e.g., front-loading, top-loading). Refer to your sewing machine's manual for precise instructions.
- Insert the wound SINGER Class 15J bobbin into the bobbin case or bobbin holder. Ensure the thread unwinds in the correct direction as indicated by your machine's markings (usually clockwise or counter-clockwise).
- Guide the bobbin thread through the tension spring or slot in the bobbin case/holder. This is crucial for proper stitch formation.
- Close the bobbin case cover securely.
- Pull the bobbin thread up through the needle plate opening (if applicable) by turning the handwheel to lower and raise the needle, catching the bobbin thread loop.
കുറിപ്പ്: Always use genuine SINGER 15-J Bobbins with compatible SINGER machines to ensure proper function and prevent damage to your machine.
ചിത്രം: ഒരു വശം view of two SINGER Class 15J bobbins, highlighting their clear plastic construction.
മെയിൻ്റനൻസ്
- വൃത്തിയാക്കൽ: Periodically inspect bobbins for any lint, dust, or thread residue. Clean them gently with a soft cloth or small brush.
- സംഭരണം: Store bobbins in a clean, dry place, preferably in a bobbin box or organizer to prevent tangling and protect them from damage.
- പരിശോധന: Before each use, quickly inspect bobbins for any cracks, deformities, or rough edges that could snag thread or affect machine performance. Discard any damaged bobbins.
ട്രബിൾഷൂട്ടിംഗ്
| പ്രശ്നം | സാധ്യമായ കാരണം | പരിഹാരം |
|---|---|---|
| Thread tangles or breaks during sewing. |
|
|
| തുന്നലുകൾ അസമമാണ് അല്ലെങ്കിൽ വിട്ടുപോയിരിക്കുന്നു. |
|
|
സ്പെസിഫിക്കേഷനുകൾ
- മോഡൽ നമ്പർ: 06542
- തരം: Class 15J Bobbins
- മെറ്റീരിയൽ: Transparent Plastic
- ഉൽപ്പന്ന അളവുകൾ: ഏകദേശം 0.51 x 1.88 x 6 ഇഞ്ച് (പാക്കേജിംഗ് അളവുകൾ)
- ഇനത്തിൻ്റെ ഭാരം: ഏകദേശം 0.32 ഔൺസ്
- നിർമ്മാതാവ്: Dyno Merchandise (for SINGER)
വാറൻ്റിയും പിന്തുണയും
For specific warranty information regarding SINGER Class 15J Bobbins, please refer to the packaging or contact SINGER customer support directly. As these are consumable accessories, warranty terms may vary.
For further assistance or inquiries, please visit the official SINGER website or contact their customer service department. Contact details are typically available on the product packaging or the SINGER brand webസൈറ്റ്.

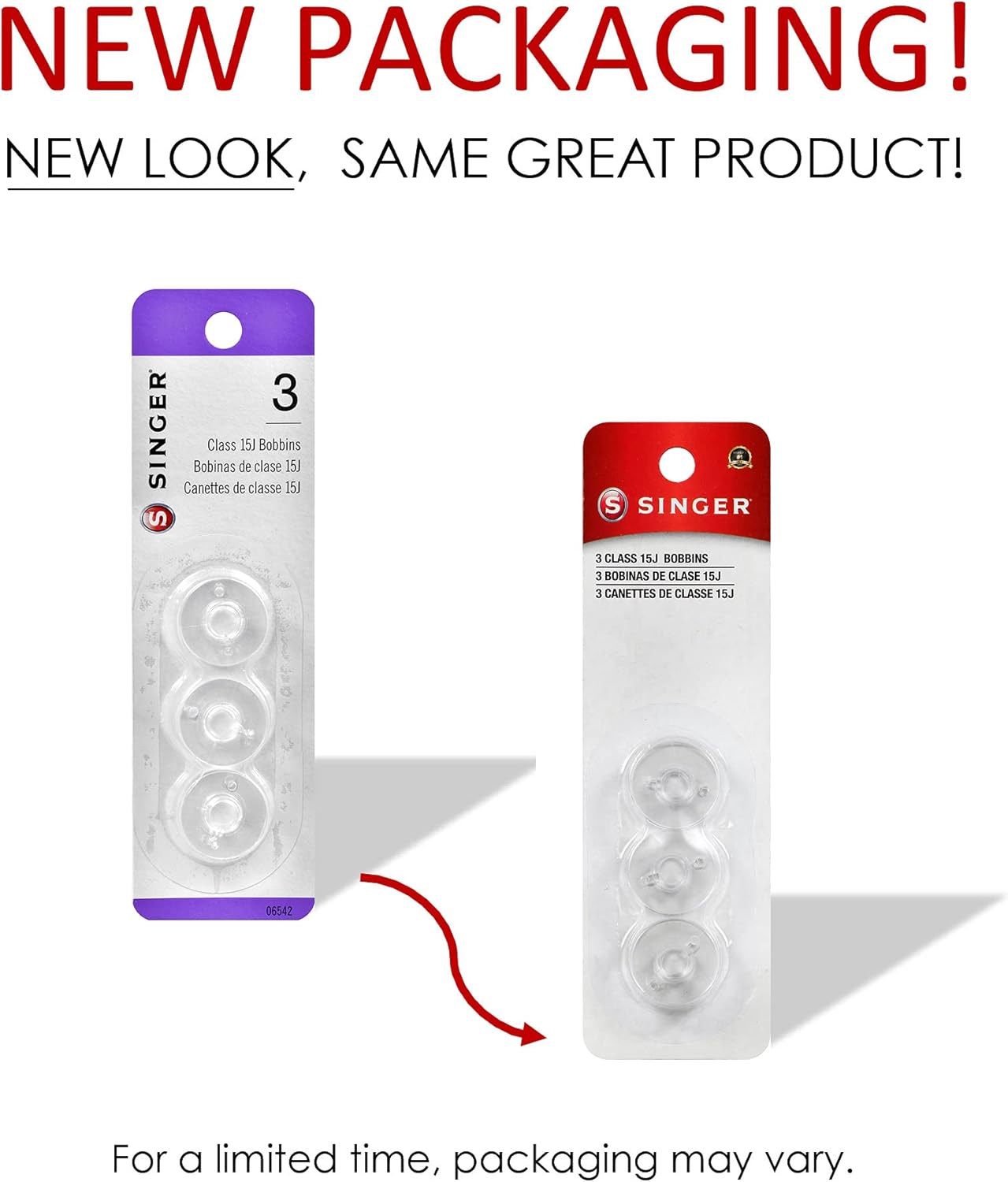

Image: Comparison of old and new packaging designs for SINGER Class 15J bobbins. Packaging may vary.
