LASER TREE 5W Laser Module Kit LT-40W-AA-JP Instruction Manual

1. ആമുഖം

This manual provides comprehensive instructions for the LASER TREE 5W Laser Module Kit (Model LT-40W-AA-JP), detailing its features, setup, operation, and maintenance for optimal engraving and cutting performance. This high-performance laser module is designed for precision and versatility, featuring a 45mm fixed focus, integrated air assist, and a magnetic eye shield for enhanced safety and ease of use.

2 സുരക്ഷാ വിവരങ്ങൾ

WARNING: Laser radiation can cause eye and skin damage. Always follow safety precautions.

• ഒരിക്കലും ലേസർ ബീമിലേക്ക് നേരിട്ട് നോക്കരുത്.
• Ensure the magnetic eye shield is properly installed during operation.
• Operate the laser module in a well-ventilated area to avoid inhaling fumes.
• ഓപ്പറേഷൻ ഏരിയയിൽ നിന്ന് കുട്ടികളെയും വളർത്തുമൃഗങ്ങളെയും അകറ്റി നിർത്തുക.
• Do not engrave or cut reflective, transparent, blue, purple, or white materials as they can reflect or transmit the laser beam, causing damage or injury.
• Always have a fire extinguisher nearby when operating the laser.

3. പാക്കേജ് ഉള്ളടക്കം

താഴെ ലിസ്റ്റ് ചെയ്തിരിക്കുന്ന എല്ലാ ഇനങ്ങളും നിങ്ങളുടെ പാക്കേജിൽ ഉൾപ്പെടുത്തിയിട്ടുണ്ടെന്ന് ഉറപ്പാക്കുക:

Image: Complete LASER TREE 5W Laser Module Kit with all included components.

• LASER TREE 5W Laser Module (LT-40W-AA-JP)
• ഡ്രൈവർ ബോർഡ്
• 1.5# L Wrench
• 1*Replaceable Protective Window Glass
• 1*3-pin 80cm Input Cable
• 3*Focus Fixing Plates (3mm, 4mm, 5mm)

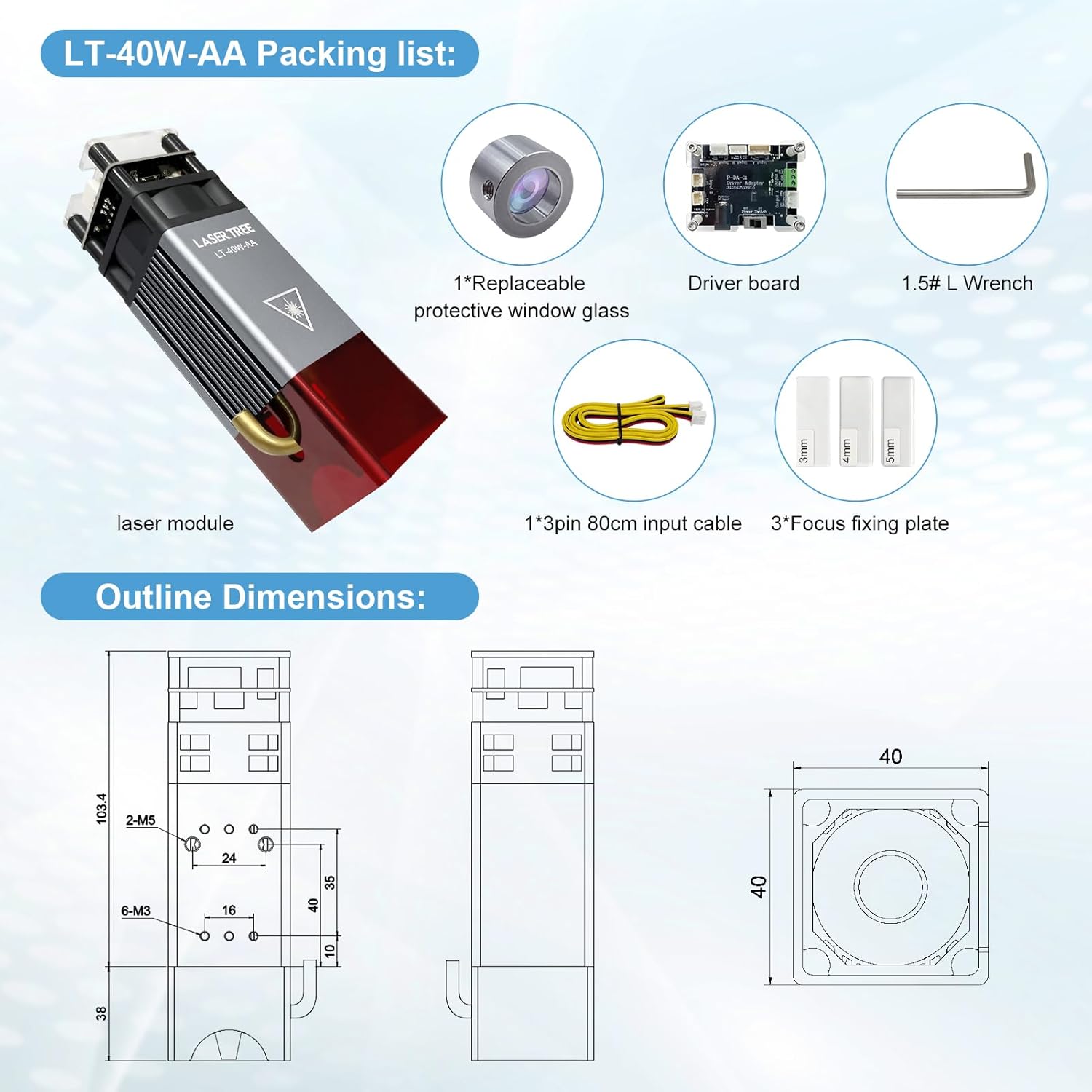

ചിത്രം: വിശദമായത് view of the LT-40W-AA-JP packing list and outline dimensions.

4. സജ്ജീകരണം

4.1. Module Installation and Connection

The LASER TREE 5W module is designed for wide compatibility with various laser engraving machines. Ensure your machine supports a 12V, 450nm laser module with PWM (0/5-12V, 0-5kHz) and GND connections.

Image: Wiring diagram showing VCC (DC 12V/24V), GND, and PWM (0/5-12V, 0-5kHz) connections for broad compatibility with DIY engraving machines.

4.2. ലേസർ ഫോക്കസ് ചെയ്യൽ

Proper focusing is crucial for optimal engraving and cutting results. Use the provided focus fixing plates to set the correct focal distance.

1. കൊത്തിവയ്ക്കേണ്ടതോ മുറിക്കേണ്ടതോ ആയ മെറ്റീരിയൽ വർക്ക് പ്രതലത്തിൽ വയ്ക്കുക.
2. Select the appropriate focus fixing plate (3mm, 4mm, or 5mm) based on your material thickness and desired operation (cutting or engraving).
3. Position the laser module so that the bottom of the focus fixing plate just touches the surface of your material.
4. Secure the laser module in this position.

Image: Diagram illustrating focus settings for cutting. For example, to cut 4mm plywood, use the 5mm focus fixing plate.

Image: Diagram illustrating focus settings for laser engraving. For example, for engraving, use the 7mm focus fixing plate.

5. പ്രവർത്തന നിർദ്ദേശങ്ങൾ

5.1. Engraving Capabilities

The 5W laser module offers excellent engraving performance on a variety of materials, including direct engraving on mirror stainless steel without the need for black paint.

Image: The laser module performing ultra-fast engraving on a stainless steel surface, demonstrating its precision and speed.

High-speed engraving on 304 stainless steel can reach up to 800mm/s at a 45mm focal distance.

5.2. Cutting Capabilities

This module is capable of cutting various materials with precision, especially when utilizing the air assist feature.

Image: The laser module cutting through 4mm bass plywood in a single pass, highlighting its cutting power.

It can cut 4mm thick plywood in one pass at speeds of 80-190mm/min with a 45mm focal distance.

5.3. Air Assist Function

The integrated air assist device significantly improves cutting and engraving quality by providing a smoother finish and reducing material burning.

Image: Comparison showing clean-cut edges with air assist versus scorched edges without air assist, demonstrating the benefit of the feature.

5.4. അനുയോജ്യമായ വസ്തുക്കൾ

The module supports a wide range of materials for engraving and cutting:

• Engravable/Cuttable: Plywood, black acrylic, MDF, wood, paper, leather, bamboo, plastic, rubber, aluminum, stainless steel.
• Not Engravable/Cuttable: Blue, purple, white, transparent materials, and aluminum without an oxide film.

6. പരിപാലനം

To ensure consistent performance and longevity of your laser module, regular maintenance is recommended.

6.1. Replacing the Protective Window Glass

The module features a replaceable protective window glass to shield the lens from contamination. If the window becomes dirty or damaged, it can be easily replaced without tools.

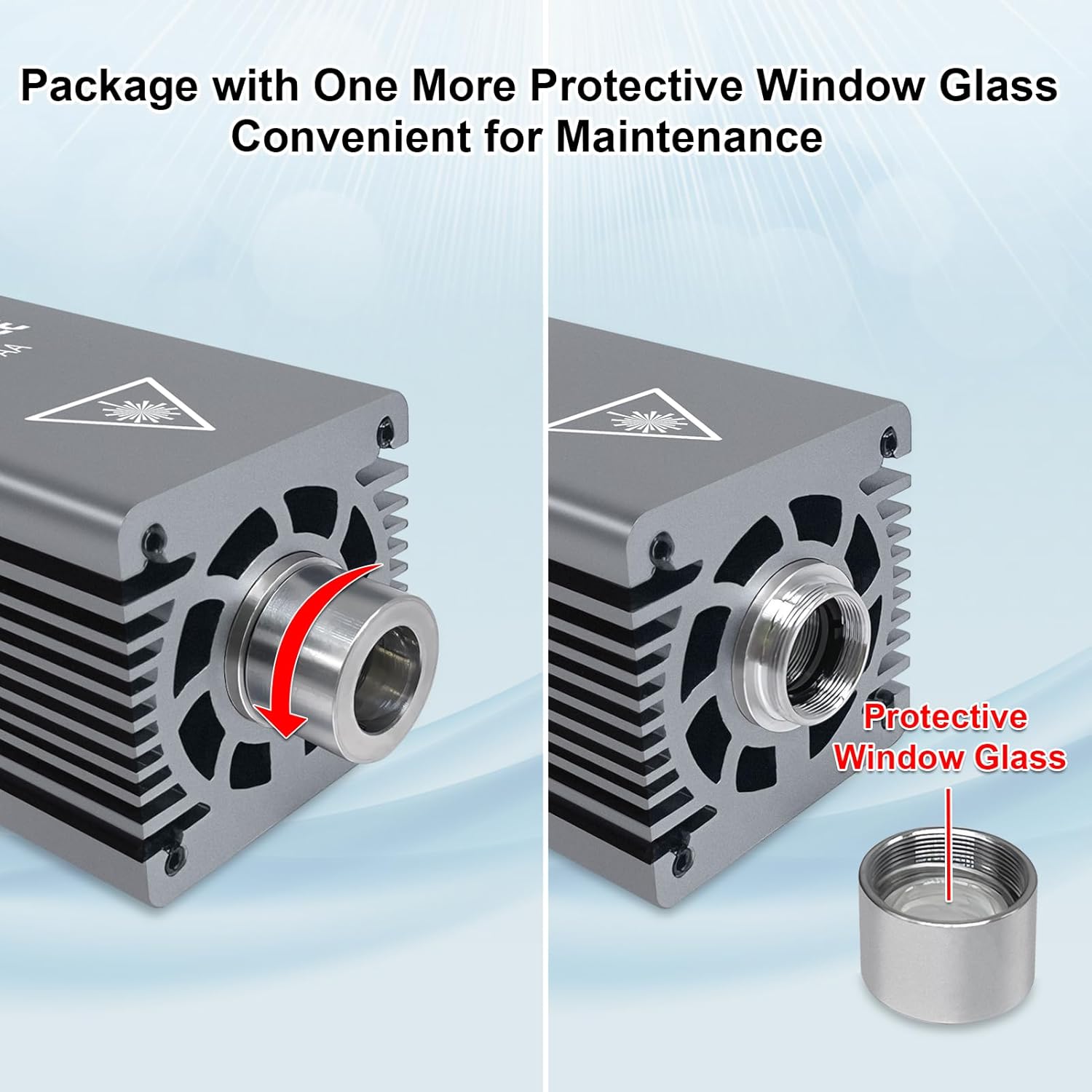

Image: Instructions for replacing the protective window glass, which twists off for easy maintenance.

7. പ്രശ്‌നപരിഹാരം

If you encounter any issues with your LASER TREE 5W Laser Module, please refer to the following general troubleshooting tips:

• ലേസർ ഔട്ട്പുട്ട് ഇല്ല: Check power connections, ensure the module is properly seated, and verify software settings.
• മോശം കൊത്തുപണി/മുറിക്കൽ നിലവാരം: Re-check focal distance, adjust power and speed settings, ensure material is clean, and verify air assist is functioning if used.
• മൊഡ്യൂൾ അമിത ചൂടാക്കൽ: Ensure adequate ventilation and check for any obstructions to the cooling fan.

For more detailed assistance, please contact customer support as described in the Warranty & Support section.

8 സ്പെസിഫിക്കേഷനുകൾ

9. വാറണ്ടിയും പിന്തുണയും

LASER TREE is committed to providing high-quality laser modules and comprehensive customer service.

• വാറൻ്റി: ഈ ഉൽപ്പന്നം വാങ്ങിയ തീയതി മുതൽ 12 മാസത്തെ വാറൻ്റിയോടെയാണ് വരുന്നത്.
• സാങ്കേതിക സഹായം: For any questions or technical assistance, please contact us through Amazon or our official website. Our professional technical support team will respond promptly.
