Intelbras ELC 3020 Electric Fence Central Unit

ഉൽപ്പന്നം കഴിഞ്ഞുview

The Intelbras ELC 3020 electric fence central unit is designed for robust perimeter protection of small to medium-sized commercial and residential properties. This unit integrates advanced security features with user-friendly installation and operation.

Key features include the "Shock Fácil" technology for simplified setup, automatic perimeter learning, and fault detection. It can be seamlessly integrated with existing alarm systems, allowing for real-time monitoring and control via a dedicated application.

The ELC 3020 is certified by INMETRO under Ordinance No. 371 of 29/12/2009, ensuring compliance with safety and quality standards.

ചിത്രം: മുൻഭാഗം view of the Intelbras ELC 3020 electric fence central unit, showing its clean white casing and indicator lights for 'Ligado' (On), 'Cerca' (Fence), and 'Alarme' (Alarm), along with the Intelbras logo.

സജ്ജീകരണവും ഇൻസ്റ്റാളേഷനും

The ELC 3020 is designed for straightforward installation, thanks to its "Shock Fácil" technology and factory pre-programming. Follow these guidelines for proper setup:

• പവർ കണക്ഷൻ: Connect the unit to an AC power source (115 - 230 VAC). A 12 V / 7 A battery (not included) can be connected for DC power and backup. Ensure correct polarity when connecting the battery.
• Fence Wiring: The unit supports up to 7000 meters of 0.9 mm stainless steel wire. Ensure all wiring is secure and properly insulated according to local electrical codes.
• റിമോട്ട് കൺട്രോൾ ജോടിയാക്കൽ: The unit can accept up to 30 wireless devices, including remote controls, compatible only with OOK modulation. Refer to the specific remote control manual for pairing instructions.
• Alarm System Integration: For enhanced security, the ELC 3020 can be interconnected with compatible alarm central units. This allows for real-time monitoring and control via a mobile application. The unit provides two monitoring outputs: one for perimeter status and another for fence activation/deactivation.
• സൈറൺ കണക്ഷൻ: Connect a siren to the dedicated 14.5 Vdc output for audible alerts during alarm events.

Image: The Intelbras ELC 3020 central unit displayed alongside its common accessories, including three remote controls, a siren, a "PERIGO CERCA ELÉTRICA" (DANGER ELECTRIC FENCE) warning sign, and a 12V battery, illustrating a complete setup.

പ്രവർത്തന നിർദ്ദേശങ്ങൾ

Once installed, operating the ELC 3020 is straightforward:

• ആയുധമാക്കൽ/നിരായുധീകരണം: Use the paired remote control to activate or deactivate the electric shock function. The LED output on the unit will indicate the armed or disarmed status.
• Perimeter Learning: The system features automatic perimeter learning and detection of faults (leaks) in the fence line. This ensures optimal performance and alerts you to any issues.
• വാല്യംtagഇ ക്രമീകരണം: Outputട്ട്പുട്ട് വോളിയംtage can be adjusted between 12000 and 20000 volts to suit specific security requirements and local regulations. Consult a qualified technician for voltagഇ ക്രമീകരണങ്ങൾ.
• നിരീക്ഷണം: The unit continuously monitors high voltage, fence violations, and connected sensors. Any detected anomaly will trigger an alarm and can be reported via the interconnected alarm system and application.
• പൾസ് ഇടവേള: The electric pulses are emitted at a consistent interval of 1 second.

മെയിൻ്റനൻസ്

To ensure the longevity and optimal performance of your Intelbras ELC 3020, consider the following maintenance points:

• ബാറ്ററി കെയർ: The unit includes a floating battery charger with protection against short-circuit and polarity inversion. Regularly check the battery's condition, especially if the unit relies on it for backup power.
• പരിസ്ഥിതി സംരക്ഷണം: The ELC 3020 has an IPX4 rating, providing protection against splashing water from any direction. However, it should be installed in a location protected from direct heavy rain or prolonged exposure to moisture.
• വൃത്തിയാക്കൽ: Periodically clean the exterior of the unit with a soft, dry cloth. Do not use abrasive cleaners or solvents.
• Fence Inspection: Regularly inspect the electric fence wiring for any damage, corrosion, or obstructions (e.g., vegetation) that could affect its performance.

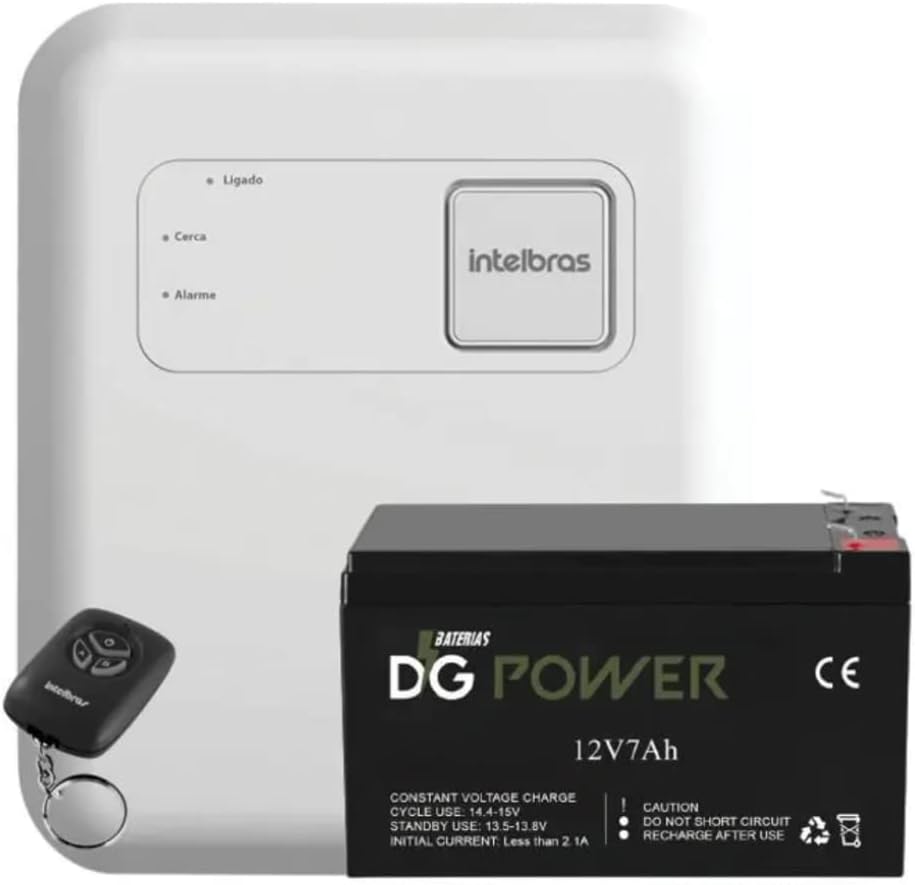

Image: The Intelbras ELC 3020 central unit shown with a 12V 7Ah DG POWER battery and a remote control, highlighting the components involved in power supply and remote operation.

ട്രബിൾഷൂട്ടിംഗ്

If you encounter issues with your ELC 3020, refer to the following common problems and solutions:

• ഒരു വൈദ്യുതിയോ/യൂണിറ്റോ പ്രതികരിക്കുന്നില്ല:
  • Check the AC power connection and ensure the outlet is functional.
  • Verify the 12V battery connection and its charge level. The floating charger protects against polarity inversion and short circuits.
• Fence Not Electrified/Weak Shock:
  • Inspect the fence wiring for breaks, shorts, or significant leaks (faults). The automatic perimeter learning system should detect these.
  • Ensure the unit is armed via the remote control.
  • ഔട്ട്പുട്ട് വോളിയം പരിശോധിക്കുകtage setting. If adjustable, ensure it is set appropriately (12000 or 20000 volts).
• റിമോട്ട് കൺട്രോൾ പ്രവർത്തിക്കുന്നില്ല:
  • Ensure the remote control battery is not depleted.
  • Verify the remote control is properly paired with the central unit (OOK modulation only).
  • Check for obstructions or excessive distance. The remote has an effective range of up to 100 meters in direct line of sight.
• False Alarms/Frequent Triggers:
  • Inspect the fence for vegetation touching the wires or other physical obstructions that could cause false triggers.
  • Check connected sensors for proper installation and sensitivity.

For persistent issues or complex problems, it is recommended to contact a qualified technician or Intelbras technical support.

സാങ്കേതിക സവിശേഷതകൾ

വാറൻ്റിയും പിന്തുണയും

For information regarding the warranty of your Intelbras ELC 3020 electric fence central unit, please refer to the warranty card included with your product or consult the official Intelbras webസൈറ്റ്. വാറന്റി നിബന്ധനകളും വ്യവസ്ഥകളും വ്യത്യാസപ്പെടാം.

Should you require technical assistance, support, or have any questions not covered in this manual, please contact Intelbras customer service or an authorized service center. Contact information can typically be found on the Intelbras official webസൈറ്റ് അല്ലെങ്കിൽ ഉൽപ്പന്ന പാക്കേജിംഗ്.

Note: Always ensure that any installation, maintenance, or repair work is performed by qualified personnel to avoid electric shock or damage to the equipment.
