Soozier Portable Basketball Hoop (Model A61-046V00BK) Instruction Manual

ഉൽപ്പന്നം കഴിഞ്ഞുview

This manual provides instructions for the Soozier 7.5-10FT Portable Basketball Hoop, model A61-046V00BK. This versatile basketball hoop is designed for both backyard and poolside use, offering adjustable height to accommodate various ages and skill levels. Its robust construction ensures durability for outdoor conditions, and a fillable base provides stability.

Image: Soozier Portable Basketball Hoop in a backyard setting.

പ്രധാനപ്പെട്ട സുരക്ഷാ വിവരങ്ങൾ

• അസംബ്ലിക്കും ഉപയോഗത്തിനും മുമ്പ് എല്ലാ നിർദ്ദേശങ്ങളും ശ്രദ്ധാപൂർവ്വം വായിക്കുക.
• Adult supervision is recommended, especially for children.
• Ensure the base is properly filled with water or sand to prevent tipping.
• Regularly inspect all bolts and connections for tightness.
• Do not hang on the rim or backboard.
• ഉയരം ക്രമീകരിക്കുമ്പോൾ കൈകളും വിരലുകളും ചലിക്കുന്ന ഭാഗങ്ങളിൽ നിന്ന് അകറ്റി നിർത്തുക.

ഘടകങ്ങളുടെ പട്ടിക

അസംബ്ലി ആരംഭിക്കുന്നതിന് മുമ്പ്, എല്ലാ ഭാഗങ്ങളും ഉണ്ടെന്നും കേടുപാടുകൾ സംഭവിച്ചിട്ടില്ലെന്നും ഉറപ്പാക്കുക. ഘടകങ്ങളുടെ ദൃശ്യ തിരിച്ചറിയലിനായി അസംബ്ലി വീഡിയോ കാണുക.

Hardware (Refer to Assembly Video for detailed numbering)

• Various bolts, nuts, and washers for securing connections.
• Springs for rim attachment.
• Wrench for tightening.

Main Parts (Refer to Assembly Video for detailed numbering)

• ബാക്ക്‌ബോർഡ്
• ബാസ്കറ്റ്ബോൾ റിം
• നെറ്റിംഗ്
• അടിസ്ഥാനം
• Support Poles (Upper, Middle, Lower)
• Backboard Support Brackets
• Base Support Bars
• ചക്രങ്ങൾ

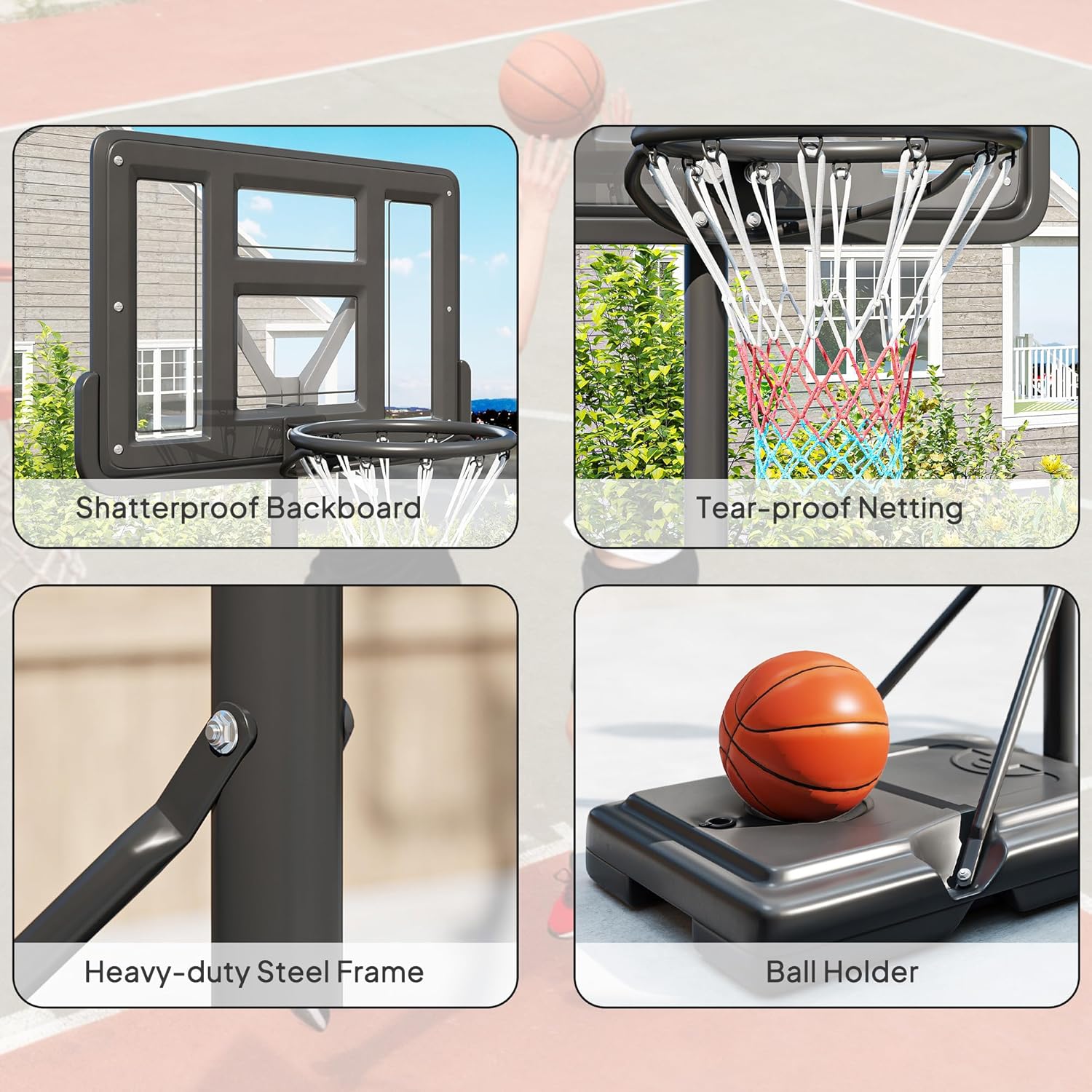

Image: Key features including backboard, netting, frame, and ball holder.

അസംബ്ലി നിർദ്ദേശങ്ങൾ

Follow these steps for proper assembly. It is recommended to have two people for certain steps. Refer to the assembly video for visual guidance.

Video: Detailed assembly steps for a portable basketball hoop.

Step 1: Attach Net to Rim

Secure the netting to the basketball rim. Ensure each loop of the net is properly threaded through the hooks on the rim.

Step 2: Assemble Backboard and Rim

Attach the assembled rim to the backboard using the provided bolts, washers, and springs. Ensure the springs are correctly positioned for rim flexibility.

Step 3: Attach Backboard Support Brackets

Secure the backboard support brackets to the back of the backboard using the specified hardware. These brackets provide additional stability.

Step 4: Assemble Base and Wheels

Insert the axle through the base and attach the wheels. Then, connect the lower support pole to the base using the appropriate bolts and nuts. Ensure all connections are tight.

Image: Moving the hoop with integrated wheels.

Step 5: Attach Base Support Bars

Connect the base support bars to the lower pole and the base. These bars enhance the stability of the entire unit.

Step 6: Connect Support Poles

Join the middle pole to the lower pole, and then the upper pole to the middle pole. Secure each connection with the designated bolts and nuts.

Step 7: Attach Backboard Assembly to Pole

Carefully lift and attach the backboard and rim assembly to the upper support pole. Secure it firmly with the remaining hardware.

പ്രവർത്തന നിർദ്ദേശങ്ങൾ

ഉയരം ക്രമീകരിക്കുന്നു

The basketball hoop features an adjustable height mechanism. To adjust, loosen the securing bolts on the main pole, slide the upper section to the desired height, and then re-tighten the bolts securely. The adjustable height ranges from 76.8" - 145.7" (195-370cm) for the overall unit, and 90.6" - 120.1" (230-305cm) for the hoop height in backyard mode, or 51.25" - 80.75" (130-205cm) for poolside mode.

Dual-Use Functionality

This basketball hoop can be used in two configurations: a standard outdoor hoop or a poolside hoop. To convert to poolside use, remove the center section of the main frame. This lowers the hoop height, making it suitable for water play.

Image: Dual-use design for backyard and poolside play.

Filling the Base for Stability

The base must be filled with water or sand to ensure stability and prevent the hoop from tipping over during use. The base can hold approximately 143lbs (65kg) of water, 176lbs (80kg) of sand, or 198lbs (90kg) when filled with a mixture of both. Use the designated fill port on the base. A slot on the base is also provided to hold the ball in place when not in use.

Image: Instructions for filling the weighted base.

മെയിൻ്റനൻസ്

• വൃത്തിയാക്കൽ: Wipe down the backboard, rim, and poles with a damp ആവശ്യാനുസരണം തുണിയും വീര്യം കുറഞ്ഞ സോപ്പും ഉപയോഗിക്കുക.
• ഹാർഡ്‌വെയർ പരിശോധന: Periodically check all bolts, nuts, and connections to ensure they remain tight. Re-tighten if necessary to maintain structural integrity.
• വല: Inspect the nylon netting for any signs of wear or tearing. Replace the net if it becomes damaged to ensure continued play.
• അടിസ്ഥാനം: Ensure the base remains adequately filled for stability. If storing for winter, empty the base to prevent freezing and cracking.
• സംഭരണം: When not in use for extended periods or during harsh weather, consider storing the hoop in a sheltered area to prolong its lifespan.

ട്രബിൾഷൂട്ടിംഗ്

• Hoop is Wobbly: Ensure the base is completely filled with water or sand. Check all pole connections and base support bars for tightness.
• ഉയരം ക്രമീകരിക്കുന്നതിലെ ബുദ്ധിമുട്ട്: Loosen the adjustment bolts sufficiently before attempting to slide the pole sections. Ensure no debris is obstructing the pole's movement.
• Net is Damaged: The netting is designed to be tear-proof but can wear over time. Replace the net if it shows significant damage.
• Water Leaking from Base: Check the fill cap to ensure it is securely closed. Inspect the base for any cracks or damage.

സ്പെസിഫിക്കേഷനുകൾ

Image: Detailed dimensions of the basketball hoop.

വാറൻ്റിയും പിന്തുണയും

For warranty information, product support, or to order replacement parts, please contact Soozier customer service. Keep your purchase receipt and model number (A61-046V00BK) handy for faster service.

കോൺടാക്റ്റ് വിവരങ്ങൾ സാധാരണയായി നിർമ്മാതാവിന്റെ വിലാസത്തിൽ കാണാം webസൈറ്റ് അല്ലെങ്കിൽ നിങ്ങളുടെ റീട്ടെയിലർ വഴി.
