AdaLov CPE881 3-പാക്ക് വയർലെസ് ബ്രിഡ്ജ് ഇൻസ്ട്രക്ഷൻ മാനുവൽ

1. ആമുഖം

The AdaLov CPE881 3-Pack Wireless Bridge system is designed to extend network connectivity over long distances, providing a stable and high-speed wireless link. This system supports both Point-to-Point (PTP) and Point-to-Multipoint (PTMP) configurations, making it suitable for various outdoor networking needs such as connecting remote buildings, extending internet to surveillance cameras, or providing network access in large properties.

Operating on the 5.8GHz frequency band, the CPE881 offers enhanced speed and reduced interference. Each bridge features two 1000Mbps LAN ports for reliable wired connections and a 14dBi high-gain antenna for a working distance of up to 5KM (3.1 miles) with a clear line of sight. The devices are IP65-rated for outdoor use, ensuring durability in various weather conditions.

Image 1.1: AdaLov CPE881 Wireless Bridges

2. പാക്കേജ് ഉള്ളടക്കം

Verify that all items listed below are present in your package. If any items are missing or damaged, please contact customer support.

• 3 x Wireless Bridges (AdaLov CPE881)
• 3 x POE അഡാപ്റ്ററുകൾ
• 3 x മെറ്റൽ കേബിൾ ടൈകൾ
• 3 x നെറ്റ്‌വർക്ക് കേബിളുകൾ
• 1 x ഉപയോക്തൃ മാനുവൽ

ചിത്രം 2.1: പാക്കേജ് ഉള്ളടക്കങ്ങൾ

3. ഉൽപ്പന്നം കഴിഞ്ഞുview

3.1. ഉപകരണ ഘടകങ്ങൾ

Each CPE881 wireless bridge features the following components:

• ഡിജിറ്റൽ ട്യൂബ് ഡിസ്പ്ലേ: Shows the current operating mode (Transmitter A Mode, Receiver B Mode) and pairing status.
• റീസെറ്റ് ബട്ടൺ: Used to reset the device to factory settings or initiate pairing.
• AB ബട്ടൺ: Used to switch between Transmitter (A) and Receiver (B) modes during setup.
• ഡിസി പവർ പോർട്ട്: പവർ അഡാപ്റ്റർ ബന്ധിപ്പിക്കുന്നതിന്.
• LAN (1000Mbps) Ports: Two Gigabit Ethernet ports for wired network connections.
• LED സൂചകങ്ങൾ: Provide visual feedback on WLAN status, signal strength, LAN activity, and power.

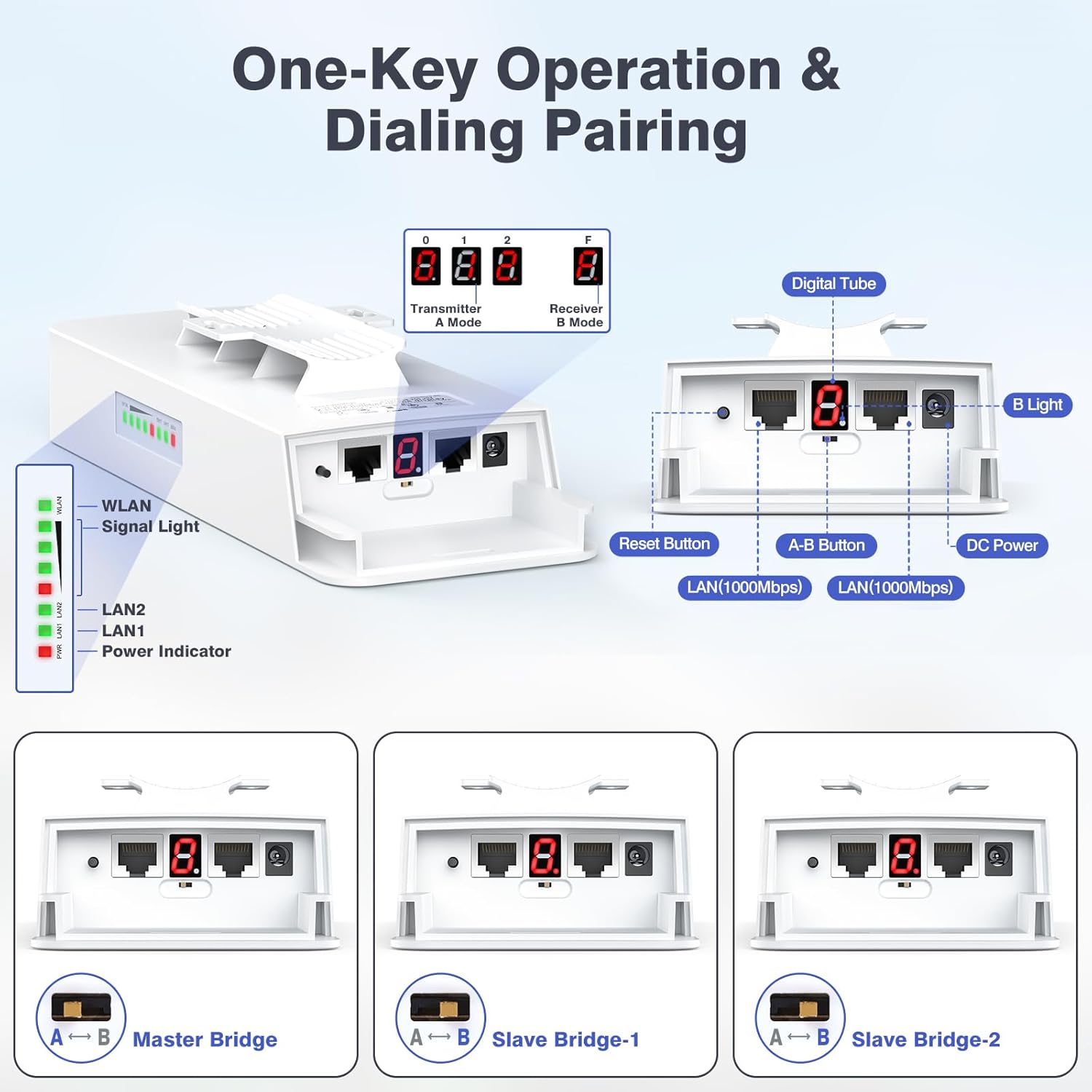

Image 3.1: CPE881 Device Components and Indicators

3.2. എൽഇഡി സൂചകങ്ങൾ

4. സജ്ജീകരണ നിർദ്ദേശങ്ങൾ

The CPE881 bridges are designed for simple plug-and-play setup using a dialing pairing method. This section outlines the steps for both Point-to-Point (PTP) and Point-to-Multipoint (PTMP) configurations.

4.1. Point-to-Point (PTP) Setup

In a PTP setup, two CPE881 devices establish a direct wireless link to extend a network connection between two locations.

1. Identify Devices: Designate one CPE881 as the മാസ്റ്റർ പാലം (Transmitter A) and the other as the സ്ലേവ് ബ്രിഡ്ജ് (Receiver B).
2. പവർ ഓൺ: Connect both bridges to their respective POE adapters and power them on.
3. Configure Master Bridge: On the Master Bridge, press the A-B button until the digital tube displays 'A'. This sets it as the transmitter.
4. Configure Slave Bridge: On the Slave Bridge, press the A-B button until the digital tube displays 'B'. This sets it as the receiver.
5. ജോടിയാക്കൽ: The devices will automatically attempt to pair. Once paired, the WLAN and Signal LEDs on both devices will indicate a stable connection.
6. നെറ്റ്‌വർക്കിലേക്ക് കണക്‌റ്റ് ചെയ്യുക:
   • Connect the Master Bridge's LAN port to your main router or network switch.
   • Connect the Slave Bridge's LAN port to the device or local network you wish to extend (e.g., another router, computer, or security camera system).
7. Optimal Alignment: For best performance, ensure a clear line of sight between the two bridges and align them directly towards each other. The signal strength LEDs will help in achieving optimal alignment.

Image 4.1: Point-to-Point Configuration Example

4.2. Point-to-Multipoint (PTMP) Setup

A PTMP setup uses one Master Bridge to connect with multiple Slave Bridges, extending network coverage to several locations simultaneously.

1. Identify Devices: Designate one CPE881 as the മാസ്റ്റർ പാലം (Transmitter A) and the remaining two as Slave Bridges (Receiver B-1 and Receiver B-2).
2. പവർ ഓൺ: Connect all three bridges to their respective POE adapters and power them on.
3. Configure Master Bridge: On the Master Bridge, press the A-B button until the digital tube displays 'A'.
4. Configure Slave Bridges: On the first Slave Bridge, press the A-B button until the digital tube displays 'B'. On the second Slave Bridge, press the A-B button until the digital tube displays 'B'.
5. ജോടിയാക്കൽ: The Master Bridge will automatically pair with all Slave Bridges set to 'B' mode. The WLAN and Signal LEDs on all devices will indicate a stable connection.
6. നെറ്റ്‌വർക്കിലേക്ക് കണക്‌റ്റ് ചെയ്യുക:
   • Connect the Master Bridge's LAN port to your main router or network switch.
   • Connect each Slave Bridge's LAN port to the respective device or local network at each remote location.
7. Optimal Alignment: For PTMP, the Slave Bridges must be positioned in front of the Master Bridge. The Master Bridge and Slave Bridges must face each other, and the maximum angle between the Master Bridge and any Slave Bridge should not exceed 60 degrees for optimal signal.

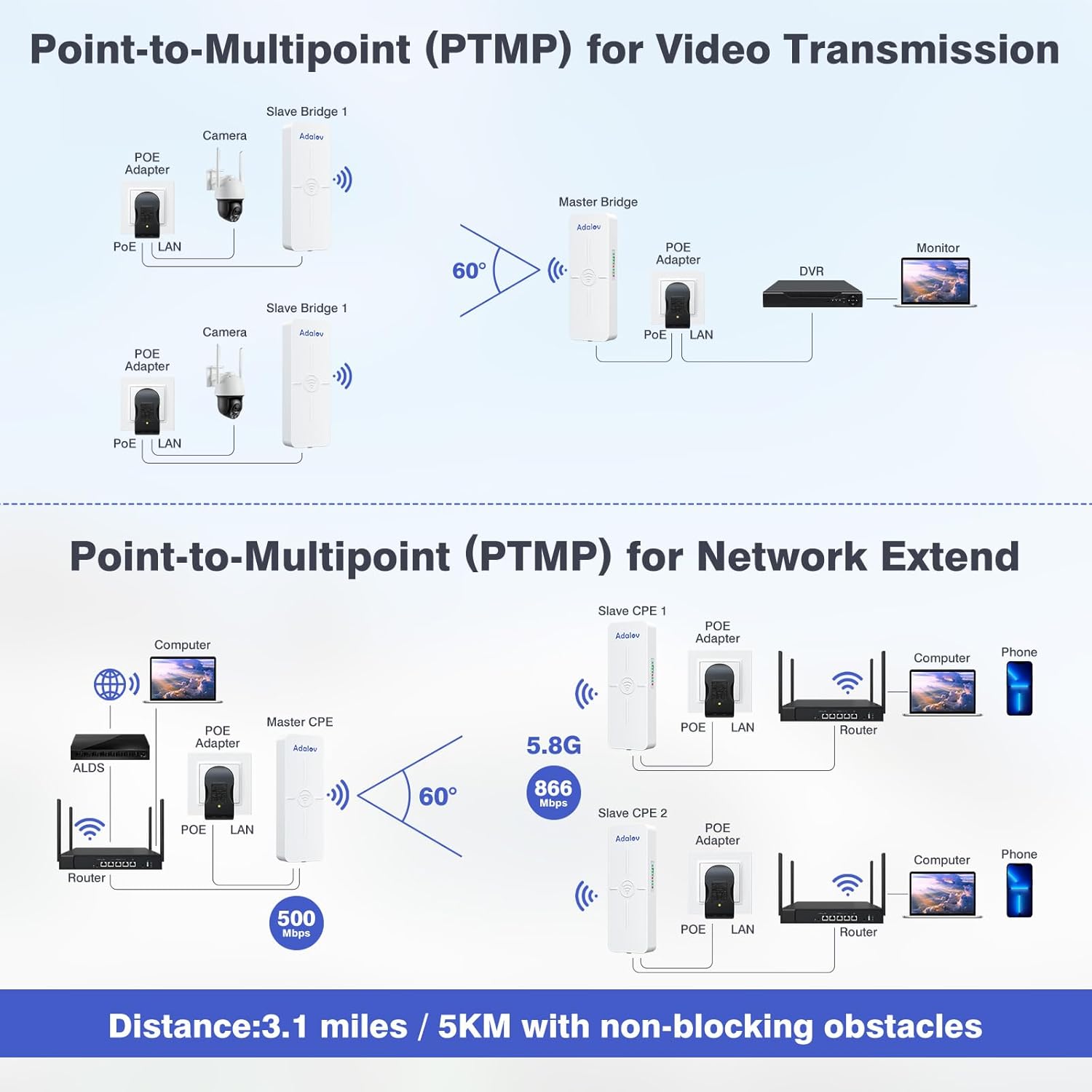

Image 4.2: Point-to-Multipoint Configuration Exampലെസ്

Image 4.3: PTMP Connection Rules

5. പ്രവർത്തന നിർദ്ദേശങ്ങൾ

Once the CPE881 bridges are set up and paired, they operate automatically to maintain the wireless link. Here are some operational considerations:

• സിഗ്നൽ മോണിറ്ററിംഗ്: Regularly check the Signal Light LEDs on each bridge. A higher number of green LEDs indicates a stronger and more stable connection. If signal strength is low, consider adjusting the alignment or checking for new obstructions.
• നെറ്റ്‌വർക്ക് ഇന്റഗ്രേഷൻ: The CPE881 acts as a transparent bridge. Devices connected to the Slave Bridge's LAN port will receive network access from the Master Bridge's network, as if directly connected via an Ethernet cable.
• ഹൈ-സ്പീഡ് പ്രകടനം: The 5.8GHz frequency band and Gigabit LAN ports are designed for high-speed data transfer. For optimal throughput, ensure your connected devices and network infrastructure also support Gigabit speeds.
• പവർ ഓവർ ഇഥർനെറ്റ് (PoE): The included PoE adapters simplify installation by providing both power and data over a single Ethernet cable, reducing cable clutter.

6. പരിപാലനം

The AdaLov CPE881 is designed for minimal maintenance due to its robust construction.

• വെതർപ്രൂഫ് ഡിസൈൻ: The IP65 rating ensures the devices are dustproof and waterproof, suitable for harsh outdoor conditions. No special weather protection is typically required.
• വൃത്തിയാക്കൽ: Periodically inspect the exterior of the devices for dirt or debris buildup. Clean with a soft, damp cloth if necessary. Do not use harsh chemicals or abrasive materials.
• ഫേംവെയർ അപ്‌ഡേറ്റുകൾ: നിർമ്മാതാവ് പരിശോധിക്കുക website periodically for any available firmware updates. Follow the provided instructions carefully for any update process.
• കേബിൾ പരിശോധന: Ensure all network and power cables are securely connected and free from damage.

Image 6.1: IP65 Outdoor Weather Resistance

7. പ്രശ്‌നപരിഹാരം

If you encounter issues with your AdaLov CPE881 wireless bridges, refer to the following common troubleshooting steps:

• ശക്തിയില്ല:
  • Ensure the POE adapter is correctly connected to a power outlet and the bridge.
  • പവർ ഔട്ട്‌ലെറ്റ് പ്രവർത്തനക്ഷമമാണോയെന്ന് പരിശോധിക്കുക.
• No Wireless Link (WLAN LED Off/Flashing Red):
  • Check if the Master and Slave bridges are correctly configured (Master 'A', Slave 'B').
  • Ensure there is a clear line of sight between the bridges. Obstructions like trees or buildings can severely degrade signal.
  • Adjust the physical alignment of the bridges to face each other directly. Use the Signal Light LEDs to optimize alignment.
  • Ensure the distance between bridges does not exceed the maximum recommended range (5KM/3.1 miles).
• Low Signal Strength (Few Green Signal LEDs):
  • Improve line of sight by removing obstructions or adjusting mounting height.
  • Fine-tune the alignment of the bridges. Even small adjustments can significantly improve signal.
• No Network Access (LAN LED Off/No Data):
  • Verify that the Ethernet cables are securely connected to the LAN ports on both the bridge and the connected device/router.
  • Test the Ethernet cables with another device to ensure they are functional.
  • Ensure the main router connected to the Master Bridge is providing internet access.
• Difficulty with Point-to-Multipoint (PTMP) Setup:
  • Confirm all Slave Bridges are set to 'B' mode.
  • Ensure all Slave Bridges are within the 60-degree angular range of the Master Bridge and have a clear line of sight.
• ഫാക്ടറി ഡിഫോൾട്ടുകളിലേക്ക് പുനഃസജ്ജമാക്കുന്നു: If issues persist, you can reset a bridge to its factory default settings by pressing and holding the Reset button for approximately 5-10 seconds until the LEDs flash. After resetting, reconfigure the device.

8 സ്പെസിഫിക്കേഷനുകൾ

Image 8.1: CPE881 Product Dimensions

9. വാറൻ്റിയും പിന്തുണയും

AdaLov products are designed for reliability and performance. Your CPE881 3-Pack Wireless Bridge comes with a customer service guarantee.

• വാറൻ്റി വിവരങ്ങൾ: For specific warranty terms and conditions, please refer to the documentation included with your purchase or visit the official AdaLov webസൈറ്റ്.
• സാങ്കേതിക സഹായം: If you require technical assistance, have questions about installation, or encounter any issues not covered in this manual, please contact AdaLov customer support. Contact details can typically be found on the product packaging, the official AdaLov webസൈറ്റ്, അല്ലെങ്കിൽ നിങ്ങളുടെ വാങ്ങൽ പോയിന്റ് വഴി.
