ഡോൺപർ XF124 ഫ്രോസൺ ഡ്രിങ്ക് മെഷീൻ യൂസർ മാനുവൽ

1. ഉൽപ്പന്നം കഴിഞ്ഞുview

The Donper XF124 is a self-contained, air-cooled countertop frozen drink machine designed for high-volume applications. It offers superior performance and user-friendly operation, making it ideal for serving a variety of frozen beverages.

Key features include a refrigerated hopper for fast recovery and freeze times, mechanical consistency control, and electronic safety sensors. Its all-stainless steel exterior ensures durability and ease of cleaning.

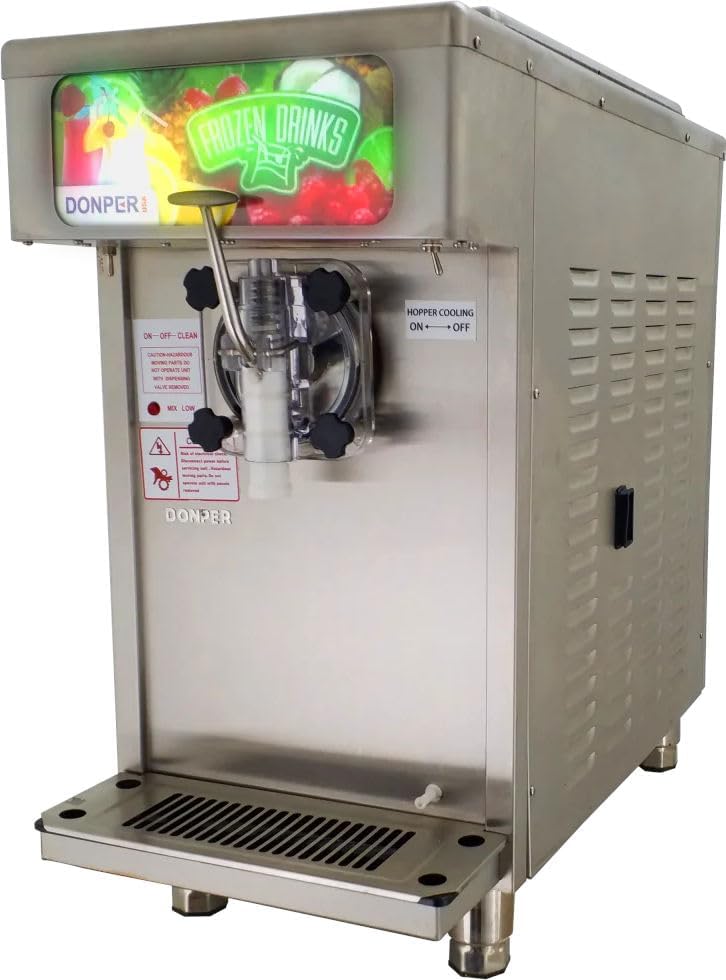

ചിത്രം 1.1: ഫ്രണ്ട് view of the Donper XF124 Frozen Drink Machine, showcasing the dispensing handle, backlit signage, and control panel.

2. സുരക്ഷാ നിർദ്ദേശങ്ങൾ

Before operating the Donper XF124, please read and understand all safety instructions. Failure to do so may result in injury or damage to the machine.

• മെഷീൻ ശരിയായി ഗ്രൗണ്ട് ചെയ്തിട്ടുണ്ടെന്ന് എല്ലായ്പ്പോഴും ഉറപ്പാക്കുക.
• Do not operate the machine with damaged power cords or plugs.
• പ്രവർത്തന സമയത്ത് കൈകളും വിദേശ വസ്തുക്കളും ചലിക്കുന്ന ഭാഗങ്ങളിൽ നിന്ന് അകറ്റി നിർത്തുക.
• വൃത്തിയാക്കുന്നതിനോ അറ്റകുറ്റപ്പണികൾ നടത്തുന്നതിനോ മുമ്പ് വൈദ്യുതി വിച്ഛേദിക്കുക.
• Ensure adequate ventilation around the machine. Maintain at least 6 inches of clearance from walls or other equipment.
• Do not use abrasive cleaners or sharp objects that could damage the stainless steel exterior.
• This machine is designed for commercial use. Only qualified personnel should perform repairs.

ചിത്രം 2.1: ഇടത് വശം view of the Donper XF124, showing the ventilation grilles and a warning label with safety information.

3. സജ്ജീകരണവും ഇൻസ്റ്റാളേഷനും

1. അൺപാക്ക് ചെയ്യുന്നു: Carefully remove the machine from its packaging. Inspect for any shipping damage. Report any damage to your supplier immediately.
2. പ്ലേസ്മെൻ്റ്: Place the machine on a stable, level countertop capable of supporting its weight (189 pounds). Ensure there is at least 6 inches of clear space around all sides for proper air circulation.
3. പവർ കണക്ഷൻ: Connect the machine to a dedicated 115V, single-phase, 60 Hz electrical outlet with an L5-20P plug type. Do not use extension cords.
4. പ്രാരംഭ ക്ലീനിംഗ്: Before first use, thoroughly clean all parts that will come into contact with the product mix, including the hopper, freezing cylinder, and dispensing valve. Refer to the "Maintenance and Cleaning" section for detailed instructions.

ചിത്രം 3.1: Dimensions of the Donper XF124, illustrating its compact countertop design: 30 inches high, 15 inches wide, and 28.5 inches deep.

4. പ്രവർത്തന നിർദ്ദേശങ്ങൾ

1. മിശ്രിതം തയ്യാറാക്കുക: Prepare your frozen drink mix according to the recipe. Ensure the mix is properly chilled before adding it to the machine for optimal performance.
2. Fill Hopper: Pour the prepared mix into the refrigerated hopper. The hopper has a capacity of 19 Qt (18 L). Do not overfill.
3. Activate Hopper Cooling: Turn the "HOPPER COOLING" switch to the "ON" position. This precools the mix, leading to faster recovery and freeze times.
4. മരവിപ്പിക്കൽ ആരംഭിക്കുക: Turn the main power switch to the "ON" position. The machine will begin the freezing process. The mechanical consistency control will ensure the desired frozen drink consistency.
5. വിതരണം ചെയ്യുന്നു: Once the mix reaches the desired consistency, pull the dispensing handle forward to serve. Release the handle to stop dispensing.
6. Mix Low Indicator: The "MIX LOW" indicator light will illuminate when the mix level in the hopper is low, signaling that a refill is needed.

ചിത്രം 4.1: Close-up of the control panel, showing the ON-OFF-CLEAN switch, MIX LOW indicator, and HOPPER COOLING switch.

5. പരിപാലനവും ശുചീകരണവും

Regular cleaning and maintenance are crucial for the longevity and hygienic operation of your Donper XF124 machine.

പ്രതിദിന ശുചീകരണം:

1. Empty Machine: Dispense any remaining product mix.
2. പവർ ഓഫ്: Turn the main power switch to "OFF" and unplug the machine.
3. ഡിസ്അസംബ്ലിംഗ്: Carefully remove the dispensing handle, front panel, and internal components (beater, seals, etc.).
4. കഴുകുന്ന ഘടകങ്ങൾ: Wash all disassembled parts with warm, soapy water. Use a soft brush for hard-to-reach areas. Rinse thoroughly with clean water.
5. അണുവിമുക്തമാക്കുക: Sanitize all washed parts using a food-grade sanitizer solution according to the manufacturer's instructions.
6. വൃത്തിയുള്ള പുറം: പരസ്യം ഉപയോഗിച്ച് സ്റ്റെയിൻലെസ് സ്റ്റീൽ പുറംഭാഗം തുടയ്ക്കുകamp cloth and mild detergent. Dry thoroughly to prevent water spots.
7. വീണ്ടും കൂട്ടിച്ചേർക്കുക: Reassemble all components, ensuring they are dry and correctly seated.

ആനുകാലിക പരിപാലനം:

• ലൂബ്രിക്കേഷൻ: Periodically lubricate O-rings and seals with food-grade lubricant to ensure smooth operation and prevent leaks.
• എയർ ഫിൽട്ടർ ക്ലീനിംഗ്: Regularly clean the air filters located on the side panels to ensure proper airflow and cooling efficiency.
• പ്രൊഫഷണൽ പരിശോധന: It is recommended to have the machine inspected by a qualified technician annually to check refrigerant levels, motor performance, and overall system health.

ചിത്രം 5.1: ഫ്രണ്ട്-വലത് view of the Donper XF124, showing the side ventilation and the general layout for access during cleaning.

6. പ്രശ്‌നപരിഹാരം

For issues not listed above, or if troubleshooting steps do not resolve the problem, please contact customer support.

7 സ്പെസിഫിക്കേഷനുകൾ

8. വാറൻ്റിയും പിന്തുണയും

Donper provides support for its products. For technical assistance, parts, or service, please contact Donper customer support.

Extended protection plans are available for purchase, offering additional coverage beyond the standard manufacturer's warranty. These include:

• 3-വർഷ സംരക്ഷണ പദ്ധതി
• 4-വർഷ സംരക്ഷണ പദ്ധതി

For specific warranty terms and conditions, please refer to the documentation provided at the time of purchase or contact Donper directly.

ഉപഭോക്തൃ പിന്തുണ: Refer to your purchase documentation for contact information or visit the official Donper webസൈറ്റ്.
