1. ആമുഖം
The Axus 88 Note Folding Digital Piano is designed to provide a full-sized piano experience with the convenience of portability. Featuring 88 semi-weighted keys, this instrument is suitable for both aspiring musicians and seasoned players. Its compact and foldable design allows for easy transport and storage, making it an ideal musical companion for various settings.
2. സജ്ജീകരണ ഗൈഡ്
Follow these steps to set up your Axus 88 Note Folding Digital Piano:
- അൺപാക്ക് ചെയ്യുന്നു: Carefully remove all components from the packaging, including the piano, power adapter, sustain pedal, and carry bag.
- Unfolding the Piano: Place the piano on a flat, stable surface. Gently unfold the two halves of the piano until they lock securely into place. Ensure the hinge mechanism is fully extended and stable before use.
- ബന്ധിപ്പിക്കുന്ന പവർ: Connect the included USB power cable to the piano's power input port and then to a suitable USB power adapter (not always included, check packaging) or a powered USB port. The piano can also operate on its internal battery.
- Connecting Sustain Pedal: Plug the sustain pedal into the designated sustain pedal input jack on the piano.
- പ്രാരംഭ പവർ ഓൺ: Press the power button to turn on the piano. The display (if present) should illuminate.
Image 2.1: The Axus 88 Note Folding Digital Piano in its fully unfolded state, showing the music rest and connected sustain pedal.

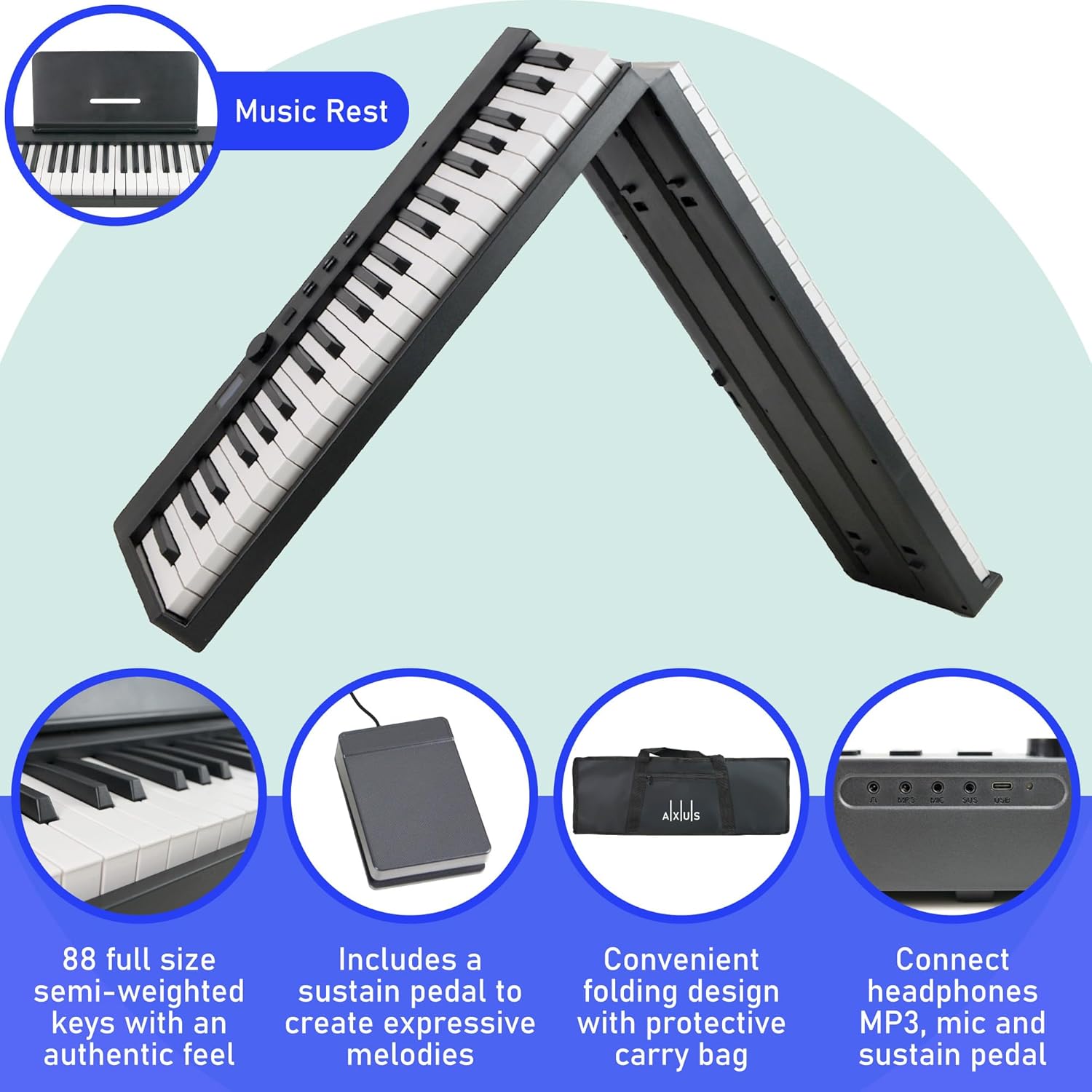

ചിത്രം 2.2: വിശദമായത് view highlighting the piano's folding mechanism, semi-weighted keys, included sustain pedal, protective carry bag, and connectivity ports (headphone, mic, USB).
3. പ്രവർത്തന നിർദ്ദേശങ്ങൾ
3.1 അടിസ്ഥാന പ്രവർത്തനങ്ങൾ
- പവർ ഓൺ/ഓഫ്: Press and hold the power button to turn the piano on or off.
- വോളിയം നിയന്ത്രണം: Use the dedicated volume knob or buttons to adjust the output volume of the speakers or headphones.
3.2 വിപുലമായ സവിശേഷതകൾ
- Tones and Rhythms: Explore 128 different tones (instrument sounds) and 128 rhythms (backing tracks). Use the dedicated Tone and Rhythm buttons to cycle through options or enter specific numbers if available.
- മാറ്റുക: Adjust the pitch of the entire keyboard up or down in semitone steps. Refer to the piano's display or manual for specific transpose controls.
- നിലനിർത്തുക: The connected sustain pedal allows notes to ring out longer, mimicking an acoustic piano's sustain pedal.
- റെക്കോർഡിംഗ്: Use the record function to capture your performances. Consult the piano's interface for starting, stopping, and playing back recordings.
- Dual/Layer: Combine two different tones to play simultaneously when a single key is pressed, creating richer sounds.
- മെട്രോനോം: Activate the built-in metronome to practice with a steady tempo. Adjust the tempo as needed.
- ബ്ലൂടൂത്ത് കണക്റ്റിവിറ്റി: Connect your smart device via Bluetooth to play along with your favorite songs or use educational apps.
- ഹെഡ്ഫോൺ ഔട്ട്പുട്ട്: For private practice, connect standard headphones to the headphone jack. This mutes the internal speakers.
- USB MIDI: Connect the piano to a computer or other MIDI-compatible device via USB for recording, music production, or using the piano as a MIDI controller.
Image 3.1: The control panel of the Axus piano, illustrating buttons for various functions such as Rhythm, Demo songs, Tone selection, Chord mode, and Record/Play.
4. പരിപാലനം
- വൃത്തിയാക്കൽ: Use a soft, dry cloth to wipe down the piano's surface. For stubborn marks, slightly dampതുണിയിൽ വെള്ളം ഒഴിക്കുക. അബ്രാസീവ് ക്ലീനറുകളോ ലായകങ്ങളോ ഒഴിവാക്കുക.
- സംഭരണം: When not in use, fold the piano and store it in the included carry bag to protect it from dust and damage. Store in a cool, dry place away from direct sunlight or extreme temperatures.
- ബാറ്ററി കെയർ: To prolong battery life, avoid fully discharging the battery frequently. Charge the piano regularly, even if not in constant use. If storing for an extended period, charge the battery to about 50% before storage.
- ഗതാഗതം: Always use the provided carry bag when transporting the piano to prevent scratches and impacts.
5. പ്രശ്നപരിഹാരം
| പ്രശ്നം | സാധ്യമായ കാരണം | പരിഹാരം |
|---|---|---|
| സ്പീക്കറുകളിൽ നിന്നും/ഹെഡ്ഫോണുകളിൽ നിന്നും ശബ്ദമില്ല. | Volume too low; headphones connected; piano not powered on; faulty connection. | Increase volume. Disconnect headphones. Ensure piano is powered on. Check all cable connections. |
| പിയാനോ പവർ ഓൺ ചെയ്യുന്നില്ല. | Low battery; power cable not connected properly; faulty power adapter. | Charge the battery. Ensure power cable is securely connected. Try a different USB power source/adapter. |
| Keys feel unresponsive or sticky. | Dust or debris under keys; environmental factors (humidity). | Gently clean around keys with a soft brush or compressed air. Store in a dry environment. If problem persists, contact support. |
| ബ്ലൂടൂത്ത് കണക്ഷൻ പ്രശ്നങ്ങൾ. | Bluetooth not enabled on device/piano; device too far; interference. | Ensure Bluetooth is active on both devices. Move device closer to piano. Restart both devices. |
6 സാങ്കേതിക സവിശേഷതകൾ
| ഫീച്ചർ | സ്പെസിഫിക്കേഷൻ |
|---|---|
| കീകളുടെ എണ്ണം | 88 |
| കീ തരം | സെമി വെയ്റ്റഡ് |
| ടോണുകൾ | 128 |
| താളം | 128 |
| കണക്റ്റിവിറ്റി | USB MIDI, Headphone Output, Bluetooth |
| പവർ ഉറവിടം | Battery (up to 6 hours), USB Chargeable |
| സ്പീക്കറുകൾ | 2 x 2.5W |
| ഭാരം | 5.55 കിലോഗ്രാം |
| മടക്കാത്ത അളവുകൾ (L x W x H) | 123 സെ.മീ x 22 സെ.മീ x 6.5 സെ.മീ |
| മടക്കിയ അളവുകൾ (L x W x H) | 61 സെ.മീ x 22 സെ.മീ x 6.5 സെ.മീ |
Image 6.1: Visual representation of the piano's dimensions when unfolded and folded, including length, width, and height.
7. വാറൻ്റിയും പിന്തുണയും
Specific warranty details for the Axus 88 Note Folding Digital Piano are not provided in the product information. For warranty claims or detailed support, please refer to the retailer's return policy or contact Axus customer support directly. As per Amazon's policy, a 30-day refund/replacement period may apply from the date of purchase.
For technical assistance, troubleshooting beyond this manual, or spare parts inquiries, please visit the official Axus webസൈറ്റ് അല്ലെങ്കിൽ അവരുടെ ഉപഭോക്തൃ സേവന വിഭാഗവുമായി ബന്ധപ്പെടുക.
