1. ആമുഖം
Thank you for choosing the iDOO Portable Heating Pad. This device is designed to provide targeted heat and massage therapy for temporary relief of minor aches and pains. Please read this manual thoroughly before use to ensure safe and effective operation.
2 സുരക്ഷാ വിവരങ്ങൾ
Please do not use the heating pad directly on the skin; use it through clothing. The device will automatically shut off after 30 minutes of continuous use to prevent overheating.
3. ഉപയോഗത്തിനുള്ള സൂചനകൾ
This portable heating pad is intended for temporary relief of minor aches and pains associated with menstrual cramps, back pain, and stomach pain.
4. ഉൽപ്പന്ന സവിശേഷതകൾ
- മൂന്ന് താപ നിലകൾ: Adjustable temperatures for personalized comfort (108°F/48°C, 132°F/56°C, 140°F/60°C).
- മൂന്ന് മസാജ് മോഡുകൾ: High-frequency vibration massage modes (weak, medium, strong) can be used independently or simultaneously with heat.
- ദ്രുത ചൂടാക്കൽ: Utilizes graphene technology for quick heat-up in approximately 2 seconds.
- ദീർഘകാല ബാറ്ററി: Equipped with a 2000mAh battery, providing over 4 hours of continuous use. Rechargeable via Type-C USB.
- കുറഞ്ഞ ശബ്ദ പ്രവർത്തനം: Operates at less than 40dB, suitable for use during rest, study, work, or sleep.
- യാന്ത്രിക ഷട്ട്-ഓഫ്: Automatically powers off after 30 minutes of continuous use for safety.
- ക്രമീകരിക്കാവുന്നതും സുഖകരവുമായ ഡിസൈൻ: Features a high elastic belt (up to 40 inches) and soft, breathable fabric for a comfortable fit.

Figure 1: Rapid heating for relief of dysmenorrhea, back pain, and neck pain.
5. സജ്ജീകരണം
- അൺപാക്ക് ചെയ്യുന്നു: പാക്കേജിംഗിൽ നിന്ന് ഹീറ്റിംഗ് പാഡും എല്ലാ അനുബന്ധ ഉപകരണങ്ങളും ശ്രദ്ധാപൂർവ്വം നീക്കം ചെയ്യുക.
- പ്രാരംഭ ചാർജ്: Before first use, fully charge the device using the provided USB Type-C cable. The charging indicator lights will show progress and stop when fully charged.
- ബെൽറ്റ് ക്രമീകരിക്കുന്നു: The elastic belt is adjustable to fit various waist circumferences. Adjust the buckle to achieve a snug yet comfortable fit around your abdomen or lower back.

Figure 2: Adjustable belt and soft fabric of the heating pad.
6. പ്രവർത്തന നിർദ്ദേശങ്ങൾ
- പവർ ഓൺ: Press and hold the power button (usually indicated by a circle or wave icon) for a few seconds to turn on the device.
- ഹീറ്റ് ലെവൽ തിരഞ്ഞെടുക്കുക: Press the heat button (often a thermometer icon) to cycle through the three temperature settings: 108°F/48°C, 132°F/56°C, or 140°F/60°C. Indicator lights will show the selected level.
- മസാജ് മോഡ് തിരഞ്ഞെടുക്കുക: Press the massage button (often a wave icon) to choose from the three high-frequency vibration massage modes. Indicator lights will show the selected mode.
- പ്ലേസ്മെൻ്റ്: Place the heating pad on the desired area of the body (abdomen or lower back), ensuring it is worn over clothing and not in direct contact with the skin.
- സുരക്ഷിതം: Use the adjustable belt to secure the pad comfortably in place.
- യാന്ത്രിക ഷട്ട്-ഓഫ്: For safety, the device will automatically power off after 30 minutes of continuous use. If further use is desired, simply power it on again and select your preferred settings.
- പവർ ഓഫ്: Press and hold the power button again to turn off the device.

Figure 3: Illustration of the three heat levels and their recommended uses.

Figure 4: Illustration of the three vibration massage modes.
7. ഉപയോഗ സാഹചര്യങ്ങൾ
The iDOO Portable Heating Pad's cordless and lightweight design allows for versatile use in various settings:
- വിശ്രമം: Enjoy soothing relief while relaxing at home.
- പ്രവർത്തിക്കുന്നു: Maintain comfort during office hours without being tethered to an outlet.
- പഠിക്കുന്നു: Alleviate discomfort while focusing on your studies.
- ഡ്രൈവിംഗ്: Use discreetly for relief during commutes or long drives.

Figure 5: The portable heating pad can be used in various daily activities.
8. പരിപാലനം
- വൃത്തിയാക്കൽ: To clean the heating pad, gently wipe it with a damp cloth. Do not immerse the device in water or use harsh cleaning agents. Allow it to air dry completely before storage or next use.
- സംഭരണം: Store the heating pad in a cool, dry place away from direct sunlight and moisture when not in use.
9. പ്രശ്നപരിഹാരം
| പ്രശ്നം | സാധ്യമായ കാരണം | പരിഹാരം |
|---|---|---|
| ഉപകരണം ഓണാക്കില്ല. | ബാറ്ററി കുറവാണ് അല്ലെങ്കിൽ ചാർജ് ചെയ്തിട്ടില്ല. | Ensure the device is fully charged using the provided USB Type-C cable. |
| No heat or weak heat. | Incorrect heat setting or device malfunction. | Press the heat button to select a higher temperature level. Ensure the device is powered on. If the issue persists, contact customer support. |
| No vibration or weak vibration. | Incorrect massage setting or device malfunction. | Press the massage button to select a different or higher vibration mode. Ensure the device is powered on. If the issue persists, contact customer support. |
| ഉപകരണം അപ്രതീക്ഷിതമായി ഓഫാകുന്നു. | Automatic 30-minute shut-off feature activated. | This is a safety feature. Simply power the device on again to continue use. |
10 സ്പെസിഫിക്കേഷനുകൾ
- ബ്രാൻഡ്: iDOO
- മോഡൽ: പോർട്ടബിൾ ഹീറ്റിംഗ് പാഡ്
- മെറ്റീരിയൽ: ഗ്രാഫീൻ
- ഉൽപ്പന്ന അളവുകൾ: 4.33 x 0.79 x 4.72 ഇഞ്ച്
- ഭാരം: 11.85 ഔൺസ്
- ബാറ്ററി ശേഷി: 2000mAh
- താപ നില: 3 (108°F/48°C, 132°F/56°C, 140°F/60°C)
- മസാജ് മോഡുകൾ: 3 (High-frequency vibration)
- യാന്ത്രിക ഷട്ട്-ഓഫ്: 30 മിനിറ്റ്
- ചാർജിംഗ്: യുഎസ്ബി ടൈപ്പ്-സി

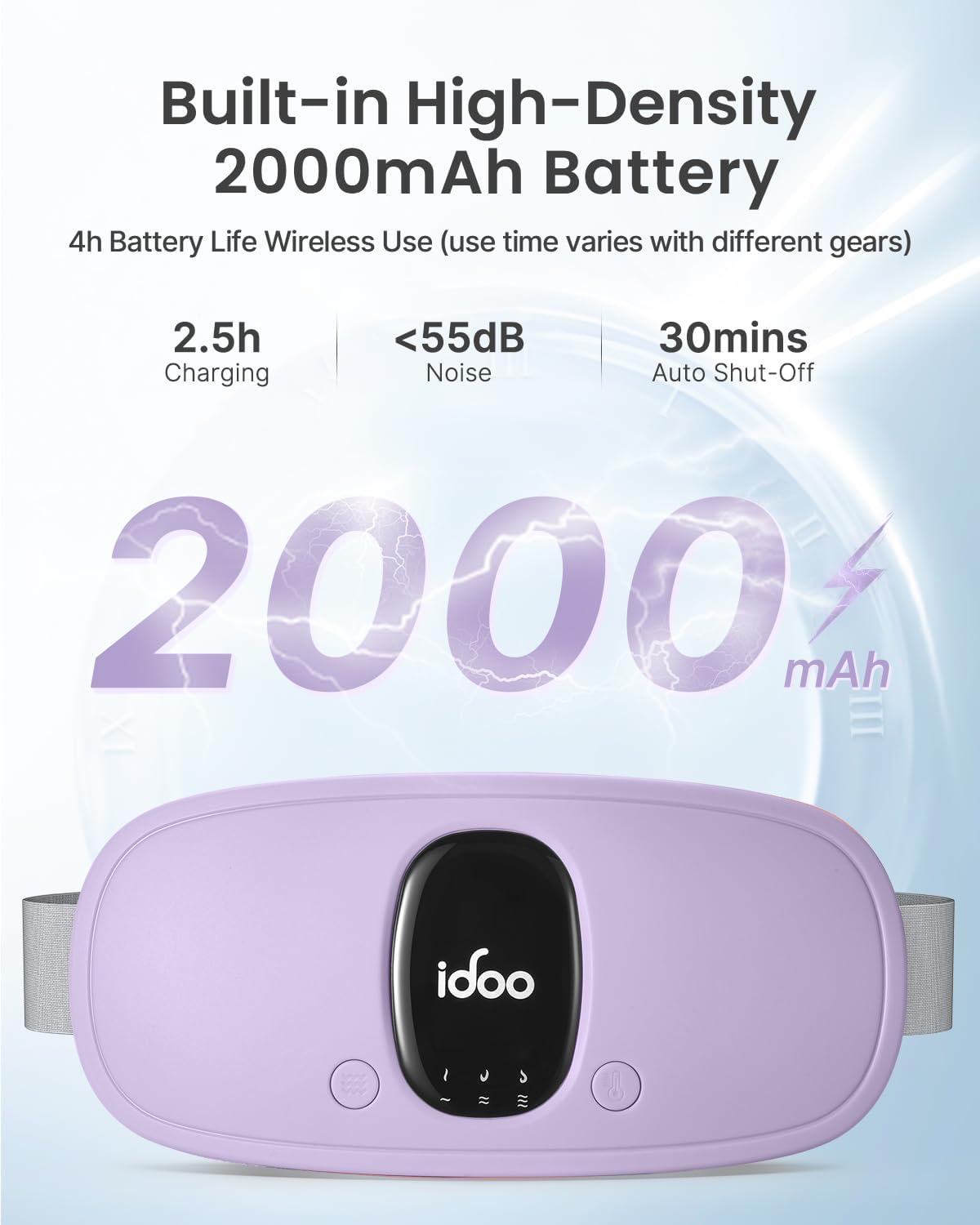

Figure 6: Built-in high-density 2000mAh battery for extended use.
11. വാറൻ്റിയും പിന്തുണയും
For warranty information or technical support, please refer to the product packaging or contact iDOO customer service directly. Keep your purchase receipt for warranty claims.
നിയമപരമായ നിരാകരണം: ഡയറ്ററി സപ്ലിമെൻ്റുകളെക്കുറിച്ചുള്ള പ്രസ്താവനകൾ FDA വിലയിരുത്തിയിട്ടില്ല, അവ ഏതെങ്കിലും രോഗമോ ആരോഗ്യസ്ഥിതിയോ നിർണ്ണയിക്കാനോ ചികിത്സിക്കാനോ സുഖപ്പെടുത്താനോ തടയാനോ ഉദ്ദേശിച്ചുള്ളതല്ല.
